Overview

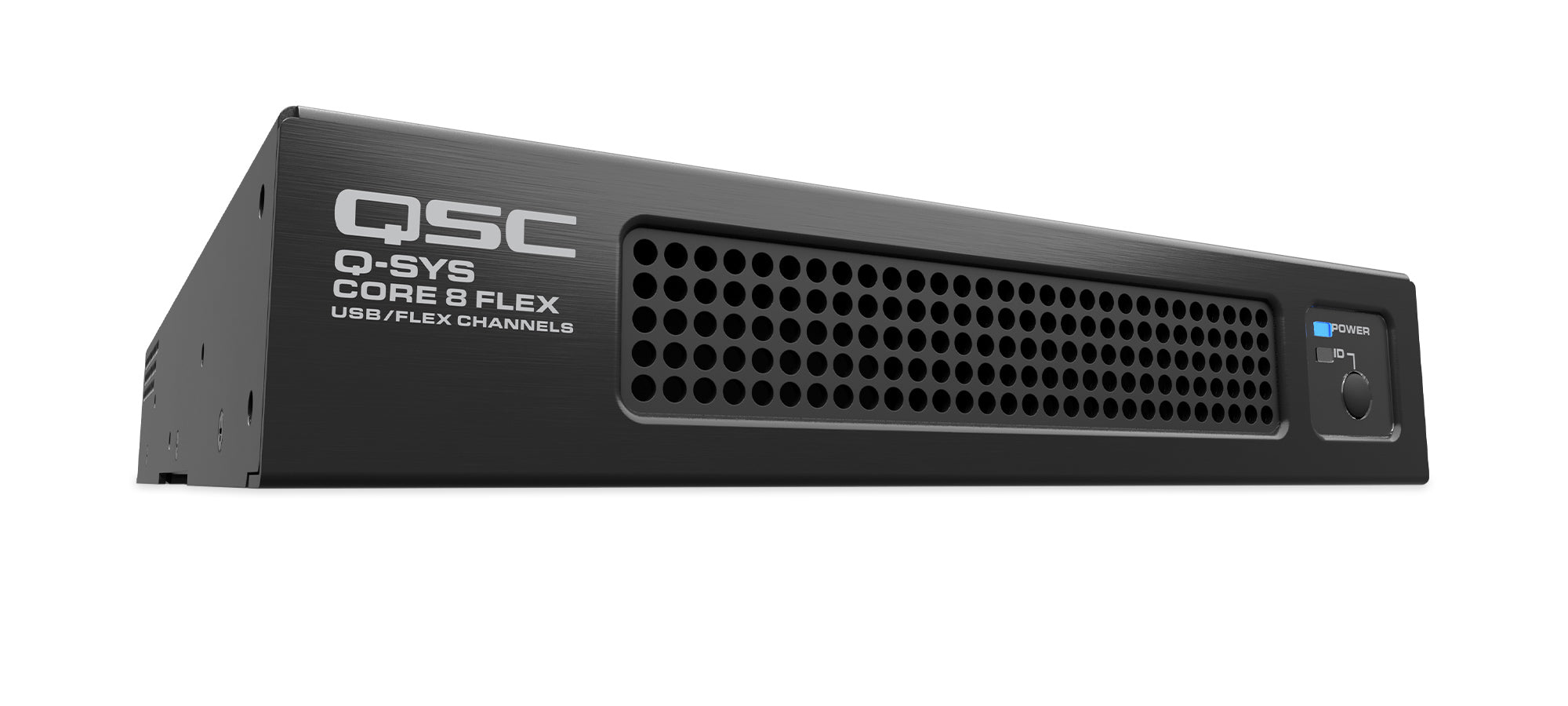

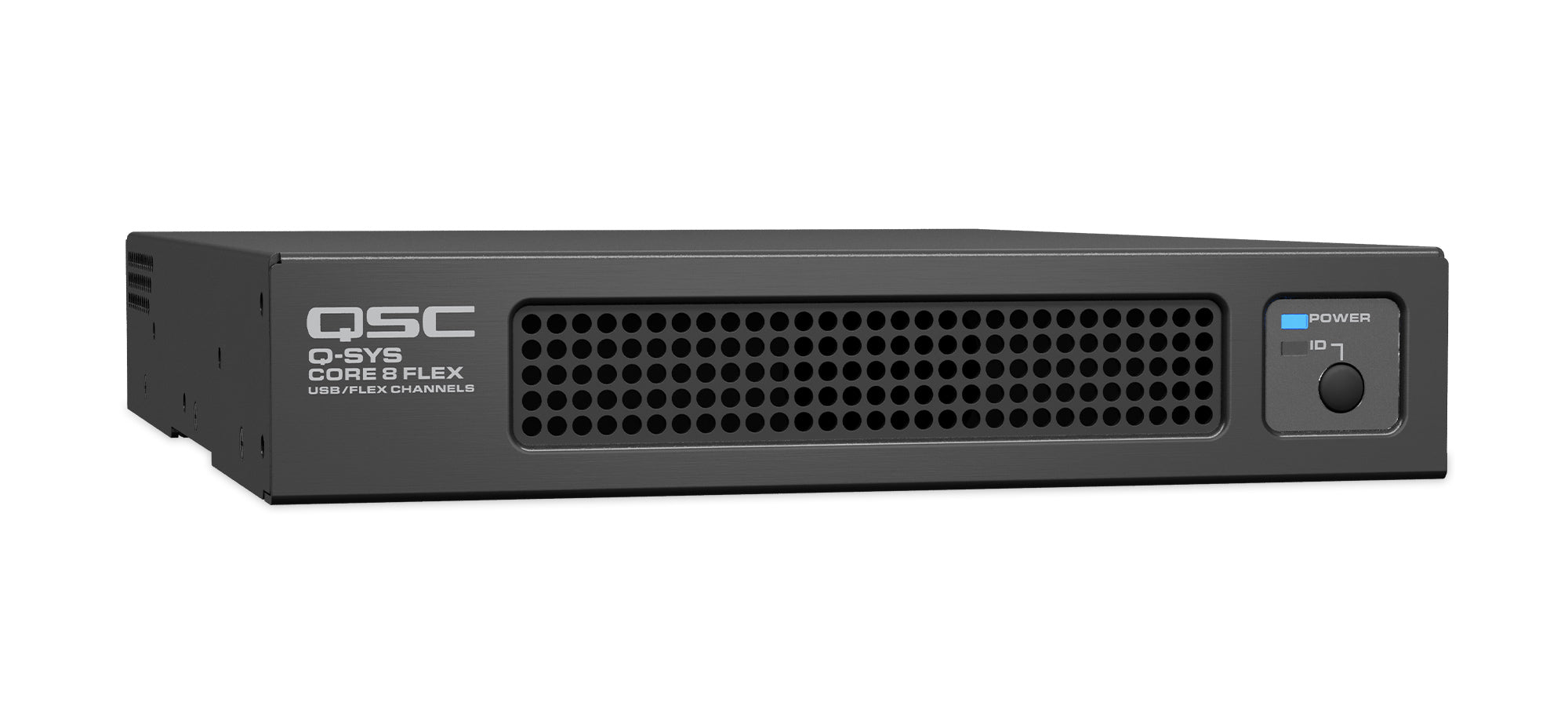

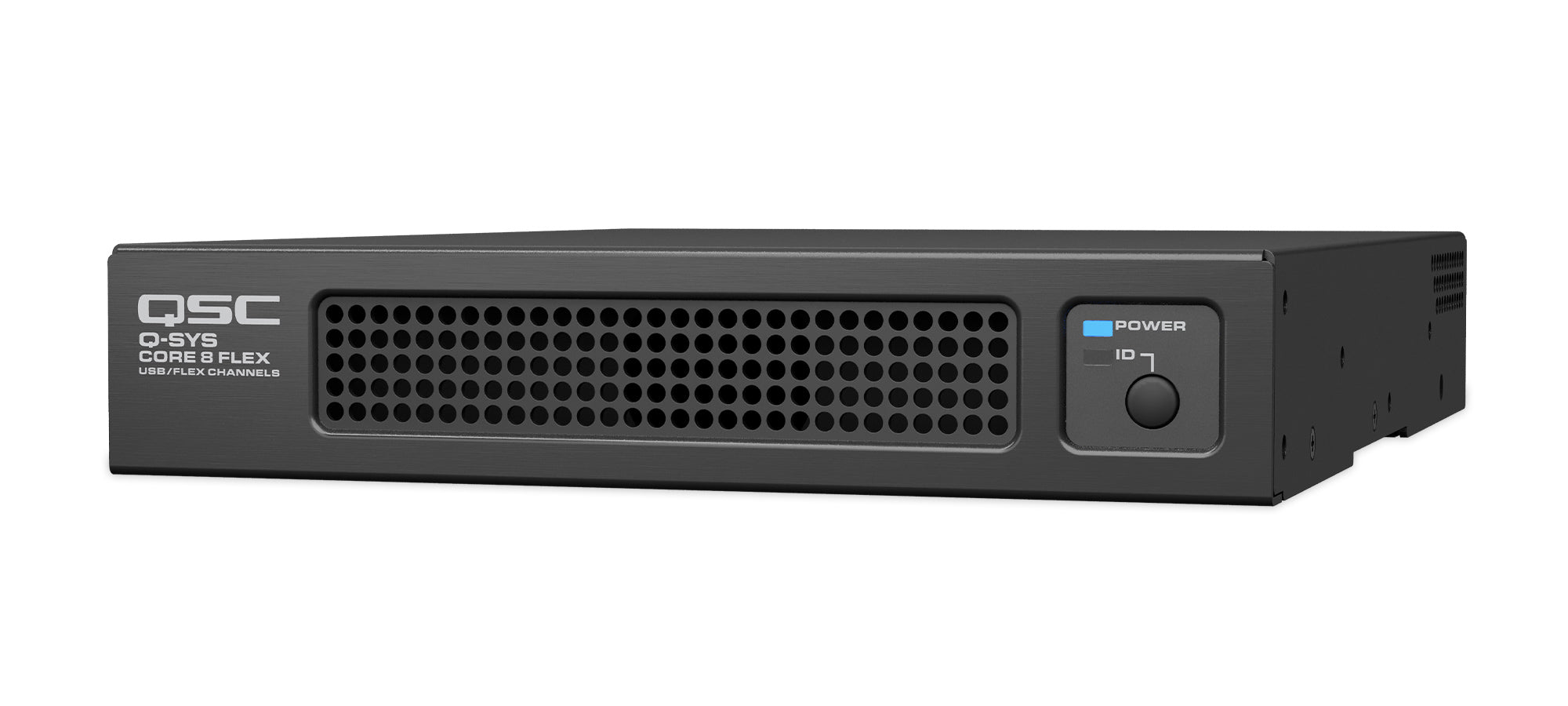

The Core 8 Flex audio, video and control (AV&C) processor extends the applications of the Q-SYS Platform into a wider range of smaller-scale installations across corporate, higher education, healthcare and beyond. Built on the same foundational technologies and driven by the same Q-SYS OS as the rest of the Q-SYS processor portfolio, including the best-in-class Q-SYS Core 110f, Core 8 Flex is designed for applications with lower network or analog channel capacity and/or targeted processing requirements.
Features
- 64 x 64 networked audio channels (Q-LAN / AES67)
- 8x on-board Flex channels and GPIO
- 8x AEC processors
- Up to 32 x 32 Dante audio channels (8 x 8 included)
- USB AV bridging (8 x 8 audio + Q-SYS camera support)
- Full-featured Q-SYS Control engine (with optional feature license)
- External USB audio device host
- Up to 2x VoIP instances
- 1U half-width, includes mounting hardware
Specifications
Channel Capacity
- Total network I/O channels: 64 x 64
- Total network I/O streams: 32 x 32
- Dante channels: 8 x 8 (included); licensable up to 32 x 32
- Local analog I/O channels: 8 flex
- AEC processors: 8
- VoIP instances: 2
- Audio recording / playback: 4 ch recording / 16 ch playback (expandable to 32 ch with optional license)
- Q-SYS NM-T1 capacity: 3 (base capacity); 6 (with Capacity Scaling License)
- Network peripherals: up to 32
Mic/Line Inputs
- Phantom power: +48 VDC, 10 mA per input max
- A/D-D/A converters: 24 bit
- Sample rate: 48 kHz

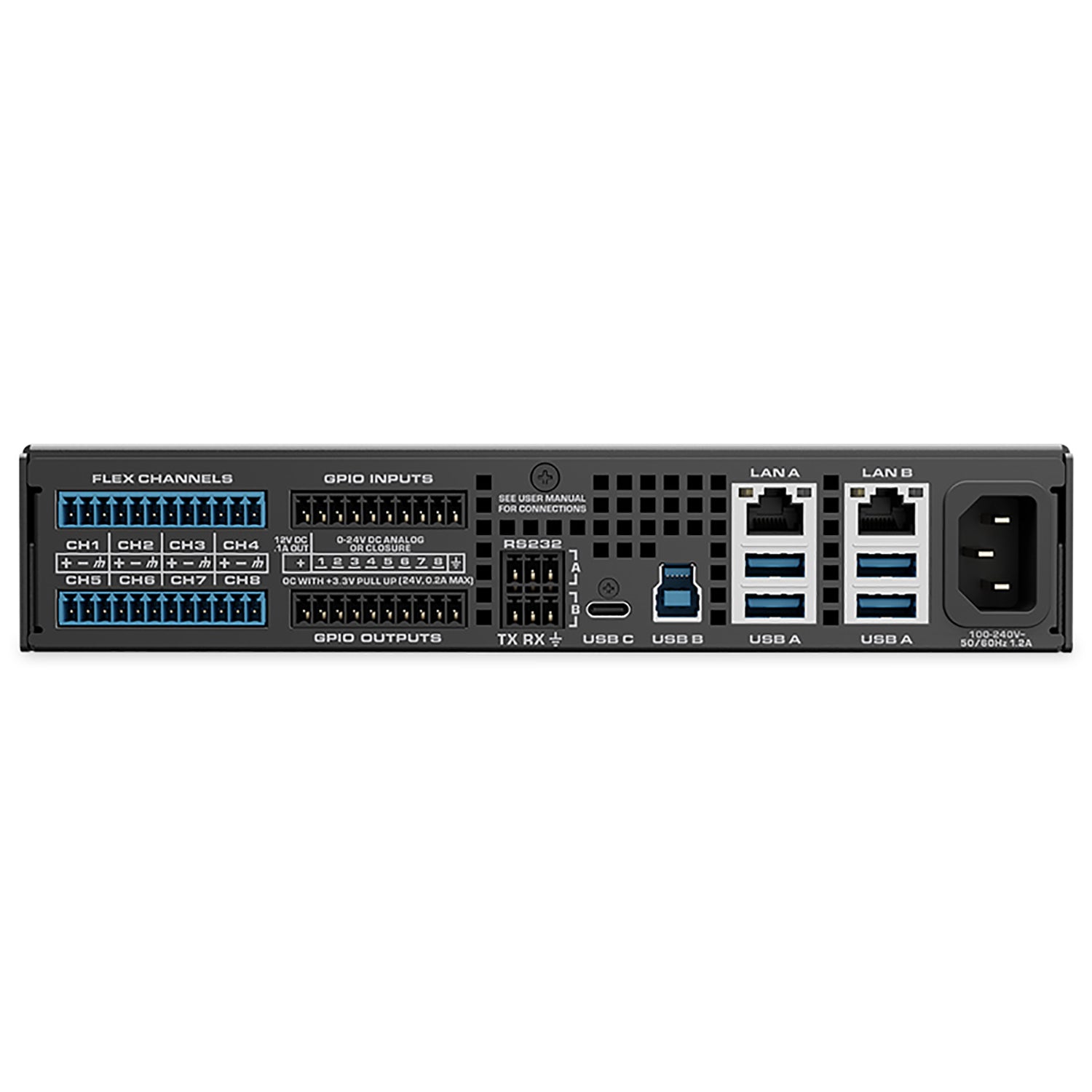

Control
- RS-232: 2 ports
- GPIO: 8 x 8
USB Inputs & Outputs
- Channel count: 8 x 8
- Bit depth: 16 bit
- Sample rate: 48 kHz
- USB audio device hosting: Support for standard USB headset, speakerphone
Environmental
- Power consumption: 40 W typical
Physical
- Device dimensions (H x W x D): 1.72 x 8.66 x 11.28 in (43.6 x 220 x 286.6 mm)
- Weight: 4.0 lbs (1.8 kg)
Battery
- Battery chemistry (embedded, non-accessible): Lithium Carbon Monofluoride
