Overview

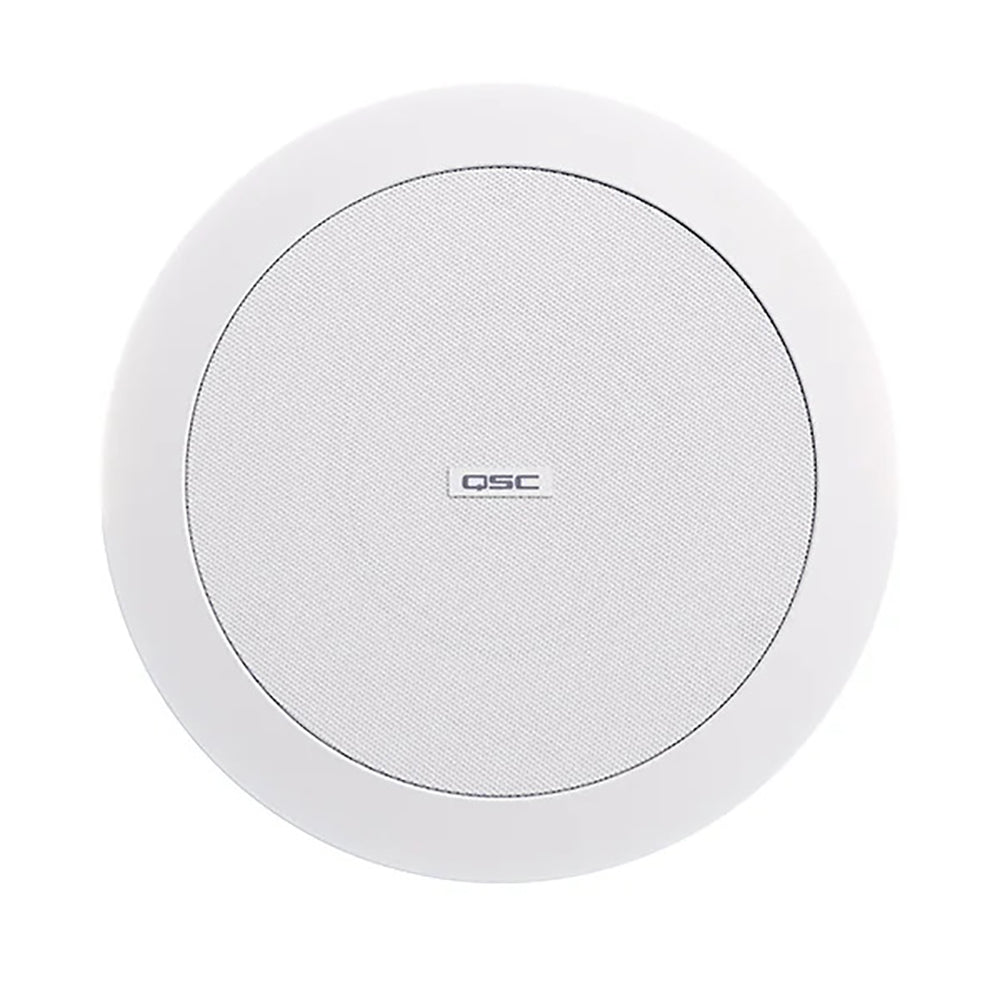

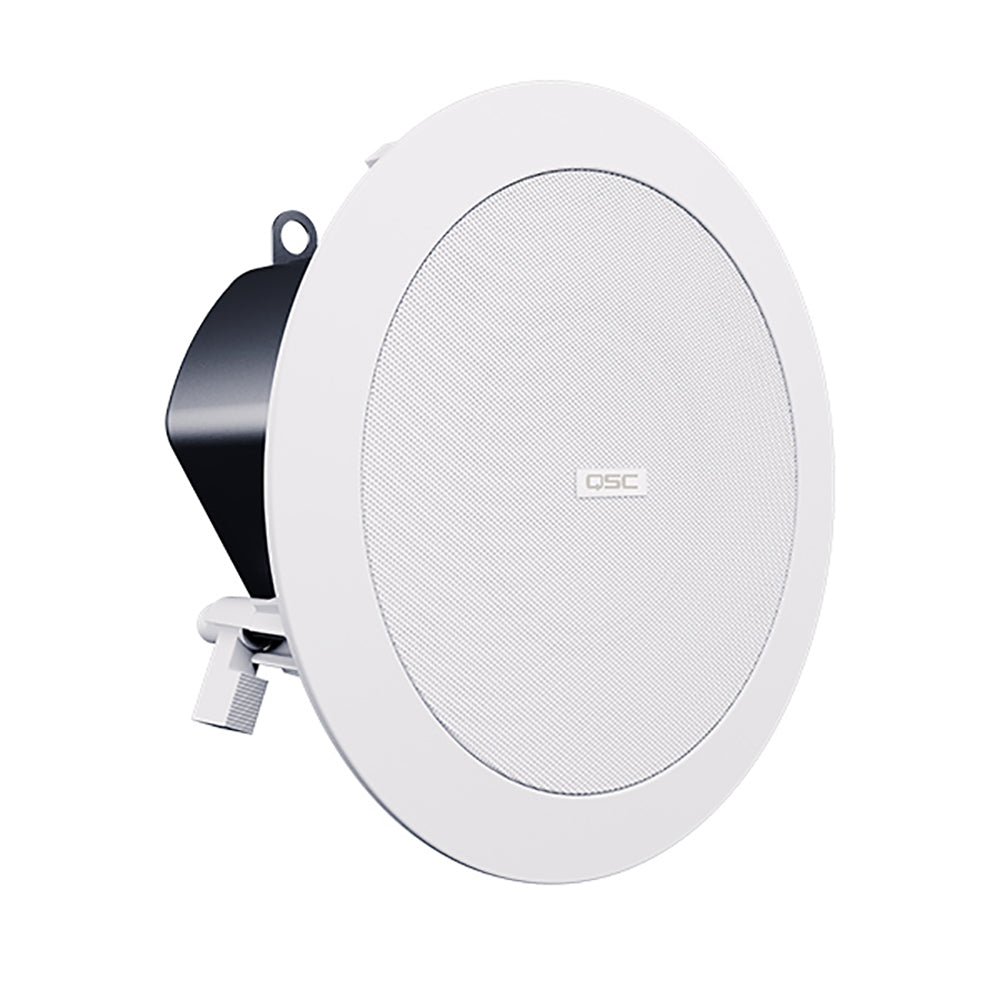

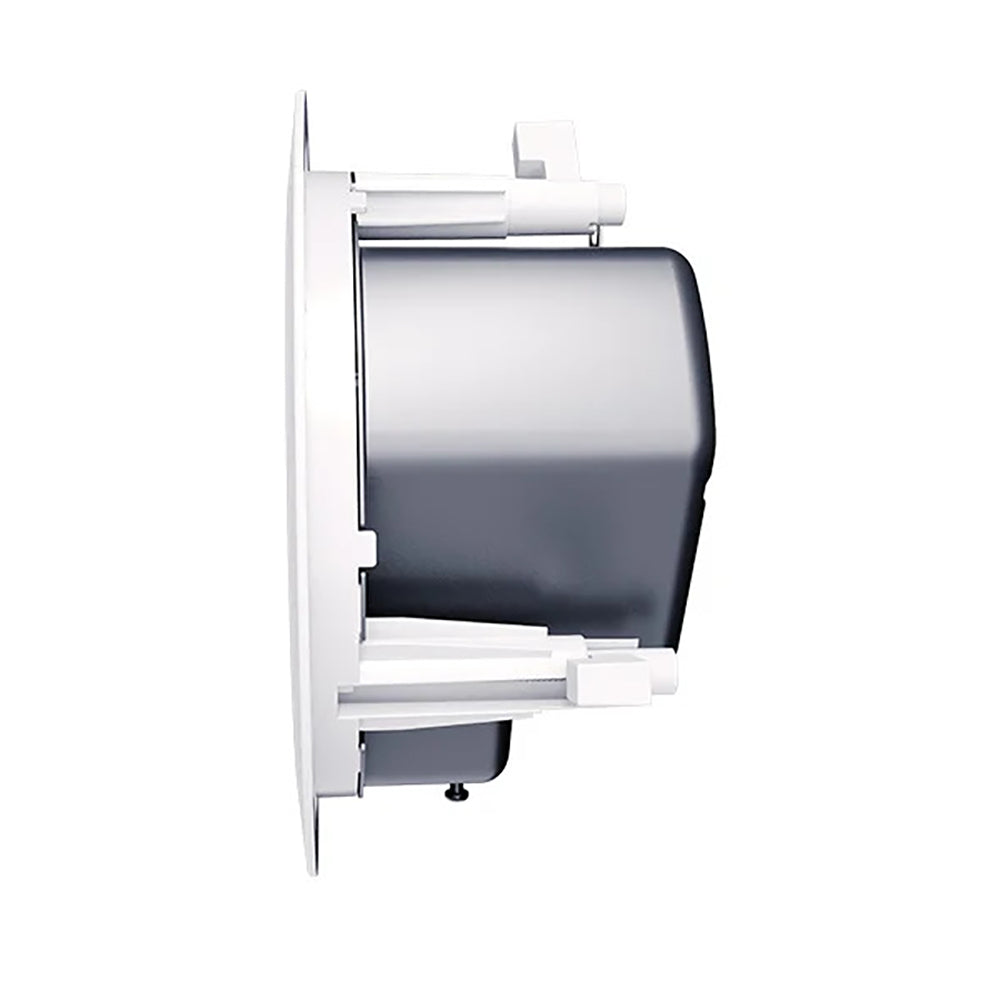

The Q-SYS NL-C4 is a network PoE loudspeaker that delivers clear speech and music reproduction natively to Q-SYS. The ceiling-mount loudspeaker features a four-inch, full-range driver and can be integrated into your space with a single Ethernet cable to reduce overall hardware footprint and lower system cost. As a native Q-SYS product, it supports drag-and-drop integration and simple control capabilities through Q-SYS.
Features
- Native PoE ceiling-mount loudspeaker for Q-SYS
- 4-inch, full-range driver
- Powered over Ethernet enables power, data, and control over a single cable
- Consistent tonal characteristics across the NL Series family for mix-and-match system design
- Q-SYS integrates loudspeaker voicings (Intrinsic Correction™) for simplified tuning
- Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
- Available in white (RAL 9010) only
Specifications
Loudspeaker Type
- Network PoE ceiling-mount loudspeaker for Q-SYS
Driver
- 4-in (101.6 mm) full-range paper cone woofer, ferrite magnet
Frequency Response
- Effective range: 100 Hz to 20 kHz
Power / Voltage
- 12 W (PoE), 24 W (PoE+)
Coverage
- 120° (-6 dB)
Directivity
- Directivity factor: 3.8
- Directivity index: 5.8 dB
Maximum SPL
- Continuous: 94 dB (PoE), 97 dB (PoE+)
- Peak: 108 dB (PoE), 111 dB (PoE+)
Input

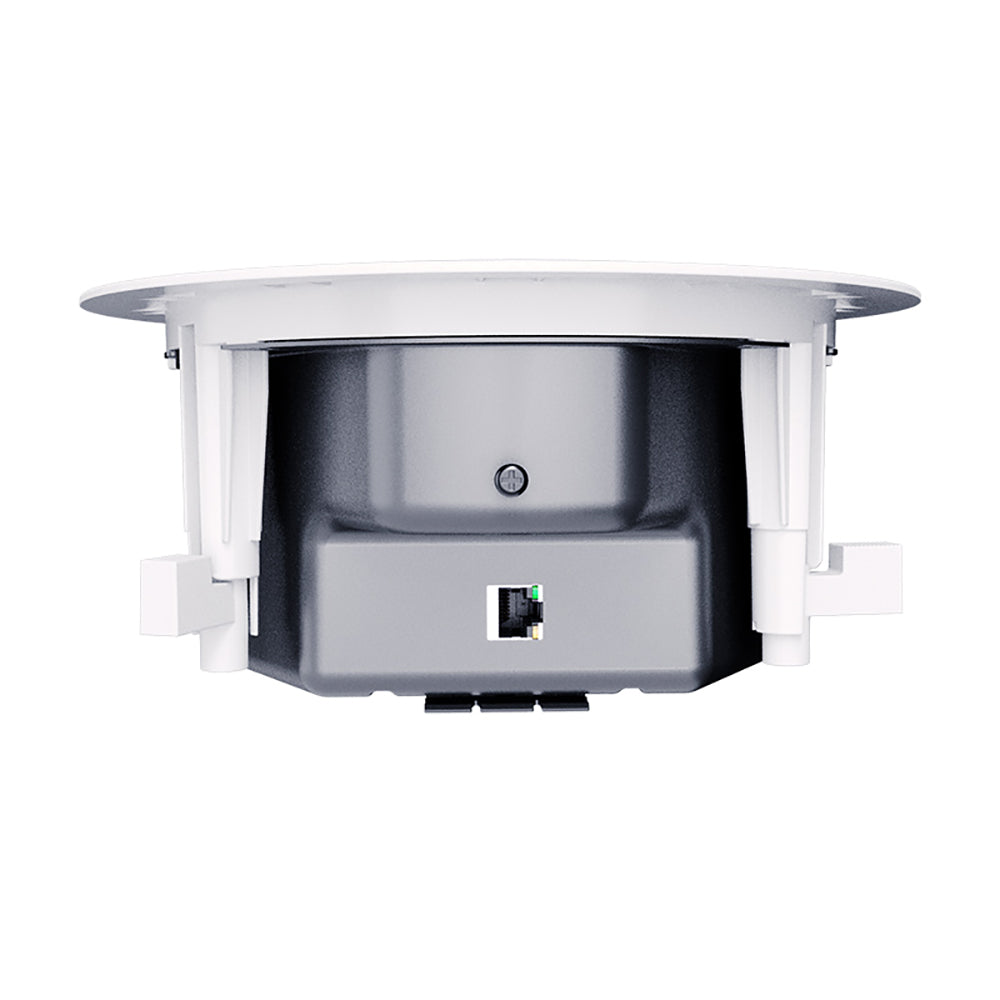

- RJ45, Q-LAN
Enclosure
- ABS baffle on powder-coated steel back can
Grille
- Powder-coated steel
Ingress Protection
- IP34
Cutout
- 7.1 in (179 mm) hole diameter
Physical
- Diameter × height: 8.46 × 4.13 in (215 × 105 mm)
- Net weight: 3.5 lbs (1.6 kg)
Environment
- Designed for indoor use
- Operating temperature: 10°C to 40°C
Included Accessories
- C-rings and tile rails
- Rail screws
- Cut-out template
- Grille
Optional Accessories
- NL-C179 (bezel-less collar)
- AD-MR4 (pre-install mud ring)
Safety & Compliance
- UL/IEC 62368-1
- UL 2043 plenum rating
Power Requirements
- PoE (Type 1 Class 3) or PoE+ (Type 2 Class 4)
