Overview

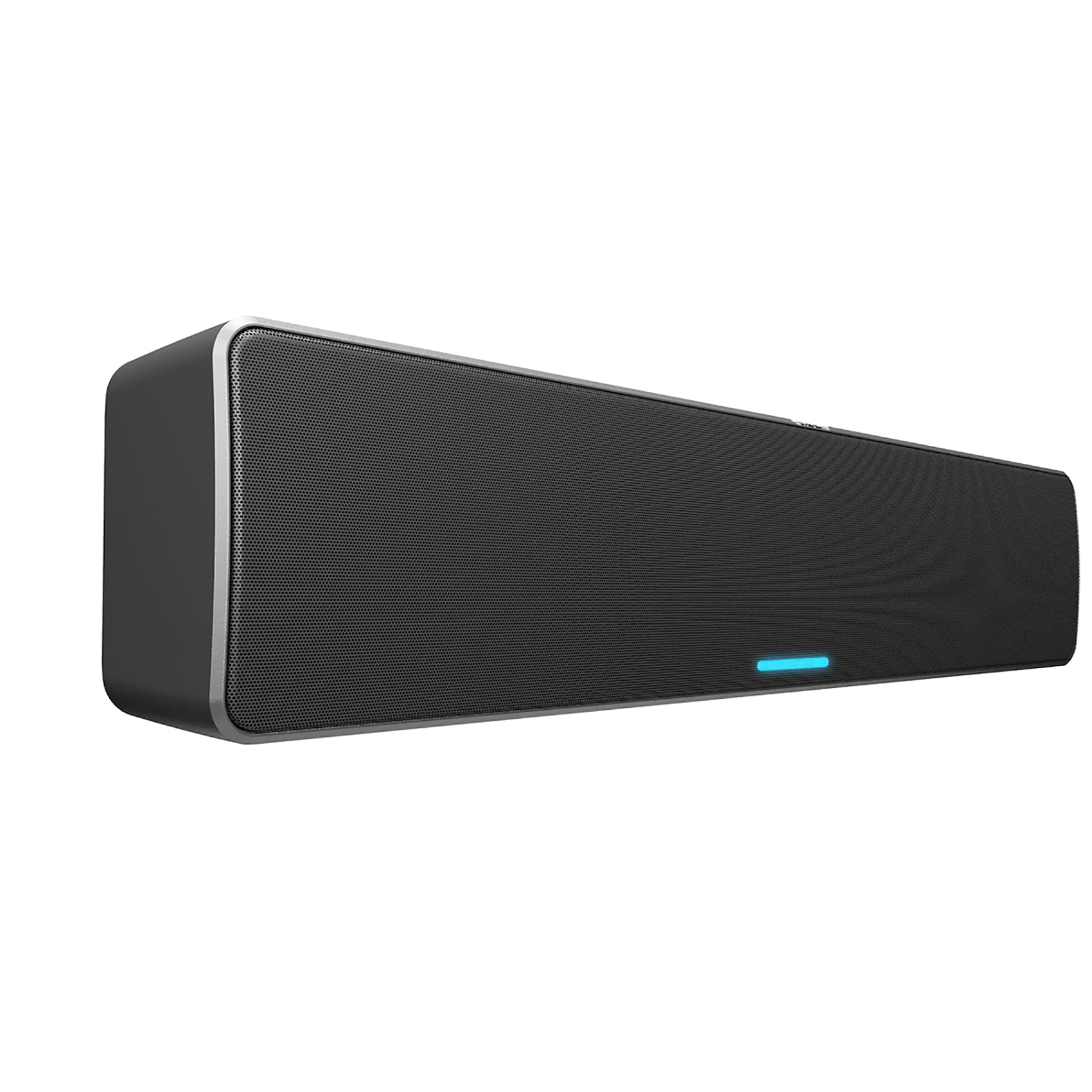

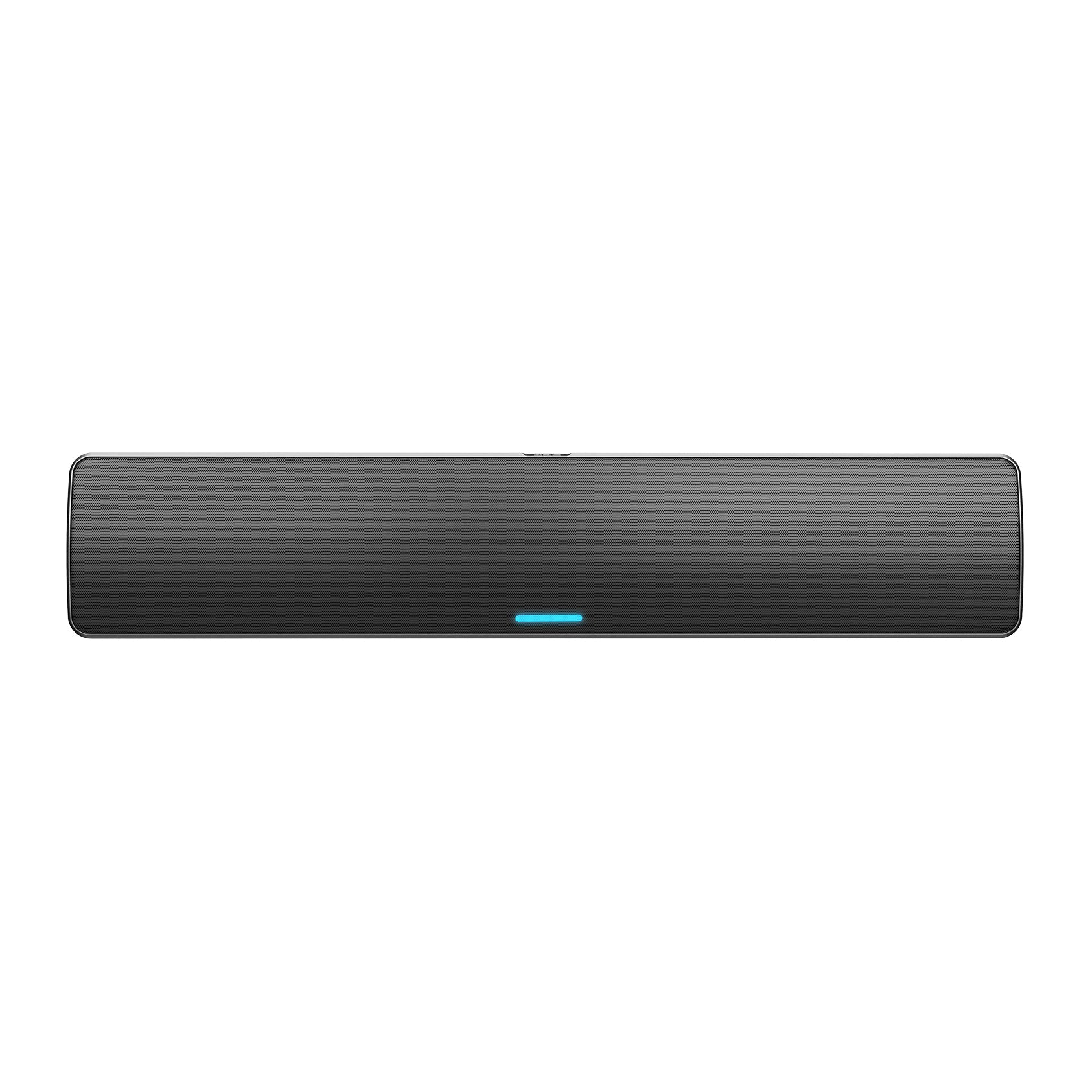

The Q-SYS NL-SB42 is a network PoE soundbar that delivers clear speech and music reproduction natively to Q-SYS. It features a two-way design that provides wide off-axis response and is optimized to better handle program content in addition to voice content. It supports vertical or horizontal mounting and integrates with a single Ethernet cable to reduce hardware footprint and system cost. As a native Q-SYS product, it supports drag-and-drop integration and simple control capabilities through Q-SYS.
Features
- Native PoE soundbar for Q-SYS
- 3.5-inch woofer + 0.75-inch tweeter
- Two-way design provides wide off-axis response optimized for program and voice content
- Supports vertical and horizontal mounting
- Powered over Ethernet enables power, data, and control over a single cable
- Programmable RGB light bar
- Consistent tonal characteristics across the NL Series family for system flexibility
- Q-SYS integrates loudspeaker voicings (Intrinsic Correction™) for simplified tuning
- Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
- Includes quick-install wall bracket with 3 cm fine adjustment
Specifications
Loudspeaker Type
- Network PoE soundbar for Q-SYS
Transducers
- LF: 3.5-in (88.9 mm) paper cone woofer
- HF: 0.75-in (19.05 mm) silk dome tweeter
Frequency Response
- 110 Hz – 20 kHz
Power
- 12 W (PoE), 24 W (PoE+)
Coverage
- 150° horizontal, 160° vertical (1 kHz – 10 kHz)
Directivity
- Directivity factor: 2.7
- Directivity index: 4.2 dB
Maximum SPL
- Continuous: 90 dB (PoE), 93 dB (PoE+)
- Peak: 106 dB (PoE), 107 dB (PoE+)
Input
- RJ45
Enclosure
- ABS housing
Grille
- Powder-coated steel
Physical
- Dimensions: 20.4 × 3.97 × 2.87 in (518.1 × 101 × 73 mm)
- Net weight: 3.86 lbs (1.75 kg)
Environment
- Operating temperature: 10°C to 40°C (50°F to 104°F)
Included Accessories
- Wall-mounting bracket
- Rubber feet
Safety & Compliance
- UL/IEC 62368-1
- CE
Power Requirements
- PoE (Type 1 Class 3) or PoE+ (Type 2 Class 4)
