Overview

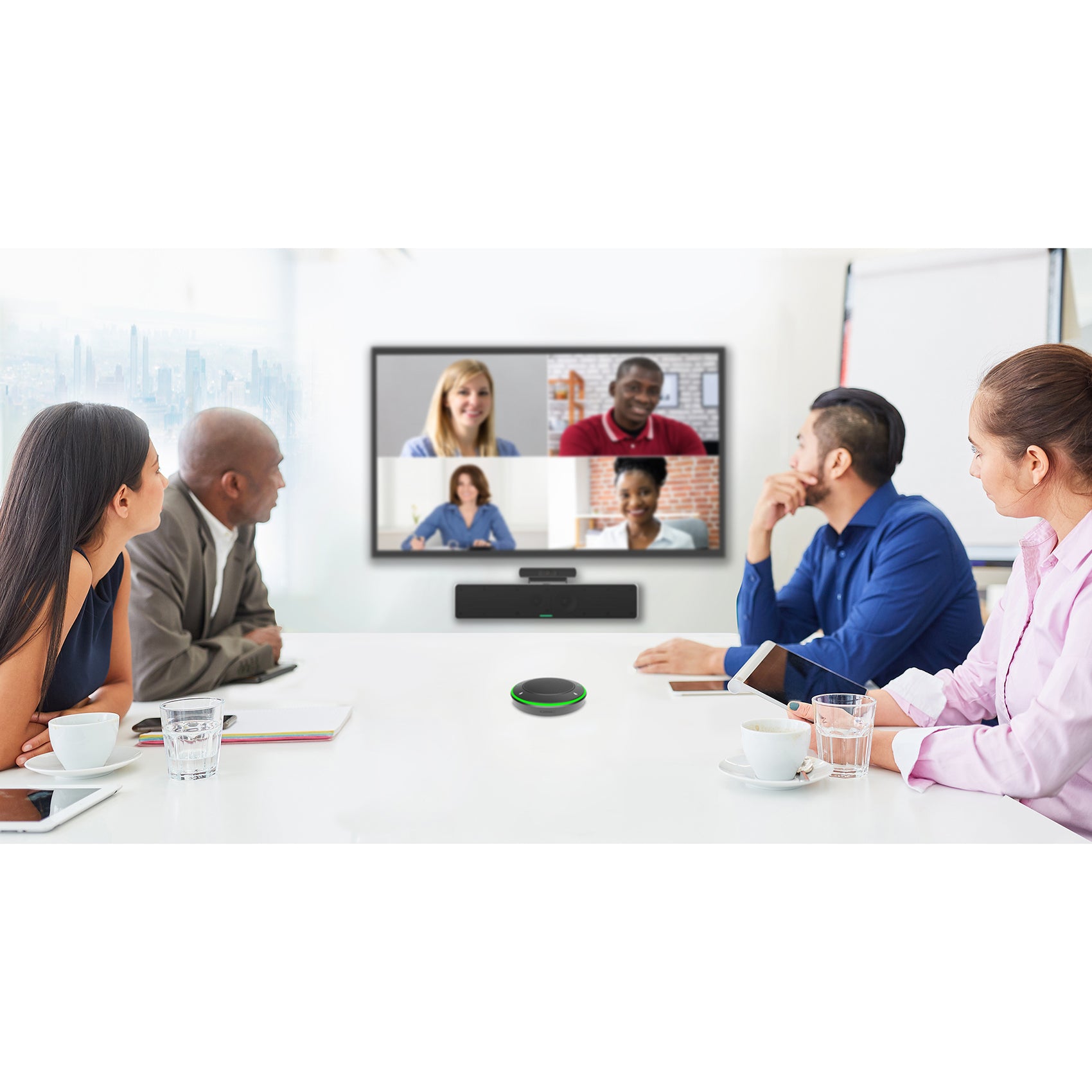

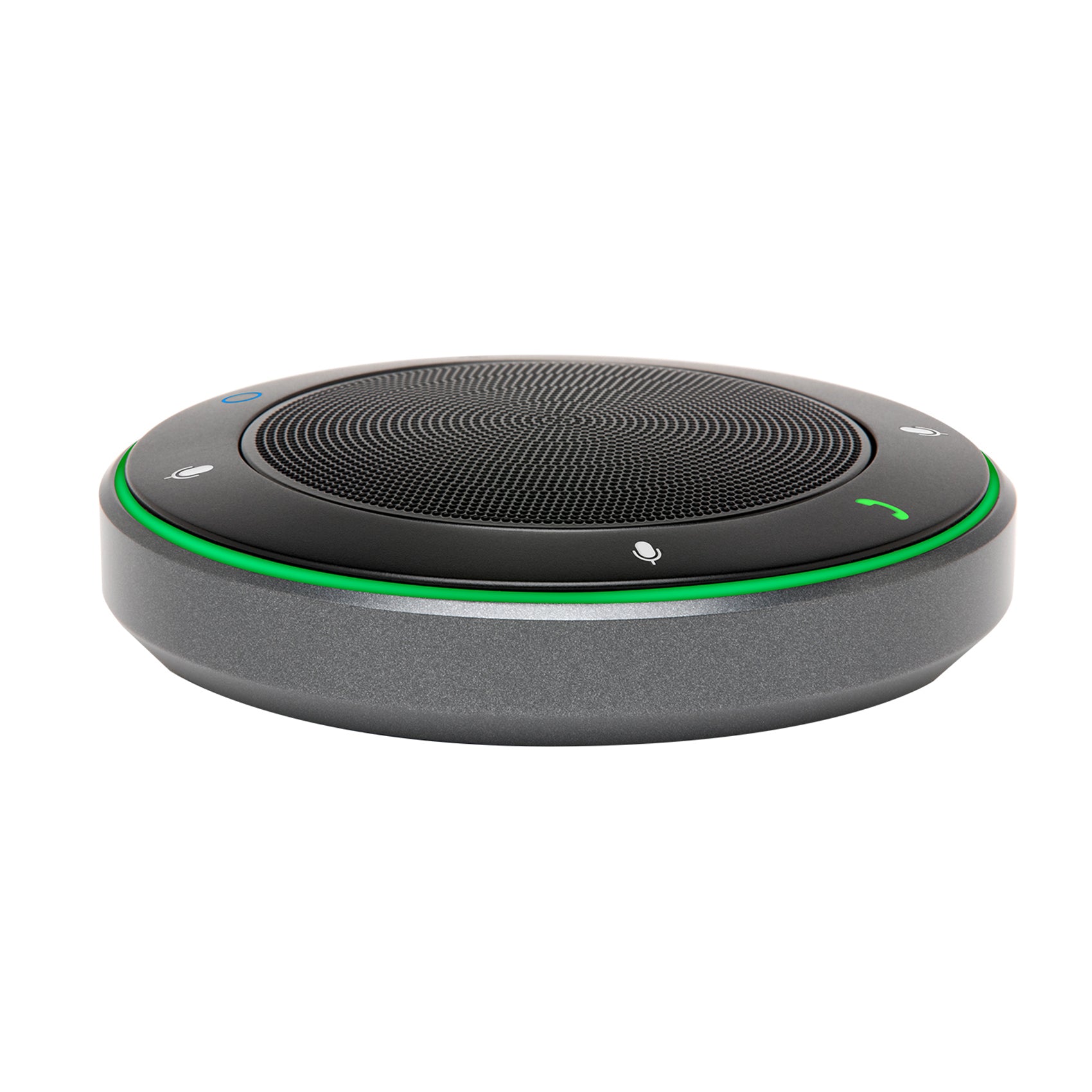

The Q-SYS NM Series NM-T1 is a tabletop network PoE microphone native to Q-SYS and ideal for collaboration spaces. It features advanced beamforming technology that ensures optimal clarity and separation for surrounding talkers. It also offers onboard call controls, a programmable user button, and touchless muting capability that allows users to mute or unmute with a wave of a hand. As a native Q-SYS product, it integrates seamlessly into a Q-SYS system without the need for complex programming.
Features
- Native Q-SYS beamforming tabletop microphone
- Four software-configurable zones providing up to 360° coverage
- Power over Ethernet (PoE)
- Touchless mute via proximity motion sensor
- Onboard call controls with programmable user button (customizable in Q-SYS Designer Software)

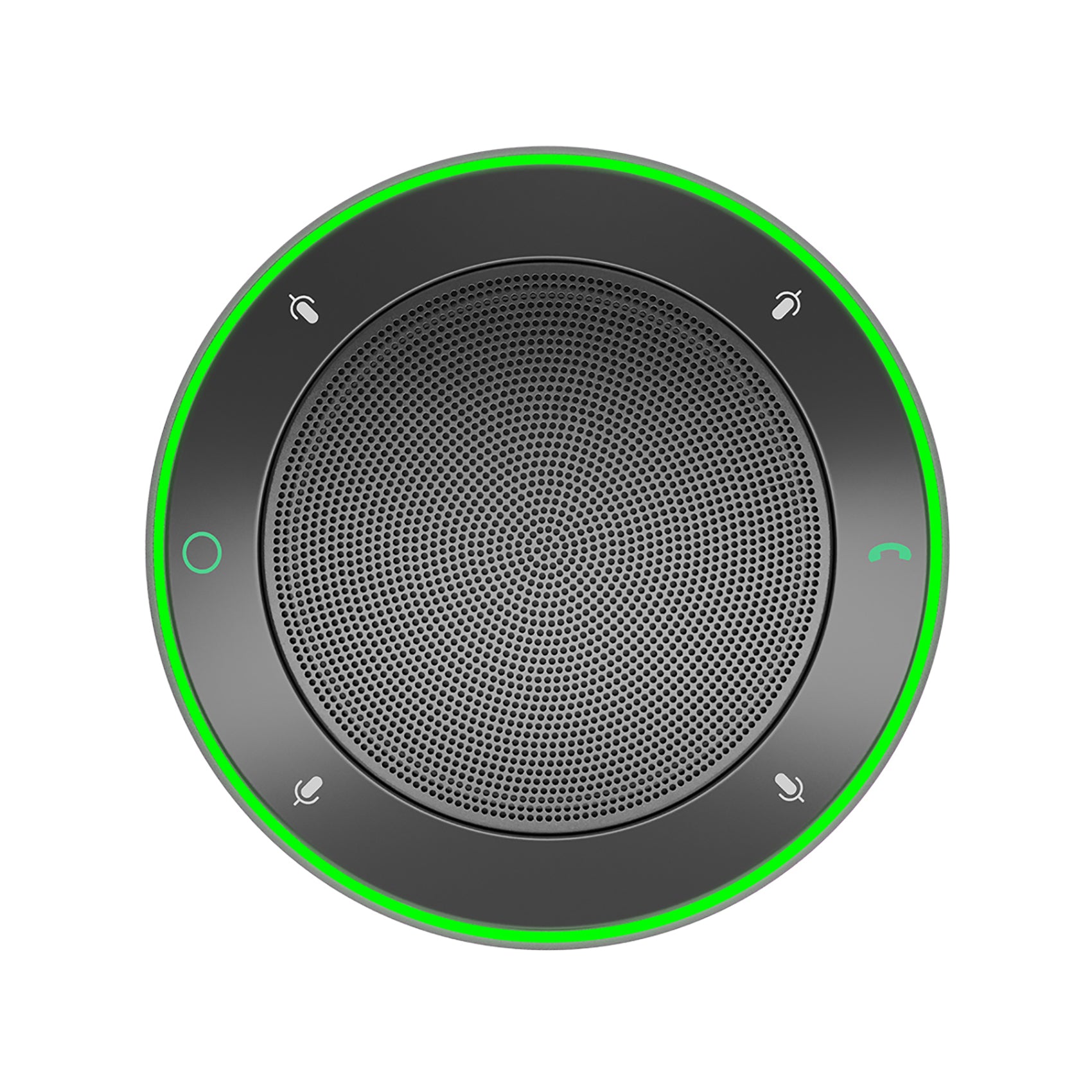

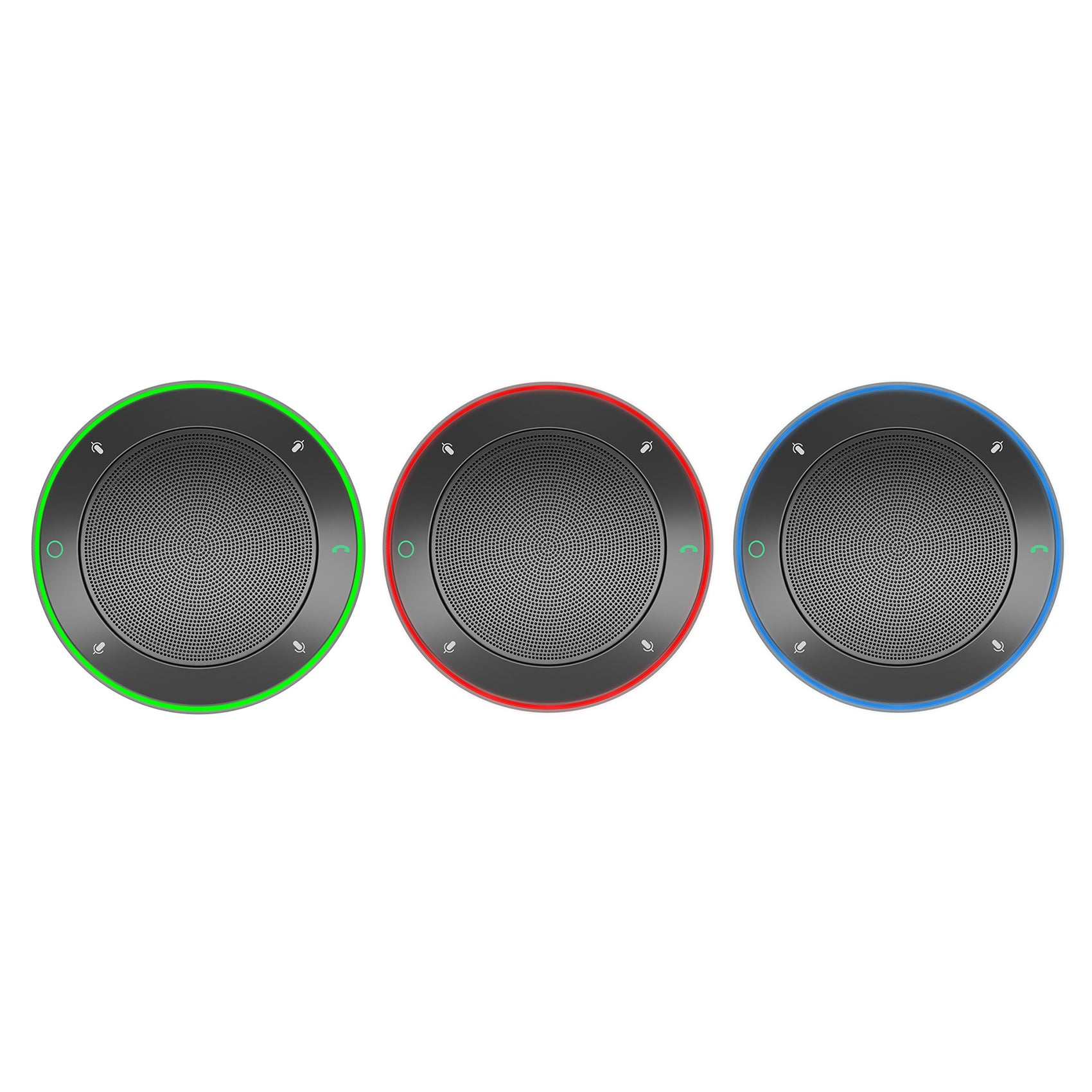

- Programmable RGB light ring for color, pattern, and speed customization
- Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
- Includes table-mounting accessories
Specifications
Audio
- Polar pattern: Superdirective
- Pickup range: 3–9 ft (1–3 m)
- Microphone elements: 16× MEMS microphone elements
- Network input channels required: 1× network audio stream and 16× network audio channels
- Frequency response: 100 Hz – 16 kHz (±3 dB)
- Sampling rate: 16 kHz wideband / 48 kHz fullband
- Bit depth: 24-bit
- Sensitivity: -36 dBFS (94 dB SPL)
- Maximum SPL (1 kHz @ 1% THD): 118 dB SPL
- Dynamic range: 95 dB
- Signal-to-noise ratio: 65 dB (48 kHz), 66 dB (16 kHz)
- Self noise: 28 dB SPL (48 kHz), 28 dB SPL (16 kHz)
- Latency: 4 ms
Power
- Power requirements: Power over Ethernet (PoE), Type 1 Class 2
- Power consumption: <6.5 W

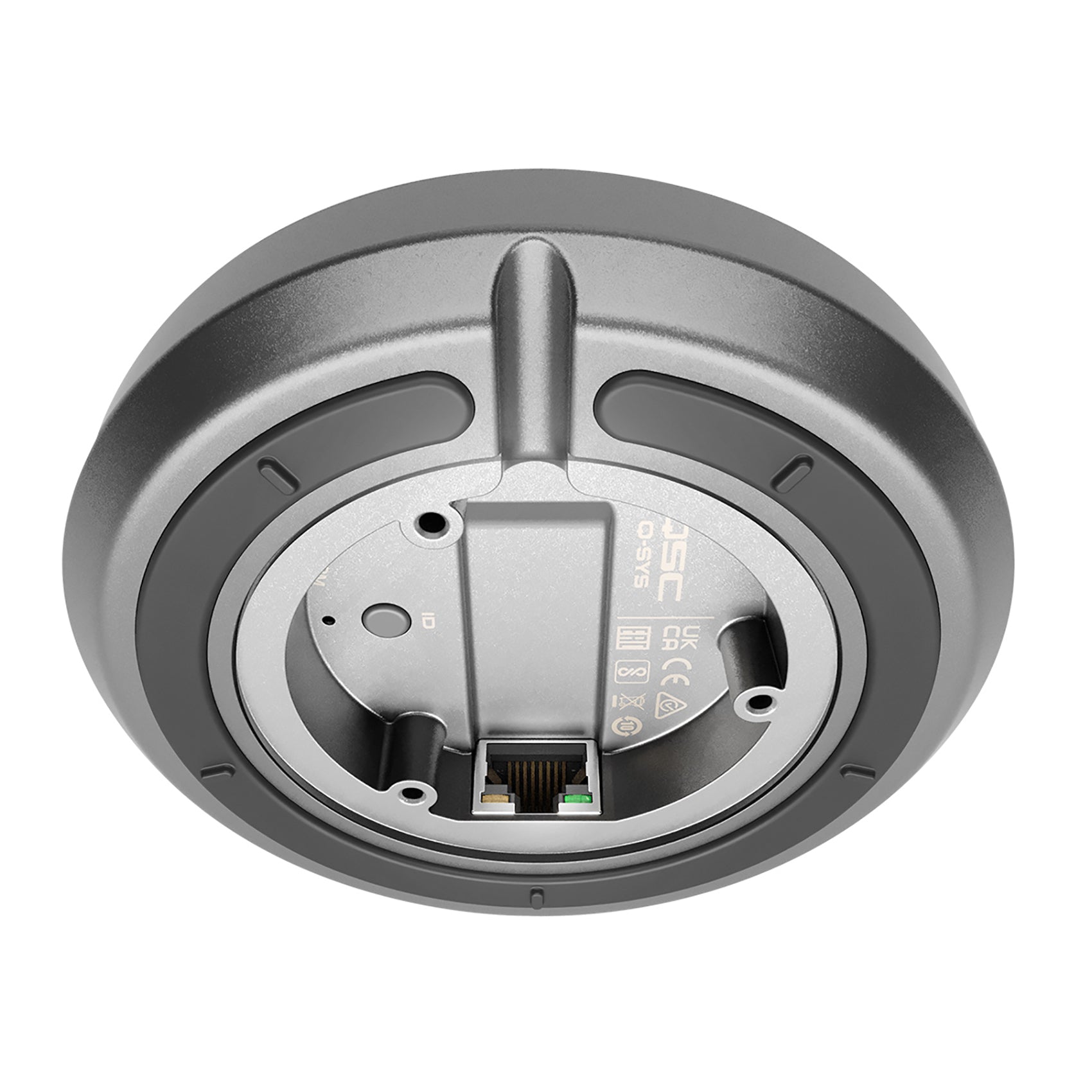

- Connector type: RJ45
General Specifications
- Dimensions: 4.21 × 1.1 in (107 × 28 mm)
- Weight: 1.5 lbs (0.68 kg)
Included Accessories
- Mounting stem
- Strain relief cap
- CAT6 cable (10 ft / 3 m)
