Overview
The Q-SYS NV Series NV-21-HU is the next evolution for native video distribution on the Q-SYS Platform. It is a software-configurable endpoint offering a single-cable solution for audio and video distribution, AV bridging, and device charging via USB-C. Its compact size and reduced I/O make it suitable for meeting rooms, learning spaces, hospitality, and entertainment installations. The NV-21-HU can be used alongside other Q-SYS NV Series video endpoints, providing system design flexibility. As a native Q-SYS product, it offers seamless integration and control for simplified configuration and operation.
Specifications

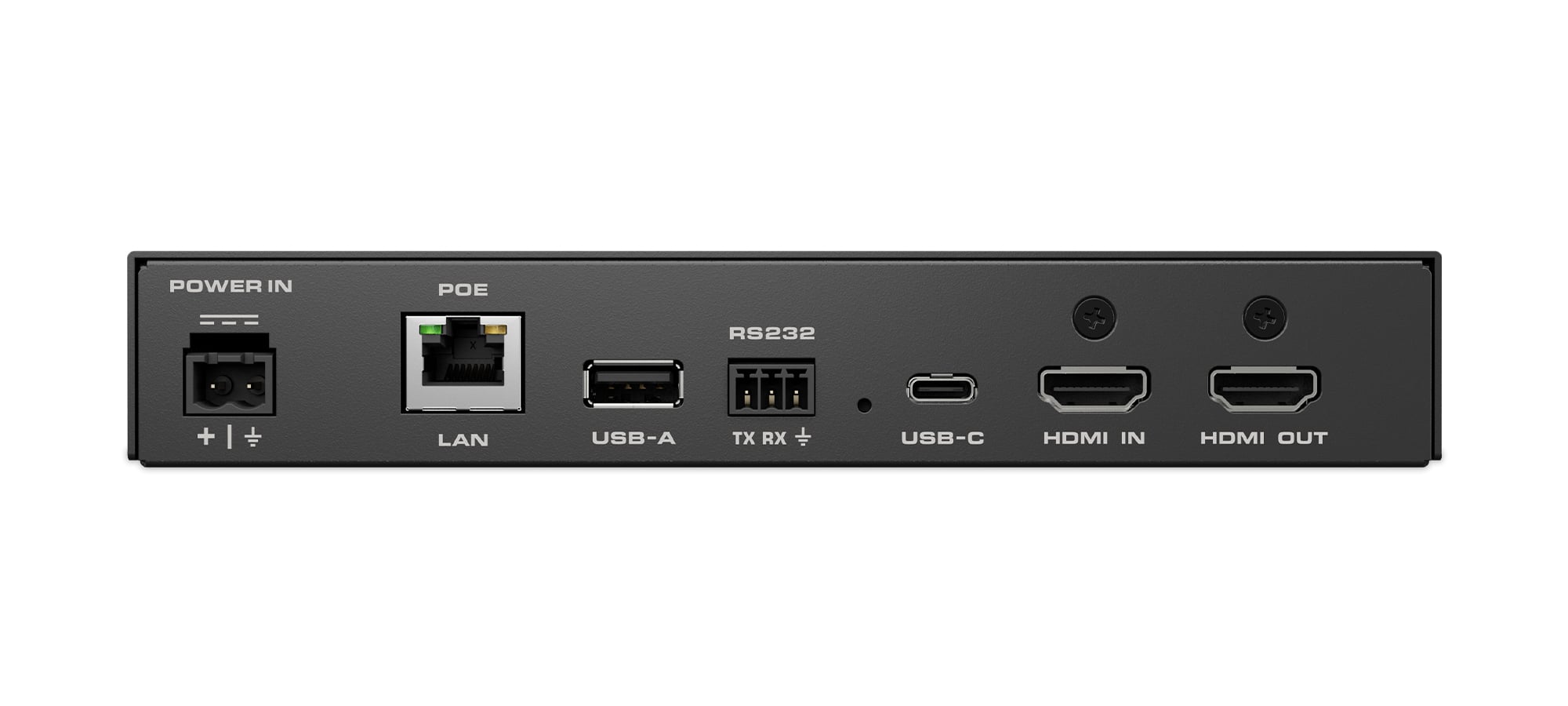

Video I/O
- HDMI 2.0 input: 1× HDMI 2.0 up to 4K60 4:4:4
- USB-C input: 1× USB 3.2 Gen 1x1 (5Gbps) Type-C Device Port
- USB-C supports DisplayPort Alt Mode (DP 1.4 Sink), up to 4K60 4:4:4
- HDMI 2.0 output: 1× HDMI up to 4K60 4:4:4 with scaling
- Scaler: 4K60 4:4:4 output scaler for resolution and frame rate conversion
- Video codecs: Q-SYS Shift™ up to 4K60 4:4:4, Mediacast up to 1080p30 4:2:0
Audio I/O
- HDMI input: 8-channel PCM audio (Q-SYS routable)
- USB-C input: 8-channel PCM audio, 1×1 speakerphone, 2×2 soundcard (Q-SYS routable)
- HDMI output: 8-channel PCM audio (Q-SYS routable)
USB
- USB-C: USB 3.2 Gen 1x1 (5Gbps) Type-C device port
- Supports AV bridging up to 1920×1080p30 YUY2
- DisplayPort Alt Mode (DP 1.4 Sink)
- USB Power Delivery up to 65W
- USB-A: USB HID routing, 5 V DC 900 mA
Network
- LAN: 1000BASE-T, 2.5GBASE-T compliant
Power
- Power over Ethernet: PoE Type 3 Class 5 (40W at PD, 45W at PSE)
- Optional auxiliary power: 12 VDC 9 A PSU (NV-21-PSU, sold separately)
- Optional PoE injector: 90 W PoE injector (POE-90W-PSU, sold separately)
Environmental
- Operating temperature: 0°C to 40°C
- Storage temperature: -20°C to 70°C
- Humidity: 5% to 90% RH non-condensing
Physical
- Dimensions: 7.3 × 5.2 × 1.2 in (185 × 131.5 × 30.5 mm)
- Weight: 1.75 lbs (794 g)
Mounting
- Flexible surface mounting hardware included
Lifecycle
- Expected product lifecycle: 10 years
