Overview

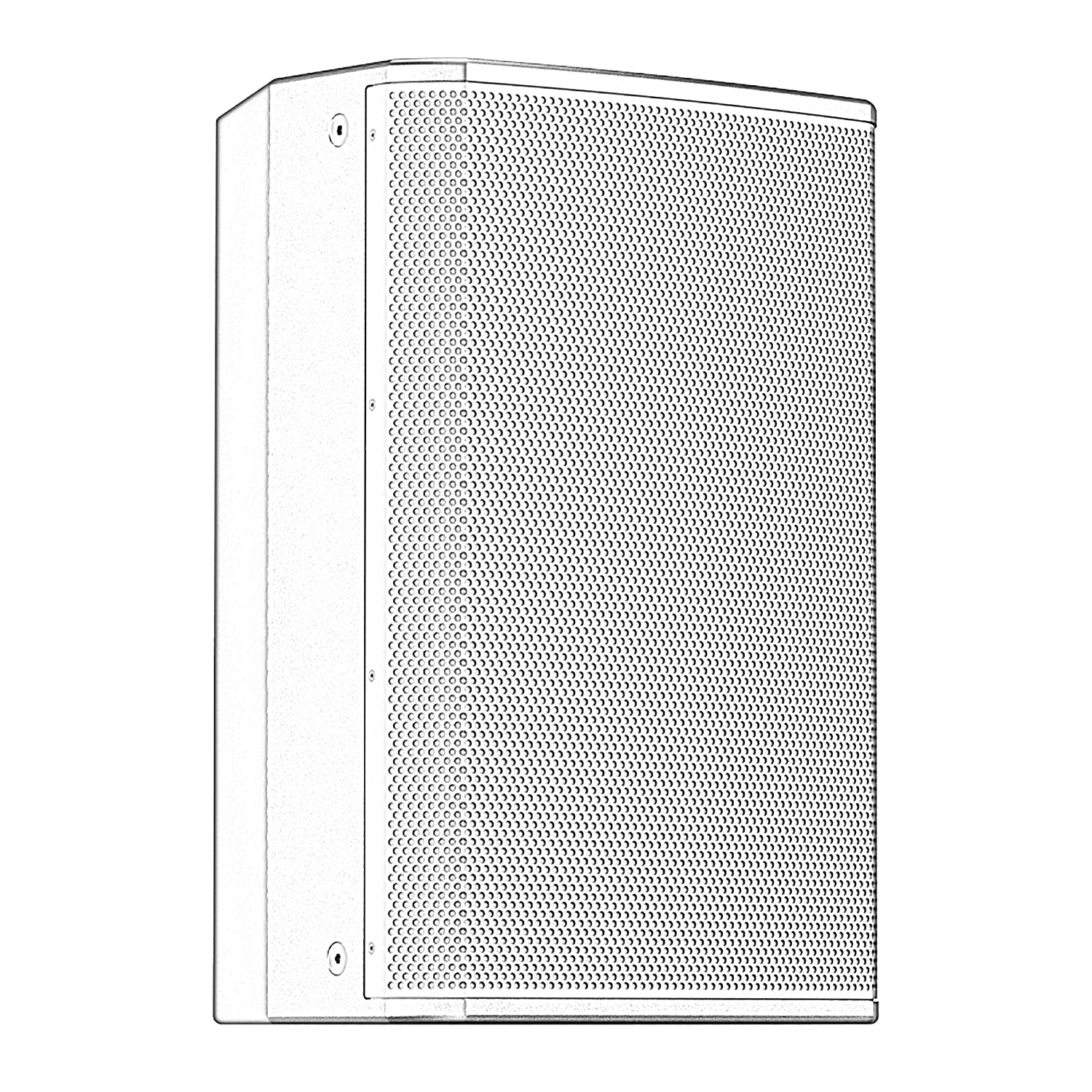

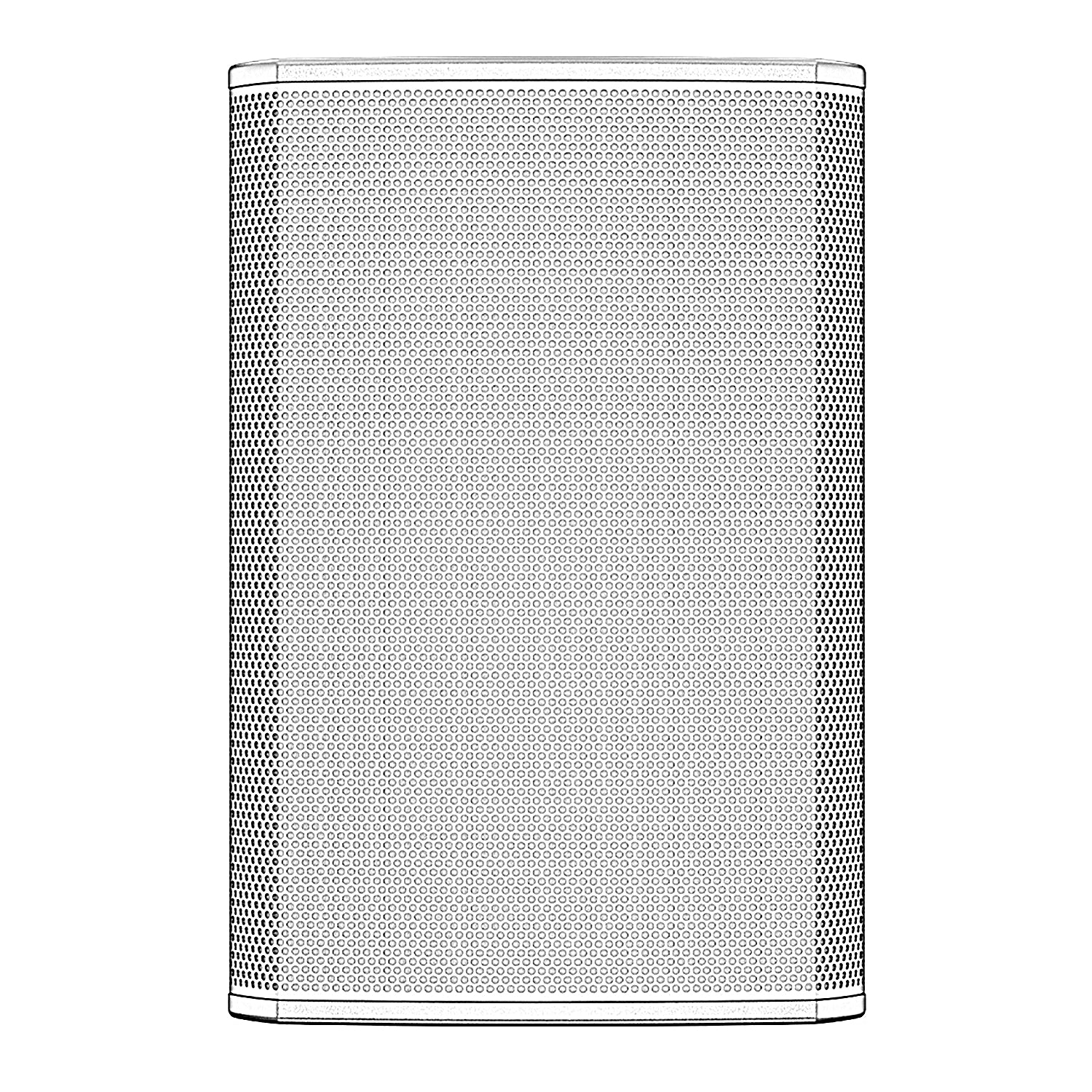

The Q-SYS PL-CA12 is a two-way, full-range 12-inch coaxial loudspeaker that offers wide, symmetrical coverage in a compact enclosure. It is ideal for applications when placed closer to the listener and/or where controlled coverage is not a requirement.
Features
- 12-inch LF transducer + coaxial HF compression driver in a compact, bass-reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance
Specifications
Enclosure Configuration
- Two-way, full-range coaxial loudspeaker in bass reflex enclosure
Transducers
- LF: 12 in (320 mm), 3 in (72.6 mm) voice coil, neodymium
- Coaxial HF: compression driver, 3 in (76.2 mm) voice coil
Coverage
- 80° conical DMT
System Bandwidth (-10 dB with EQ)
- 38 Hz – 20 kHz (no subwoofer)
System Sensitivity
- 102 dB 1W/1m
Maximum SPL
- 119 dB (passive)
- 120.5 dB (bi-amp)

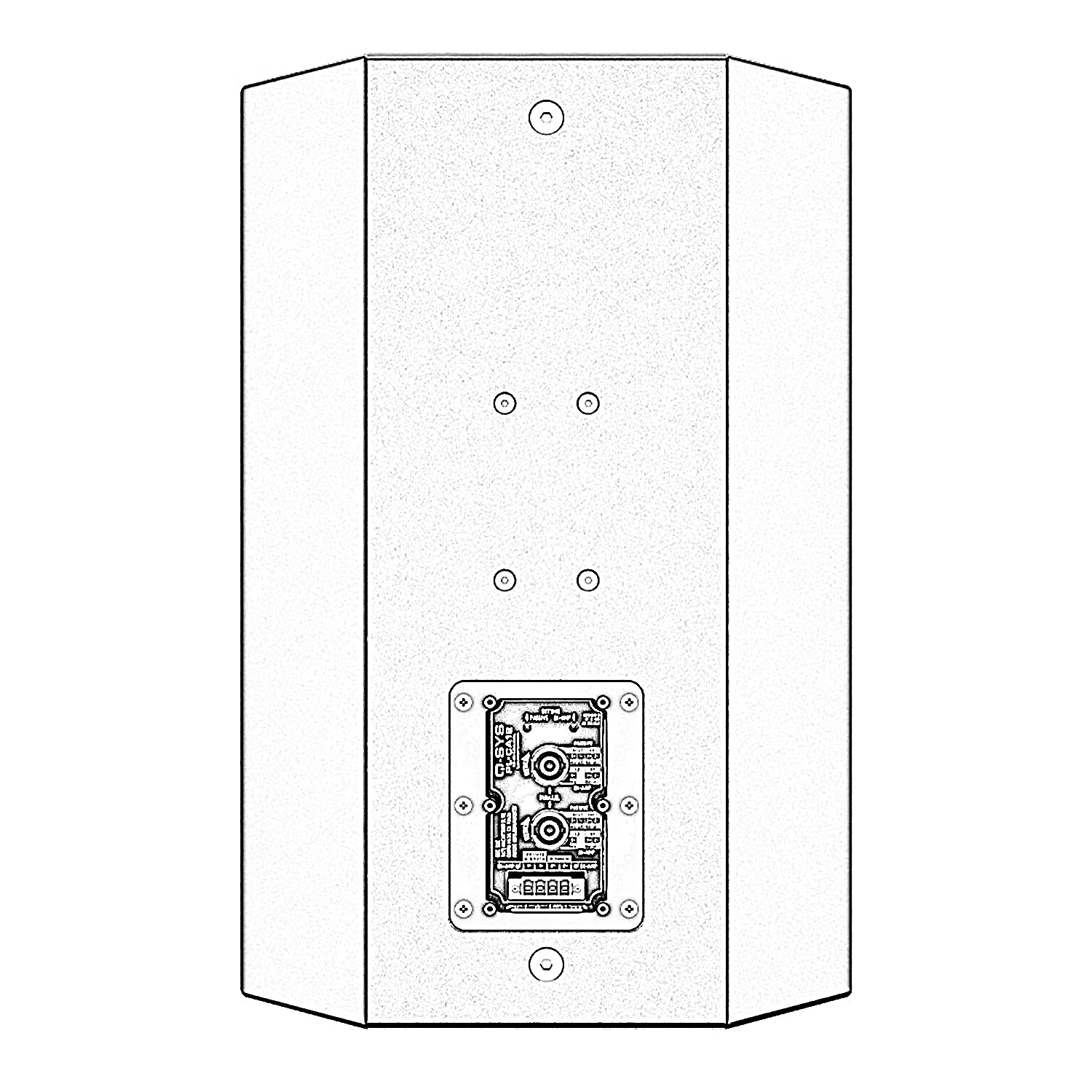

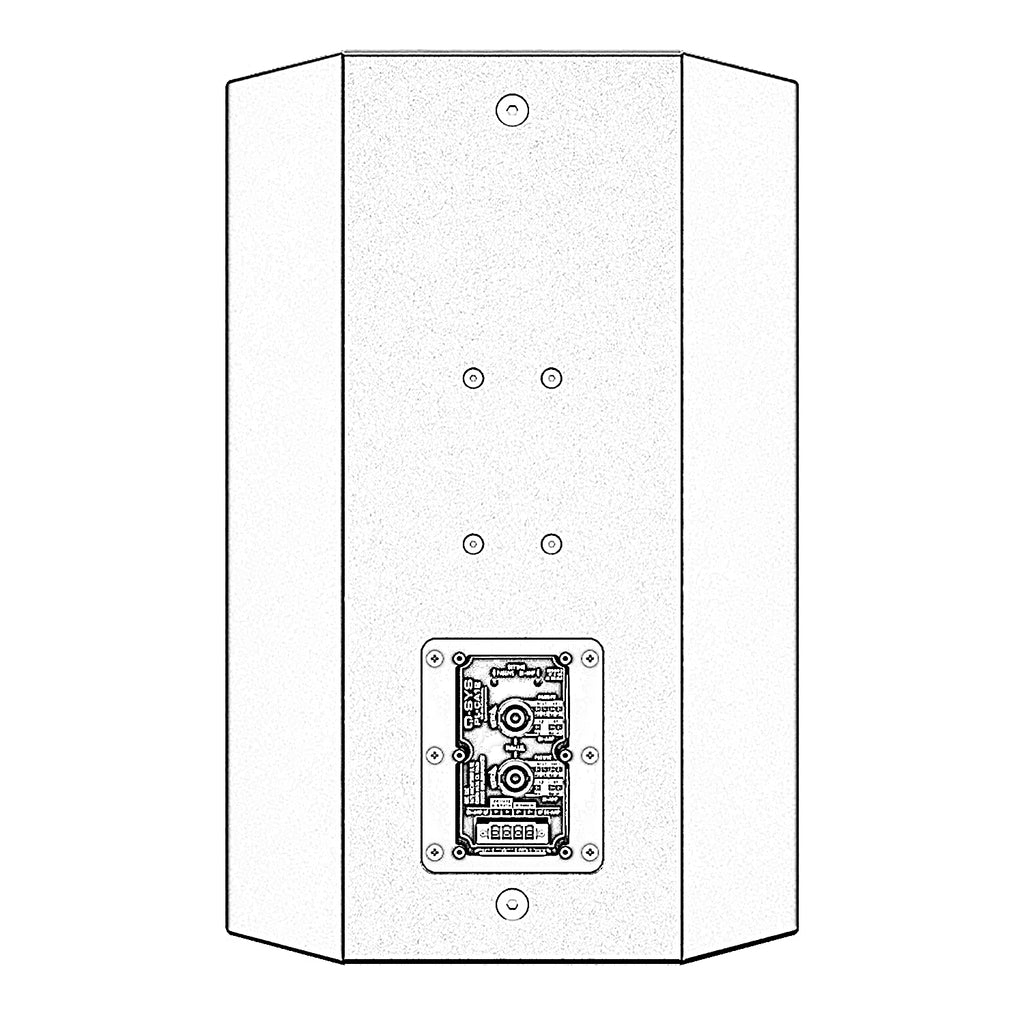

Connectors
- 2× Speakon NL4
- 1× Euroblock: Solid wire 8 AWG, 4 poles
Recommended Amplifiers
- CX-Q 8K4 (up to 2 per channel)
- CX-Q 4K4 (up to 1 per channel)
Enclosure
- Material: Exterior plywood
- Color: Black (RAL 9011) or White (RAL 9003)
Weatherization
- IP54 rating
- External plywood construction
- Stainless screws
- Treated grille for UV and corrosion resistance
- Hydrophobic stainless steel mesh behind grille
- Polyurea paint finish
- IP65 sealing at input cup with gland
Physical
- Dimensions: 23.5 × 15.7 × 13.8 in (597 × 400 × 350.4 mm)
- Weight: 44 lb (20 kg)
Optional Accessories
- PL-CA12-YM horizontal yoke mount (sold separately)
- PL-CA12-LK link to suspend PL-CA12 with PL-SUB15 (sold separately)
