Overview

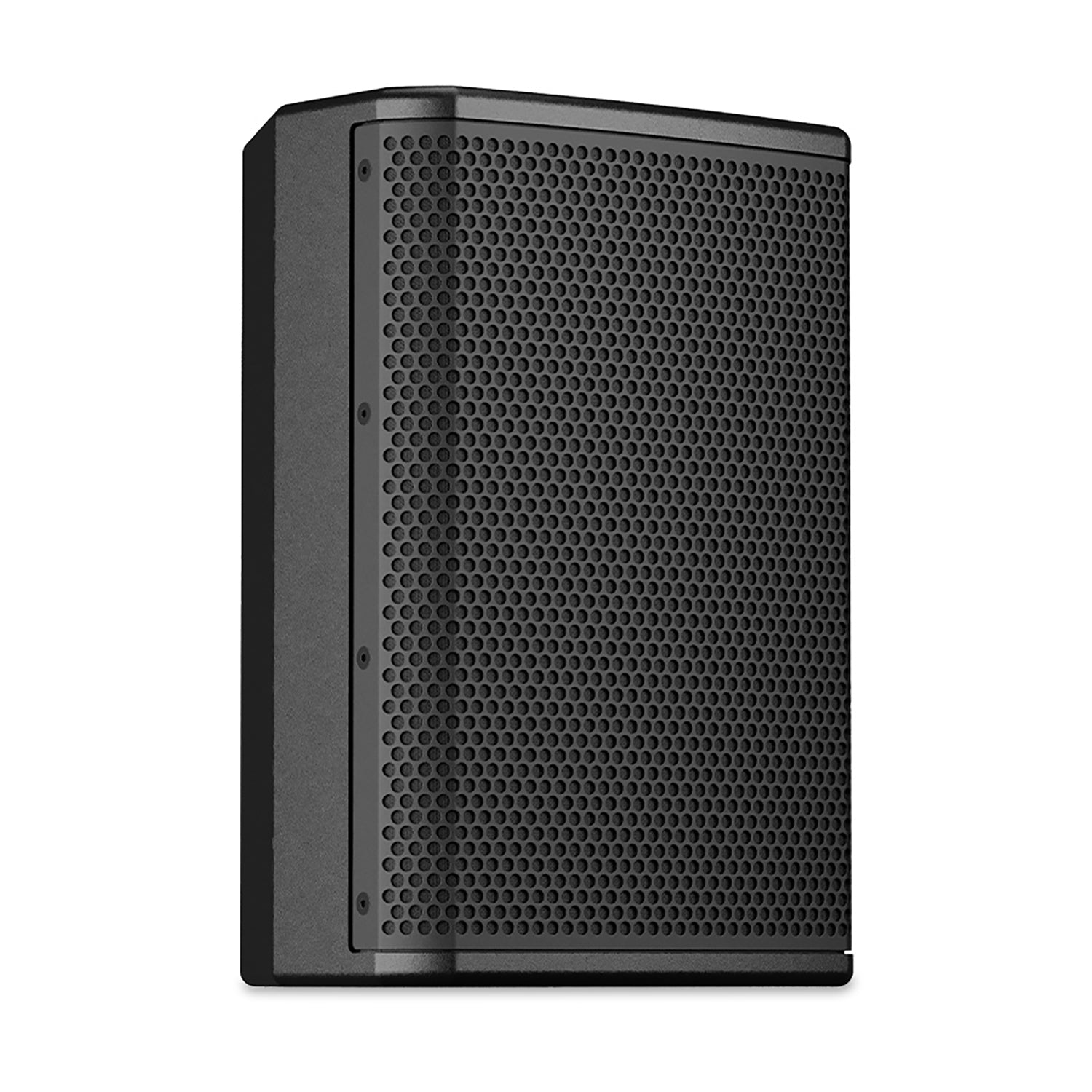

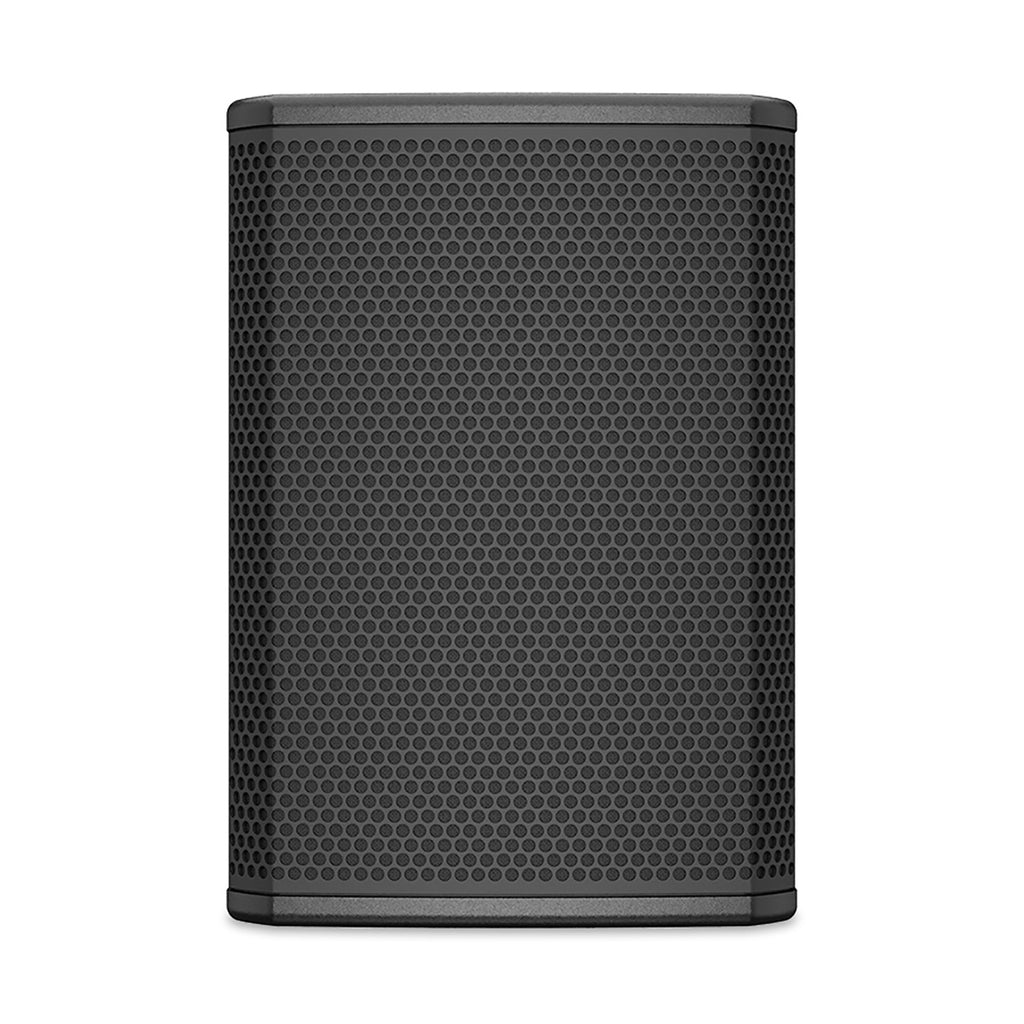

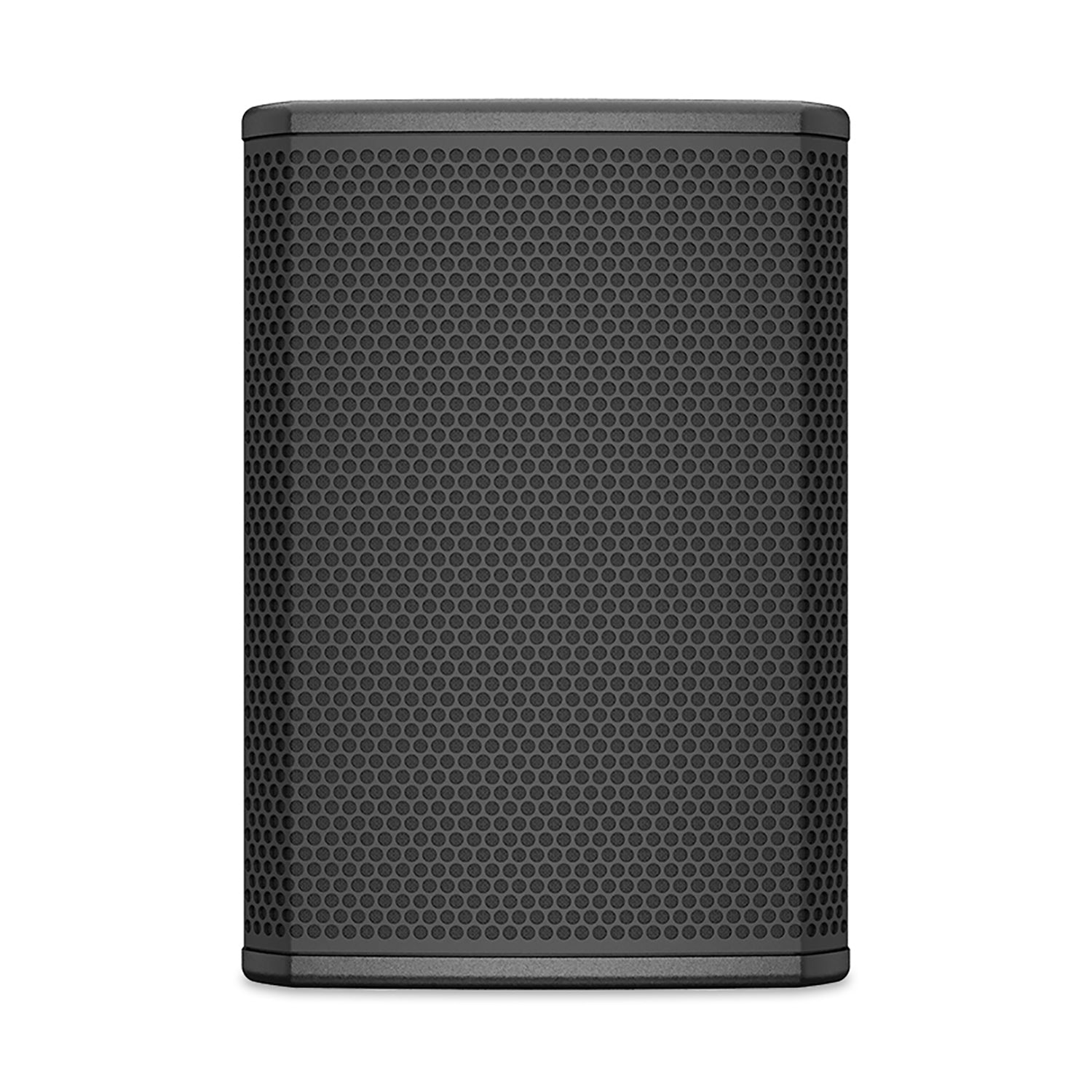

The Q-SYS PL-CA6 is a two-way, full-range 6-inch coaxial loudspeaker that offers wide, symmetrical coverage in a compact enclosure. It is ideal for applications when placed closer to the listener and/or where controlled coverage is not a requirement.
Features
- 6-inch LF transducer + coaxial HF compression driver in a compact, bass-reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance
Specifications
Enclosure Configuration
- Two-way, full-range coaxial loudspeaker in bass reflex enclosure
Transducers
- LF: 6 in (170 mm), 1.75 in (44.5 mm) voice coil
- Coaxial HF: compression driver, 1.4 in (35.5 mm) voice coil
Coverage
- 115° conical DMT
System Bandwidth (-10 dB with EQ)
- 61 Hz – 20 kHz (no subwoofer)
System Sensitivity
- 93 dB 1W/1m
Maximum SPL
- 111 dB (continuous)

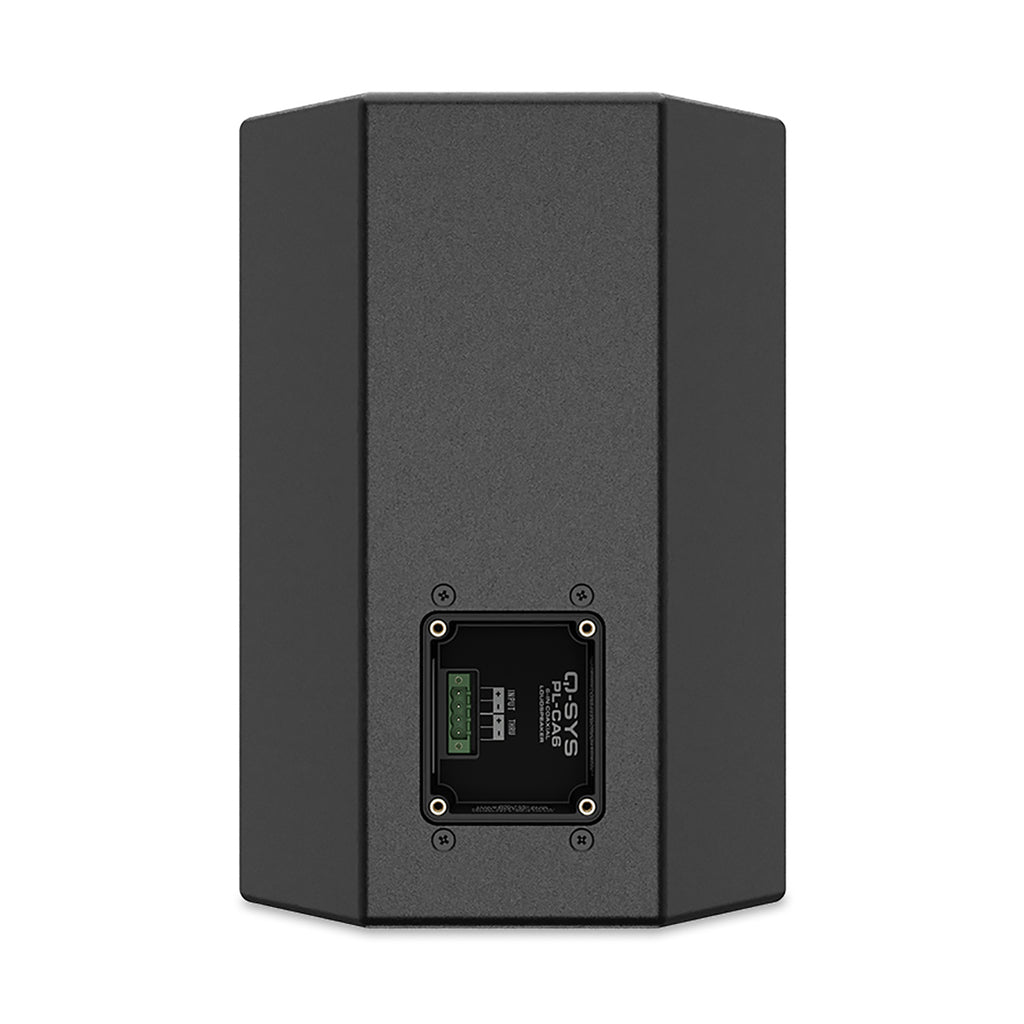

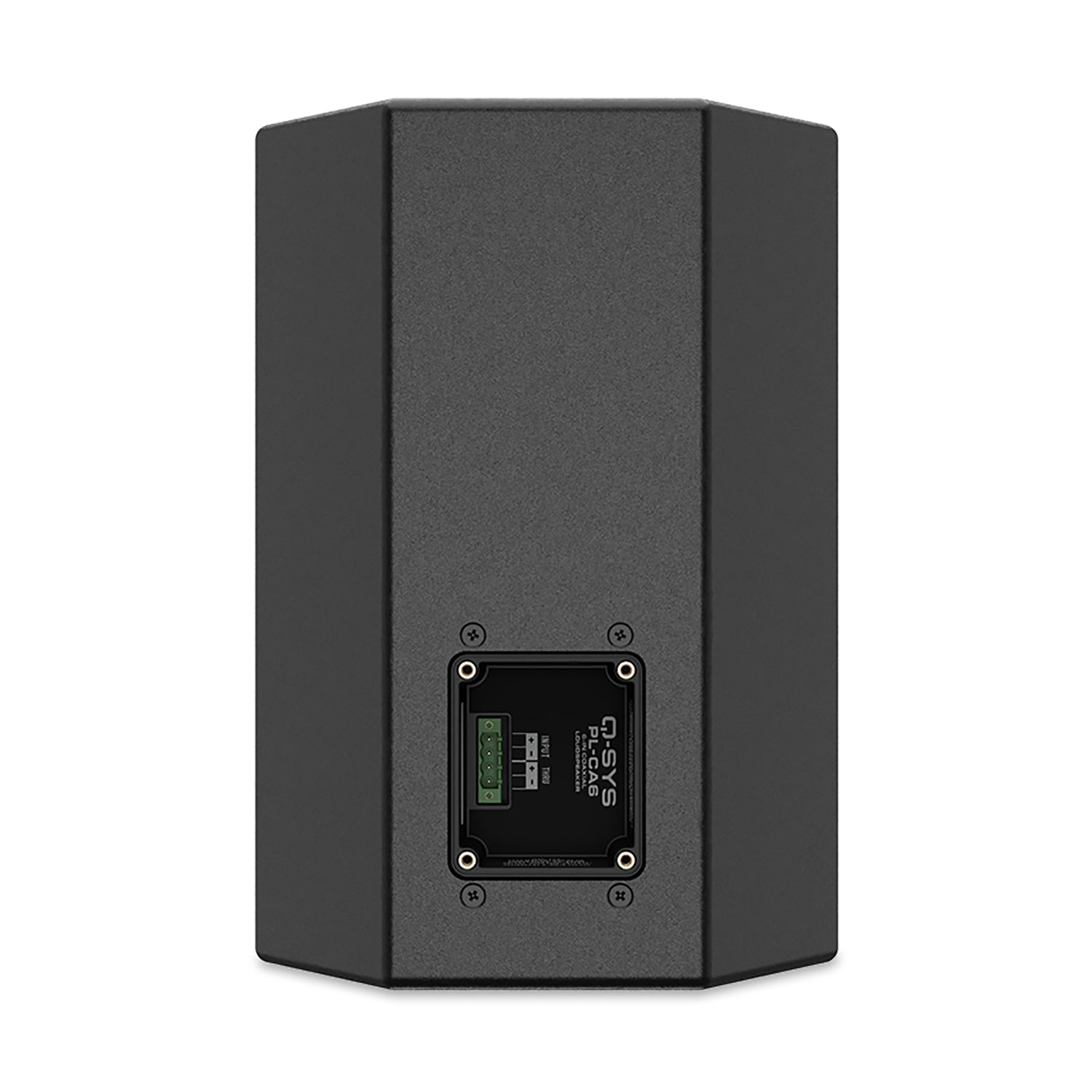

Connectors
- 1× Euroblock: Solid wire 14 AWG, 4 poles
Recommended Amplifiers
- CX-Q 8K4 (up to 4 per channel)
- CX-Q 4K4 (up to 3 per channel)
- CX-Q 2K4 (up to 2 per channel)
Enclosure
- Material: Exterior plywood
- Color: Black (RAL 9011) or White (RAL 9003)
Weatherization
- IP54 rating
- External plywood construction
- Stainless screws
- Treated grille for UV and corrosion resistance
- Hydrophobic stainless steel mesh behind grille
- Polyurea paint finish
- IP65 sealing at input cup with gland
Physical
- Dimensions: 12.5 × 8.7 × 7.1 in (316 × 220 × 180.5 mm)
- Weight: 13.4 lb (6.1 kg)
Optional Accessories
- PL-CA6-YM horizontal yoke mount (sold separately)
