Overview

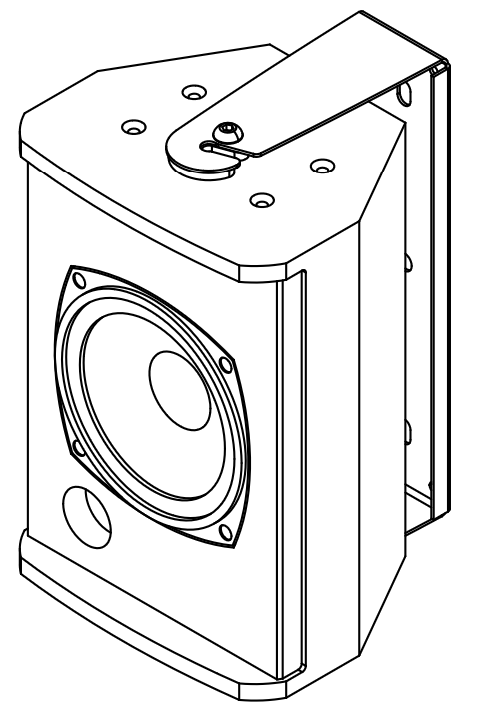

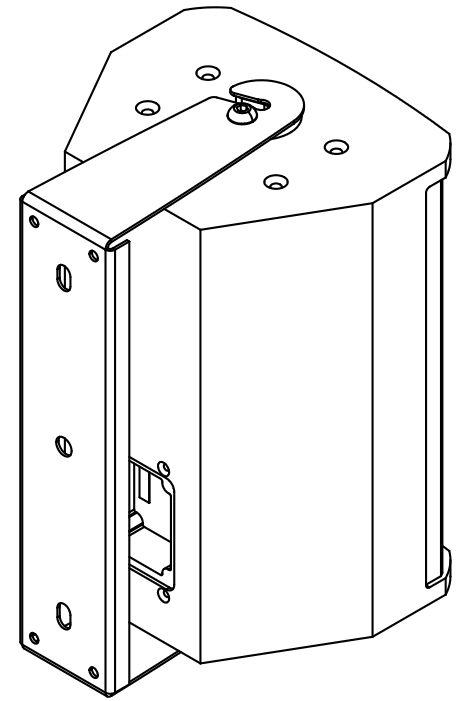

C-bracket made of galvanized, powder-coated steel for wall or ceiling mounting of a PL-CA6 speaker (PL Series). The speaker is secured using two M8 hex socket head screws; the bracket features a central 13 mm diameter hole for clamp mounting, two elongated holes (11 x 18 mm) spaced 247 mm apart for truss mounting, and two 7 mm diameter holes at each end for wall or ceiling attachment.
Specifications
Bracket range of motion depending on mounting method:
- Horizontal: +/-90°
- Vertical: +/-90°
- Weight: 0.9 kg
- Color: Black
- Manufacturer: QSC
- Type: PL-CA6-YM
