Overview

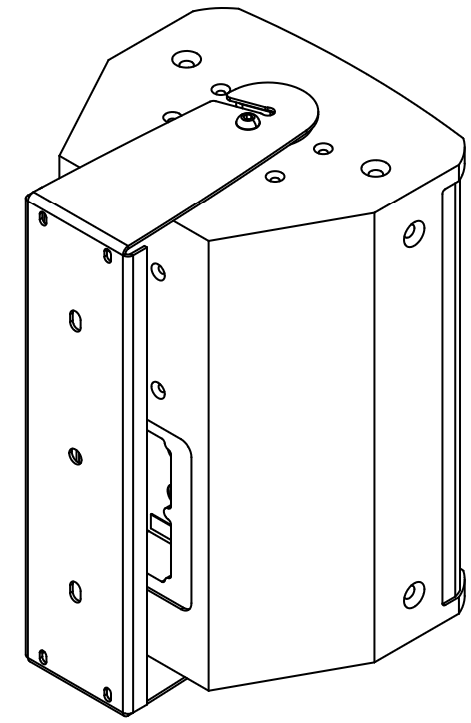

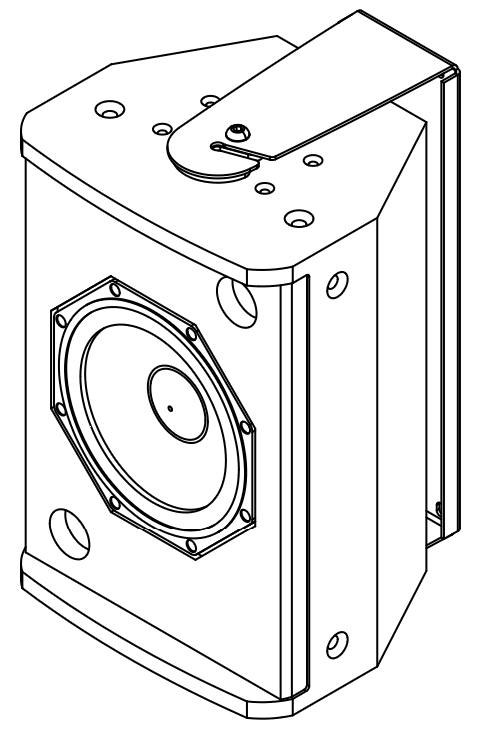

C-bracket made of galvanized, powder-coated steel for wall or ceiling mounting of a PL-CA8 loudspeaker (PL Series). The loudspeaker is secured using two M8 hex socket head screws; the bracket features a central 13 mm diameter hole for clamp mounting, two elongated holes (11 x 18 mm) spaced 247 mm apart for truss mounting, and two 7 mm diameter holes at each end for wall or ceiling attachment.
Specifications
Bracket degrees of freedom (depending on mounting method):
- Horizontal: +/-90°
- Vertical: +/-90°
- Weight: 2.0 kg
- Color: Black
- Manufacturer: QSC
- Type: PL-CA8-YM
