Overview

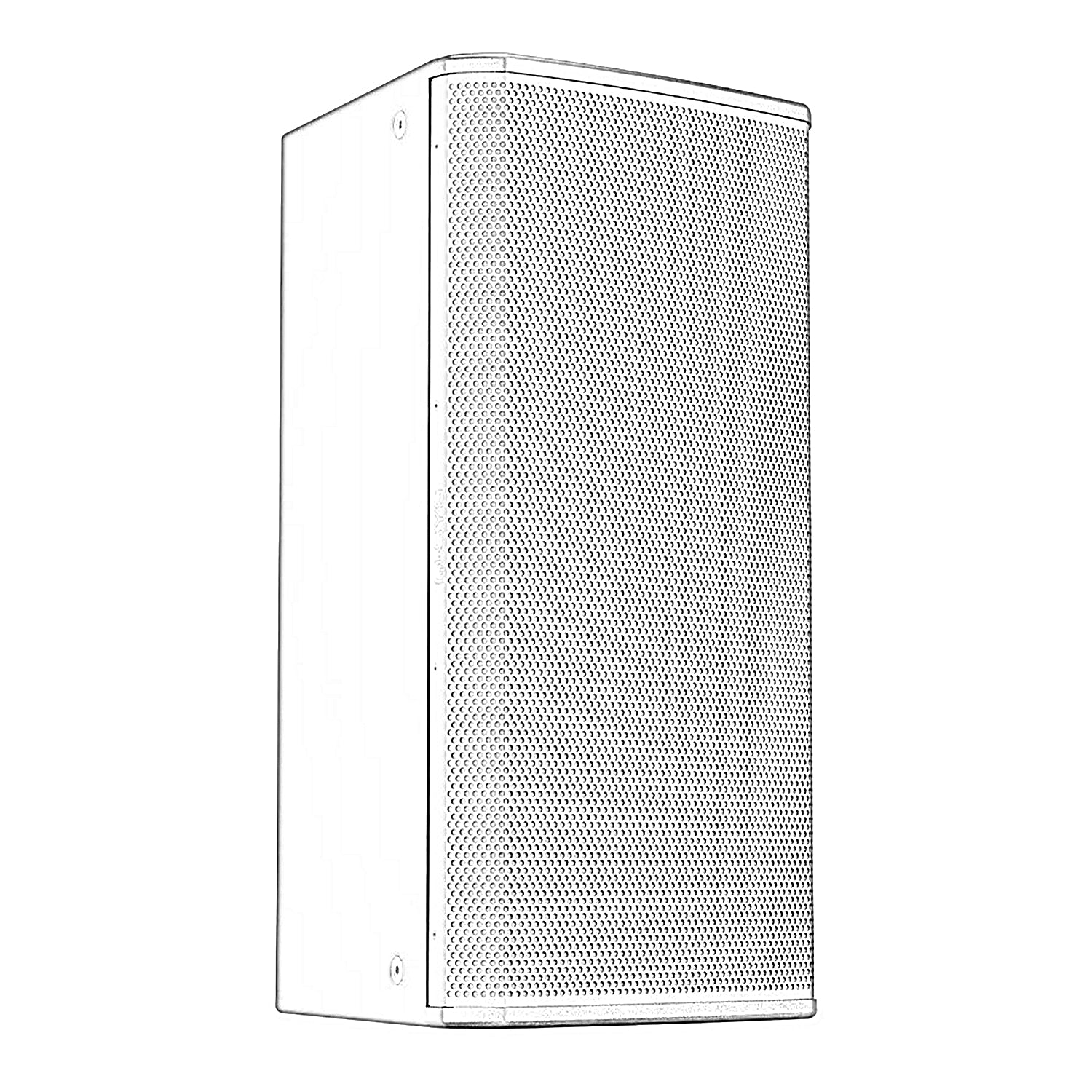

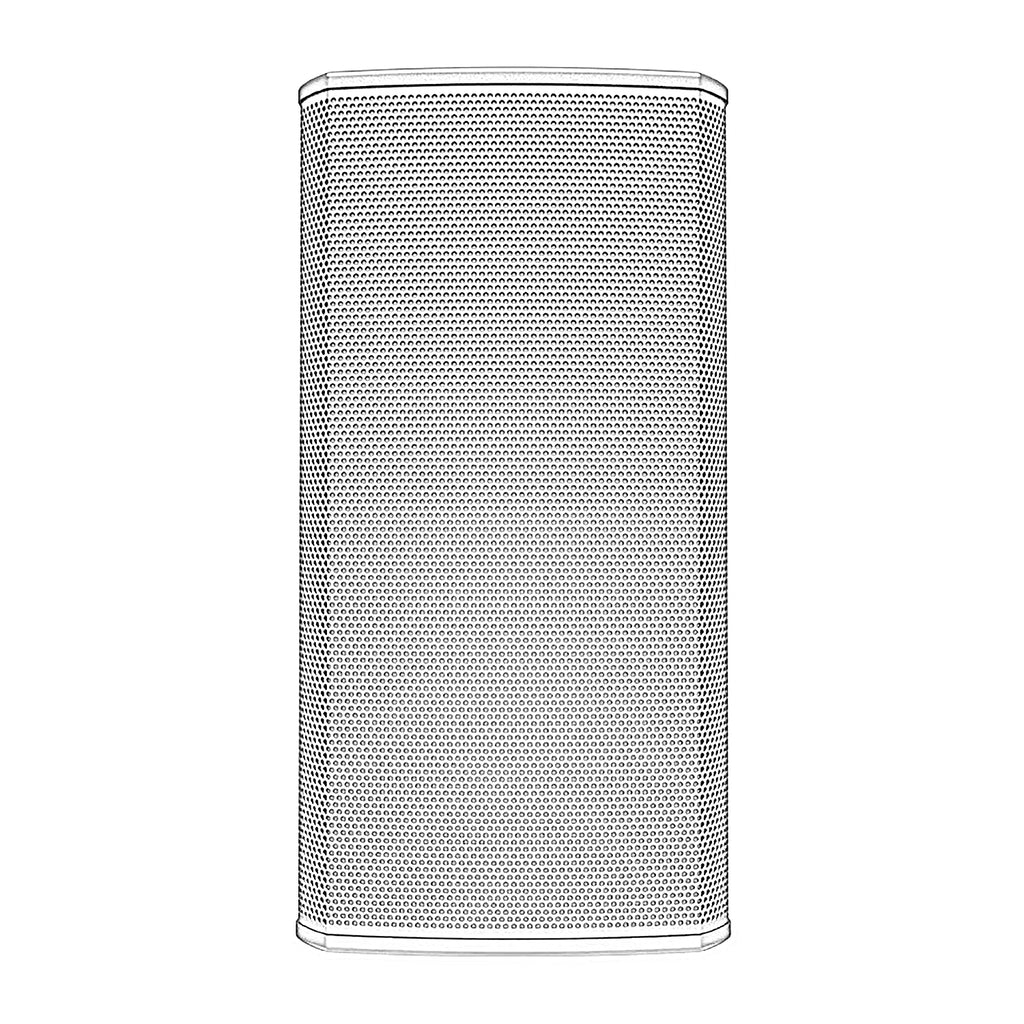

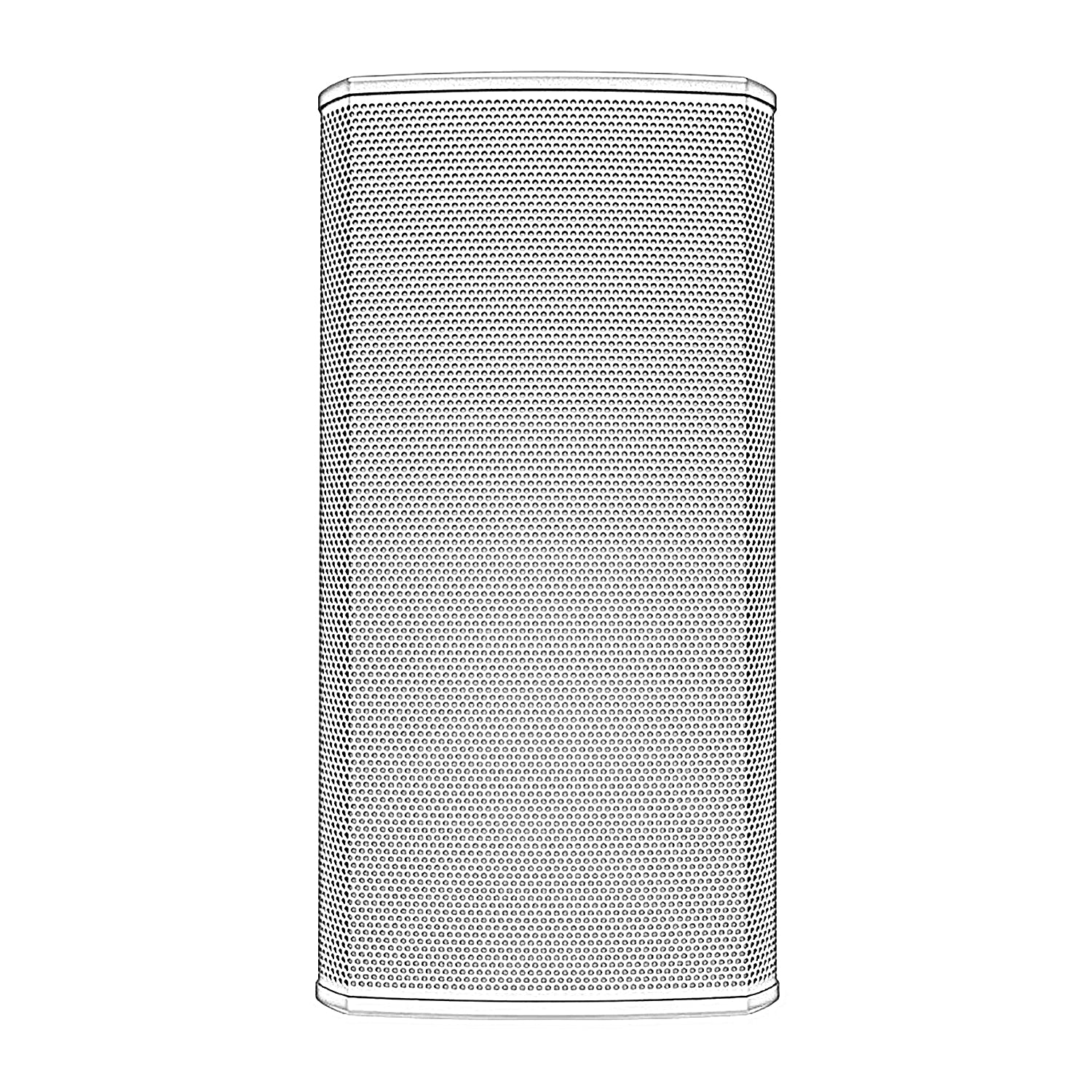

The Q-SYS PL-DC12 is a two-way passive point source loudspeaker with directivity control that delivers premium sound for a broad range of venue types in entertainment, hospitality, corporate and higher ed applications. This 12-inch model offers a reconfigurable and rotatable horn, enabling symmetrical or asymmetrical coverage for better control over where sound needs to be heard. Thus, the PL-DC12 offers the flexibility and adaptability to be deployed as stage fills, delays, or placed front-of-house in smaller venues.
Features
- 12-inch LF transducer + HF compression driver in a bass-reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Includes reconfigurable and rotatable half-horn assemblies for better control over sound coverage
- Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance
- Several mounting options available for a variety of spaces and venue requirements
Specifications
Transducers
- LF: 12 in (320 mm), 3 in (75 mm) voice coil, neodymium
- HF: Compression driver, 3 in (75 mm) voice coil
Enclosure Configuration
- Two-way, passive point source loudspeaker in bass reflex enclosure
Coverage (horizontal x vertical)
- Symmetrical: 90° x 50°, 70° x 50°, 110° x 50°
- Asymmetrical: 100° x 50°, 90° x 50°, 80° x 50° (reconfigurable half horn assemblies included)
System Sensitivity
- 102 dB @ 1 W/1 m
Max SPL (continuous)
- 124 dB
Enclosure
- Material: Exterior plywood
- Color: Black (RAL 9011)
Weatherization
- IP54 rated
- External plywood construction
- Stainless screws
- Treated grille for UV and corrosion resistance
- Hydrophobic stainless steel mesh behind grille
- Polyurea paint finish

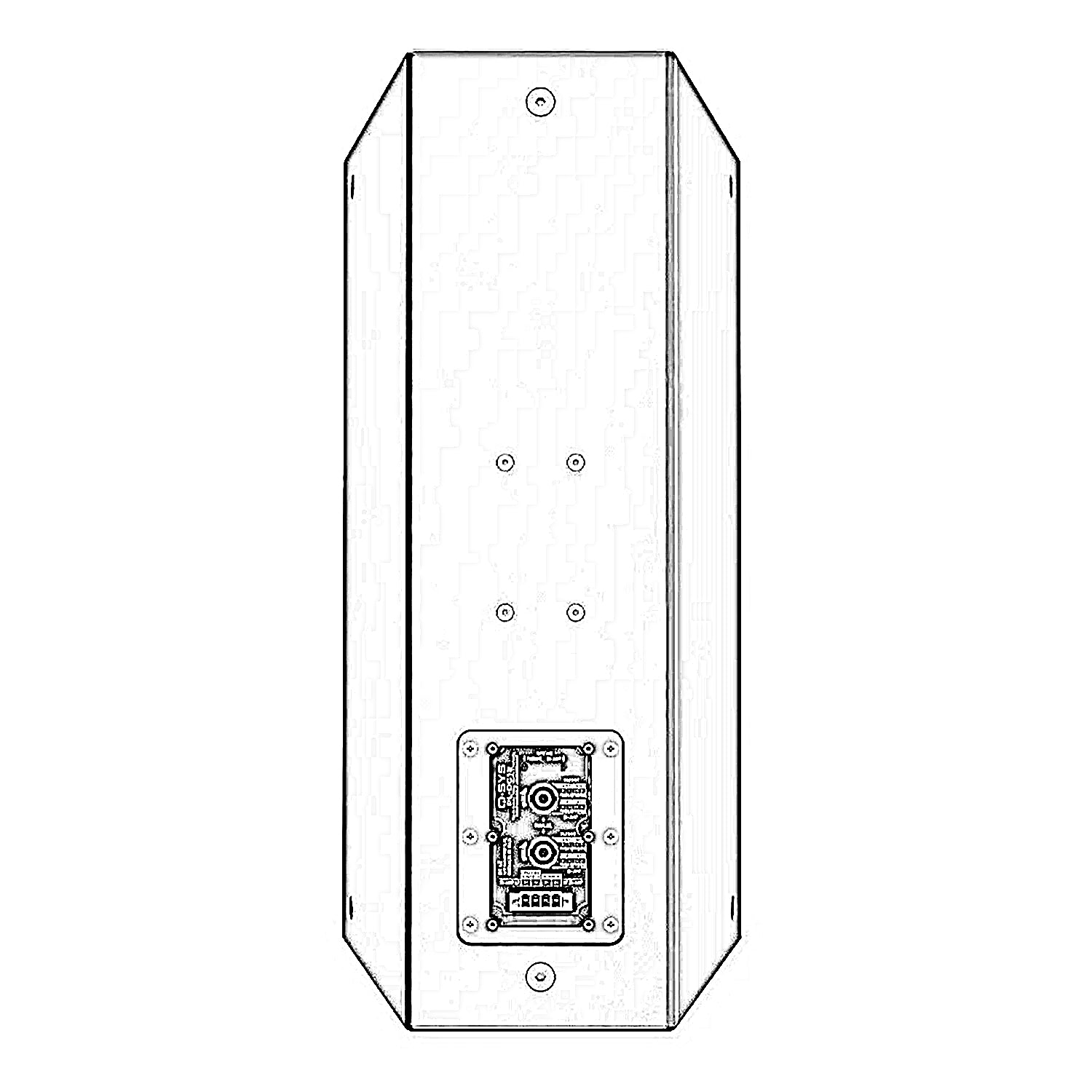

- IP65 sealed input cup with gland
Recommended Amplifiers
- Q-SYS CX-Q 8K4 (up to 2 per channel)
- Q-SYS CX-Q 4K4 (up to 1 per channel)
