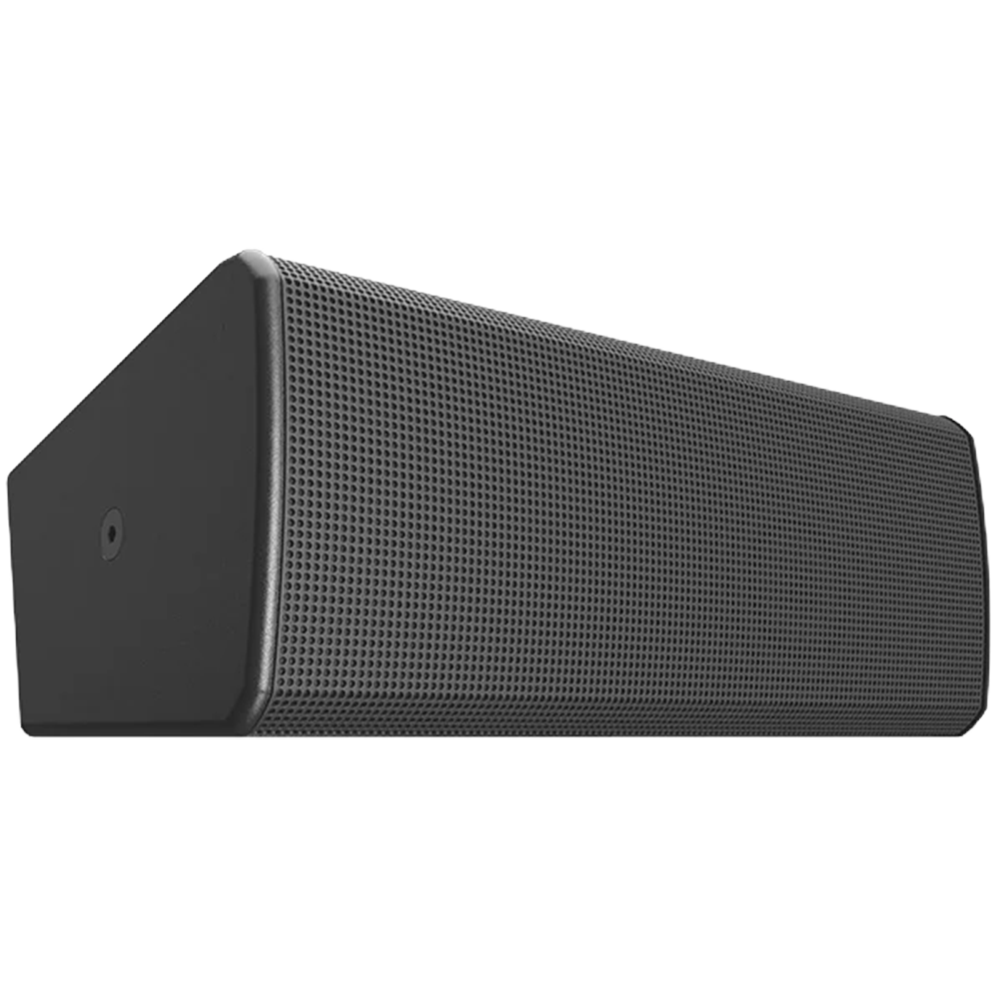

PL-DC24-FM Flush Mount for PL-DC24 Loudspeaker

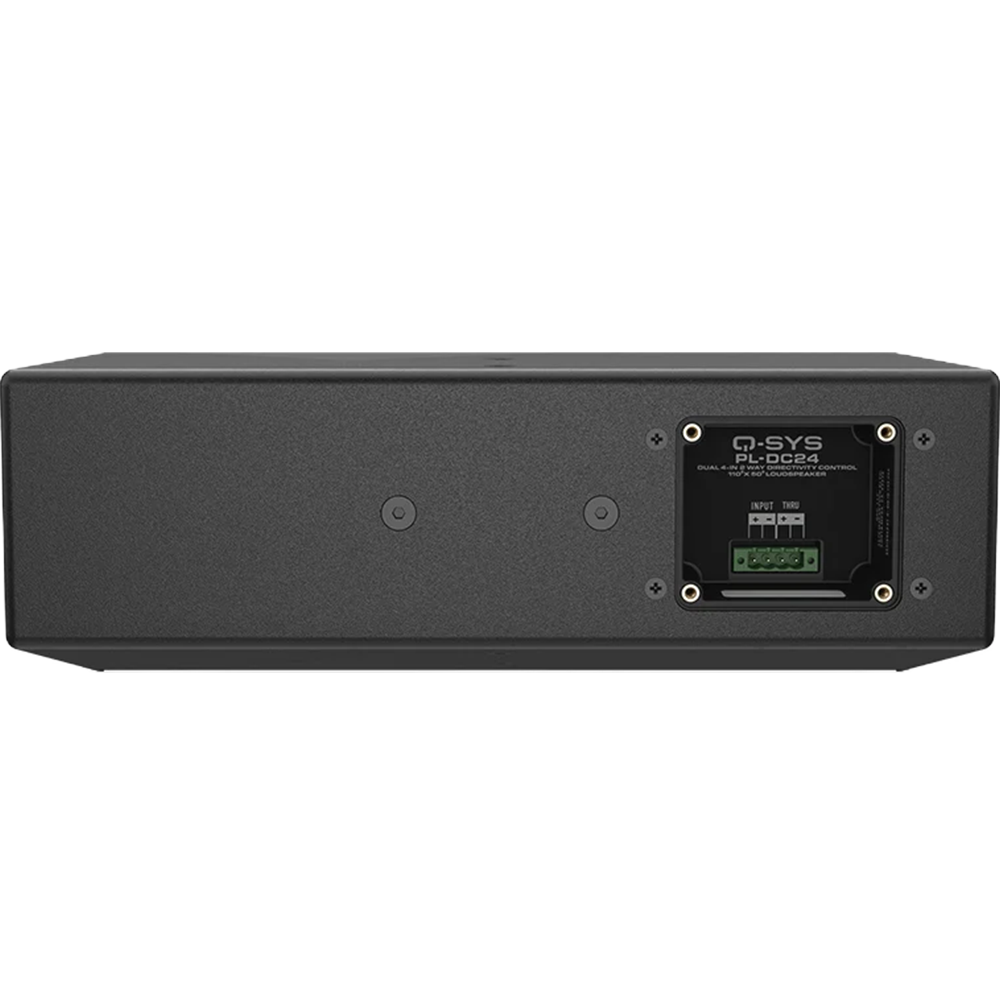

The accessory allowing surface mounting of the PL-DC24 shall built with three 1.5 mm thick galvanized metal CRS brackets with a 1000h UV and 200 hours salt spray test powder coating. Each part should provide a traceability identifier. A bracket shall be attached to the loudspeaker top, bottom or back using the 2-hole pattern (60 mm or 70 mm, M6) while the other brackets shall be installed on the surface where the loudspeaker shall be mounted. Angles between those brackets can be indexed in 10° steps. Attachments between the loudspeaker and the wall brackets shall be done with keyholes and a single fastener.
The Flush Mount for PL-DC24 shall be the Q-SYS PL-DC24-FM.
