Overview
PL-DC26-FM Flush Mount for PL-DC26 Loudspeaker

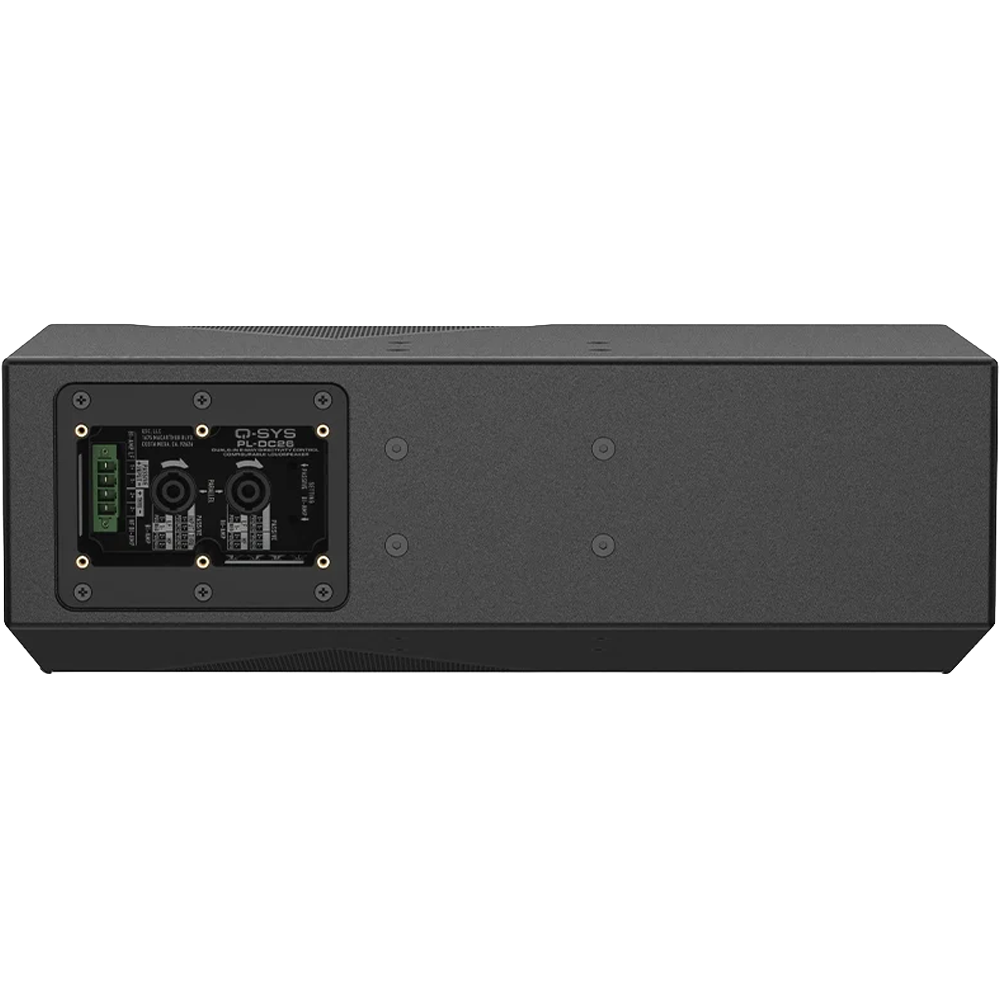

The accessory allowing surface mounting of the PL-DC26 shall built with three 1.5 mm thick galvanized metal CRS brackets with a 1000h UV and 200 hours salt spray test powder coating. Each part should provide a traceability identifier. A bracket shall be attached to the loudspeaker top, bottom or back using the 4-hole pattern (4 x 2.25 pitch, M6) while the other brackets shall be installed on the surface where the loudspeaker shall be mounted. Angles between those brackets can be indexed in 10° steps. Attachments between the loudspeaker and the wall brackets shall be done with keyholes and a single fastener.
The Flush Mount for PL-DC26 shall be the Q-SYS PL-DC26-FM.
