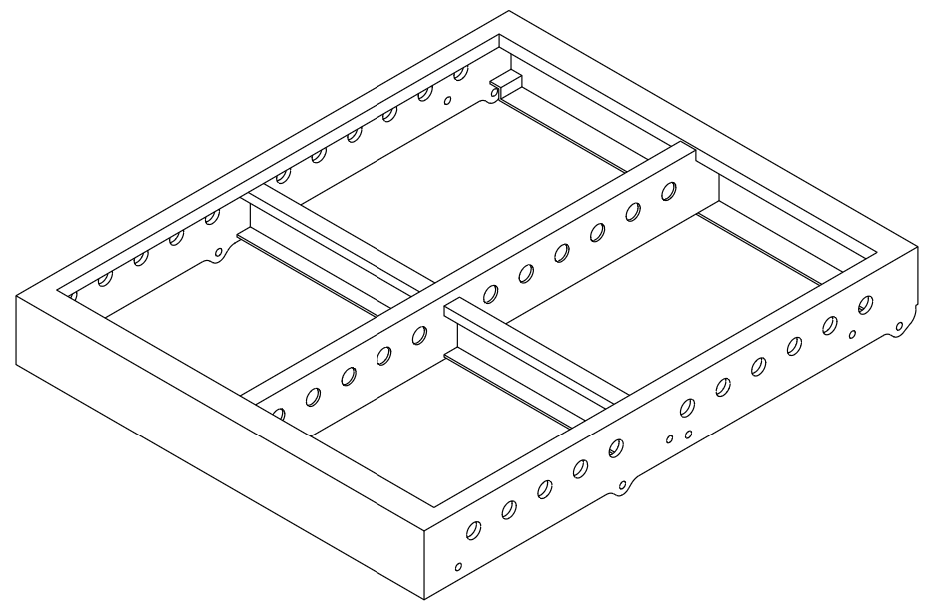

PL-LA12-AF Array Frame for PL-LA12
The Array Frame for PL-LA12 shall be a zinc plated metal steel frame with a 1000h UV and 200 hours salt spray test powder coating. It should provide a traceability identifier.
The array shall provide 3 sets of 11 rigging points spaced by 50.8mm on the exterior of the frame as well as on the center spine. The array frame shall allow mounting the PL-LA12 loudspeaker array in normal position for maximum down-tilt angle or with a reversed frame for maximum up-tilt angle. The array frame shall also allow ground stacking the PL-LA loudspeaker array and flying an array of PL-SUB18 sub-basses.
The Array Frame shall be 3.8 in (97 mm) high, 22.95 in (583 mm) wide, and 27.7 in (704 mm) deep. The Array Frame shall have a net weight of no more than 32 lb (14.3 kg).
The Array Frame for PL-LA12 shall be the Q-SYS PL-LA12-AF.
