Overview

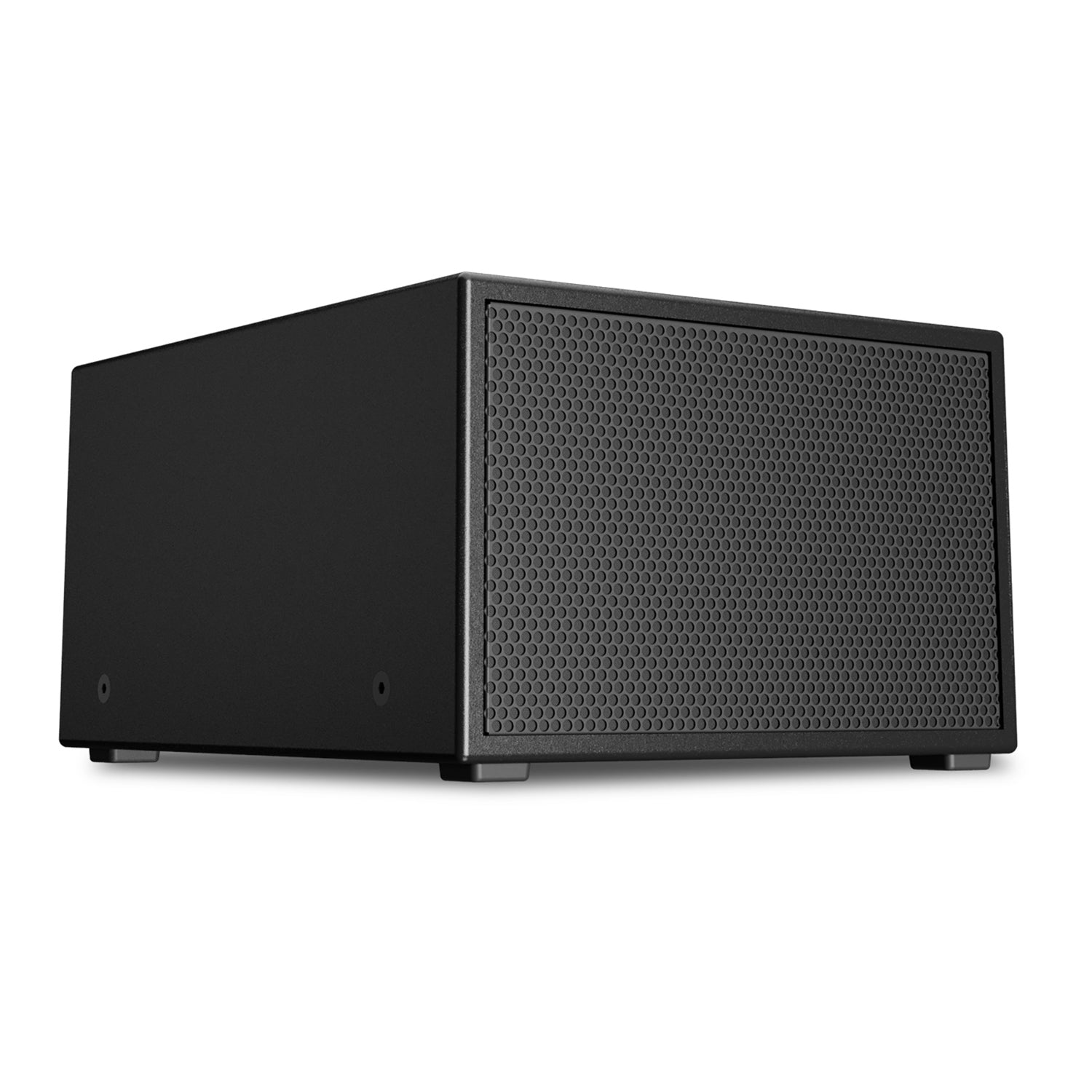

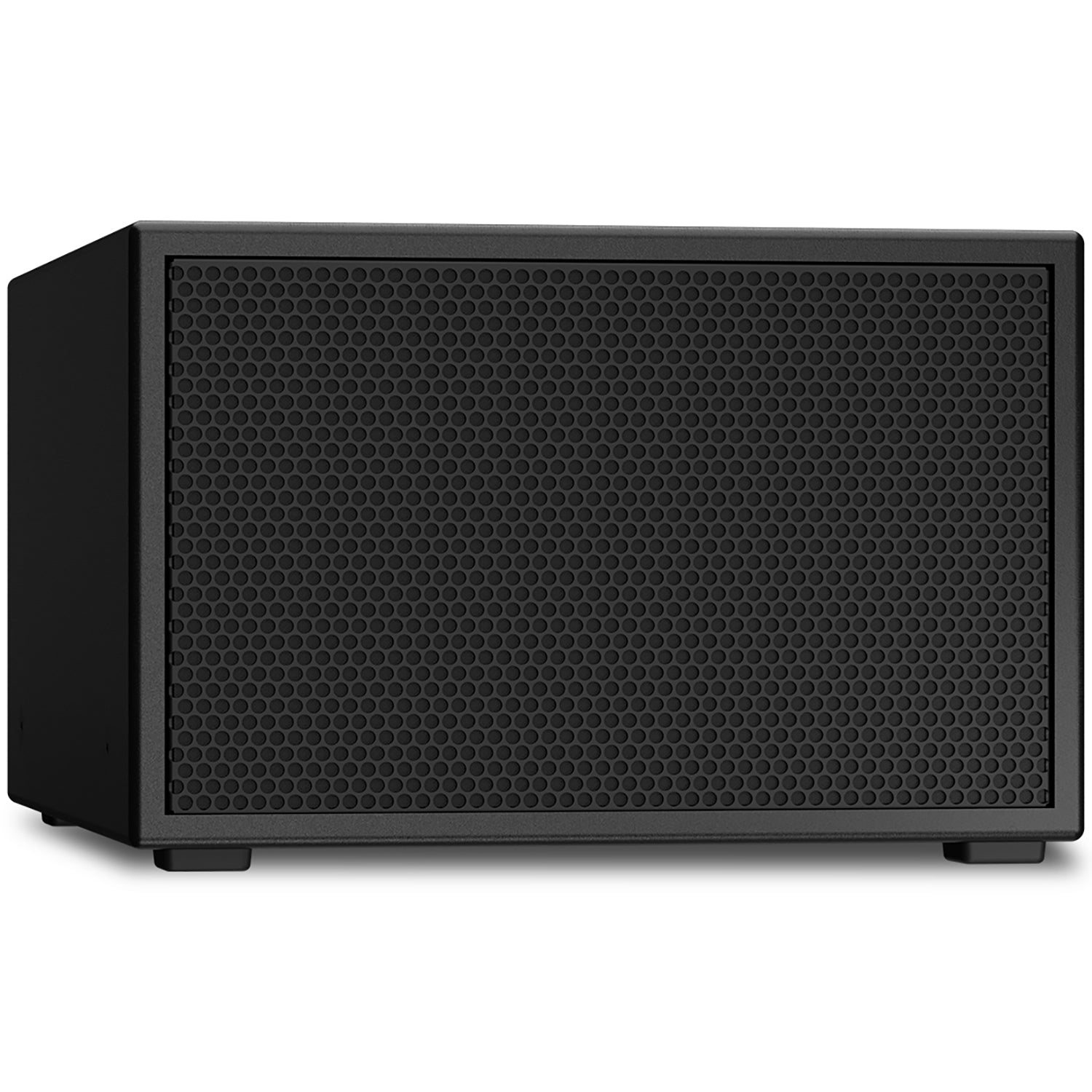

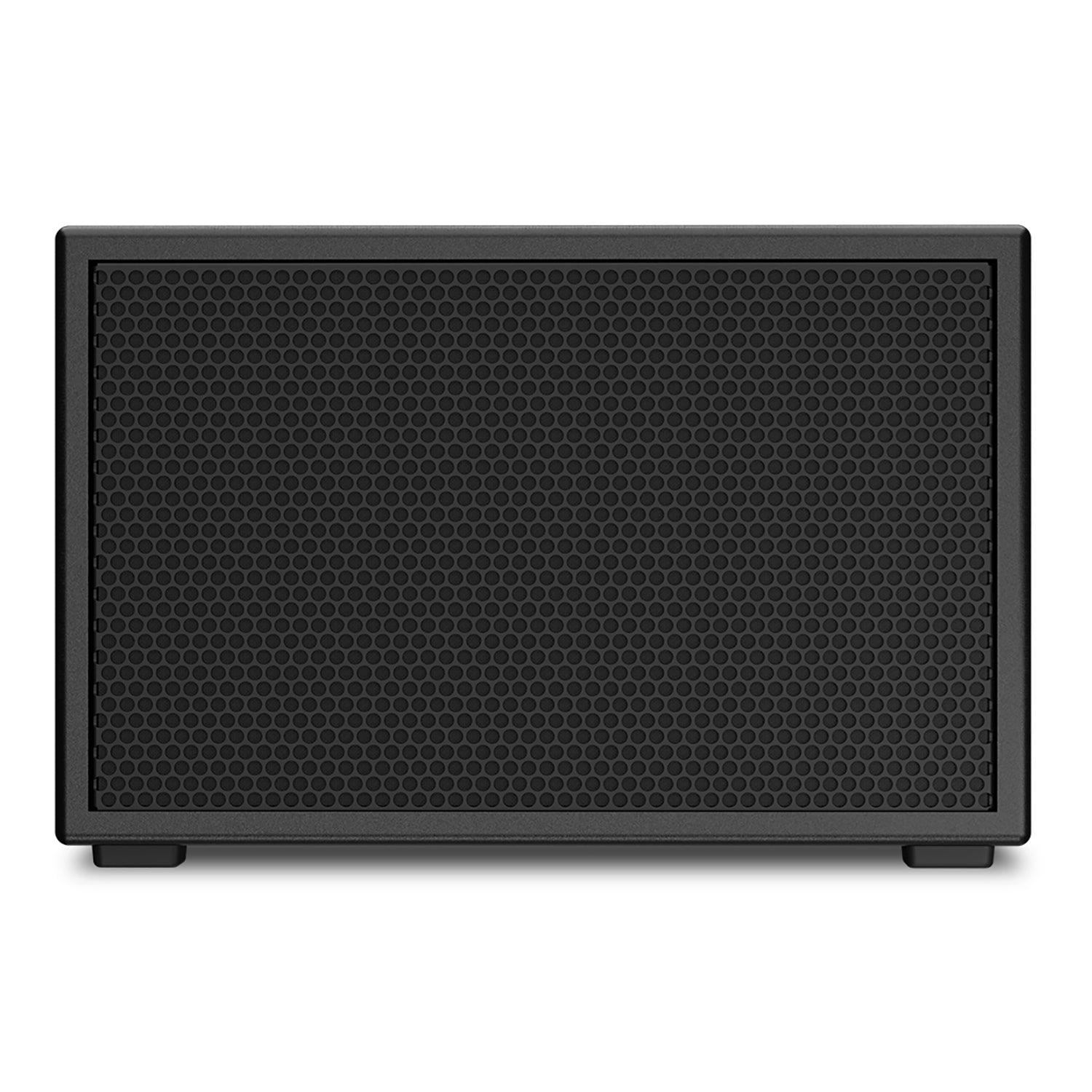

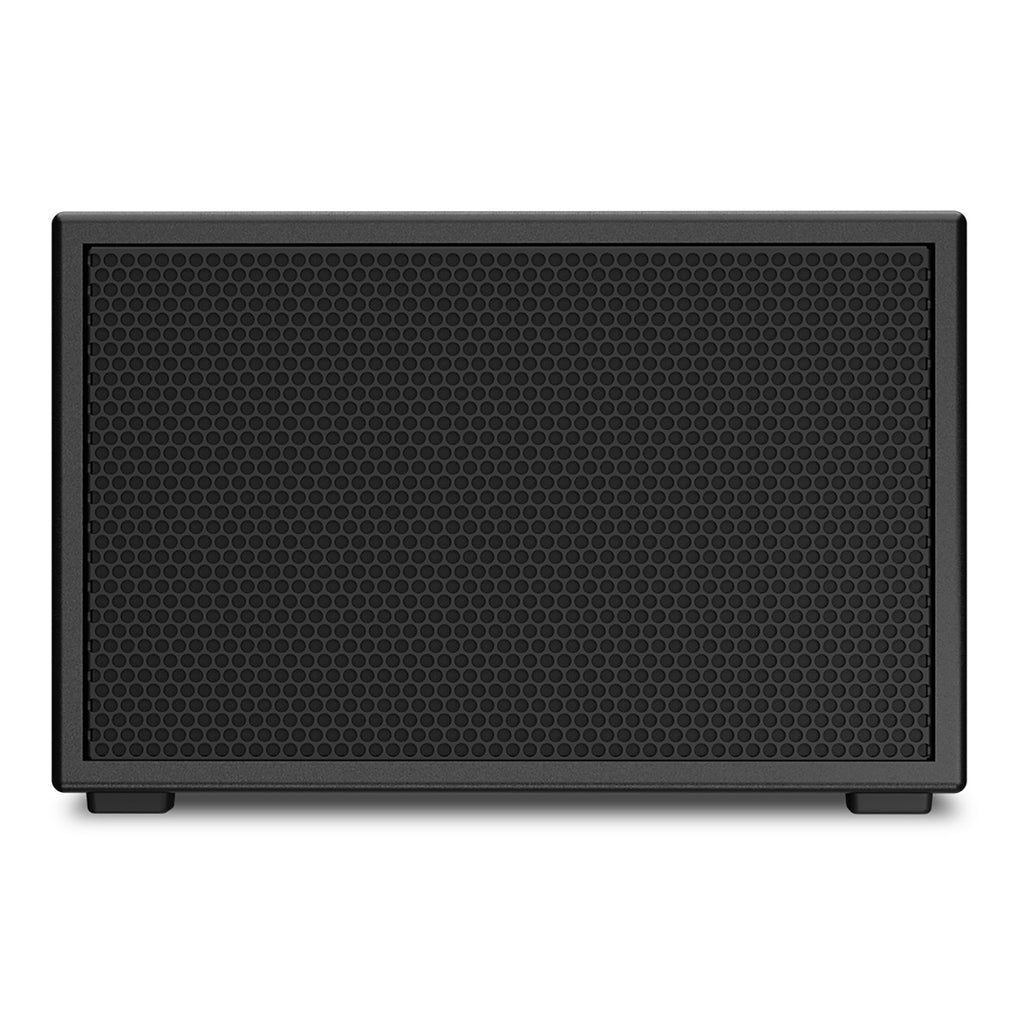

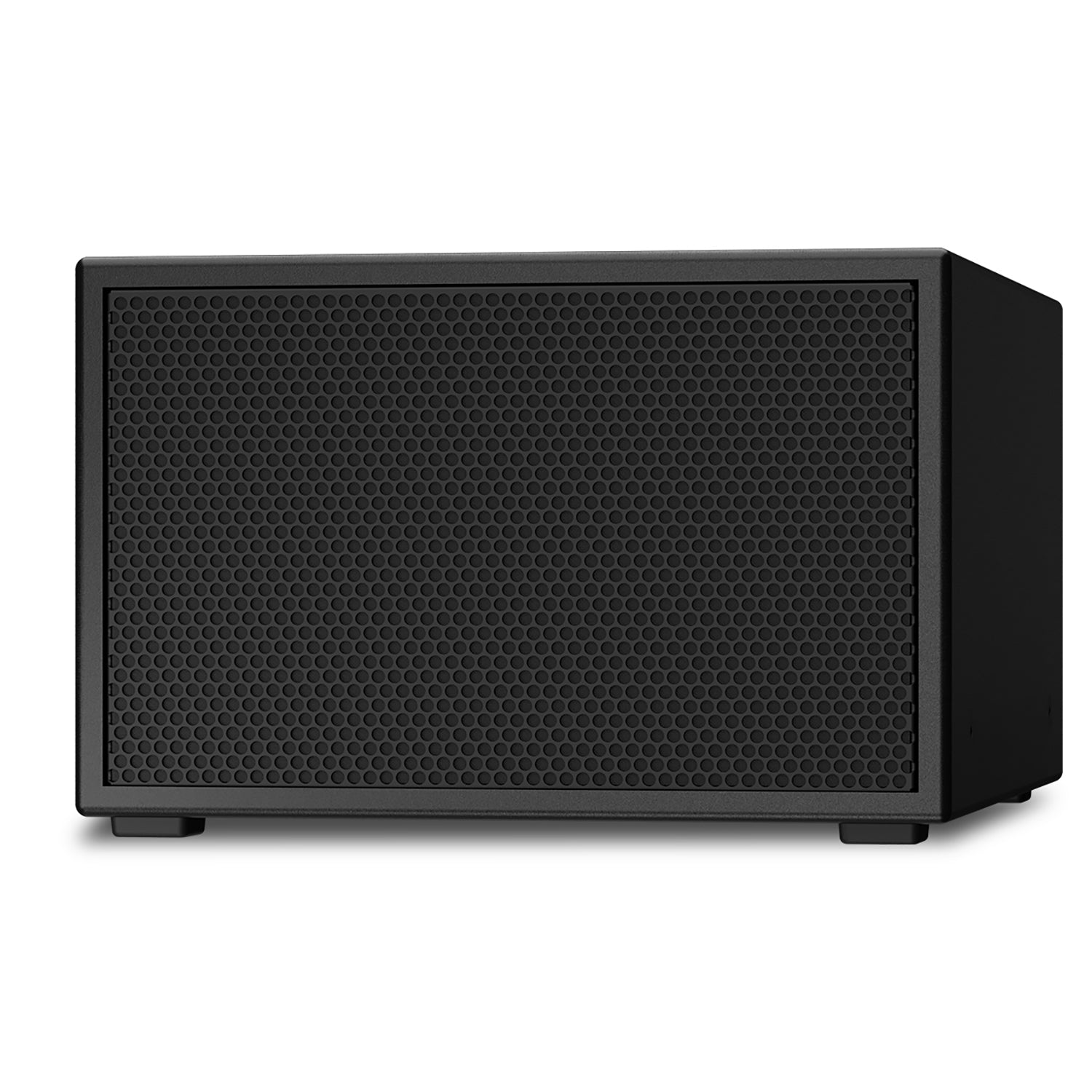

The Q-SYS PL-SUB10 is a passive, 10-inch installation subwoofer that features a weatherized wooden enclosure in a compact form factor suited for a broad range of applications, from entertainment and small sporting venues to corporate auditoriums or higher ed lecture halls.
Features
- 10-inch LF transducer in a bass reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Ground or flown deployment (M10 rigging points)
Specifications
- Transducers: LF: 10 in (250 mm), 3 in (75 mm) voice coil
- Enclosure configuration: Passive subwoofer in bass reflex enclosure
- Coverage: Omnidirectional
- System bandwidth (-10 dB with EQ): 43-100 Hz (Sub Crossover = 80), 43-110 Hz (Sub Crossover = 100), 43-140 Hz (Sub Crossover = 125)
- System sensitivity: 90 dB @ 1 W/1 m
- Max SPL* (continuous): 132 dB
- Enclosure material: Exterior plywood
- Enclosure color: Black (RAL 9011)

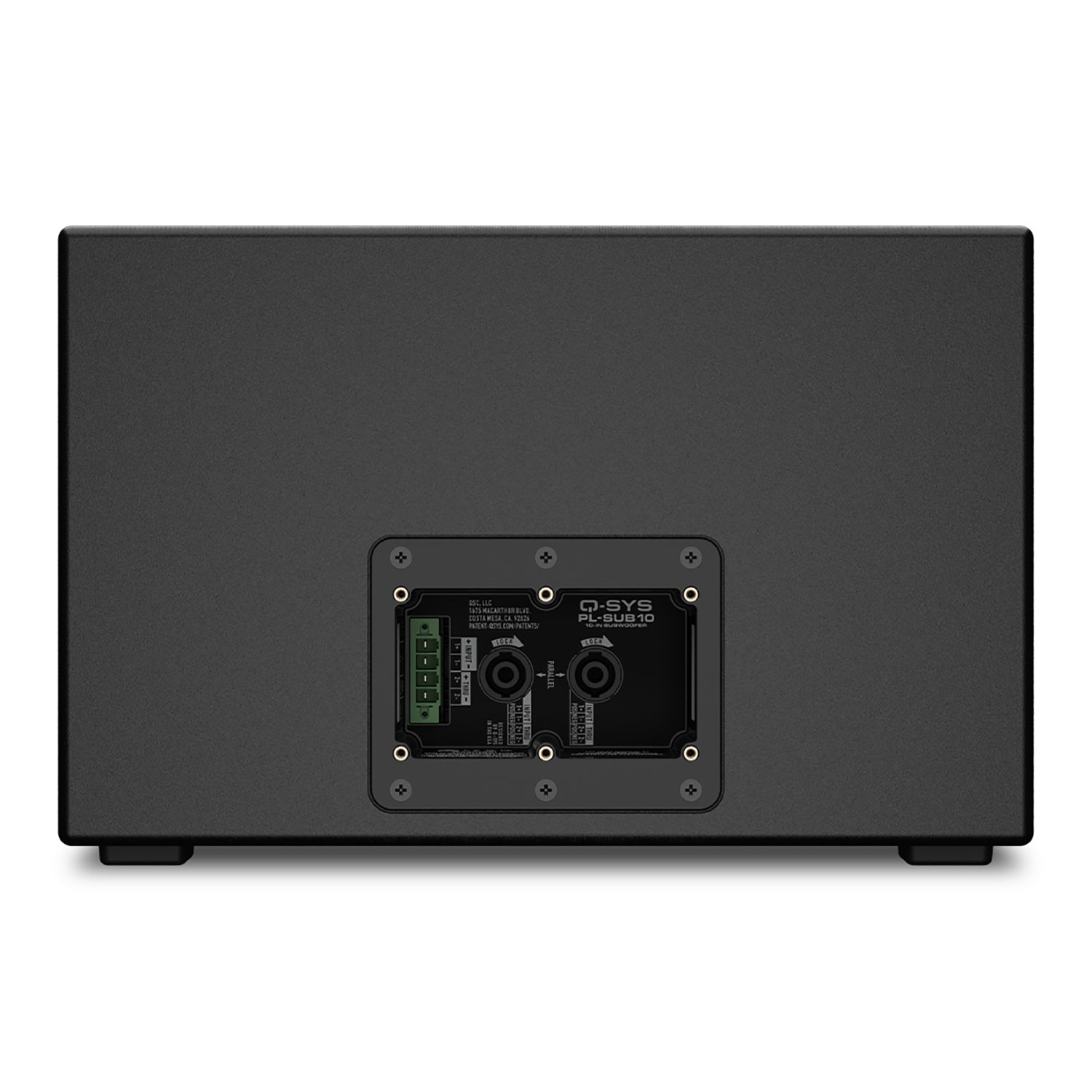

- Connectors: 2x Speakon NL4 (cable connector not provided), 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles
- Weatherization (IP54): External plywood, Stainless screws, Treated grille vs. UV and corrosion, Hydrophobic stainless steel mesh behind grille, Polyurea Paint, Input cup (IP65) sealing with gland
- Recommended amplifiers: Q-SYS CX-Q 8K4 (up to 2 per ch), Q-SYS CX-Q 4K4 (up to 1 per ch)
- Dimensions: 10.8 x 16.7 x 20 in (275 x 425 x 510 mm)
- Weight: 51.8 lb (18.96 kg)
