Overview

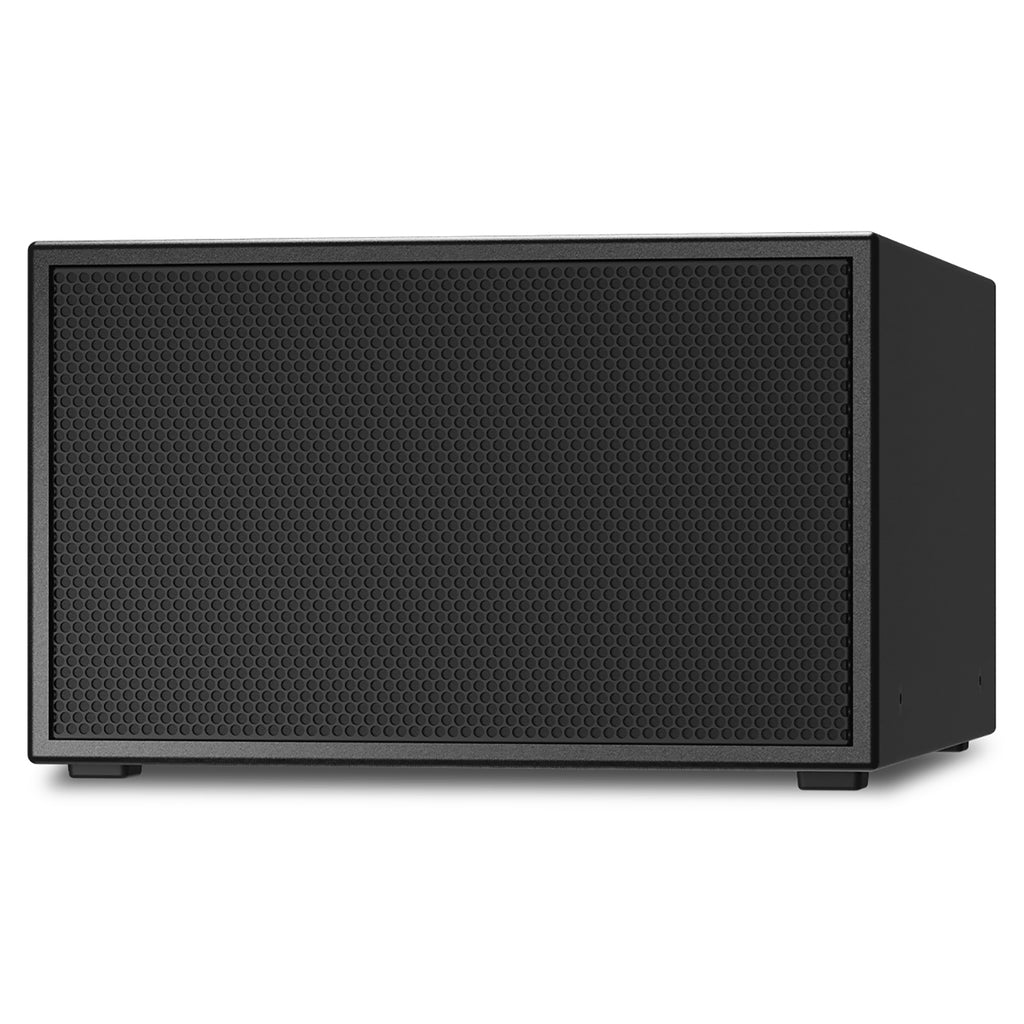

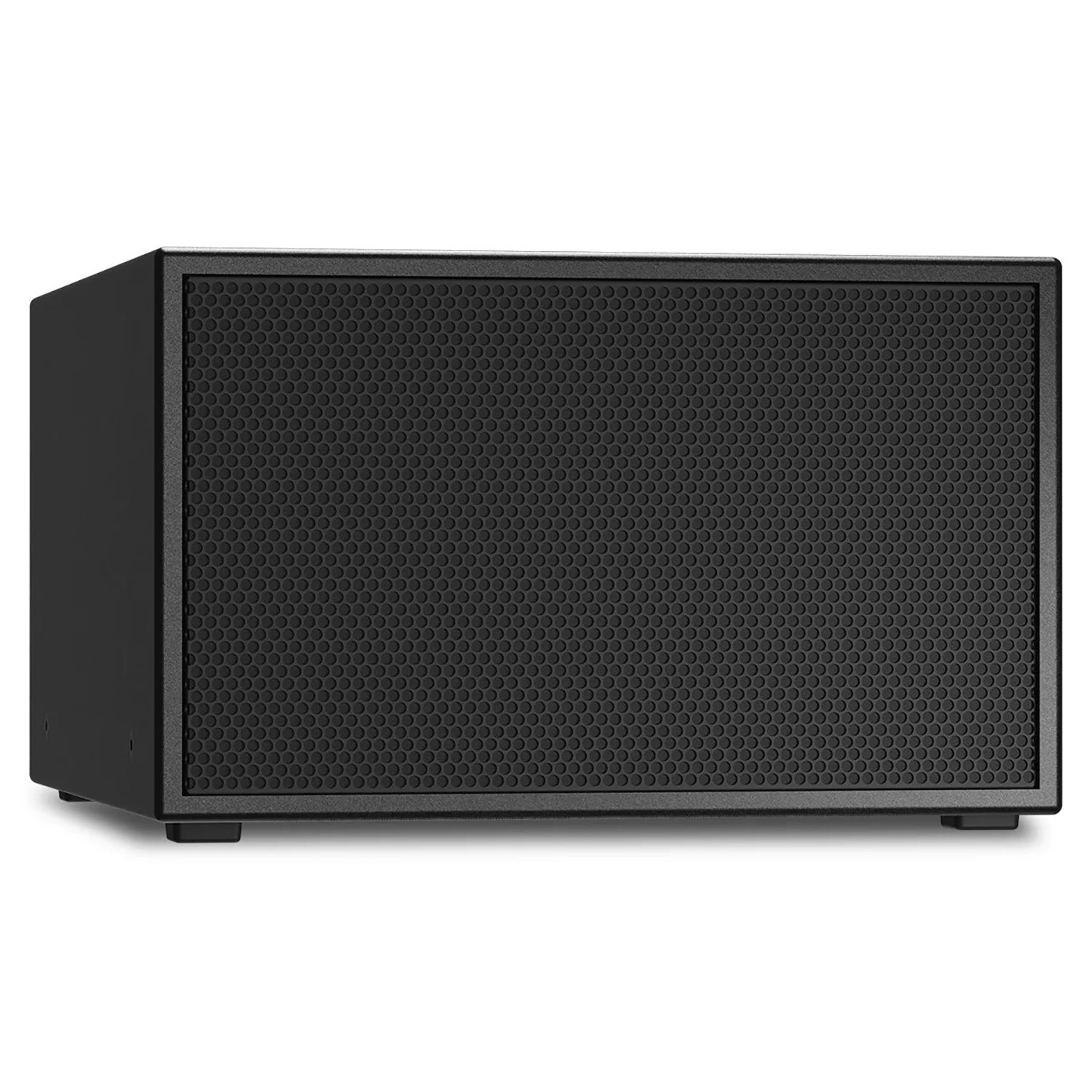

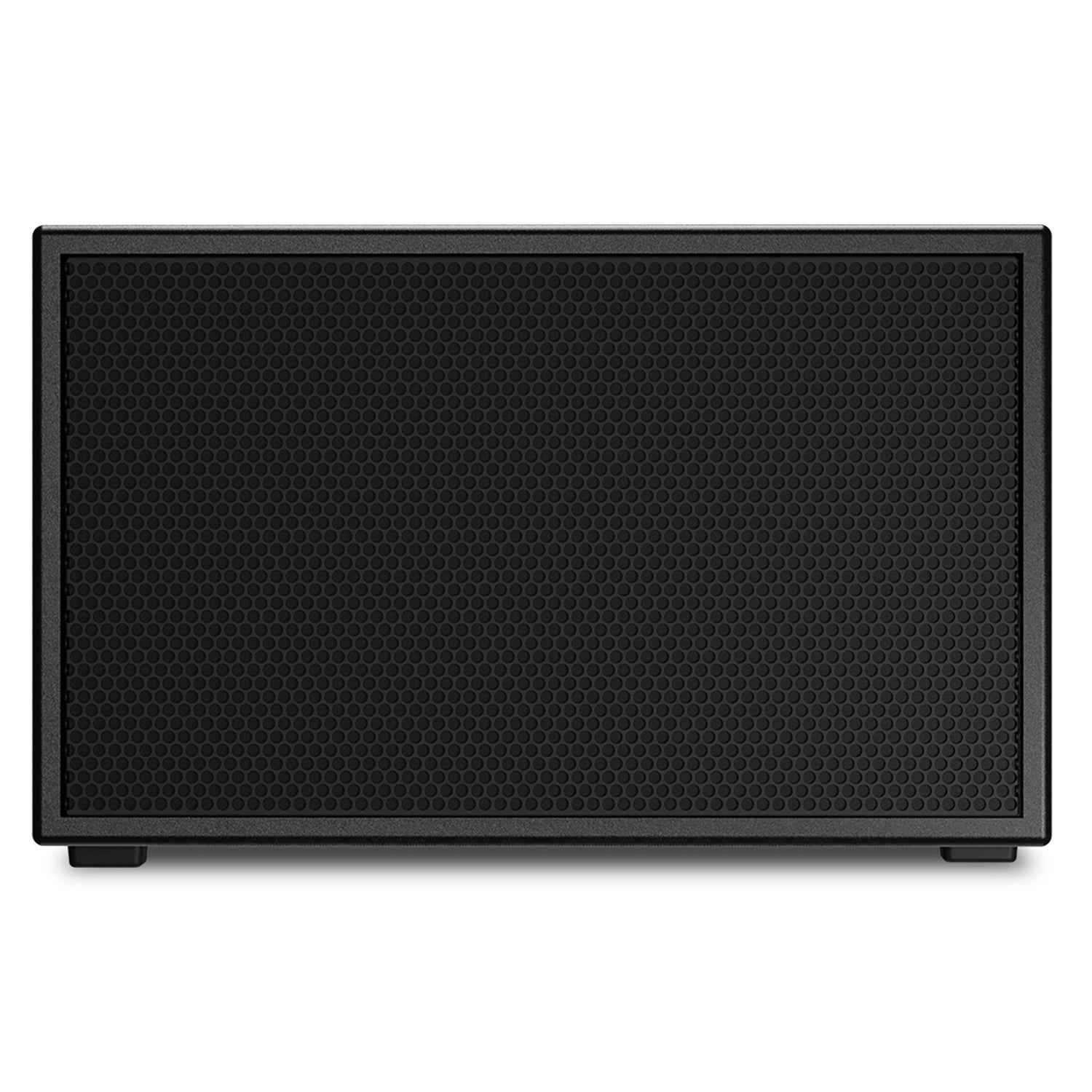

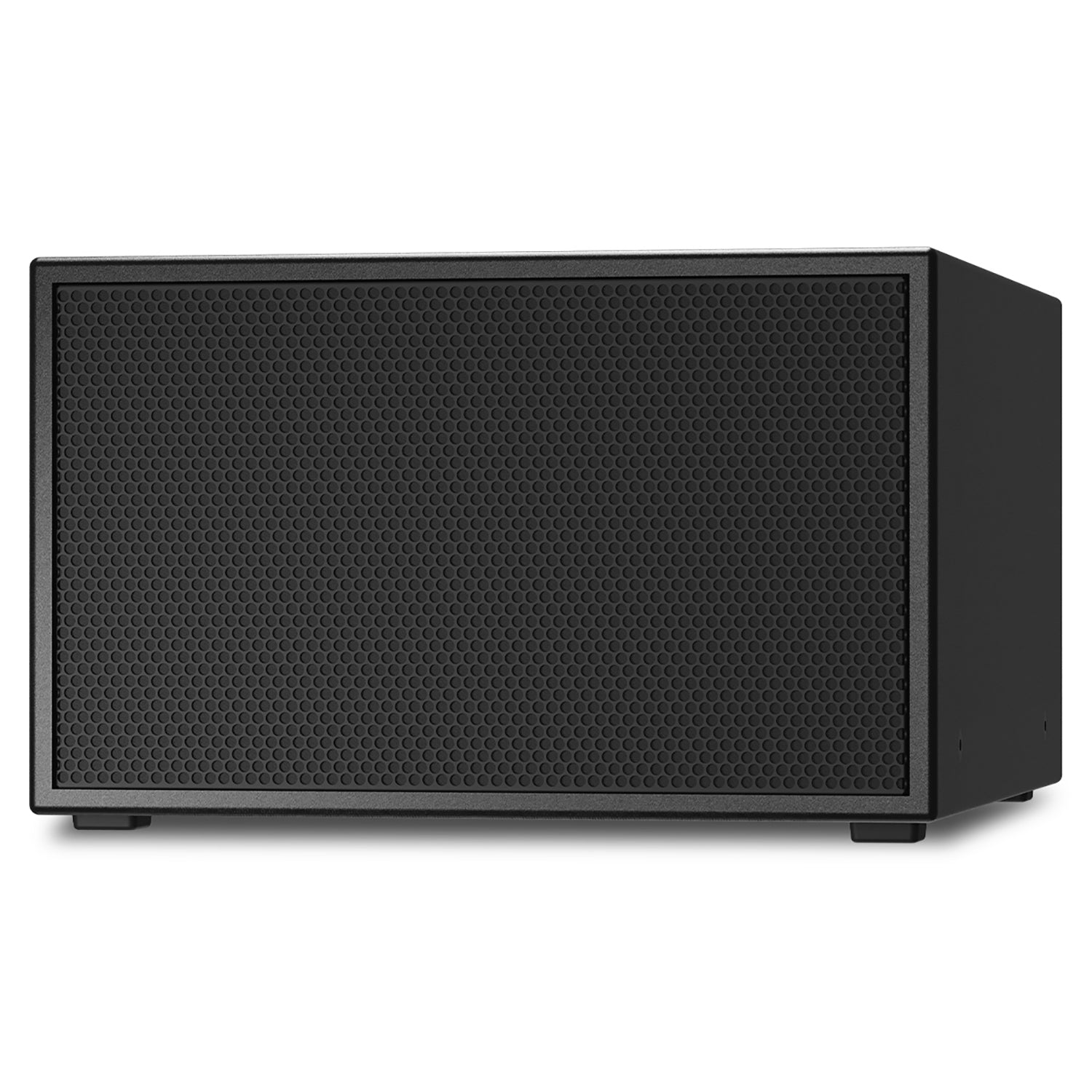

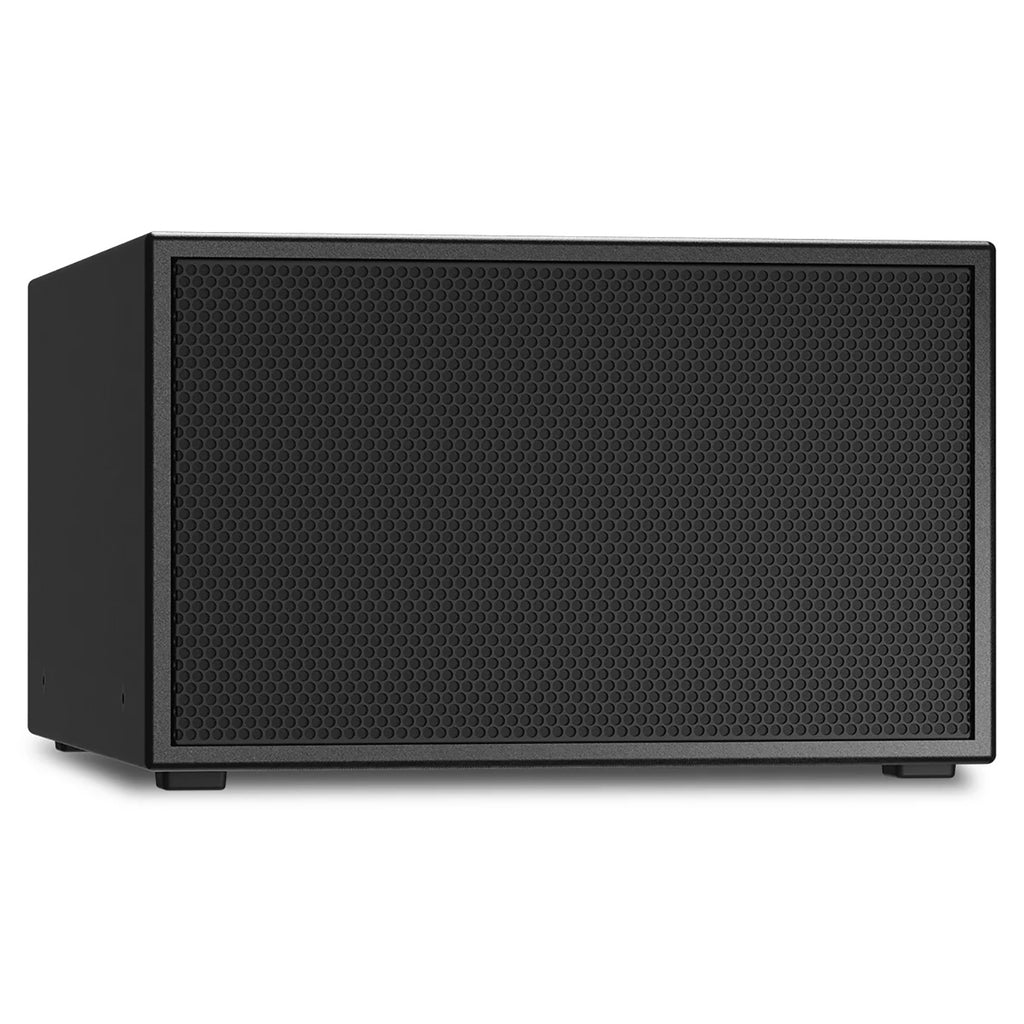

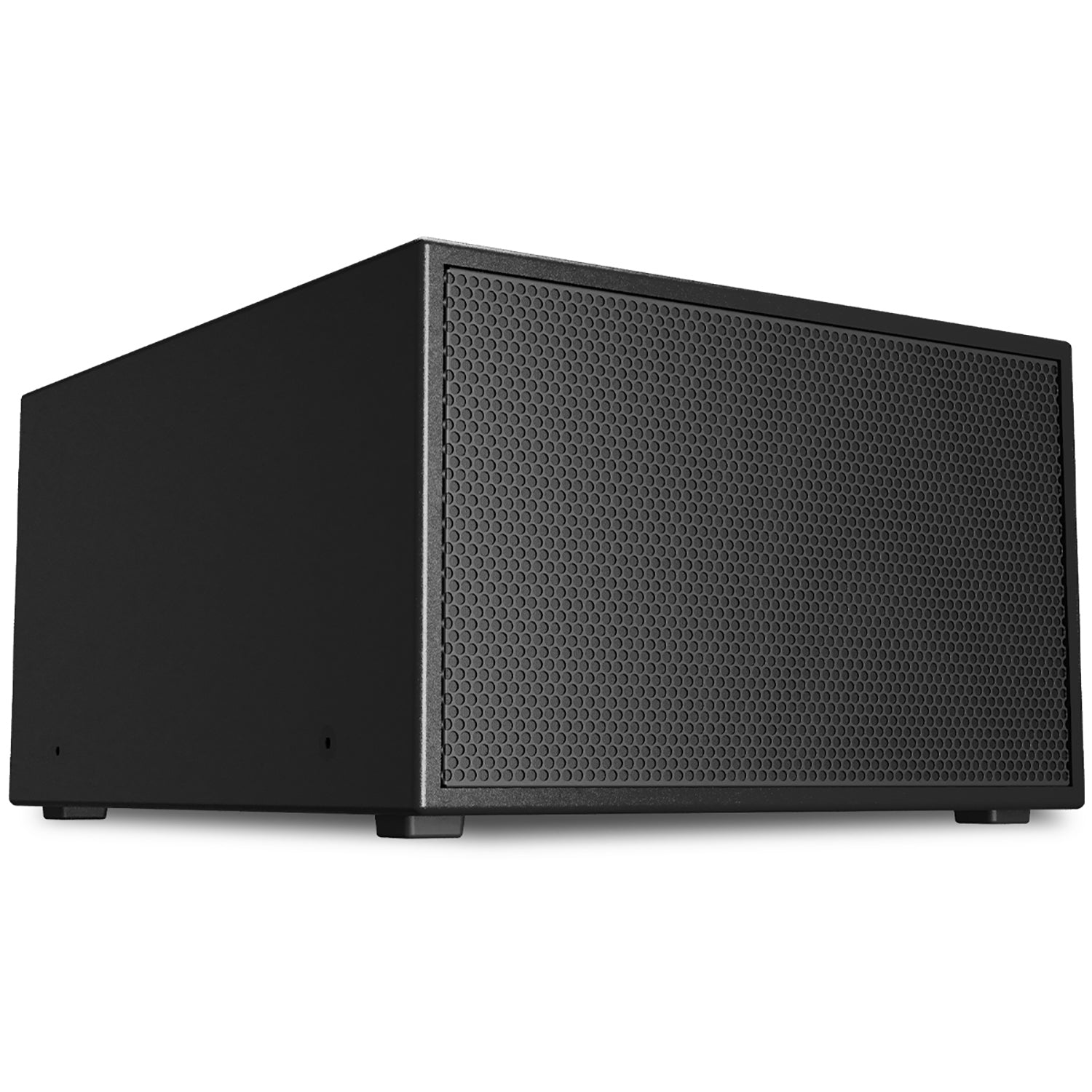

The Q-SYS PL-SUB12 is a passive, 12-inch installation subwoofer that features a weatherized wooden enclosure in a compact form factor suited for a broad range of applications, from entertainment and small sporting venues to corporate auditoriums or higher ed lecture halls.
Features
- 12-inch LF transducer in a bass reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Ground or flown deployment (M10 rigging points)
Specifications
- Transducers: LF: 12 in (300 mm), 3 in (75 mm) voice coil
- Enclosure configuration: Passive subwoofer in bass reflex enclosure
- Coverage: Omnidirectional
- System bandwidth (-10 dB with EQ): 40-100 Hz (Sub Crossover = 80), 40-110 Hz (Sub Crossover = 100), 40-140 Hz (Sub Crossover = 125)
- System sensitivity: 93 dB @ 1 W/1 m
- Max SPL* (continuous): 137 dB @ 1 W/1 m
- Enclosure material: Exterior plywood
- Enclosure color: Black (RAL 9011)

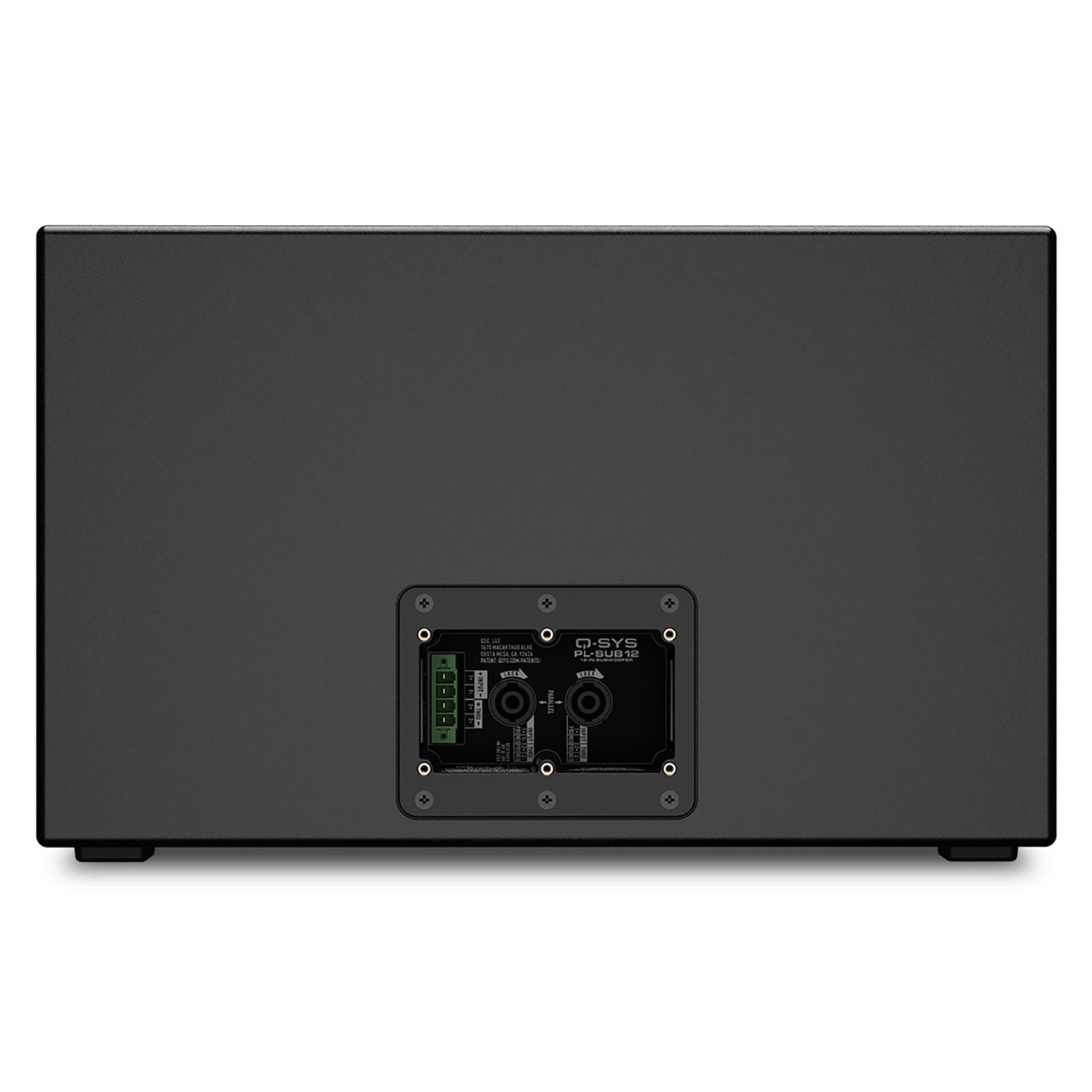

- Connectors: 2x Speakon NL4 (cable connector not provided), 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles
- Weatherization: IP54, External plywood, Stainless screws, Treated grille vs. UV and corrosion, Hydrophobic stainless steel mesh behind grille, Polyurea Paint, Input cup (IP65) sealing with gland
- Recommended amplifiers: Q-SYS CX-Q 8K4 (up to 2 per ch), Q-SYS CX-Q 4K4 (up to 1 per ch)
- Dimensions: 12.7 x 20.6 x 24 in (325 x 525 x 610 mm)
- Weight: 53.1 lb (24.1 kg)
