Overview

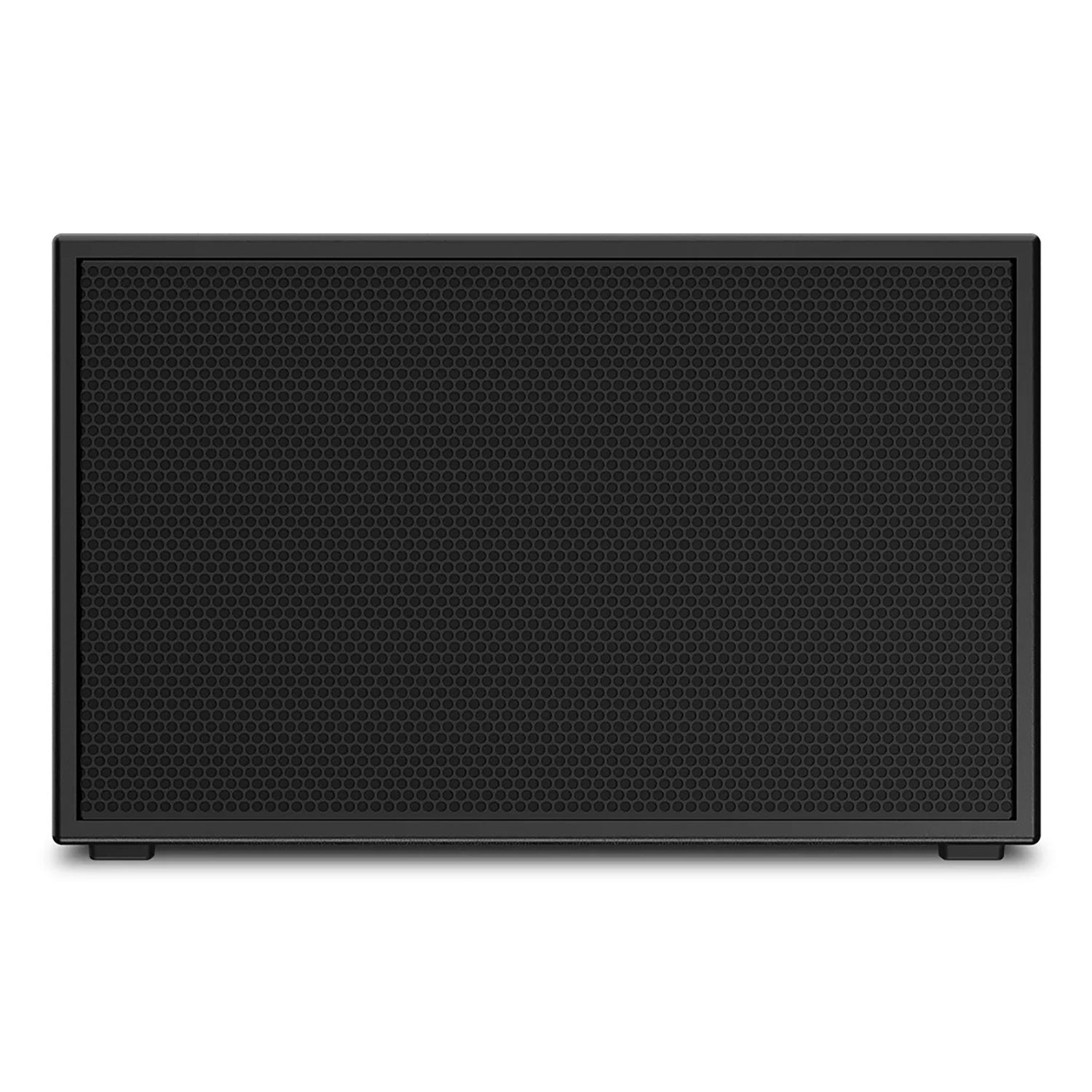

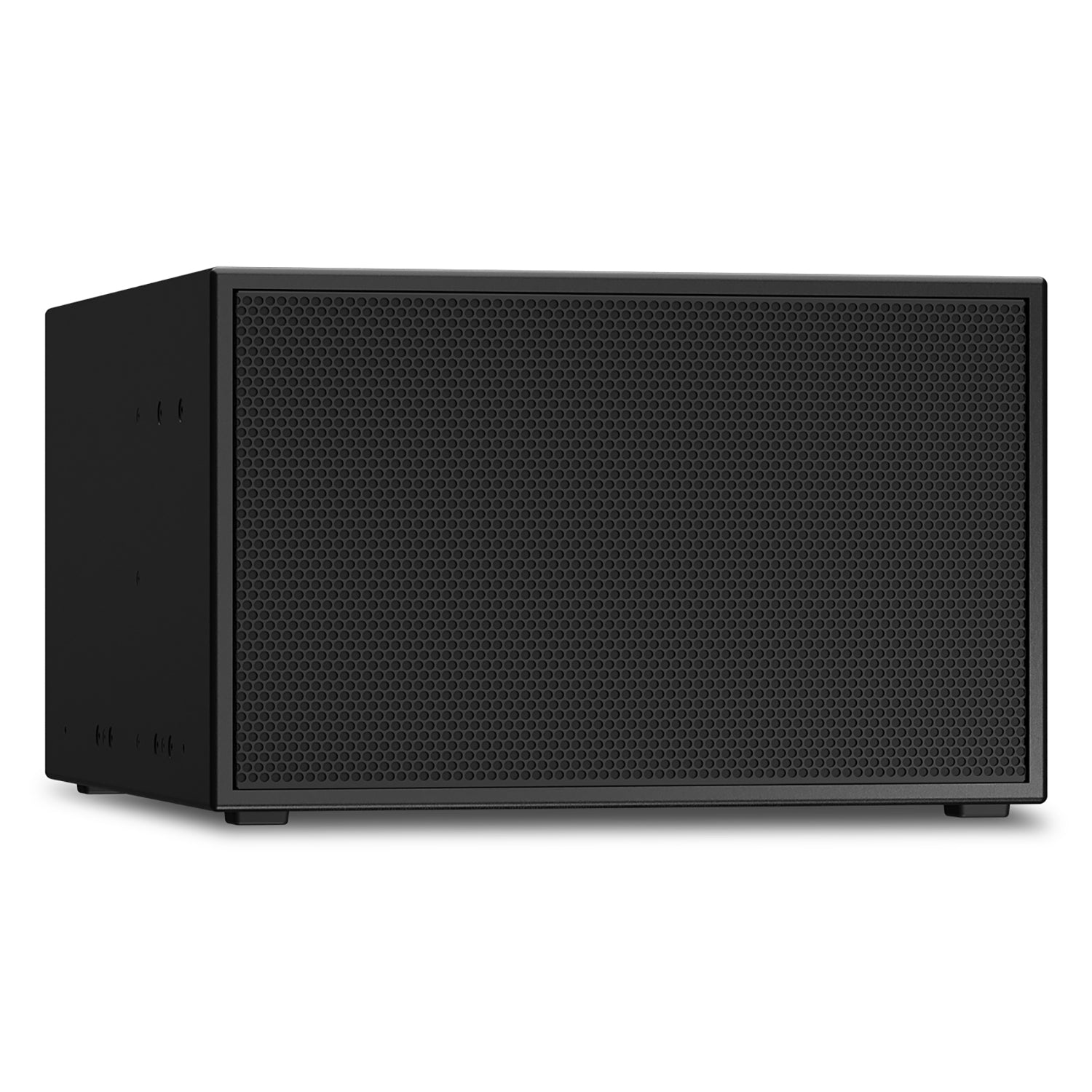

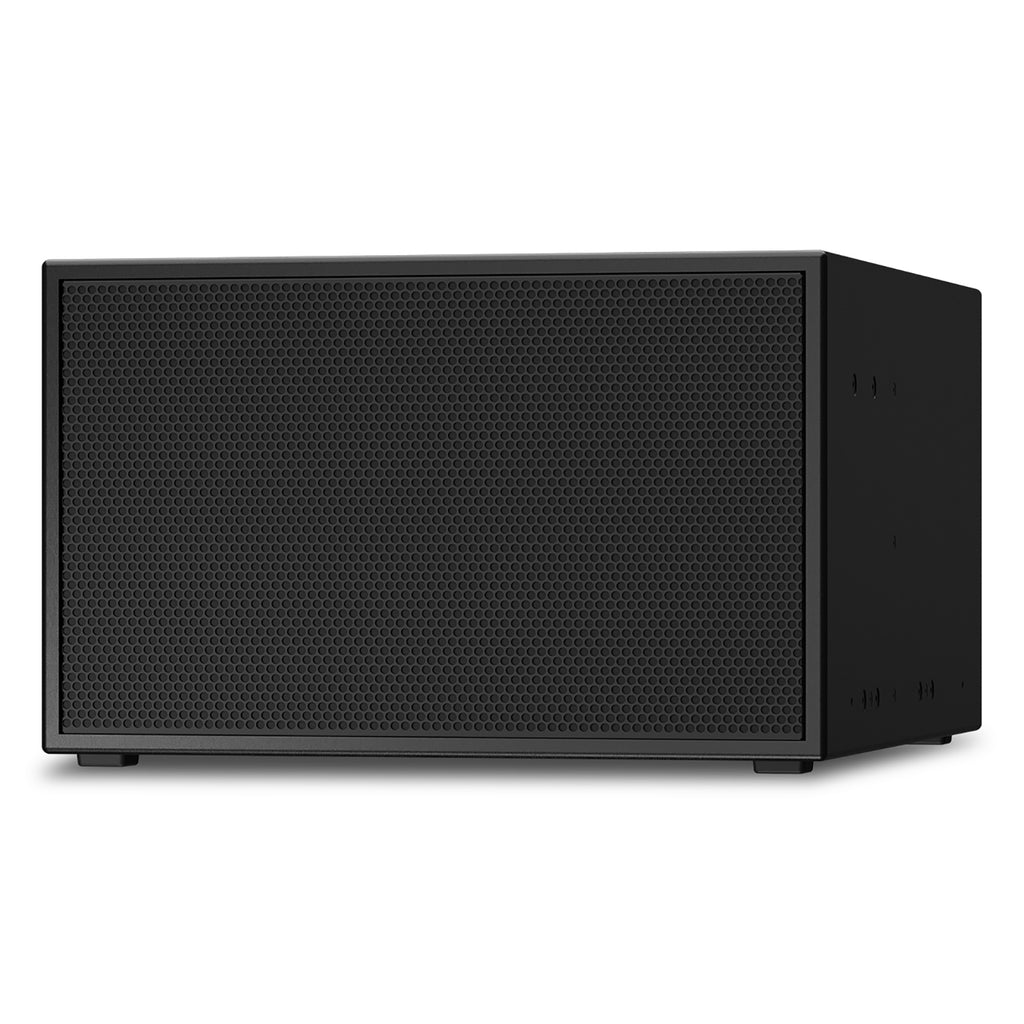

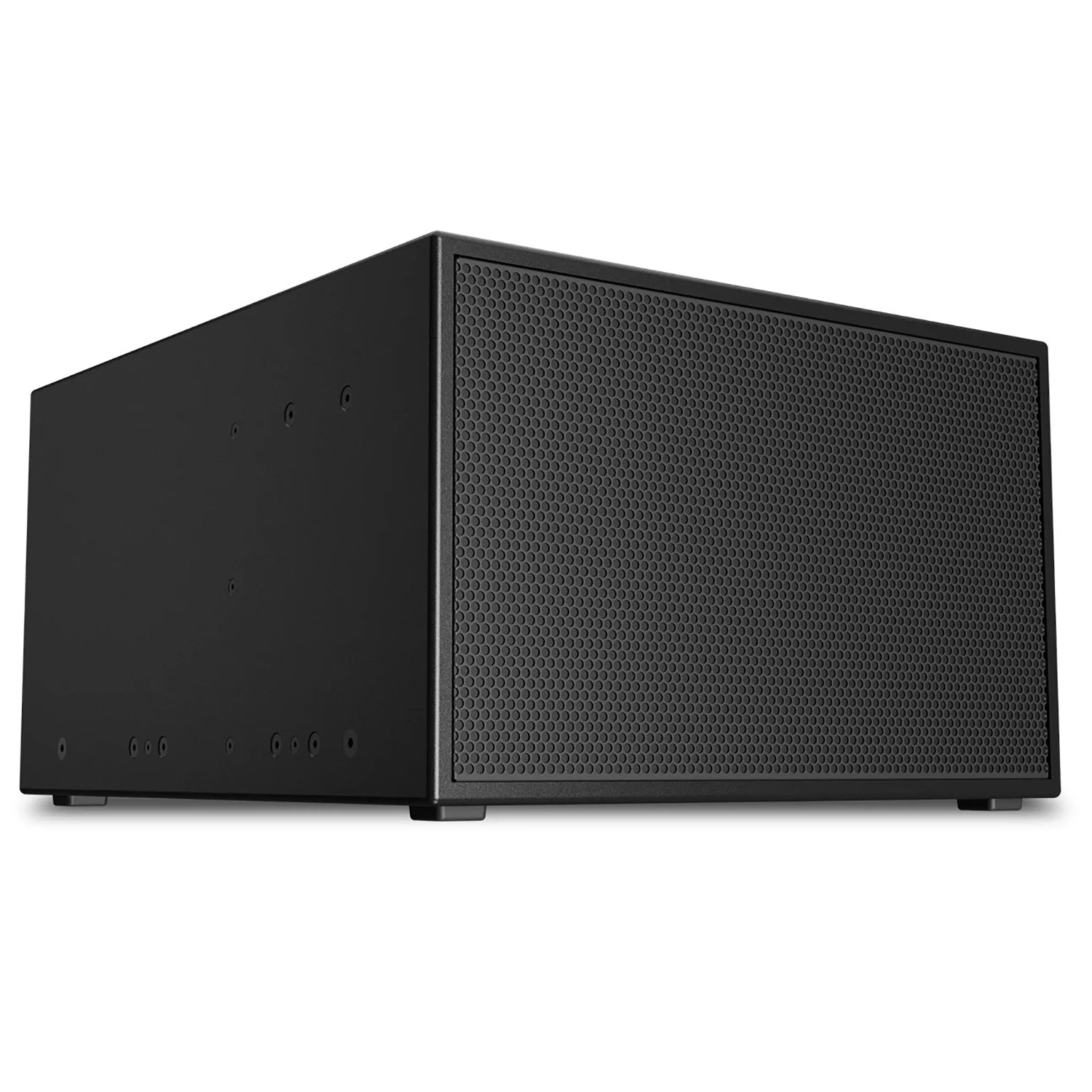

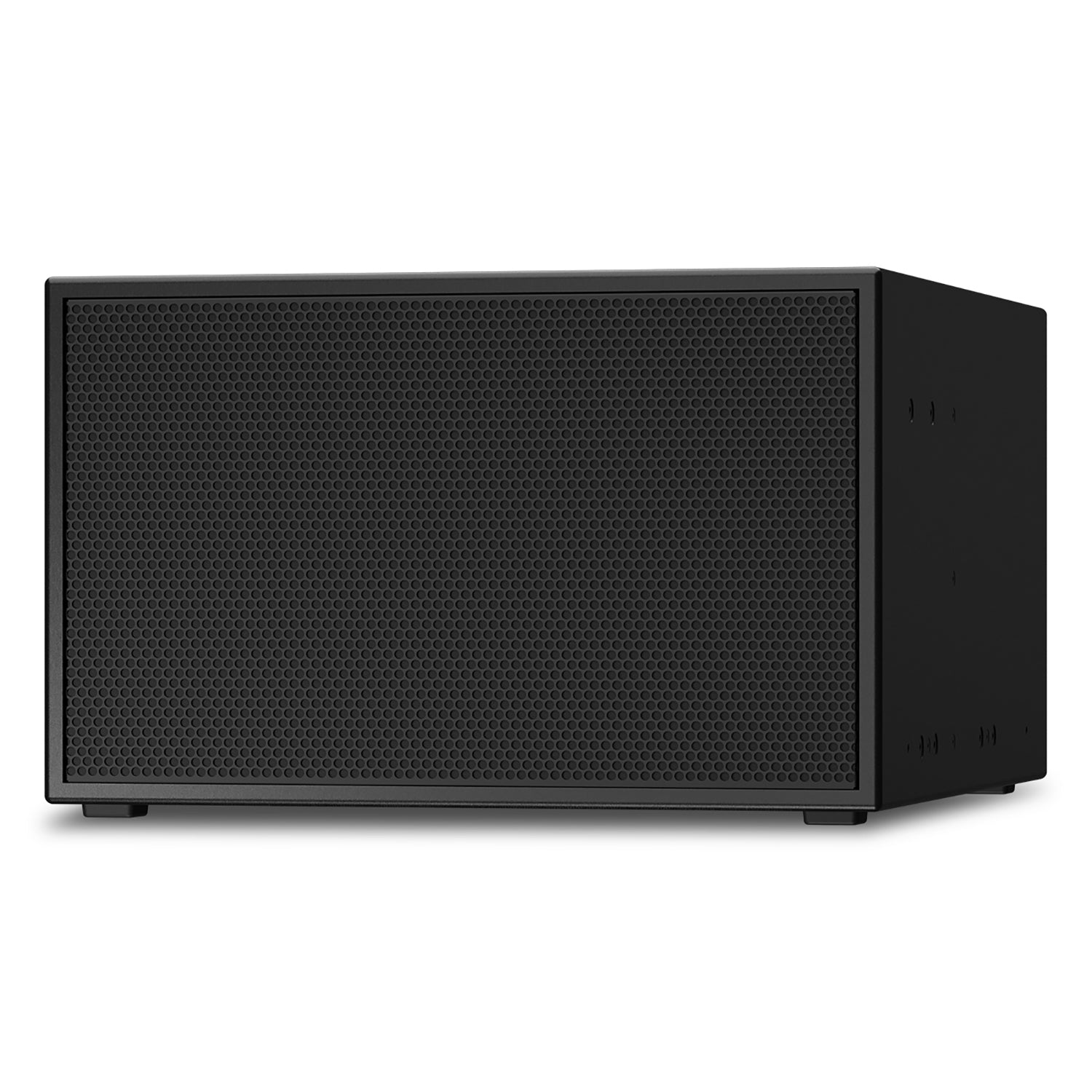

The Q-SYS PL-SUB18 is a passive, 18-inch installation subwoofer that features a weatherized wooden enclosure in a compact form factor suited for a broad range of applications, from entertainment and small sporting venues to corporate auditoriums or higher ed lecture halls.
Features
- 18-inch LF transducer in a bass-reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Omnidirectional or cardioid radiation, selectable in Q-SYS (requires deployment of two or more subwoofers)
- PL-SUB18 is flyable with the PL-LA12 line array (PL-LA12-AF Array Frame not included)
Specifications
- Transducers: LF: 18 in (460 mm), 4 in (100 mm) voice coil
- Enclosure configuration: Passive subwoofer in bass reflex enclosure
- Coverage: Omni-directional or cardioid radiation modes selectable in Q-SYS; cardioid setup requires minimum two (2) units
- System bandwidth (-10 dB with EQ): 34-100 Hz (Sub Crossover = 80), 34-110 Hz (Sub Crossover = 100), 34-140 Hz (Sub Crossover = 125)
- System sensitivity: 96dB @ 1 W/1 m
- Max SPL* (continuous): 126 dB
- Enclosure material: Exterior plywood
- Enclosure color: Black (RAL 9011)

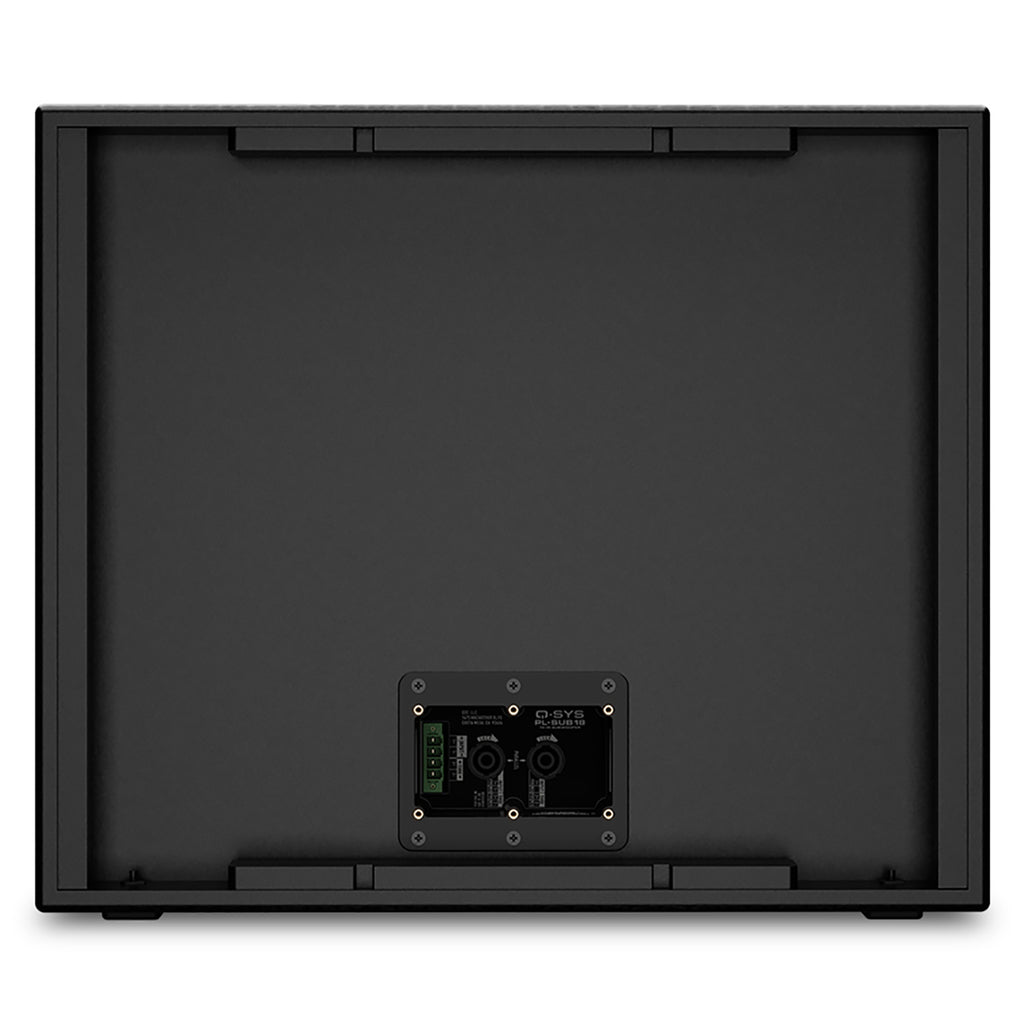

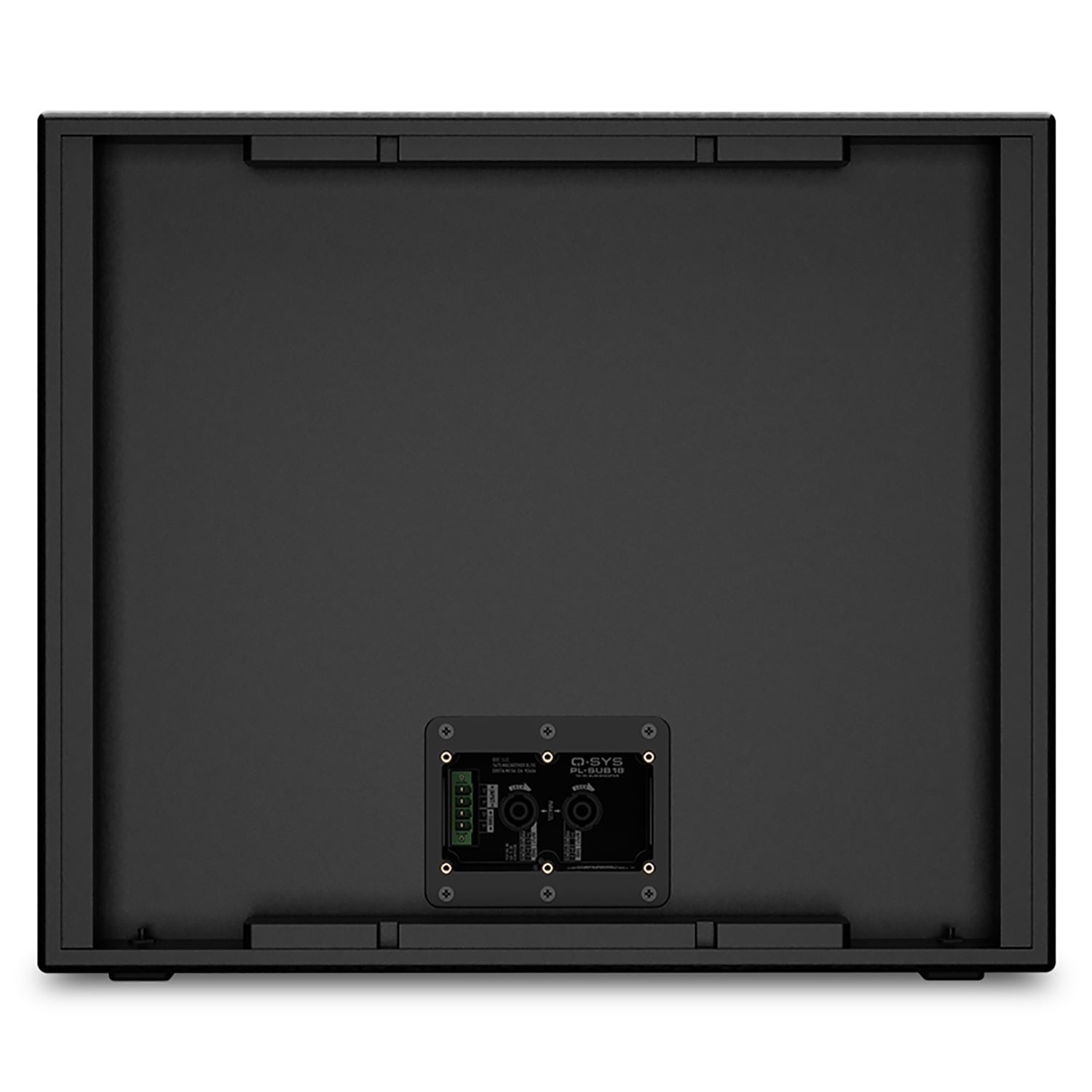

- Connectors: 2x Speakon NL4 (cable connector not provided), 1x Euroblock (parallel to Speakon): Solid wire 8-24 AWG, 4 poles
- Deployment **: Integrated retractable rigging hardware allows secure ground stacking or connecting to the PL-LA12-AF Array Frame; Flyable in column up to 10x PL-SUB18 (without PL-LA12-AF Array Frame) or up to 3x PL-SUB18 + 10x PL-LA12 (with PL-LA12-AF Array Frame)
- Weatherization: IP54, External plywood, Stainless screws, Treated grille vs. UV and corrosion, Hydrophobic stainless steel mesh behind grille, Polyurea Paint, Input cup (IP65) sealing with gland
- Recommended amplifiers: Q-SYS CX-Q 8K4 (up to 1 per ch)
- Dimensions: 20.9 x 24.4 x 29.15 in (531 x 620 x 740.6 mm)
- Weight: 102.2 lb (46.3 kg)
