Overview

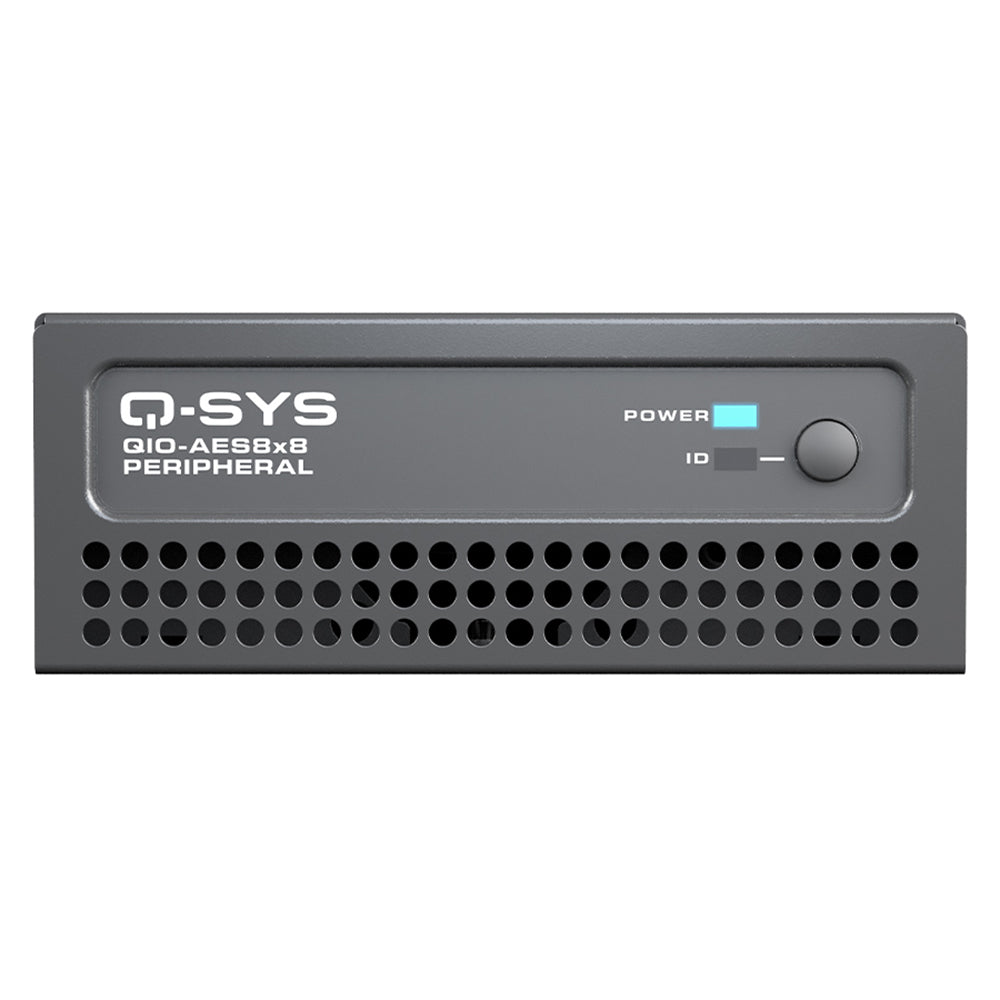

The Q-SYS QIO-AES8x8 expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked digital audio devices via AES3 connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
Features
- Native network digital audio connectivity solution for Q-SYS
- Four (4) stereo pairs of AES3 digital inputs and four (4) stereo pairs of AES3 digital outputs (8 input and output channels total)
- Power-over-Ethernet (PoE) capable
- Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
- Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
- Surface- or rack-mountable (1RU, quarter width)
- Includes surface mounting hardware
Specifications

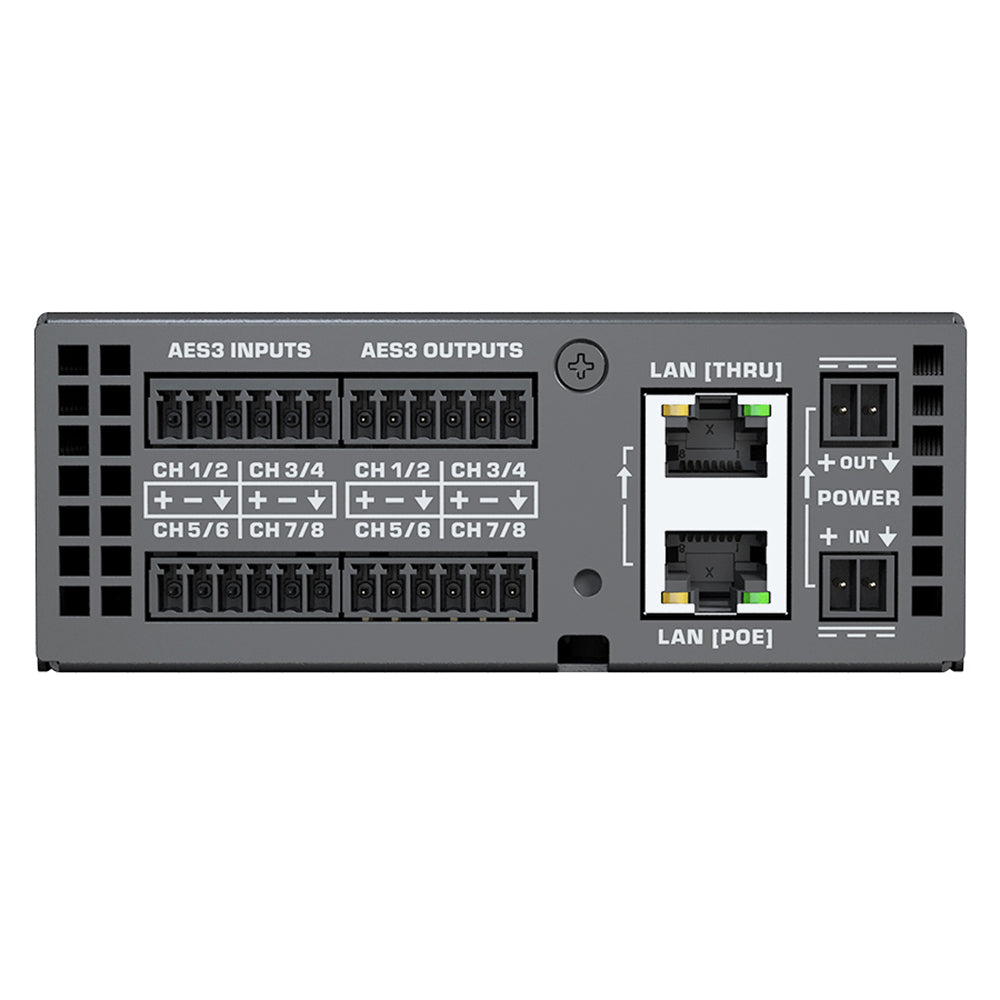

- Connectivity: Four (4) stereo pairs of AES3 digital inputs and four (4) stereo pairs of AES3 digital outputs (8 input and output channels total)
AES3 Digital I/O
- Input impedance: 110 Ω (balanced)
- Output impedance: 110 Ω (balanced)
- Group delay: 65 samples with SRC enabled
- Sample rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (with sample rate conversion to Q-SYS system rate of 48 kHz)
- Bit depth: 24 bit
Other Connectors
- External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
- LAN (PoE): Gigabit LAN connection for Q-LAN, PoE
- PoE specification: Conforms to IEEE 802.3af Type 1, Class 2
- LAN (Thru): Ethernet daisy-chaining
General
- Dimensions: 8.5 x 4.25 x 1.59 in (215.9 x 108 x 40.4 mm)
- Weight: 1.72 lb (0.78 kg)
- Mounting options
- Surface- and wall-mountable (hardware included)
- Rack-mountable; 1RU, quarter-rack width (QIO-RMK rack kit sold separately)
