Overview

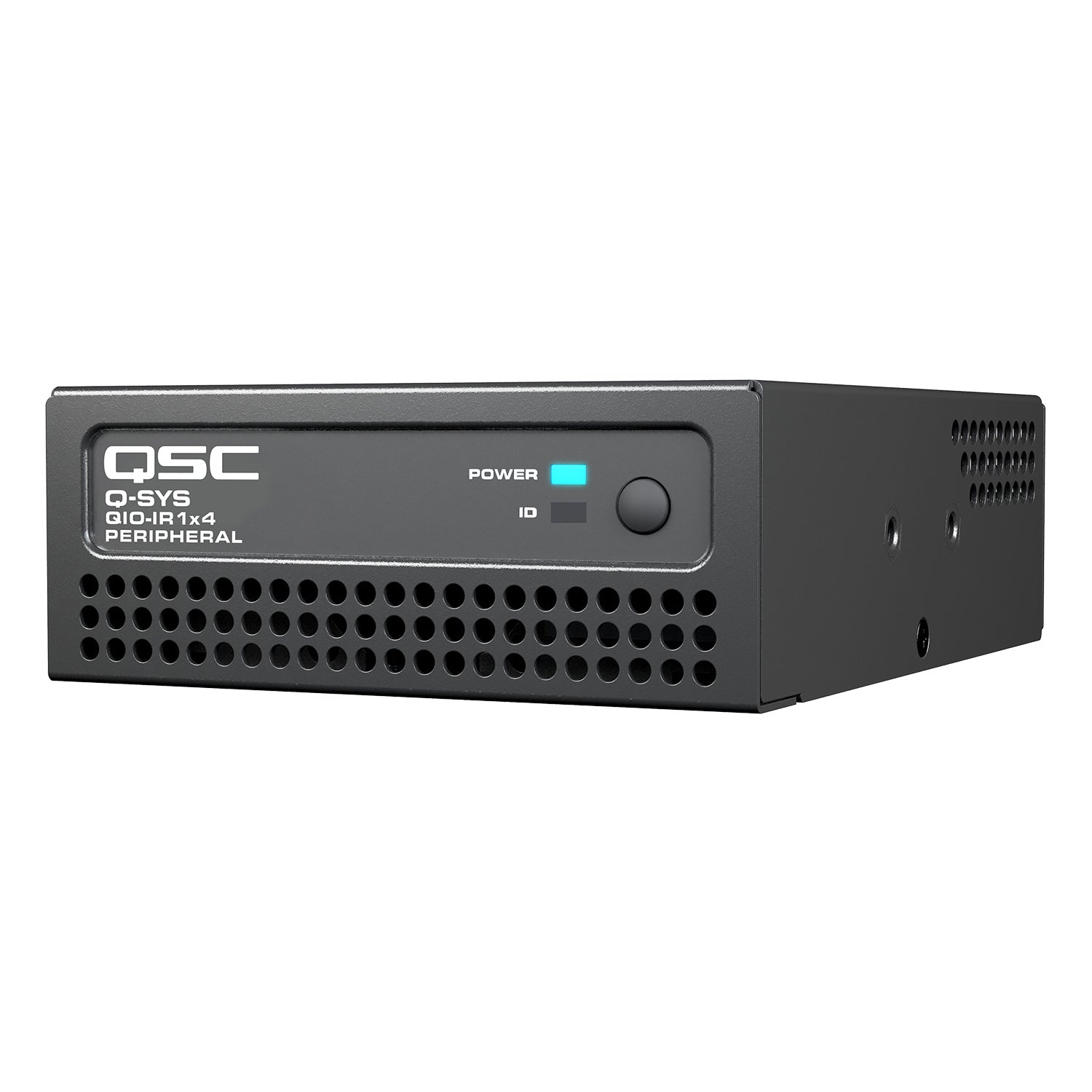

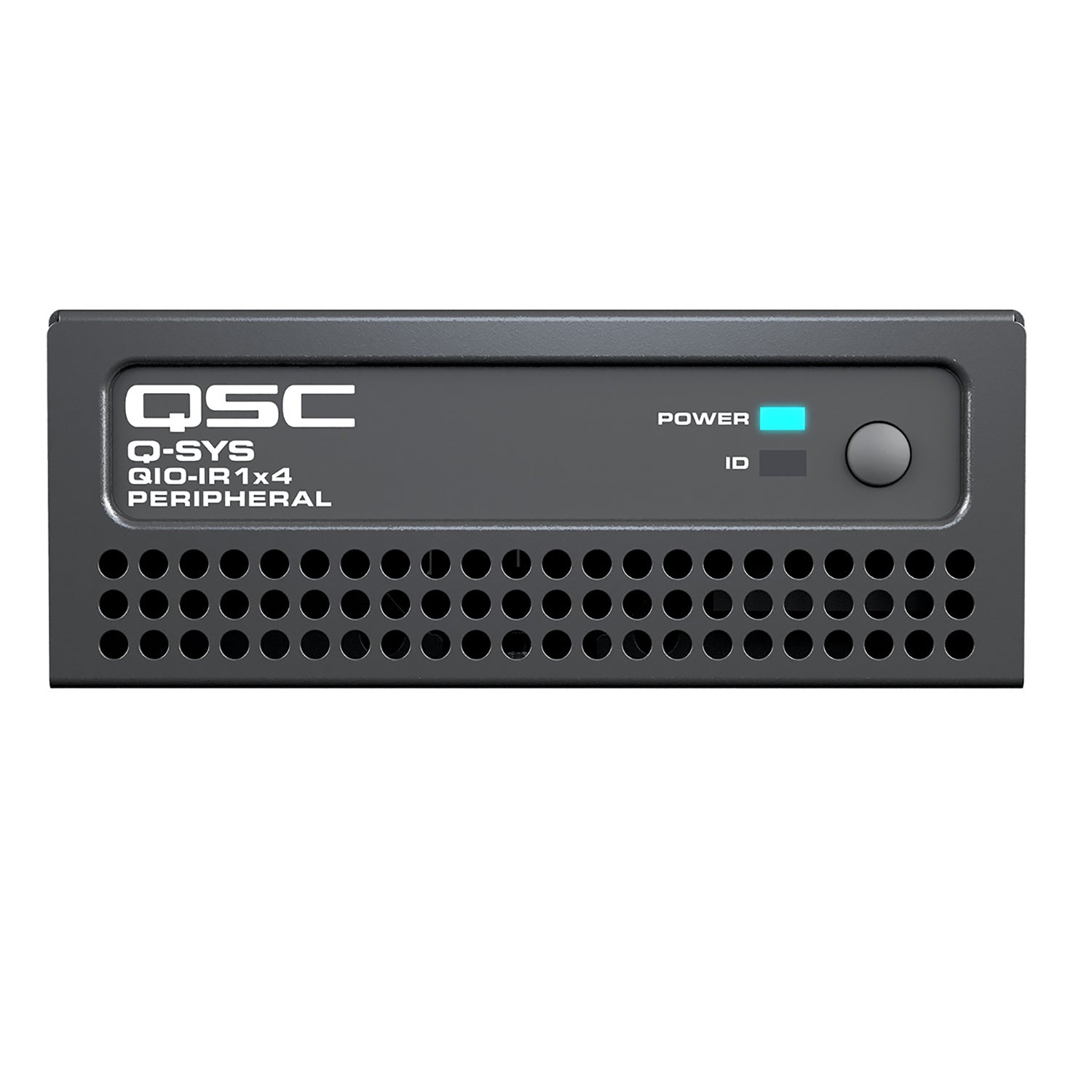

The Q-SYS QIO-IR1x4 expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked control devices via IR connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
Features
- The first native network IR connectivity solution for Q-SYS
- One (1) IR receiver input and four (4) IR emitter outputs
- Power over Ethernet (PoE) capable
- Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
- Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
- Surface- or rack-mountable (1RU, quarter width)

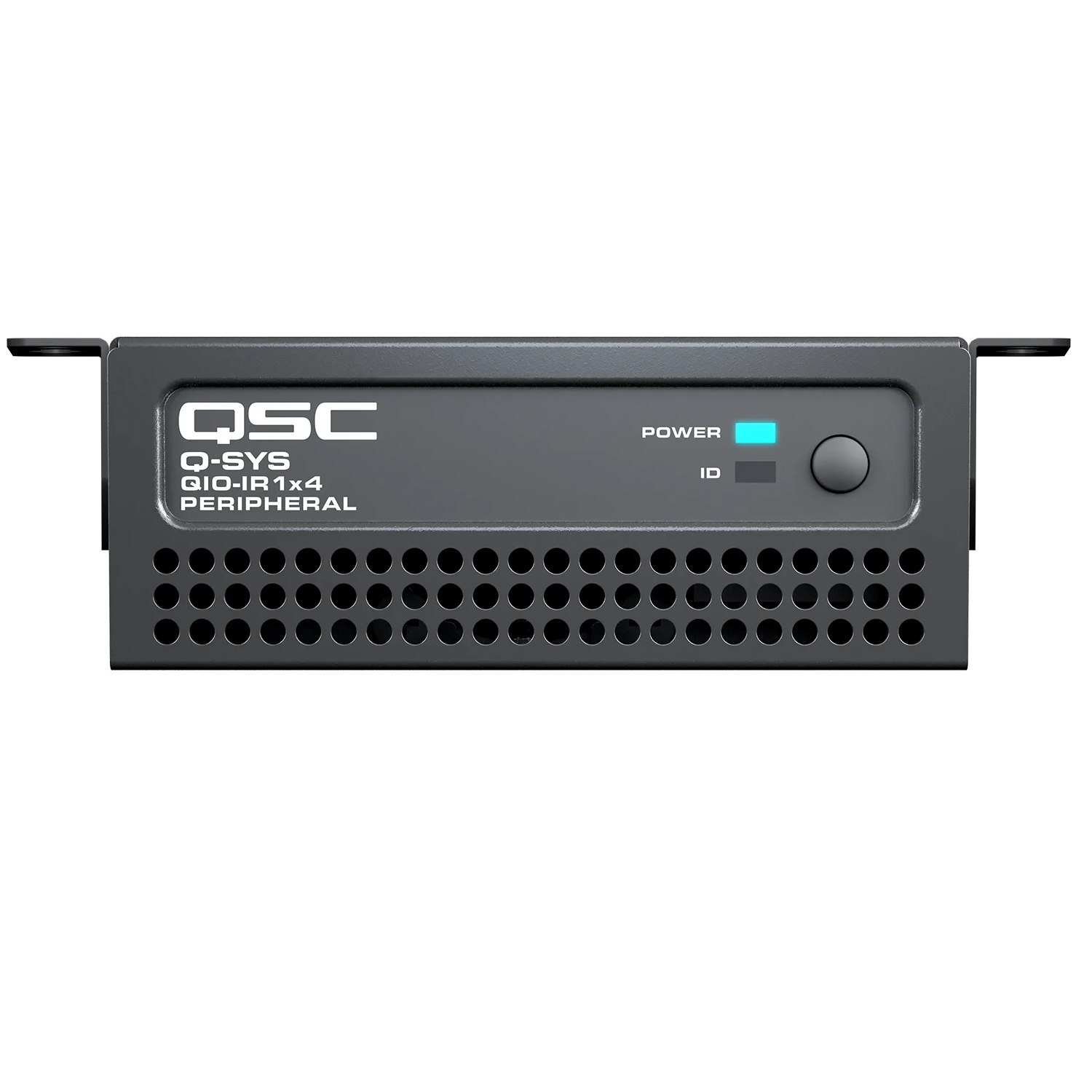

- Includes surface mounting hardware
Specifications
-

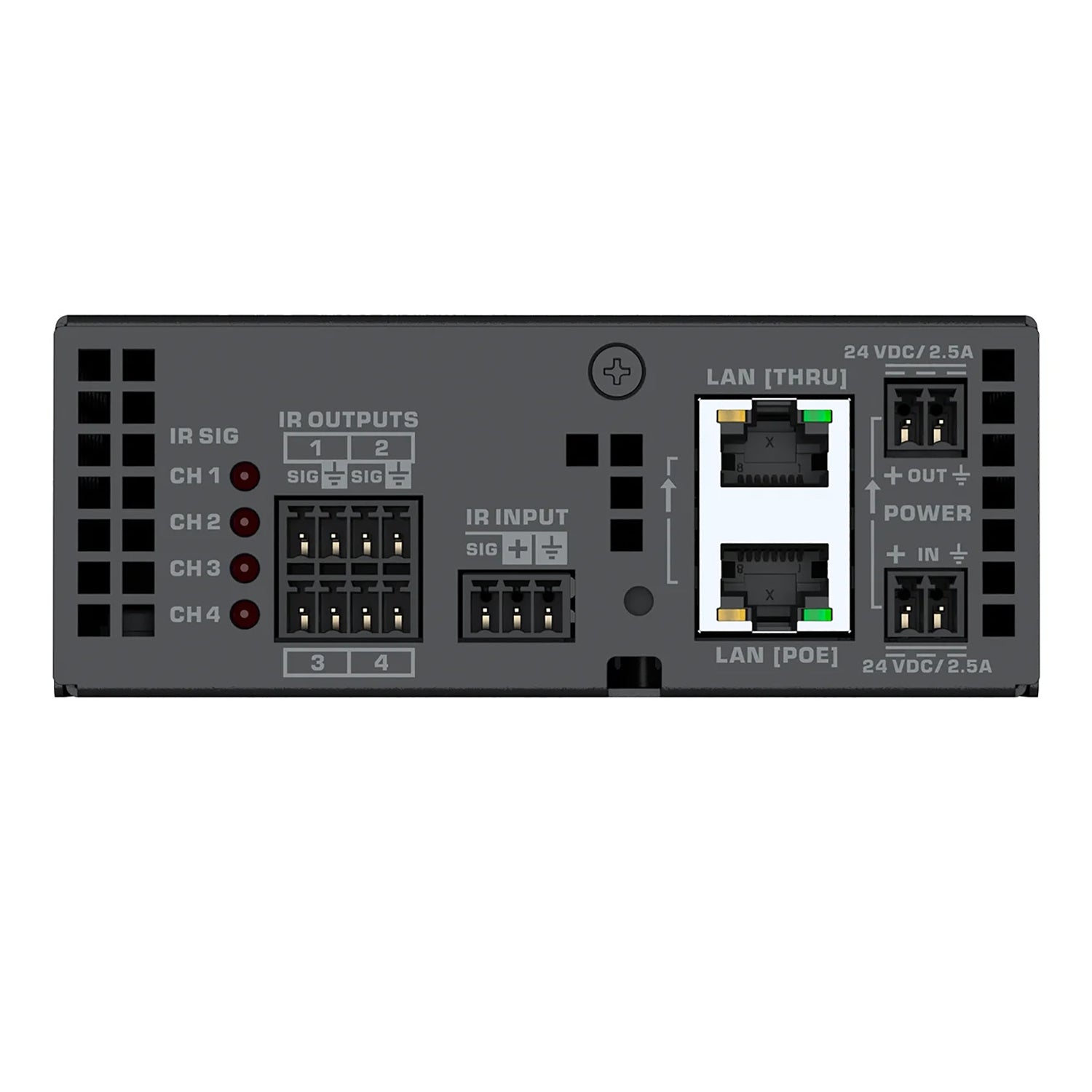

IR/Serial Output Ports:
- IR output or RS-232 (transmit only): Four (4) configurable ports
- IR: Configurable carrier frequency and drive strength
- RS232: Configurable baud rate
- LED indicators: IR transmit activity
-
IR Input Ports:
- IR Input Ports: One (1) port, bandwidth TBD
-
Other Connectors:
- External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
- LAN (PoE): Gigabit LAN connection for Q-LAN, PoE
- PoE specification: Conforms to IEEE 802.3af Type 1
- LAN (Thru): Ethernet daisy-chaining
-
General:
- Dimensions: 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)
- Weight: 1.18 lb (0.54 kg)

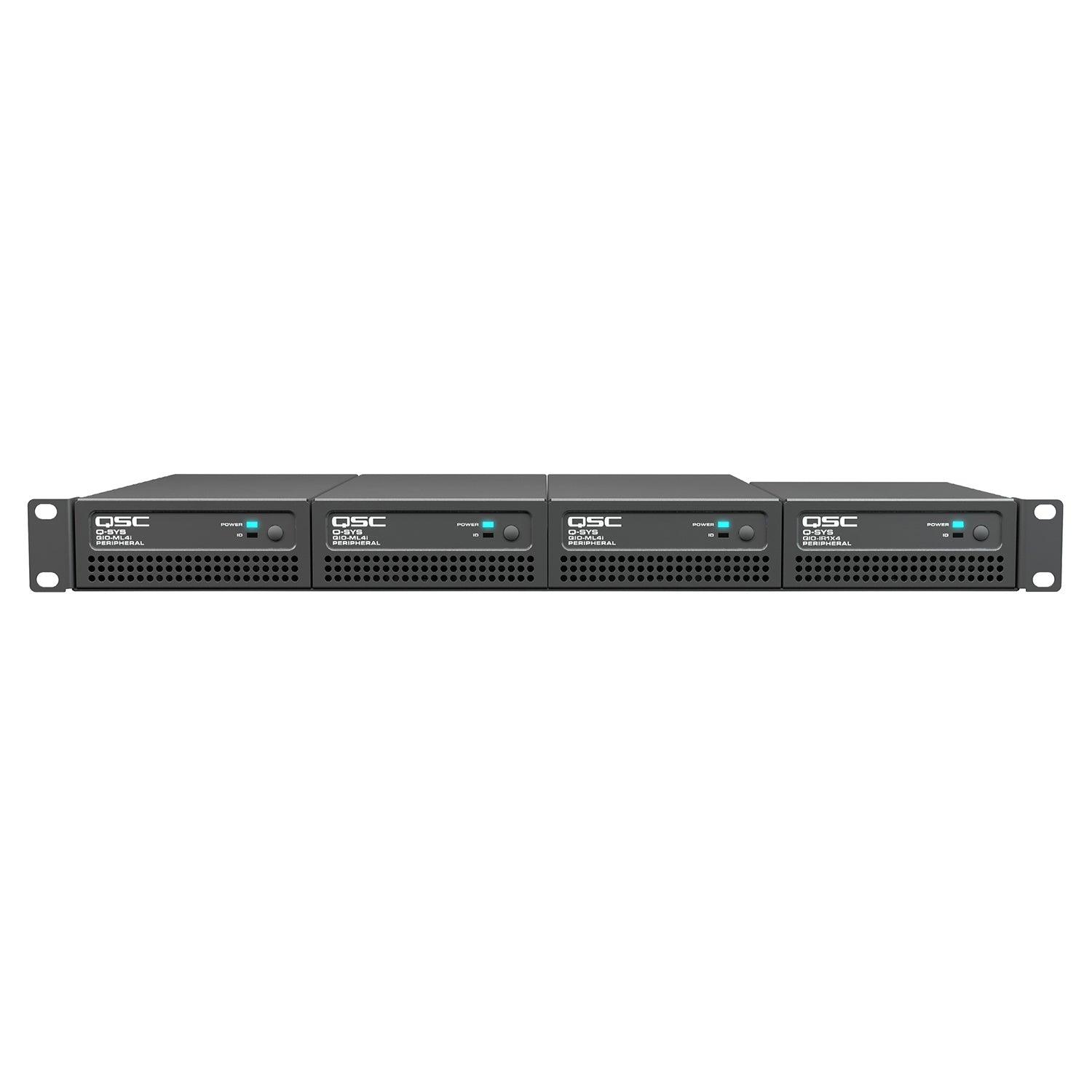

- Mounting options: Surface- and wall-mountable (hardware included); Rack-mountable; 1RU, quarter-rack width (QIO-RMK rack kit sold separately)
-
Environmental:
- Ambient operating temperature range: 0°C to +50°C
- Humidity: 0%-85% through 30°C non-condensing
- Storage temperature: -20°C to +70°C
- Compliance: FCC 47 CFR Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, China RoHS directive GB/T26572, EAC, UL, C-UL, NOM-019
