Overview
The Q-SYS QIO Series network audio expanders enable interoperability with non-networked audio I/O to expand the power of Q-SYS across more devices. The QIO-ML24i, QIO-L24o and QIO-24f address the I/O needs of larger systems with a single peripheral rather than multiple smaller devices, making them ideal for applications such as event productions, large hospitality installations, paging systems, judicial spaces and more.
Features
- Native, high-density audio I/O for Q-SYS
- QIO-ML24i: Twenty-four (24) mic/line level inputs
- QIO-L24o: Twenty-four (24) line level outputs
- QIO-24f: Eight (8) mic/line level inputs, eight (8) software-definable Flex channels and eight (8) line level outputs
- Supports both network and peripheral redundancy
- 1RU form factor
- 8 x 8 GPIO to integrate third-party device control connectivity
- Configurable +48 VDC phantom power on inputs
- Microphone detection on inputs enables monitoring, usage statistics, and failure notifications
- Integrated relay mute on outputs enables redundant audio output for peripheral redundancy and prevents power-up transients
- Two (2) gigabit Ethernet ports for redundant networked audio
- Surface- or rack-mountable
- QIO-CK redundancy cable kit (sold separately)
Specifications
-
Connectivity
- 24 line outputs
-
Line Outputs
- Sample rate: 48 kHz
- Bit depth: 24-bit
- Output audio range level: -36 dBu to +24 dBu
- Output dynamic range: >110 dB
- Output-to-output crosstalk @ 1 kHz: >102 dB typical, >90 dB max
- Output impedance: 100 Ω
-
Physical
- Dimensions (L × W × H): 12.0 × 17.4 × 1.72 in (304.8 × 443.0 × 43.6 mm)
- Weight: 8.5 lb (3.86 kg)
- Included accessories:
- 1× AC mains power cord (country-specific)
- Removable rack ears for rack- or surface-mounting
- Optional accessory: QIO-CK redundancy cable kit (sold separately)
- Mounting: Surface- or rack-mountable, 1RU full-rack width
-

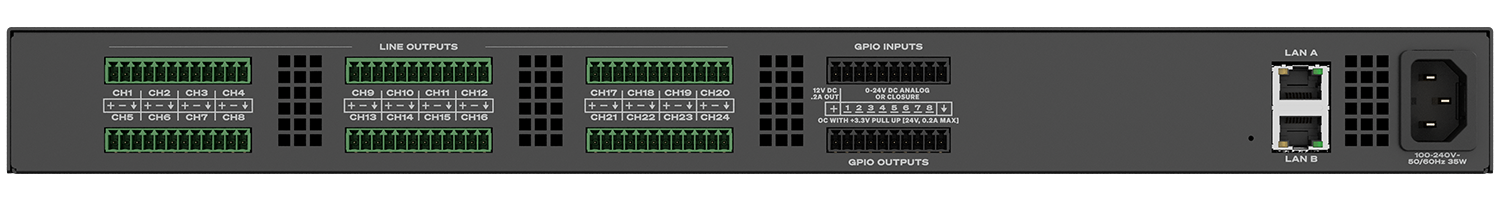

Connectors
- Power supply: 1× universal input (100–240 V, 50/60 Hz)
- AC input rating: 35 W max
- LAN: 2× Gigabit Ethernet (does not provide or accept PoE)
-
Environmental & Compliance
- Operating temperature: 32° to 122°F (0° to 50°C)
- Storage temperature: -4° to 158°F (-20° to 70°C)
- Humidity: 5% to 85%, non-condensing
- Thermal dissipation: 119 BTU/h
- Regulatory: FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1
