Overview
The Q-SYS QIO-LVR4 expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked control devices via low-voltage relay connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
Features
- Native network low-voltage relay connectivity solution for Q-SYS
- Four (4) dry contact closure relay circuits with Normally Open (NO), Common (C), and Normally Closed (NC) connections
- Power-over-Ethernet (PoE) capable
- Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
- Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
- Surface- or rack-mountable (1RU, quarter-width)
- Includes surface mounting hardware
- QIO-RMK rack mounting kit sold separately
- QIO-PSU DC power supply sold separately
Specifications

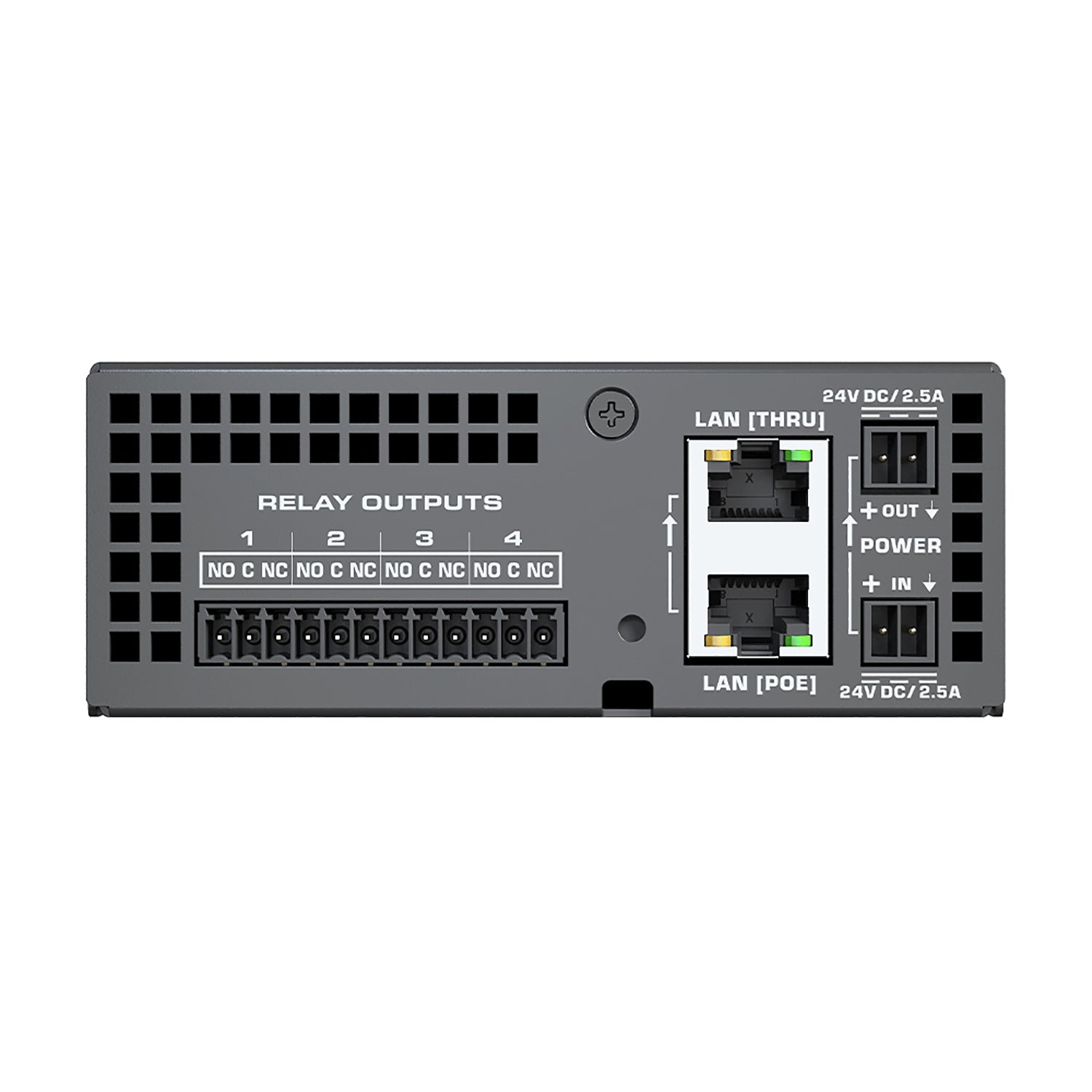

- Connectivity: Four (4) dry contact closure relay circuits with Normally Open (NO), Common (C), and Normally Closed (NC) connections
- Rating: 30 V AC @ 1A; 24 V DC @ 2A
-
Panel Indicators & Controls:

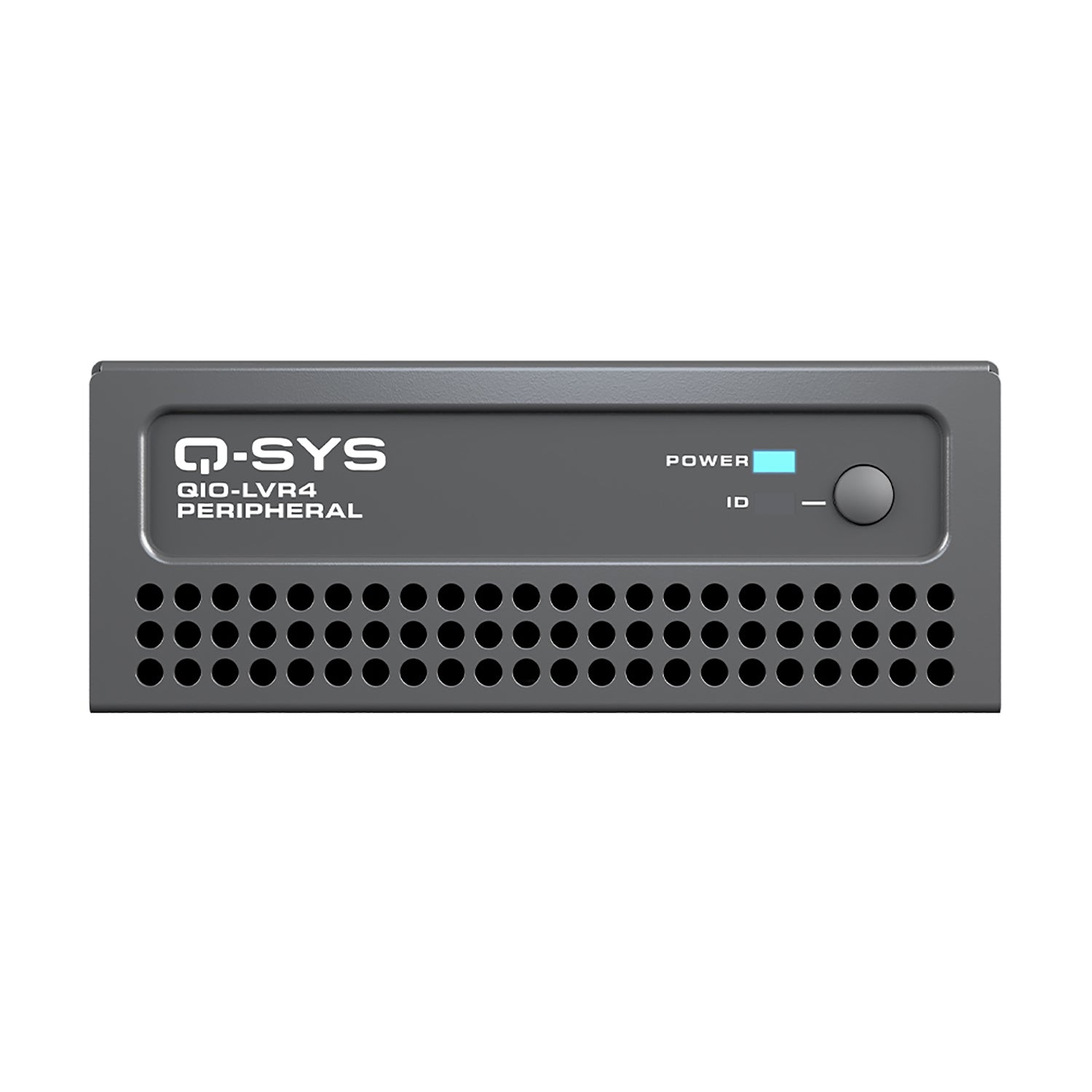

- Front panel LEDs: Power (blue LED), ID (green LED)
- Front panel control: ID button (momentary)
- Rear panel indicators: LAN (Thru) - link, speed, activity multi-color LEDs; LAN (PoE) - link, speed, activity multi-color LEDs
-
Other Connectors:
- External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
- LAN (PoE): Gigabit LAN connection for Q-LAN, PoE
- PoE specification: Conforms to IEEE 802.3af Type 1, Class 1
- LAN (Thru): Ethernet daisy-chaining
-
General:
- Dimensions: 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)
- Weight: 1.18 lb (0.54 kg)
- Shipping Weight: 1.84 lb (0.83 kg)
- Mounting options: Surface- and wall-mountable (hardware included); Rack-mountable; 1RU, half-rack width (QIO-RMK rack kit sold separately)
-
Environmental:
- Power consumption: 2.2 W typical
- Ambient operating temperature range: 0° C to + 50° C
- Humidity: 5% to 85% RH through 30°C, non-condensing
- Storage temperature: -20° C to + 70° C
- Heat load: 7.5 BTU/hr
- Compliance: FCC Part 15 Subpart B, ICES-003:2020, cTUVus, CAN/CSA 22.2, IEC 62368-1, RoHS 2, WEEE, CE, EN 55032, EN 55035, RCM: AS/NZS CISPR 32, NOM, GB8898, GB13837, GB17625.1, China RoHS, KS C 9035, KS C 9032, KC 62368-1
