Overview
The Q-SYS QIO Series network audio I/O expanders extend your Q-SYS system’s capabilities and enable streamlined interoperability with non-networked audio devices. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology. There are three models that offer mic/line connectivity to integrate consumer or professional audio devices into your Q-SYS system.
Features
- Native network audio I/O solution for Q-SYS
- QIO-ML4i: Four (4) mic/line inputs
- QIO-L4o: Four (4) line outputs
- QIO-ML2x2: Two (2) mic/line inputs and two (2) line outputs
- Professional, high performance mic/line level inputs (with +48 VDC phantom power) and/or line outputs
- Microphone detection on inputs to enable monitoring, usage statistics and failure notifications
- Power over Ethernet (PoE) capable or daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power
- Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
- Surface- or rack-mountable (1RU, quarter width)
- Includes surface mounting hardware
Specifications

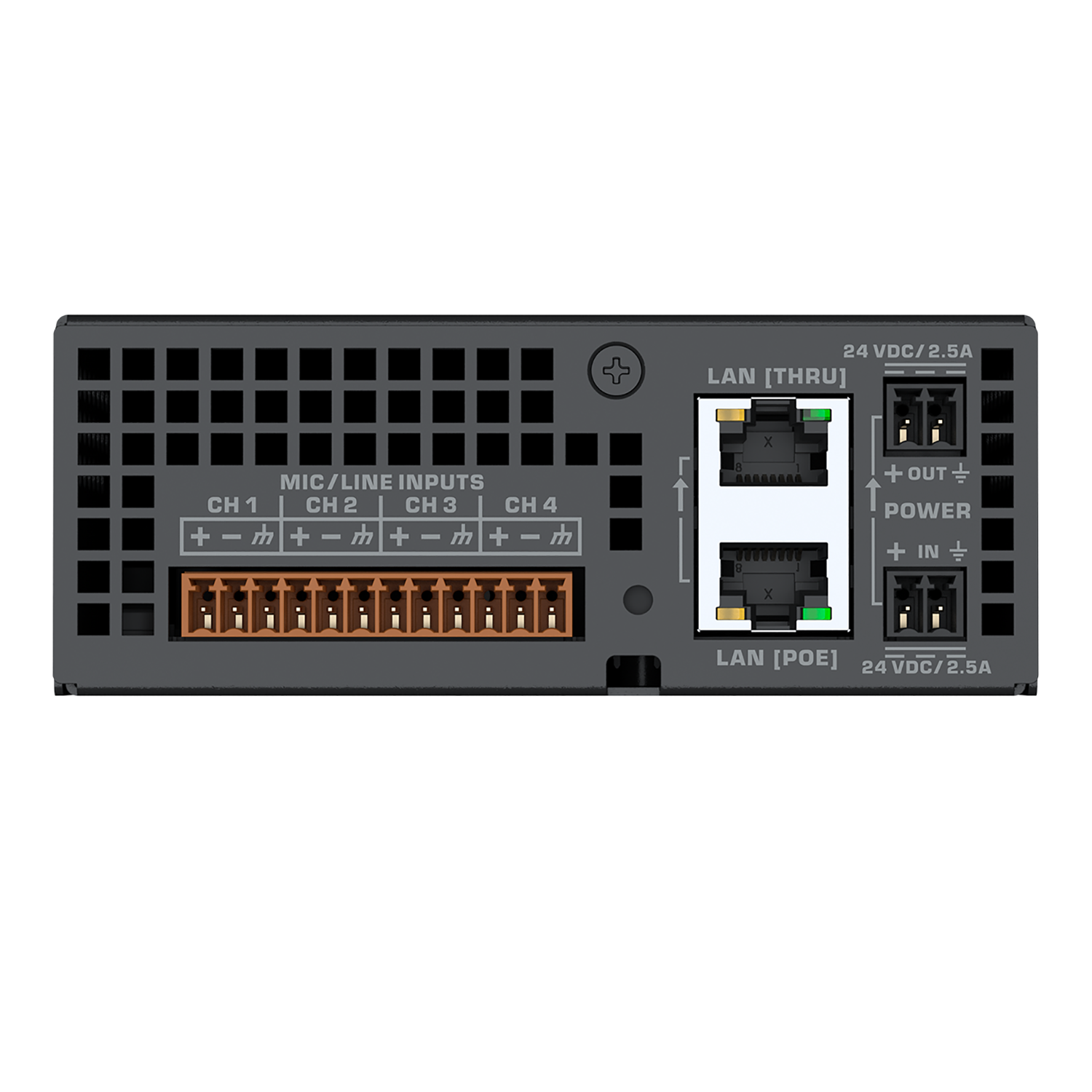

- Connectivity: Four (4) mic/line inputs
- Maximum Input Level: +24 dBu
- Preamplifier Gain Range: 0 dB to 60 dB
- Phantom Power: +48 VDC
- Equivalent Input Noise: < -120 dBu, no weighting @ 20 Hz to 20 kHz
- Input-to-Input Crosstalk @ 1 kHz: > 85 dB
- Input Dynamic Range @ +24 dBu Sensitivity: > 105 dB
- Input Dynamic Range @ +10 dBu Sensitivity: > 100 dB
- Input Dynamic Range @ -10 dBu Sensitivity: > 95 dB
- Input Dynamic Range @ -36 dBu Sensitivity: > 80 dB
- Input Impedance: 5 kΩ single-ended, 10 kΩ balanced
- Sample Rate: 48 kHz
- Bit Depth: 24 bit
- External Power Supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU sold separately)
- LAN (PoE): Gigabit LAN connection for Q-LAN, PoE
- PoE Specification: IEEE 802.3af Type 1
- LAN (Thru): Ethernet daisy-chaining
- Dimensions: 8.5 × 4.25 × 1.59 in (215.9 × 108 × 40.4 mm)
- Weight: 1.72 lb (0.78 kg)
- Mounting Options: Surface- and wall-mountable (hardware included); Rack-mountable, 1RU quarter-rack width (QIO-RMK sold separately)
- Operating Temperature: 0°C to +50°C
- Humidity: 0%–85% through 30°C, non-condensing
- Storage Temperature: -20°C to +70°C
- Compliance: FCC Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS, WEEE, China RoHS GB/T26572, EAC, UL, C-UL, NOM-019
