Overview

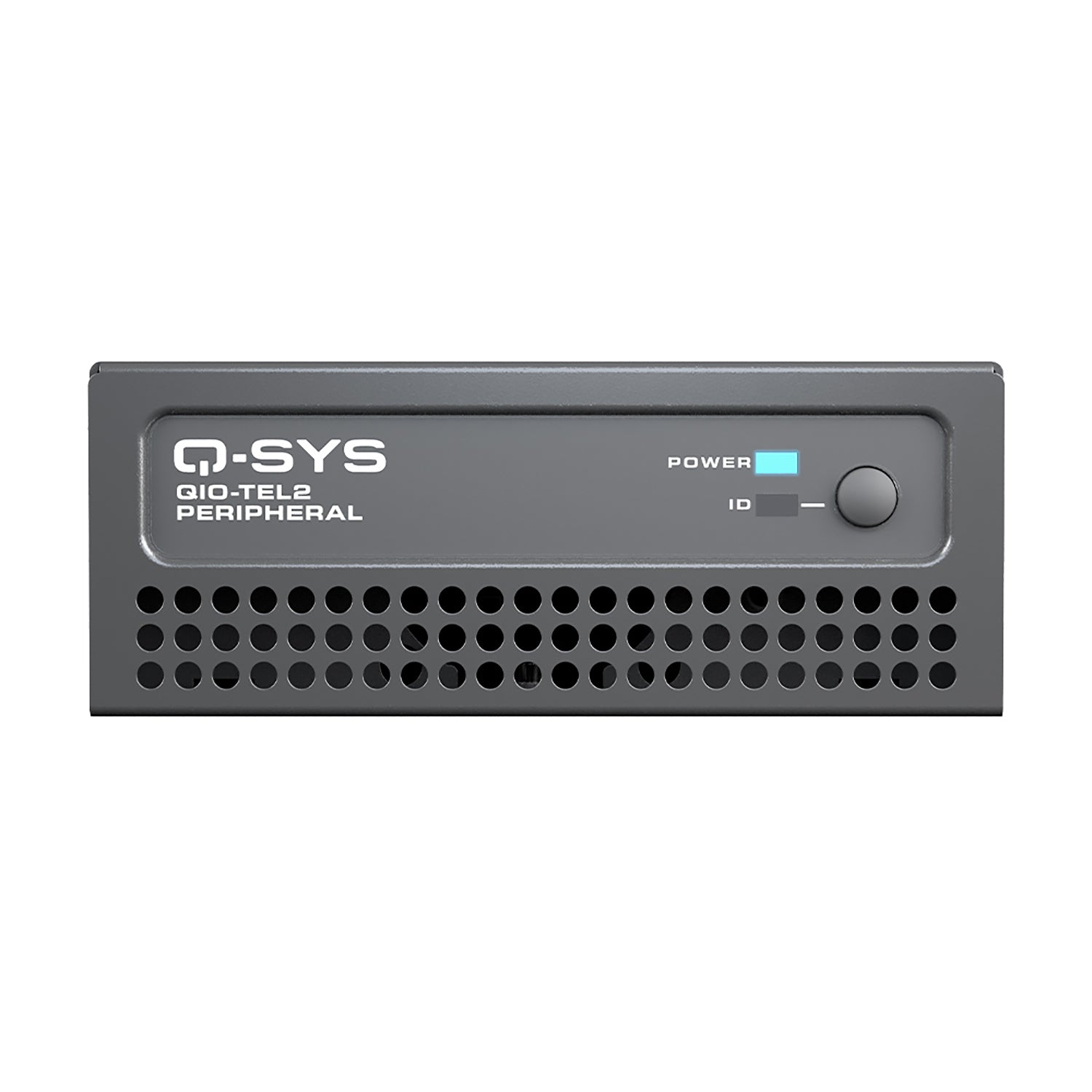

The Q-SYS QIO-TEL2 expands your Q-SYS system’s capabilities to enable streamlined interoperability with analog telephony systems. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
Features
- Native analog telephony connectivity solution for Q-SYS

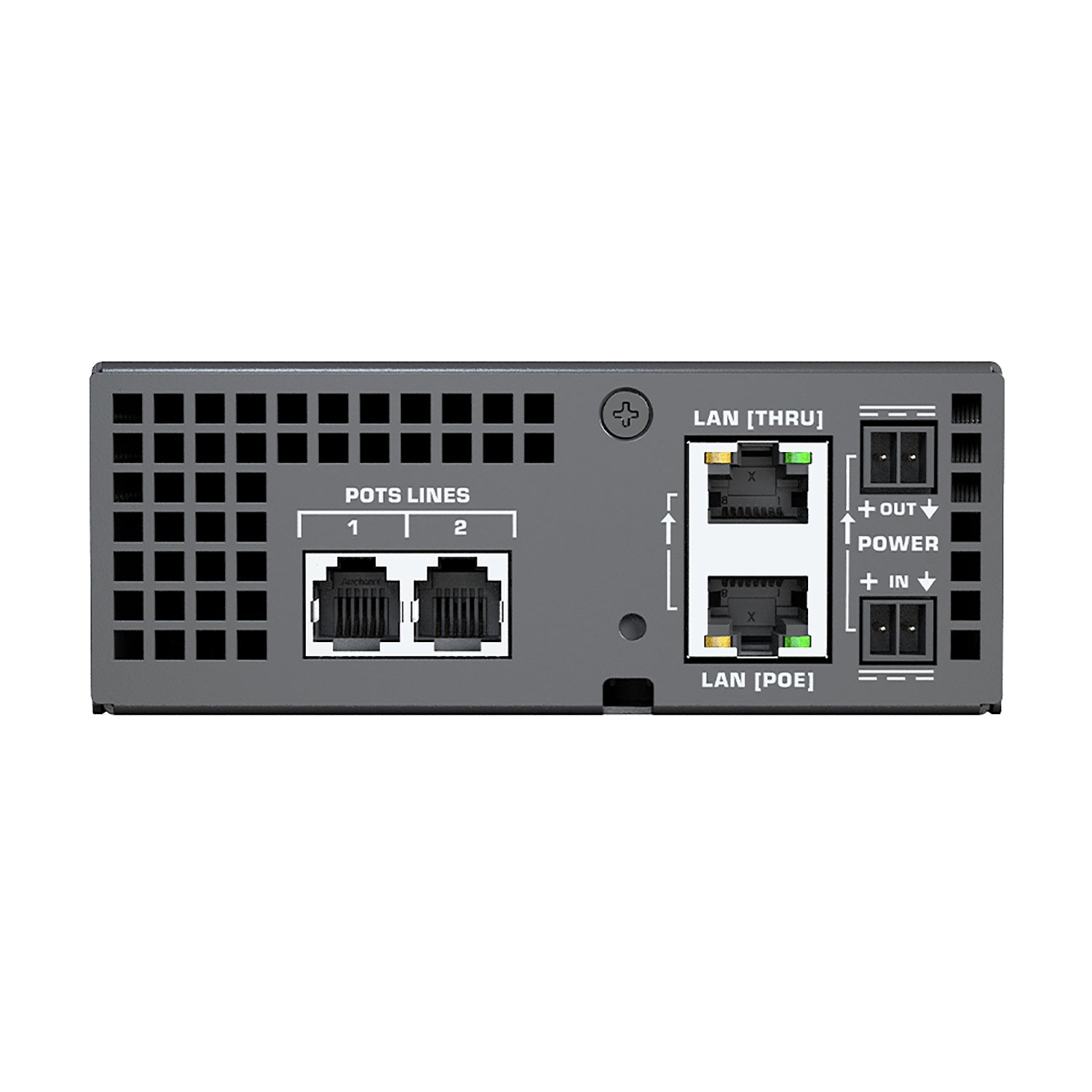

- Two (2) POTS phone lines on standard RJ-11 connectors
- Power-over-Ethernet (PoE) capable
- Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
- Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
- Surface- or rack-mountable (1RU, quarter width)
- Includes surface mounting hardware
Specifications
-
Telephone Lines:
- Impedance: 600 Ω, nominal
- Frequency response: 300 Hz to 3.3 kHz, ±1.0 dB
- THD+Noise: < 0.5%
- Signal-to-noise ratio: > 62 dB
- Ringer Equivalence Number: 0.1
-
Other Connectors:
- External power supply: 24 VDC nominal, 2.5A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
- LAN (PoE): Gigabit LAN connection for Q-LAN, PoE
- PoE specification: Conforms to IEEE 802.3af Type 1, Class 1
- LAN (Thru): Ethernet daisy-chaining
-
General:
- Dimensions: 8.5 x 4.25 x 1.59 in (215.9 x 108 x 40.4 mm)
- Weight: 1.63 lb (0.74 kg)
- Mounting options: Surface- and wall-mountable (hardware included). Rack-mountable, 1RU, ¼-rack width (QIO-RMK rack kit sold separately)
