Overview

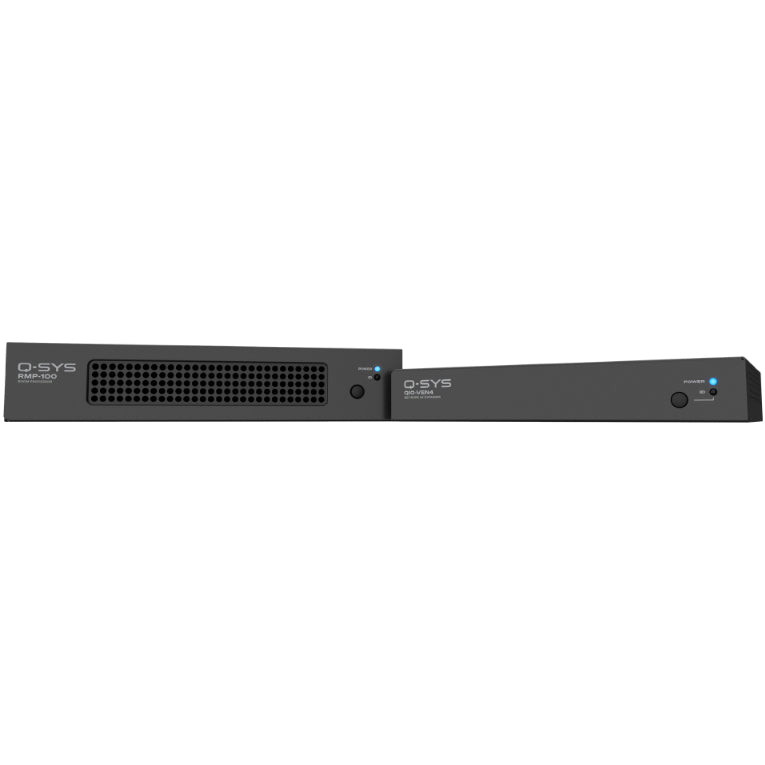

RMP-100
The Q-SYS RMP-100 is the main processing component of the RoomSuite Modular System. Designed with simplicity and scalability in mind, the RoomSuite Modular System supports a variety of collaboration platforms and BYOD configurations. The RMP-100 is available as a bundle with the QIO-VEN4 expander. Its built-in PoE+ switch can power a variety of Q-SYS components, including NL, NC, and NM endpoints, as well as third-party microphones. The RMP-100 can be configured via a simple web-based workflow or remotely managed and monitored with Q-SYS Reflect, and does not require Q-SYS Designer Software.
Features
- Application specific processor for the meeting room
- Integrated Ethernet switching with PoE PSE
- Network video decoding (1080p)
- Integrated video switching with dual outputs and decoding allows for multiple video sources to be used in the system
- USB AV bridging (audio and camera) for local UC compute
- Direct connect to occupancy sensor for simple room automation
QIO-VEN4
The QIO-VEN4 is the AV and connectivity expander component of the RoomSuite Modular System. Designed with simplicity and scalability in mind, the RoomSuite Modular System supports a variety of collaboration platforms and BYOD configurations. The QIO-VEN4 is available as a bundle with the RMP-100 processor, or separately when additional expanders are needed. Optimized for under-table installation, one QIO-VEN4 can be powered from the RMP-100, while its own built-in PoE+ switch and USB-C port provide at-the-table connectivity for a variety of Q-SYS components and BYOD conferencing or content sharing. The QIO-VEN4 can be configured via a simple web-based workflow or remotely managed and monitored with Q-SYS Reflect, and does not require Q-SYS Designer Software.
Features
- IP Video endpoint with integrated Ethernet switch
- Video encoder - 1080p60 4:2:2
- Single cable USB-C AV bridging and DisplayPort Alt-mode for content sharing
- PoE++ powered
- Integrated PoE Ethernet switch provides simple connectivity to table mounted endpoints
