Overview
The Server Core X10 combines the Q-SYS Full Stack AV Platform with enterprise-grade server hardware to deliver a flexible and scalable audio, video and control solution for medium and large scale applications. The Server Core X10 functions effectively as a central processor for multiple zones or spaces with distributed network I/O or paired with distributed processing.
Features
- 256 x 256 networked audio channels (Q-LAN / AES67)
- 64x AEC channels @ 200 ms
- Includes 8 x 8 Software-based Dante channels (licensable up to 128 x 128)
- Supports up to sixteen (16) Q-SYS NM-T1 tabletop microphones
- Up to 32 VoIP softphone instances
- 64 x 64 Media/WAN channel capacity
- 16 multitrack playback channels (up to 128 with optional stackable feature license)
- 4 multitrack record channels
- Two (2) 2.5 Gbps Ethernet ports for redundant networked audio
- Two (2) 2.5 Gbps independent, auxiliary Ethernet ports for segregation of network services such as VoIP, SNMP, LLDP, LDAP and WAN Media streaming
- Onboard 256 GB media drive
- 1 RU form factor
Specifications
-
Q-SYS Capacities:
- Total network I/O channels: 256 x 256
- Total network I/O streams: 128 x 128
- Dante network I/O: 8 x 8 included (up to 128 x 128 with Software-based Dante feature license)
- Media/WAN channel capacity: 64 x 64
- VoIP softphones: 32
- AEC channels (at 200 ms tail length): 64
- Audio recording / playback: 4 channels recording / 16 channels playback, [expandable up to 128 channels playback with optional multi track playback license (SLMTP-32) stackable up to 4x]
- Media drive capacity: 256 GB (at least 200 GB available for user media, or at least 400 hours of uncompressed 48 kHz, 24 bit, mono WAV format audio files)
-
Hardware:
- Power: 1x universal input, 500 W PSU module

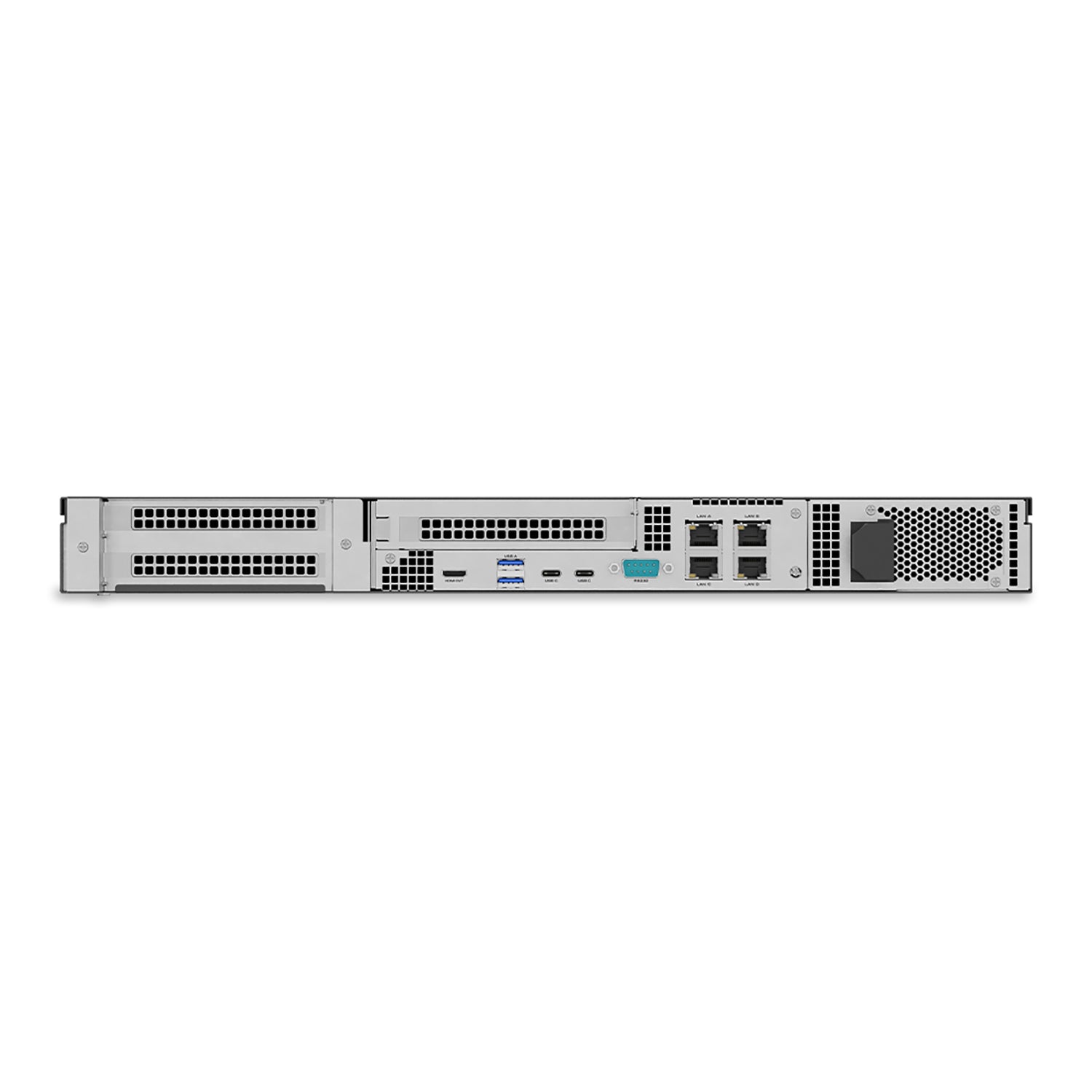

- LAN: 4x 2500 Mbps ports (2x Q-SYS Multimedia, 2x Q-SYS Aux)
- RS232: 1x DB-9 RS-232 port (rear panel), 16550-compliant
- USB: 2 USB-A and 2 USB-C port
- Ventilation: Forced air – front intake, rear exhaust
-
Controls and Indicators:

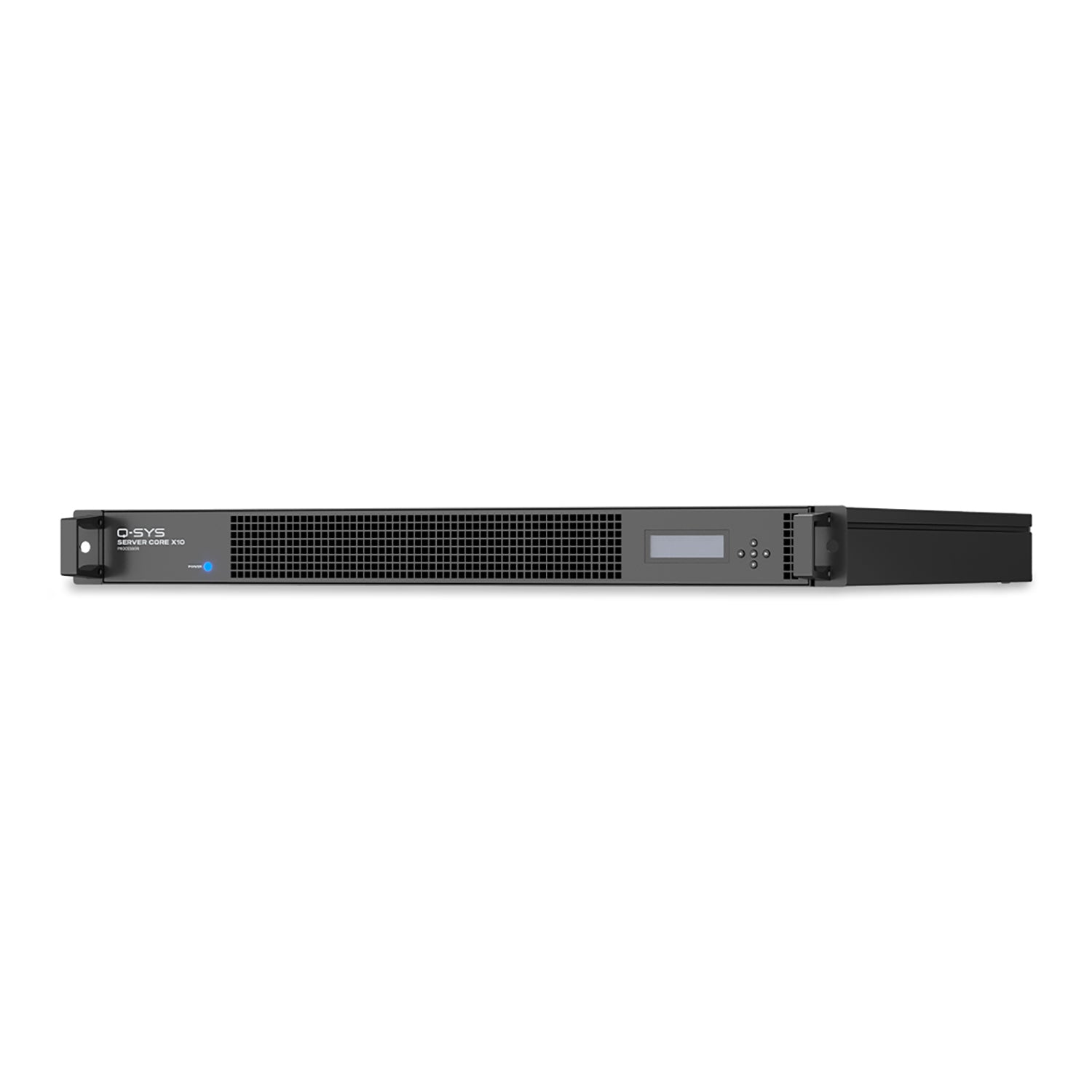

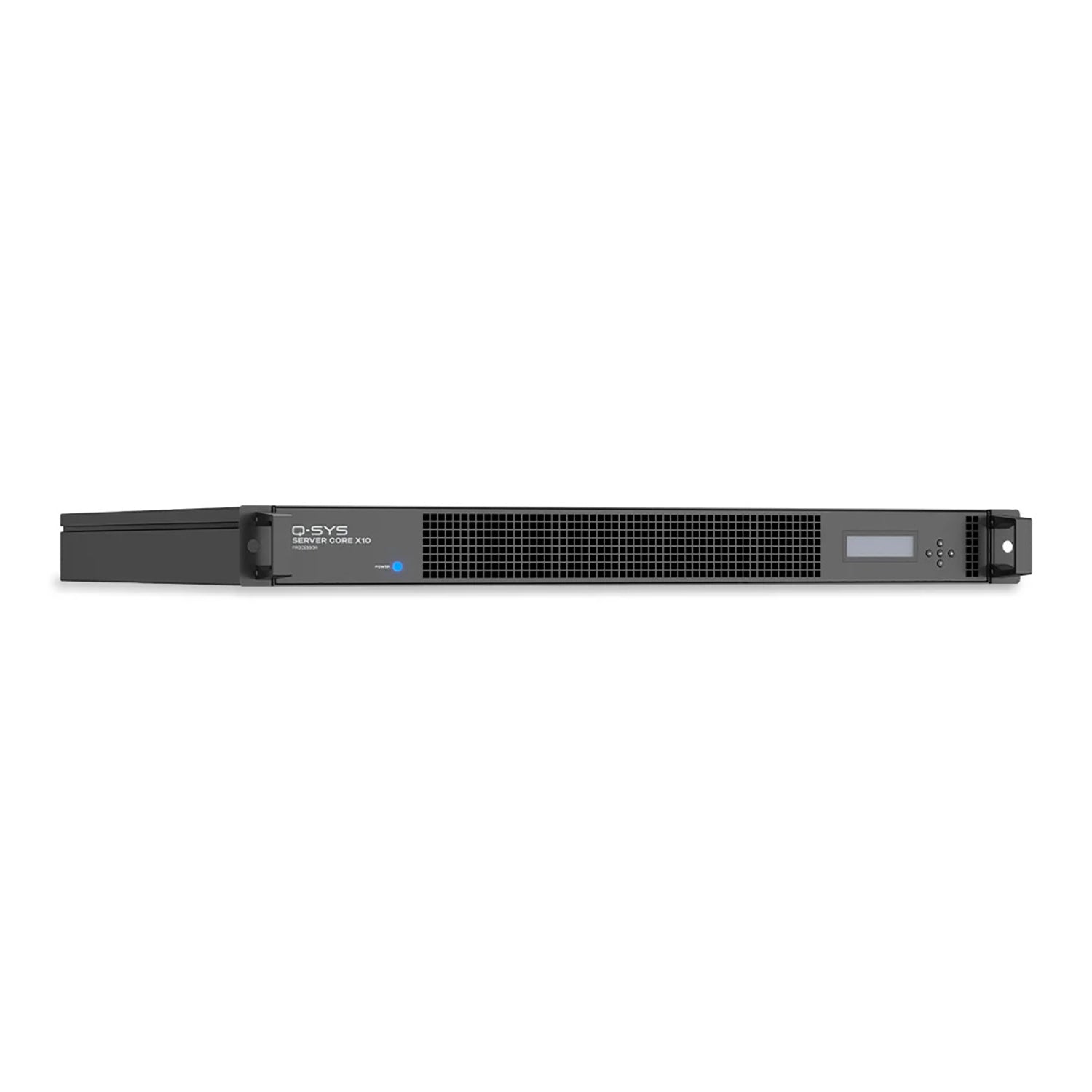

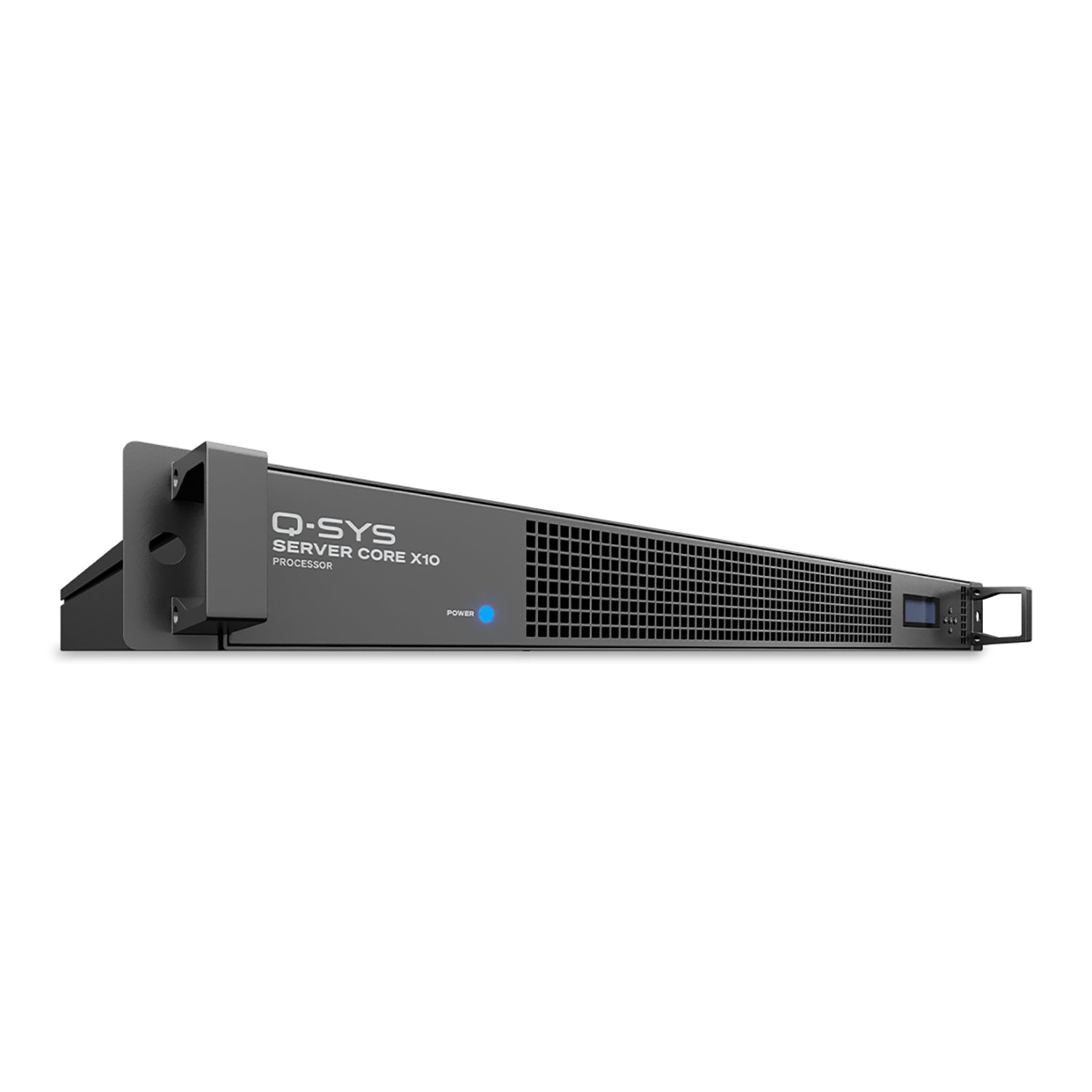

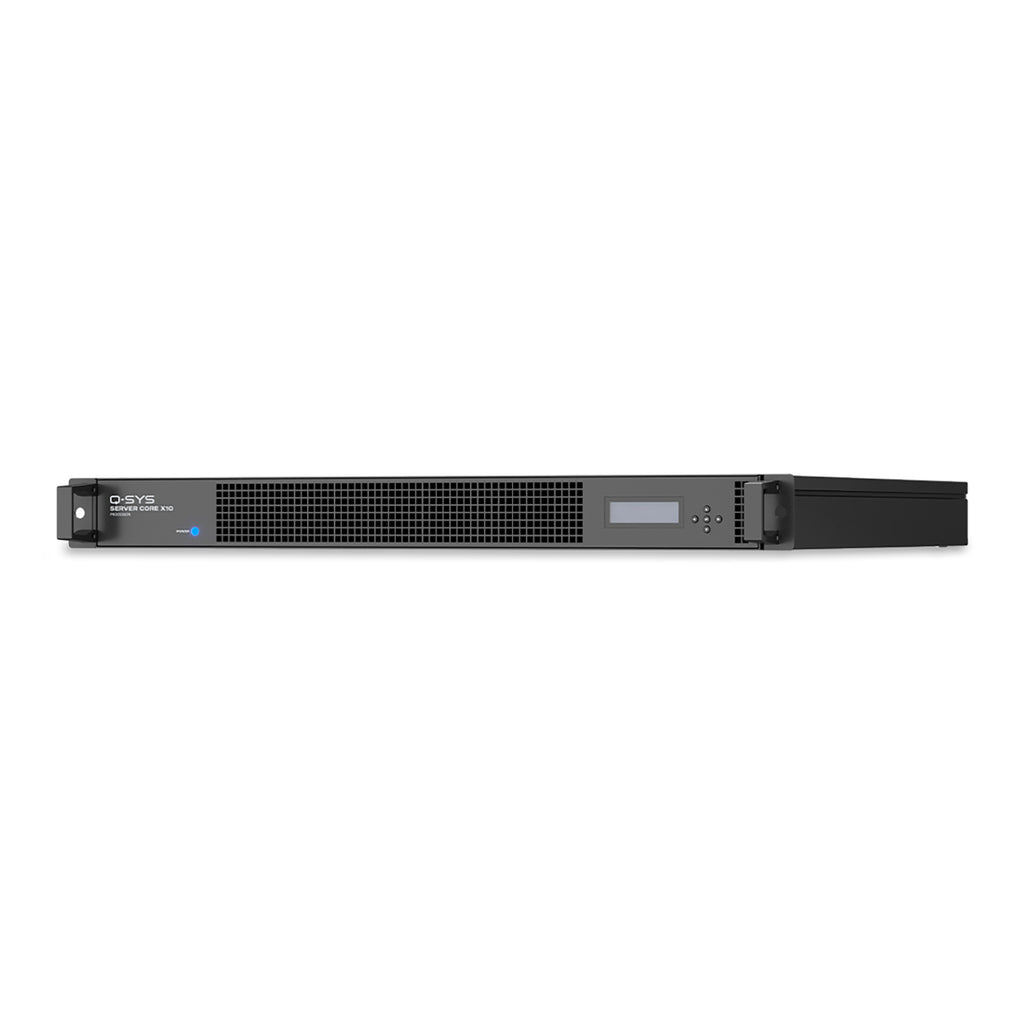

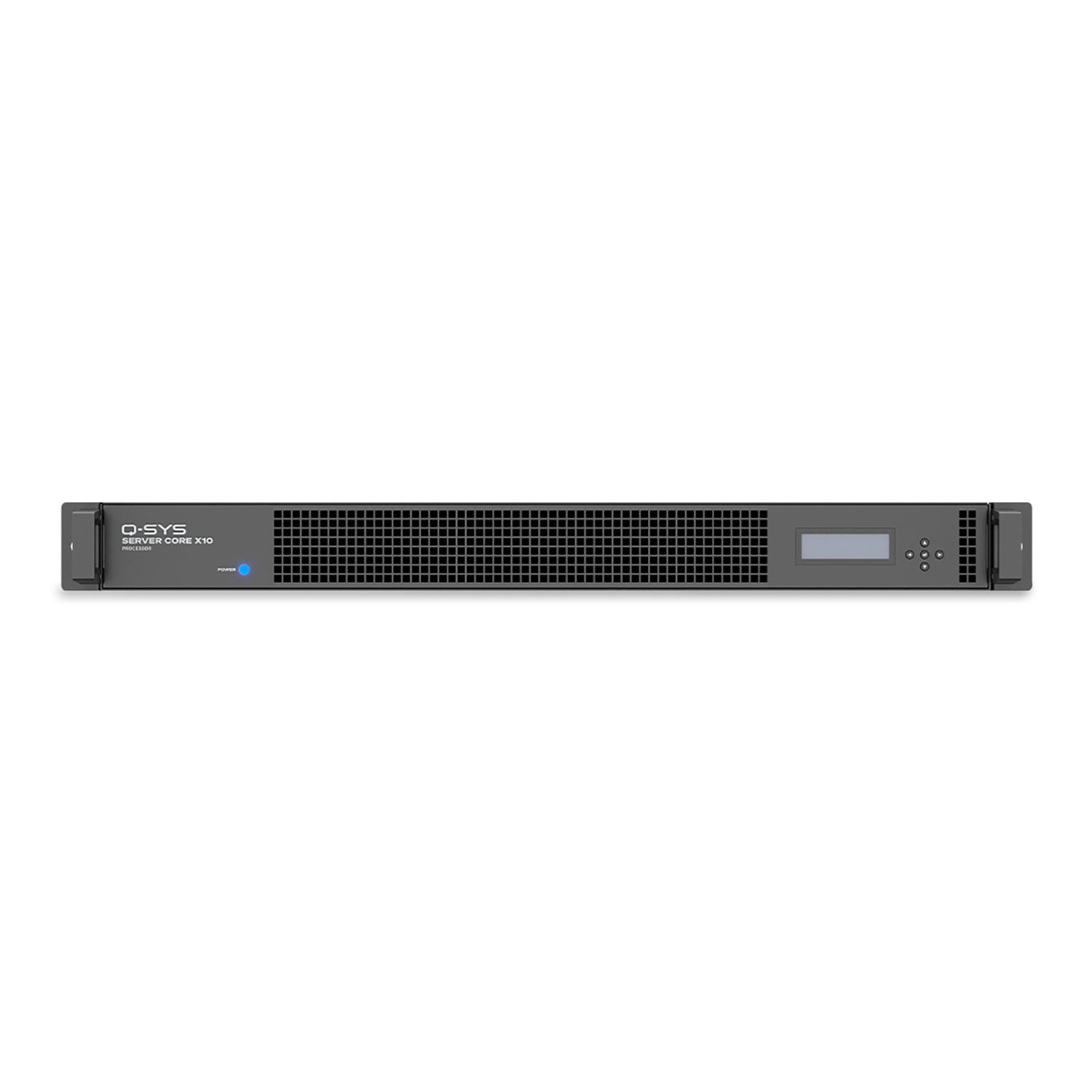

- Front: Power LED; Front Panel LCD module, white backlight; 4 navigation buttons (up, down, left, right) + 1 selection button to navigate between screens on the front display
-
Packaging and Accessories:
- Product dimensions (L x W x H): 18.11 x 17.24 x 1.73 in (460 x 438 x 44 mm)
- Product weight: 18.7 lb (8.5 kg)
- Shipping carton dimensions (L x W x H): 24.0 x 22.0 x 8.0 in (610 x 559 x 203 mm)
- Shipping weight: 28.1 lb (12.7 kg)
- Included accessories: Rail kit, Safety information & regulatory statements pamphlet, 1x region-specific power cord, Rack ear handles
-
Miscellaneous:
- Line voltage: 100-240 VAC, ~50/60 Hz
- Current draw: 2.0 A
- Operating temperature range: 0°C to +40°C
- Storage temperature: -40°C to +70°C
- BTU/hour: 136 BTU/Hr
- Humidity: 10% to 85%
- Regulatory: FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1
- Battery chemistry (embedded, non-accessible): Lithium Carbon Monofluoride
