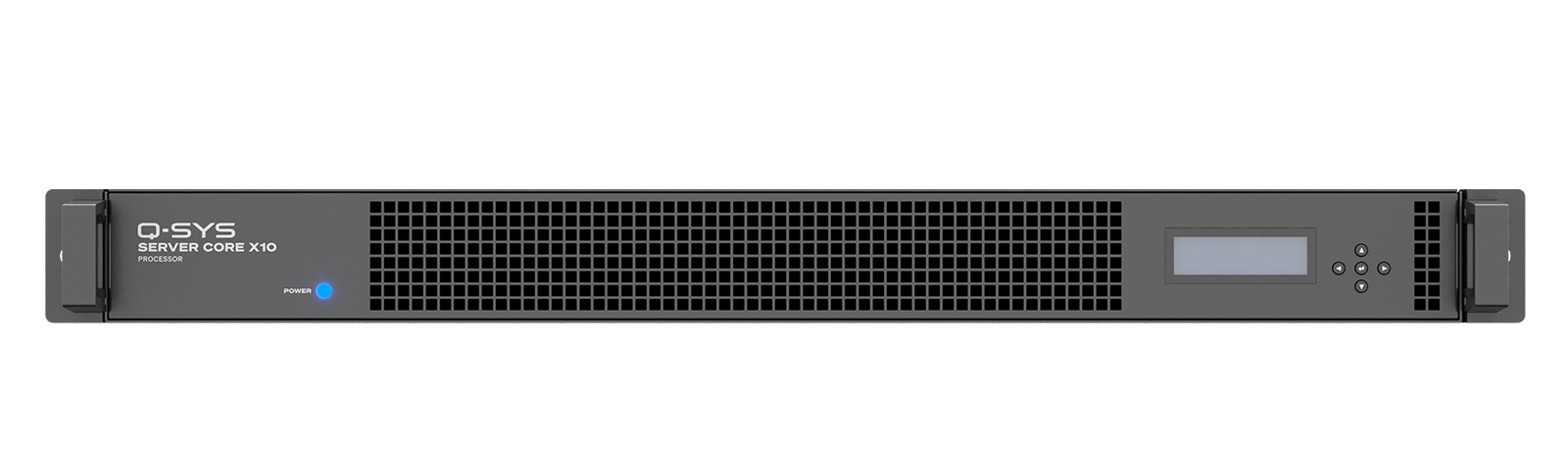

QSC {QSYS} SERVER CORE X10 (SW)
  • QSC {QSYS} SERVER CORE X10 (SW)
QSC {QSYS} SERVER CORE X10 (SW)

QSC {QSYS} SERVER CORE X10 (SW)

MSRP: $0.00
MAP: $0.00

Software value (2 of 2) of the SERVER CORE X10 bundle-cannot be ordered separately

SKU: QSC-SERVER CORE X10 (SW)

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Overview

Software value (2 of 2) of the SERVER CORE X10 bundle - cannot be ordered separately

The Software infrastructure defines the virtual processing channels, network routing matrices, and optional stackable expansions managed by the Q-SYS OS stack.

Specifications

  • Core AV Transport Capabilities: Out of the box baseline of 256 x 256 network audio channels and 128 x 128 network audio streams natively deploying via Q-LAN and AES67 protocols.
  • Acoustic Echo Cancellation (AEC): 64 discrete software AEC channels running with up to a 200 ms echo tail length.
  • Dante Audio Integration: 8 x 8 Software-based Dante streams natively included. This is electronically scalable up to 128 x 128 through separate digital software feature licenses.
  • Microphone Provisioning: Native software infrastructure allocation to comfortably support up to sixteen (16) Q-SYS NM-T1 tabletop network microphones.
  • VoIP Integration: Dedicated software network pipeline supporting up to 32 independent VoIP softphone instances.
  • WAN Streaming & Playback Media:
    • 64 x 64 wide-area-network Media/WAN stream capacity.
    • 4 channels of simultaneous multi-track live audio recording.
    • 16 channels of baseline multi-track audio playback (expandable to 128 channels via stackable multi-track playback feature software licenses: SLMTP-32, max 4x).
