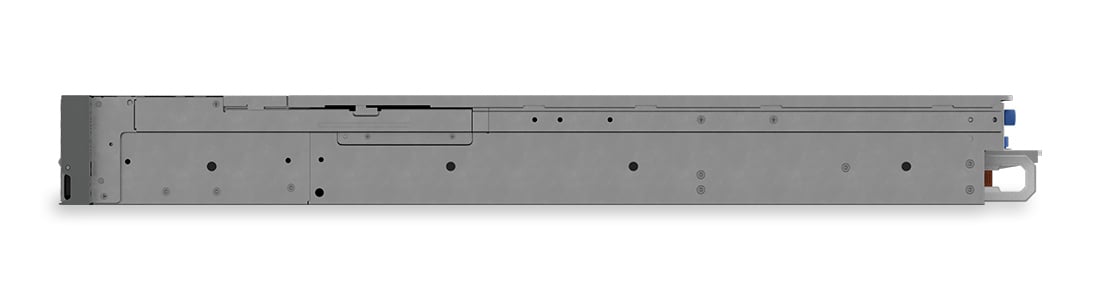

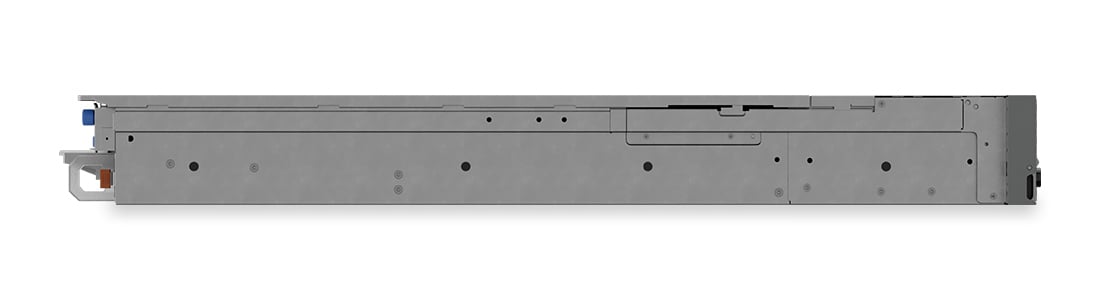

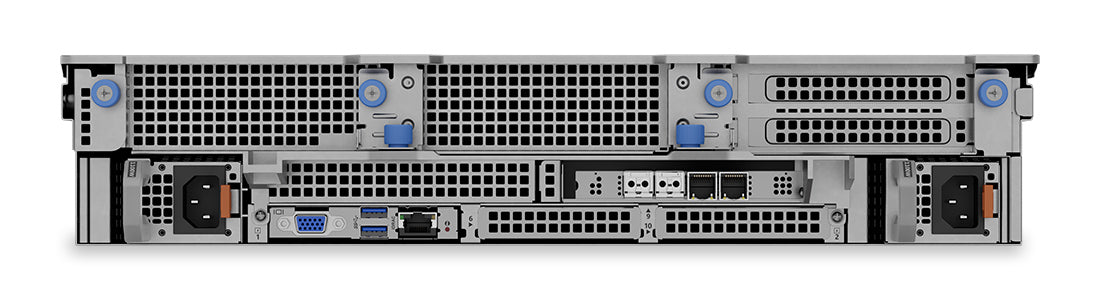

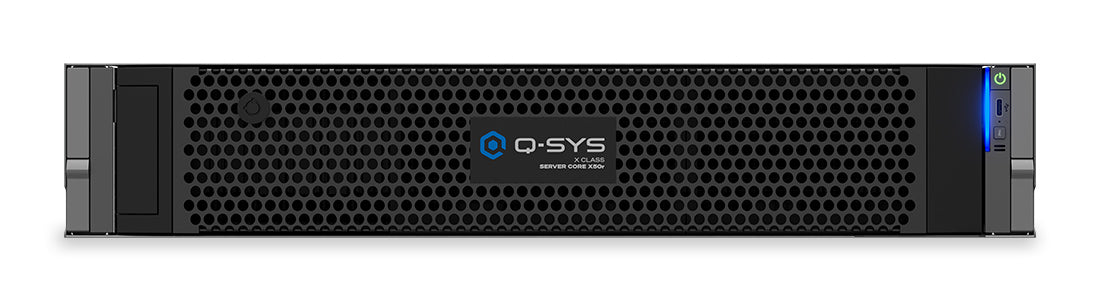

QSC {QSYS} SERVER CORE X50r
  • QSC {QSYS} SERVER CORE X50r
  • QSC {QSYS} SERVER CORE X50r
  • QSC {QSYS} SERVER CORE X50r
  • QSC {QSYS} SERVER CORE X50r
QSC {QSYS} SERVER CORE X50r

QSC {QSYS} SERVER CORE X50r

MSRP: $0.00
MAP: $0.00

Q-SYS X-Class Server Core for AV&C processing built on Dell PowerEdge Server Technology offering up to 4096x4096 networked audio ch. when connected to a 10Gbps network, w/ 8x8 Software-based Dante license incl. Not available for online advertising

SKU: QSC-SERVER CORE X50R

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Overview

The Server Core X50r is the most powerful AV&C processor on the market, combining the Q-SYS Full Stack AV Platform with industry-proven server hardware to deliver an abundance of DSP processing power and network audio capacity to serve the most demanding and complex large-scale AV deployments, from themed entertainment and resorts to large venues and more.

Features

  • 4096 x 4096 networked audio channels (with 10 Gbps network connection only—512 x 512 channels @ 1 Gbps)
  • 1024 x 1024 network I/O streams @ 10 Gbps (256 x 256 @ 1 Gbps)
  • 256x AEC channels @ 200 ms
  • Includes 8 x 8 Software-based Dante channels (licensable up to 512 x 512)
  • Dual redundant, hot-swappable power supplies
  • 4x 10Gbps capable SFP+ ports (pre-installed 2x 10Gbps multi-mode fiber / 2x 1Gbps copper RJ45; field-replaceable)
  • 256 x 256 Media/WAN channel capacity
  • 16 multitrack playback channels (up to 256 with optional stackable feature license)
  • 4 multitrack record channels
  • Onboard 960 GB media drive
  • 2RU form factor

Specifications

  • Q-SYS Capacities:
    • Total network I/O channels:
      • @ 10Gbps: 4096 x 4096
      • @ 1Gbps: 512 x 512
    • Total network I/O streams:
      • @ 10Gbps: 1024 x 1024
      • @ 1Gbps: 256 x 256
    • Dante network I/O: 8 x 8 included (up to 512 x 512 with Software-based Dante feature license)
    • Media/WAN channel capacity: 256 x 256
    • VoIP softphones: 96
    • AEC channels (at 200 ms tail length): 256
    • Audio recording / playback: 4 channels recording / 16 channels playback, [expandable up to 256 channels playback with optional multi track playback license (SLMTP-32) stackable up to 8x]
    • Media drive capacity: 960 GB (at least 900 GB available for user media, or at least 1800 hours of uncompressed 48 kHz, 24 bit, mono WAV format audio files)
  • Hardware:
    • Platform: Dell PowerEdge R570
    • Power: 2x universal input, 1100 W PSU module
    • LAN: 4x 10Gbps capable SFP+ ports (pre-installed 2x 10Gbps multi-mode fiber / 2x 1Gbps copper RJ45; field-replaceable)
    • USB: 2x USB-A
    • iDRAC: 1x dedicated iDRAC v10 Ethernet port (rear); 1x iDRAC Direct (USB-C) port (front)
    • Ventilation: Forced air – front intake, rear exhaust
  • Controls and Indicators:
    • Front: Power button / LED; System ID button
  • Packaging and Accessories:
    • Product dimensions (L x W x H): 32.09 x 19.0 x 3.42 in (815 x 482.0 x 86.8 mm), including rack ears and handles
    • Product weight: 40.0 lbs (18.1 kg)
    • Shipping carton dimensions (L x W x H): 39.5 x 26.0 x 12.5 in (1003 x 660 x 318 mm)
    • Shipping weight: 54.3 lbs (24.6 kg)
    • Included accessories: Rail kit, Environmental and Regulatory information booklet, 2x Region-specific power cords (for dual power supplies), Quick Start Guide
  • Miscellaneous:
    • Line voltage: 100-240 VAC, ~50/60 Hz
    • Current draw: ~12 A @100-120 VAC, ~6.1 A @200-240 VAC
    • Operating temperature range: 5°C to +45°C
    • Storage temperature: -40°C to +70°C
    • BTU/hour: 4100 BTU/Hr
    • Humidity: 8% to 90%
    • Regulatory: FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1
    • Battery chemistry: Lithium manganese dioxide
