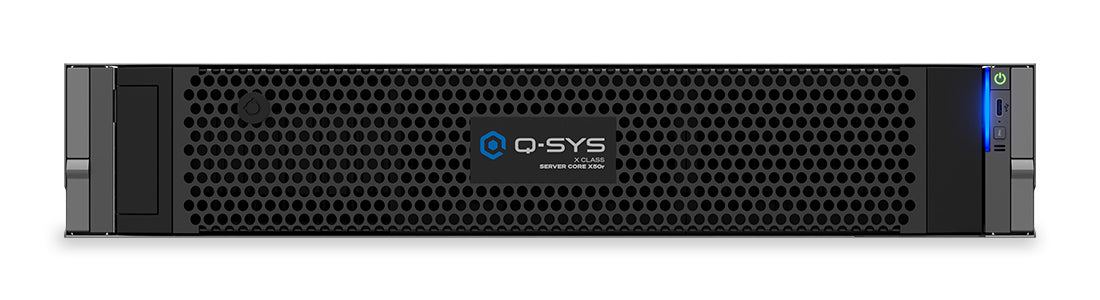

Overview
Hardware value (1 of 2) of the SERVER CORE X50r bundle - cannot be ordered separately
This represents the physical 2RU server infrastructure built on enterprise-grade Dell server hardware, providing high-bandwidth SFP+ network connectivity, massive power redundancy, and expanded storage framework for ultra-large-scale applications.
Features (HW)
- Dual redundant, hot-swappable power supplies
- 4x 10Gbps capable SFP+ ports (pre-installed 2x 10Gbps multi-mode fiber / 2x 1Gbps copper RJ45; field-replaceable)
- Onboard 960 GB media drive
- 2RU form factor
Specifications (HW)
-
Hardware:
- Platform: Dell PowerEdge R570
- Power: 2x universal input, 1100 W PSU module
- LAN: 4x 10Gbps capable SFP+ ports (pre-installed 2x 10Gbps multi-mode fiber / 2x 1Gbps copper RJ45; field-replaceable)
- USB: 2x USB-A
- iDRAC: 1x dedicated iDRAC v10 Ethernet port (rear); 1x iDRAC Direct (USB-C) port (front)
- Ventilation: Forced air – front intake, rear exhaust
-
Controls and Indicators:
- Front: Power button / LED; System ID button
-
Packaging and Accessories:
- Product dimensions (L x W x H): 32.09 x 19.0 x 3.42 in (815 x 482.0 x 86.8 mm), including rack ears and handles
- Product weight: 40.0 lbs (18.1 kg)
- Shipping carton dimensions (L x W x H): 39.5 x 26.0 x 12.5 in (1003 x 660 x 318 mm)
- Shipping weight: 54.3 lbs (24.6 kg)
- Included accessories: Rail kit, Environmental and Regulatory information booklet, 2x Region-specific power cords (for dual power supplies), Quick Start Guide
-
Miscellaneous:
- Line voltage: 100-240 VAC, ~50/60 Hz
- Current draw: ~12 A @100-120 VAC, ~6.1 A @200-240 VAC
- Operating temperature range: 5°C to +45°C
- Storage temperature: -40°C to +70°C
- BTU/hour: 4100 BTU/Hr
- Humidity: 8% to 90%
- Regulatory: FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1
- Battery chemistry: Lithium manganese dioxide
