Overview

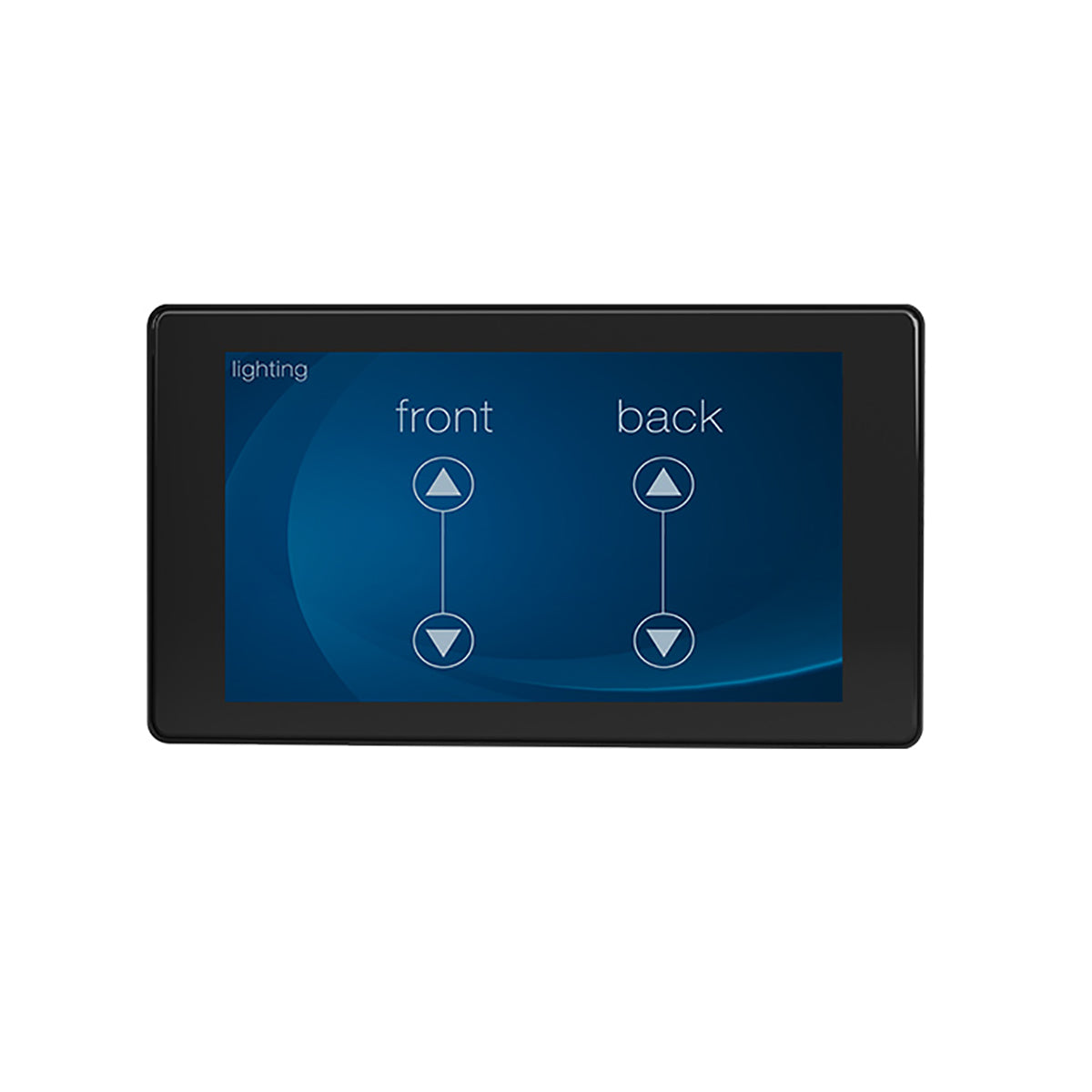

TSC-50-G3 High Definition Touch Screen Controller.
Features
- Robust Responsiveness: Projective Capacitive (PCAP) Multi-Touch Surface with 24-bit Color Display
- High Resolution Display: 1280 x 720 px with 450 Nits (brightness) coupled with significantly improved screen transition
- Power Over Ethernet: Allows for simplified single cable installation
- Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes

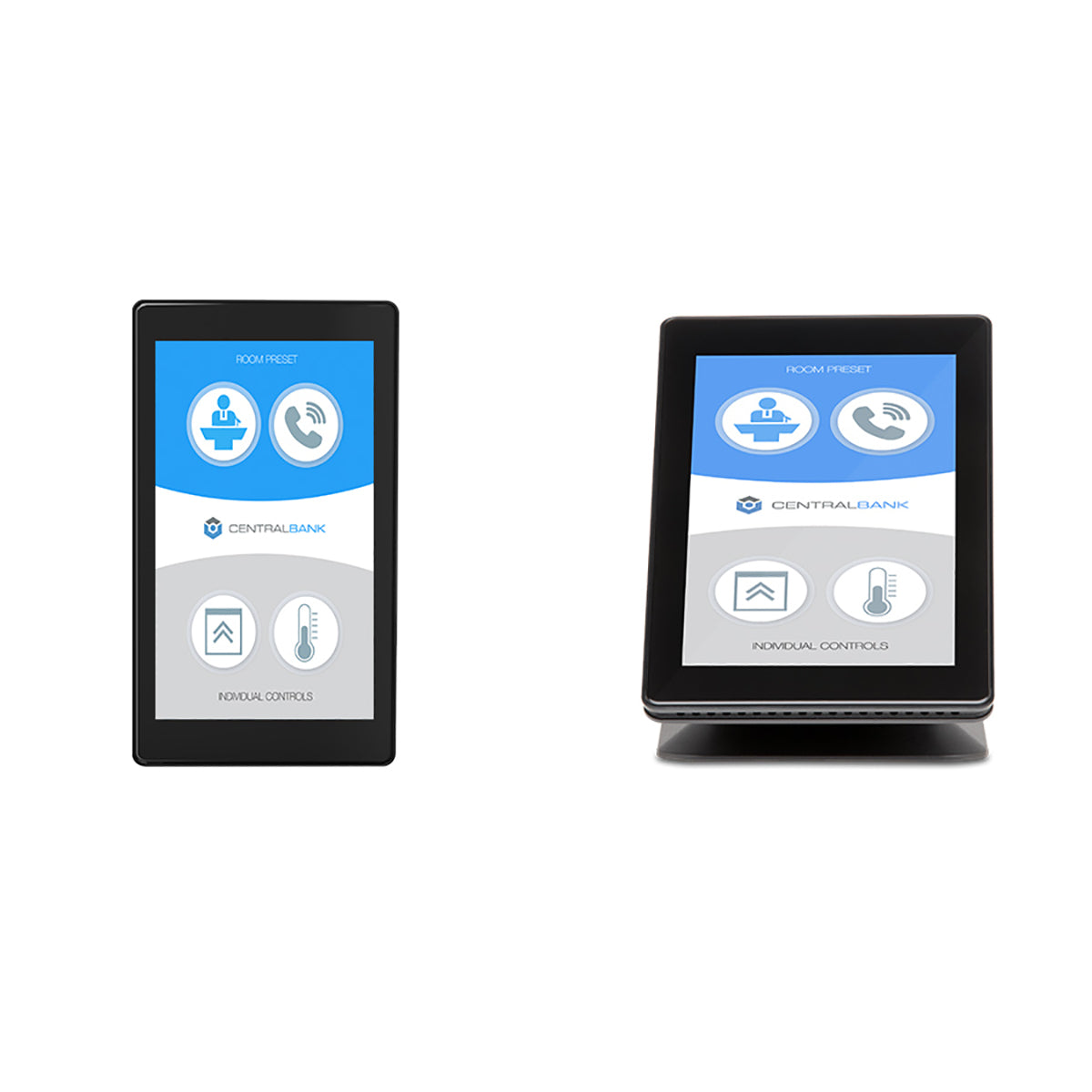

- Versatile: Ability to operate in portrait or landscape orientation; wallmount into standard 1-Gang backbox or table top mount with optional stand
- UCI Editor:
- Easy Drag and Drop Interface: Drag and drop any control Q-SYS element from a Q-SYS design schematic into UCI Editor and easily deploy your design to the touch screen, without any programming experience. Q-SYS UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.
- Complete Design Freedom: Build more dynamic UCI themes and apply global styles across multiple UCIs with CSS-based styling. Enables easier deployment of uniform UCIs across an organization.
- Convenient License Activation: Deploying a UCI to an active Q-SYS system requires the UCI Deployment feature license.
Specifications
-
Display:
- Description: Projective capacitive (PCAP) multi-touch, Power over Ethernet, 24-bit color display.
- Simultaneous touch points: 5
- Panel Dimensions (H×W×D): 5.5 x 3.2 x 1.49 inch / 141 x 81.3 x 37.8 mm
- Viewable Screen Dimensions (diagonal): 4.99 inch / 126.7 mm
- Resolution: 1280 × 720
- Wallmount Option: Yes

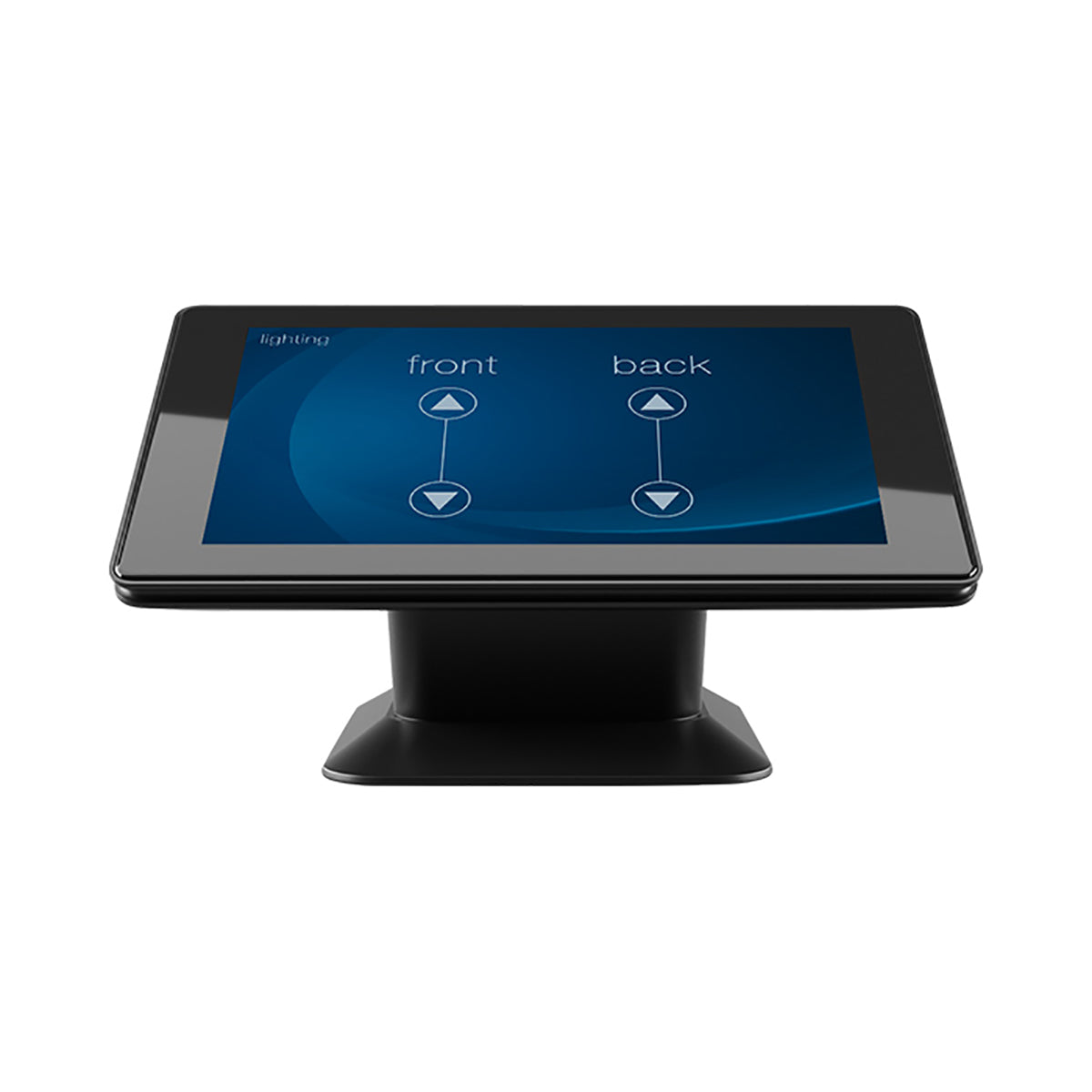

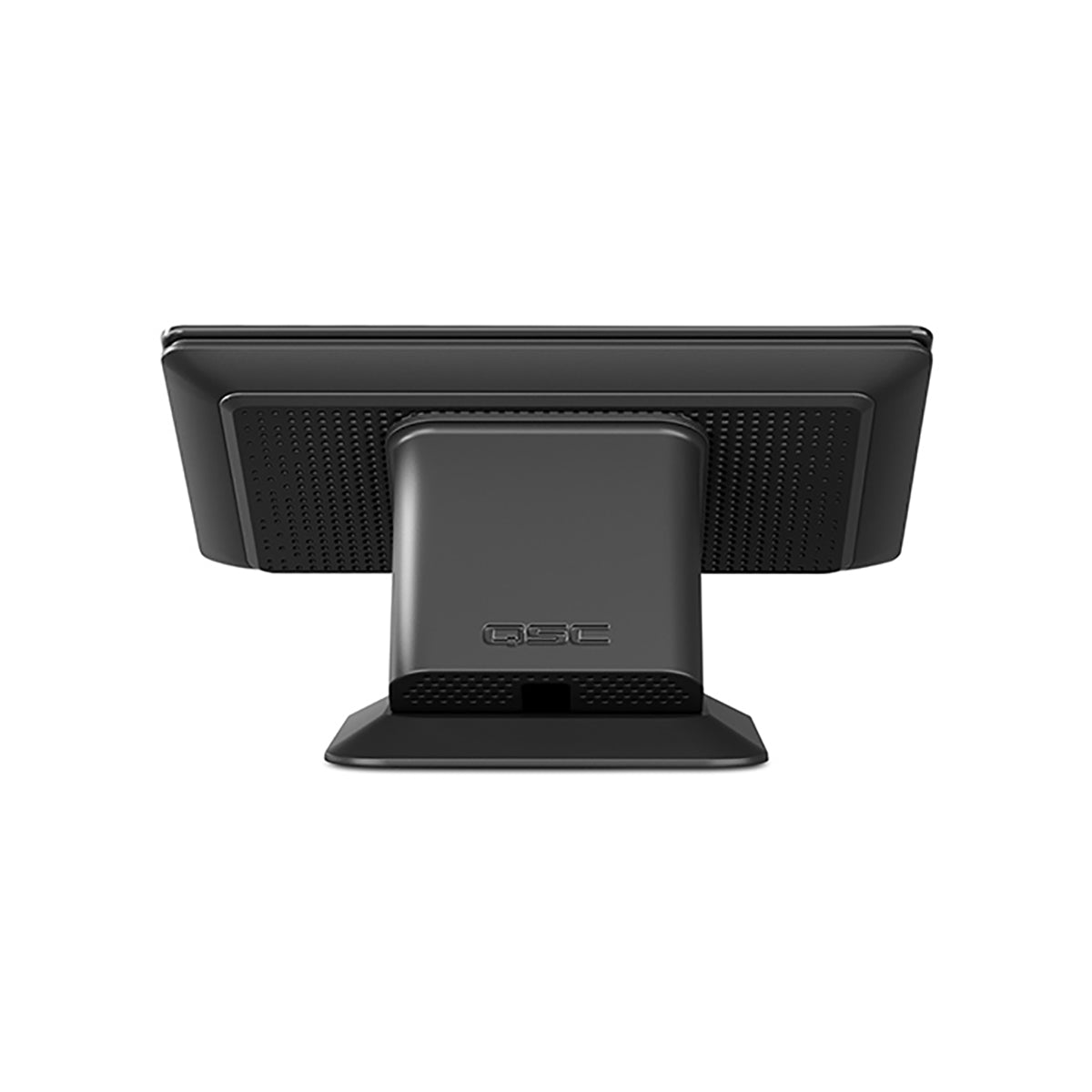

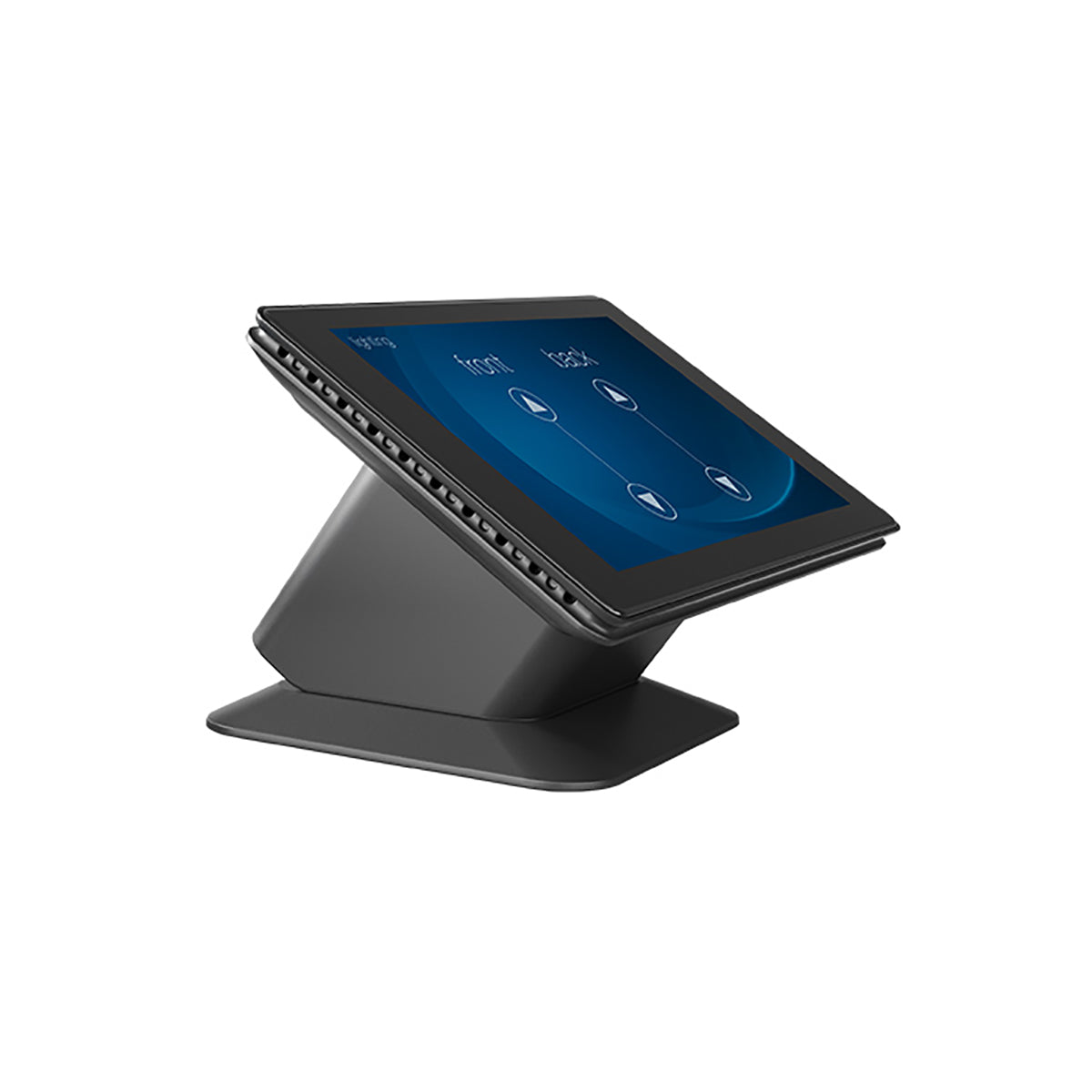

- Table Top Option: Yes, TSC-50t-G3 accessory sold separately
- Panel Orientation: Vertical / horizontal on wall and stand
- Brightness: 450 Nits
-
Power:
- PoE (Power over Ethernet): PoE Class 2
-
Weight:
- Product Weight (net): 0.5 lb. (0.23 kg)
-
Environment:
- Operating Temperature: 0°C - 50°C (32°F - 122°F)
- BTUs: 18 typical
- Humidity: 5% to 85% RH, non-condensing
-
Rear Panel:
- LAN (1x RJ45) 1 Gbps
