Overview
ART 810-A is a portable two-way active speaker built for DJs, musicians, and installers who want professional sound, robust performance, and everyday versatility in a sleek, modern form factor. A 1.75" compression driver, 10" woofer, and powerful 1400 W two-channel amplifier work with RCF’s constant-directivity True Resistive Waveguide to deliver consistent 100° x 60° coverage, clear reproduction, and up to 129 dB SPL with low distortion. The lightweight yet rugged cabinet uses a special polypropylene composite with internal M-brace reinforcement for improved stability and reduced resonance, making ART 810-A fast to deploy, easy to handle, and ready for portable systems or secure installation on a pole, wall, truss, or flown setup via multiple rigging points.
Features- 129 dB Max SPL
- 1400 W Class D Bi-Amplification
- 100° x 60°, Wide dispersion True Resistive Waveguide
- XBOOST Low-Frequency Enhancer
- 1.75" Compression Driver
- 10" Woofer
- FiRPHASE and BMC processing
Specifications
ACOUSTICAL- Frequency Response: 50 Hz - 20000 Hz
- Max SPL @ 1m: 129 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°

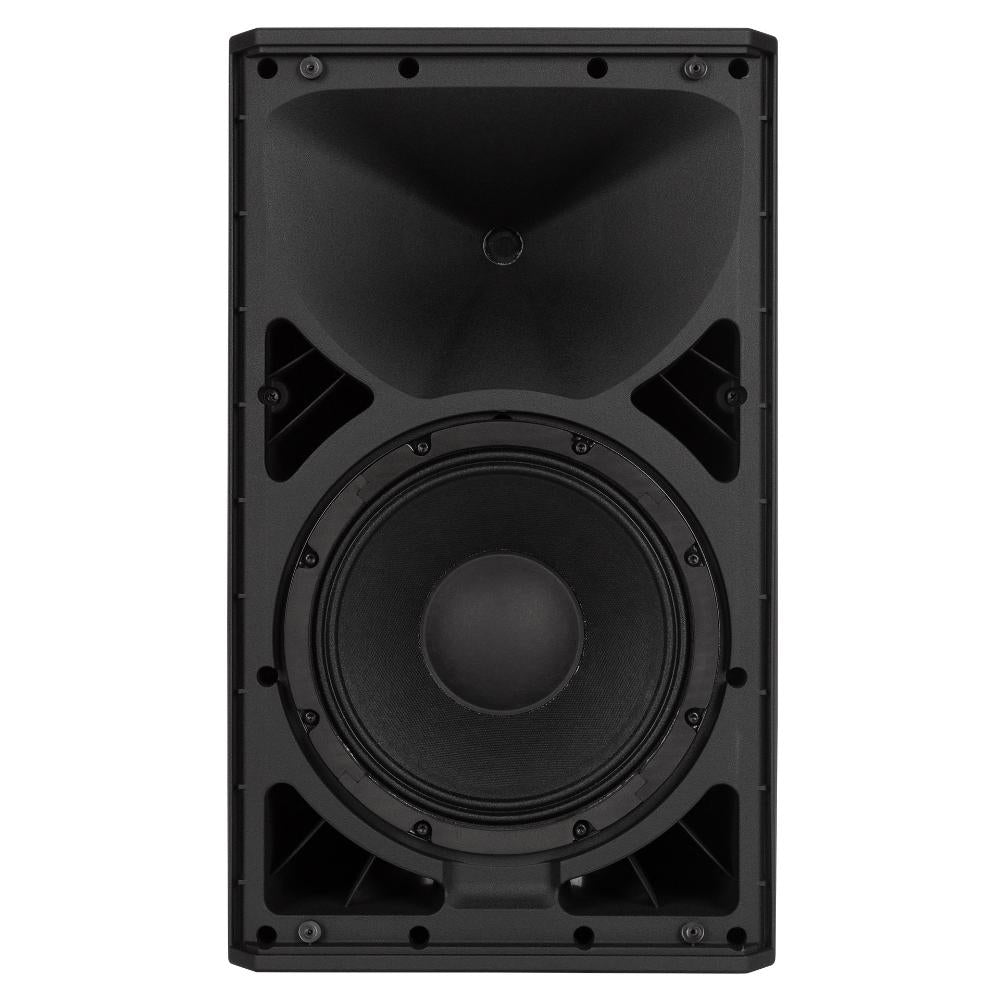

- Compression Driver: 1 x 1.0'', 1.75'' v.c
- Woofer: 1 x 10'', 2.5'' v.c
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Mic. Input Sensitivity: -32 dBu
- Crossover Frequencies: 1600
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, MIC/Line
- Total Power: 1400 W Peak
- High frequencies: 400 W Peak
- Low frequencies: 1000 W Peak
- Cooling: Convection
- Connections: VDE
- Safety agency: CE compliant
- Cabinet/Case Material: PP Composite
- Hardware: 2 x M10, top and bottom side
- Handles: 1 on top

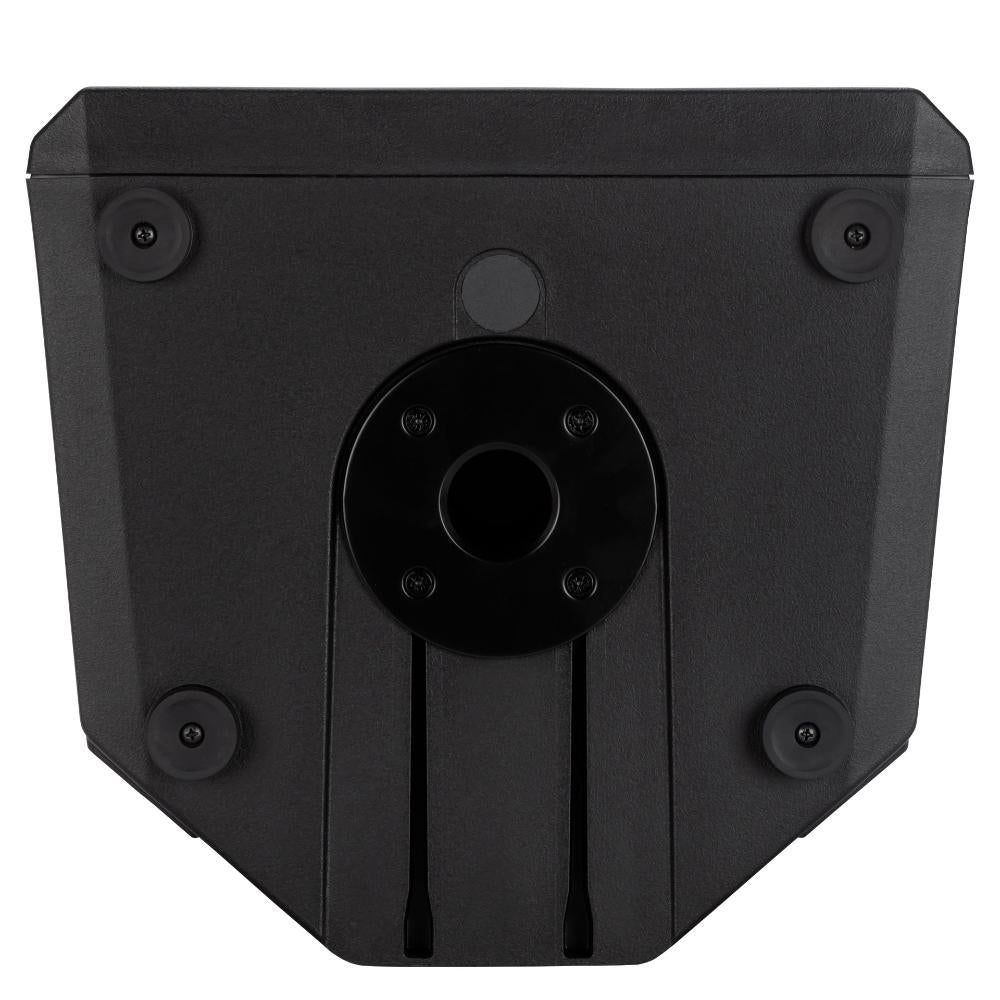

- Pole mount/Cap: 35 mm insert
- Grille: Steel
- Color: Black
- Height: 564.9 mm / 22.24 inches
- Width: 329.9 mm / 12.99 inches
- Depth: 310.2 mm / 12.21 inches
- Weight: 16 kg / 35.27 lbs
- Package Height: 616 mm / 24.25 inches
- Package Width: 370 mm / 14.57 inches
- Package Depth: 390 mm / 15.35 inches
- Package Weight: 18.8 kg / 41.45 lbs
