Overview:
ART 812-A is a portable two-way active speaker built for DJs, musicians, and installers who want professional sound, robust performance, and everyday versatility in a sleek, modern form factor. A 1.75” compression driver, 12” woofer, and powerful 1400 W two-channel amplifier work with RCF’s constant-directivity True Resistive Waveguide to deliver consistent 100° x 60° coverage, clear reproduction, and up to 129 dB SPL with low distortion. The lightweight yet rugged cabinet uses a special polypropylene composite with internal M-brace reinforcement for improved stability and reduced resonance, making ART 812-A fast to deploy, easy to handle, and ready for portable systems or secure installation on a pole, wall, truss, or flown setup via multiple rigging points.
Features:
129 dB Max SPL
1400 W Class D Bi-Amplification
100° x 60°, Wide dispersion True Resistive Waveguide
XBOOST Low-Frequency Enhancer
1.75" Compression Driver
12" Woofer
FiRPHASE and BMC processing
Specs:
Acoustical specifications
Frequency Response
50 Hz - 20000 Hz
Max SPL @ 1m
129 dB
Horizontal coverage angle
100°
Vertical coverage angle
60°

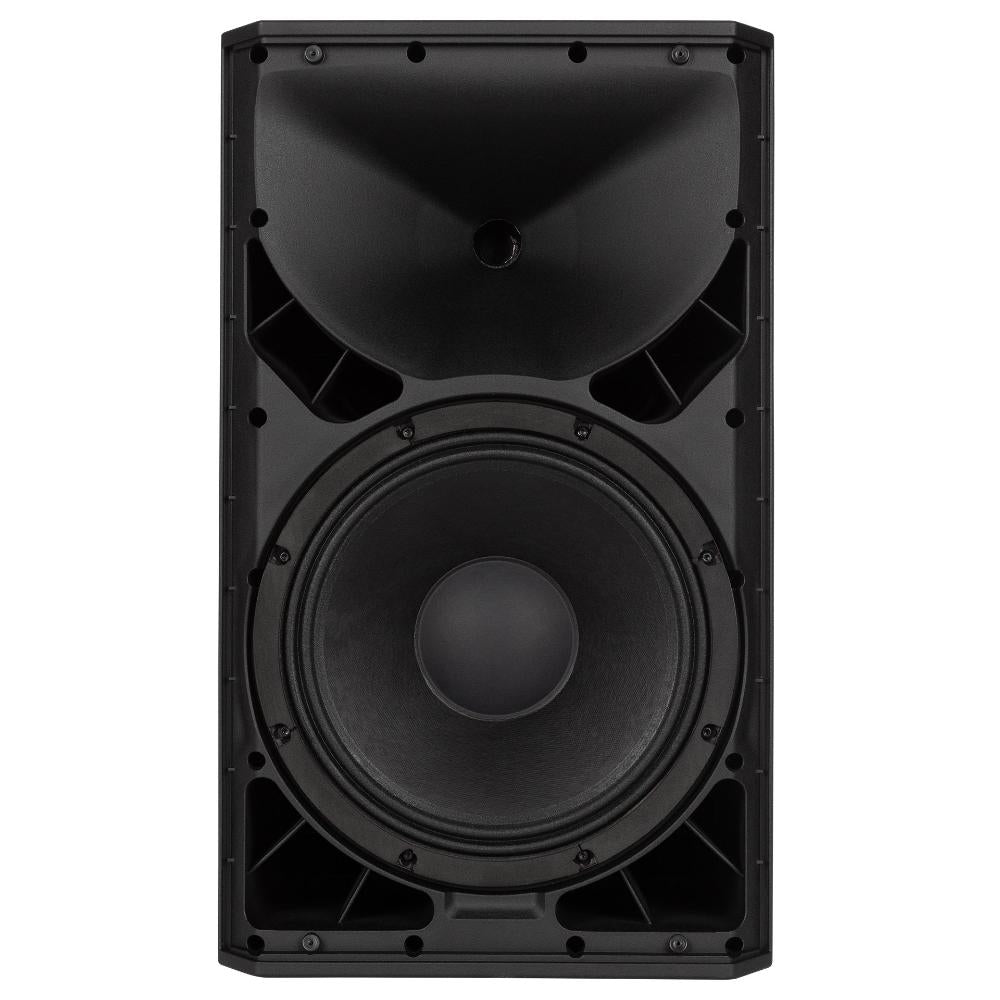

Transducers
Compression Driver
1 x 1.0'', 1.75'' v.c
Woofer
1 x 12'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
Processor section
Crossover Frequencies
1600
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, MIC/Line
Power section
Total Power
1400 W Peak
High frequencies
400 W Peak
Low frequencies
1000 W Peak
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
3 x M10, 1 on top e 1 each side
Handles
1 on top, 1 each side

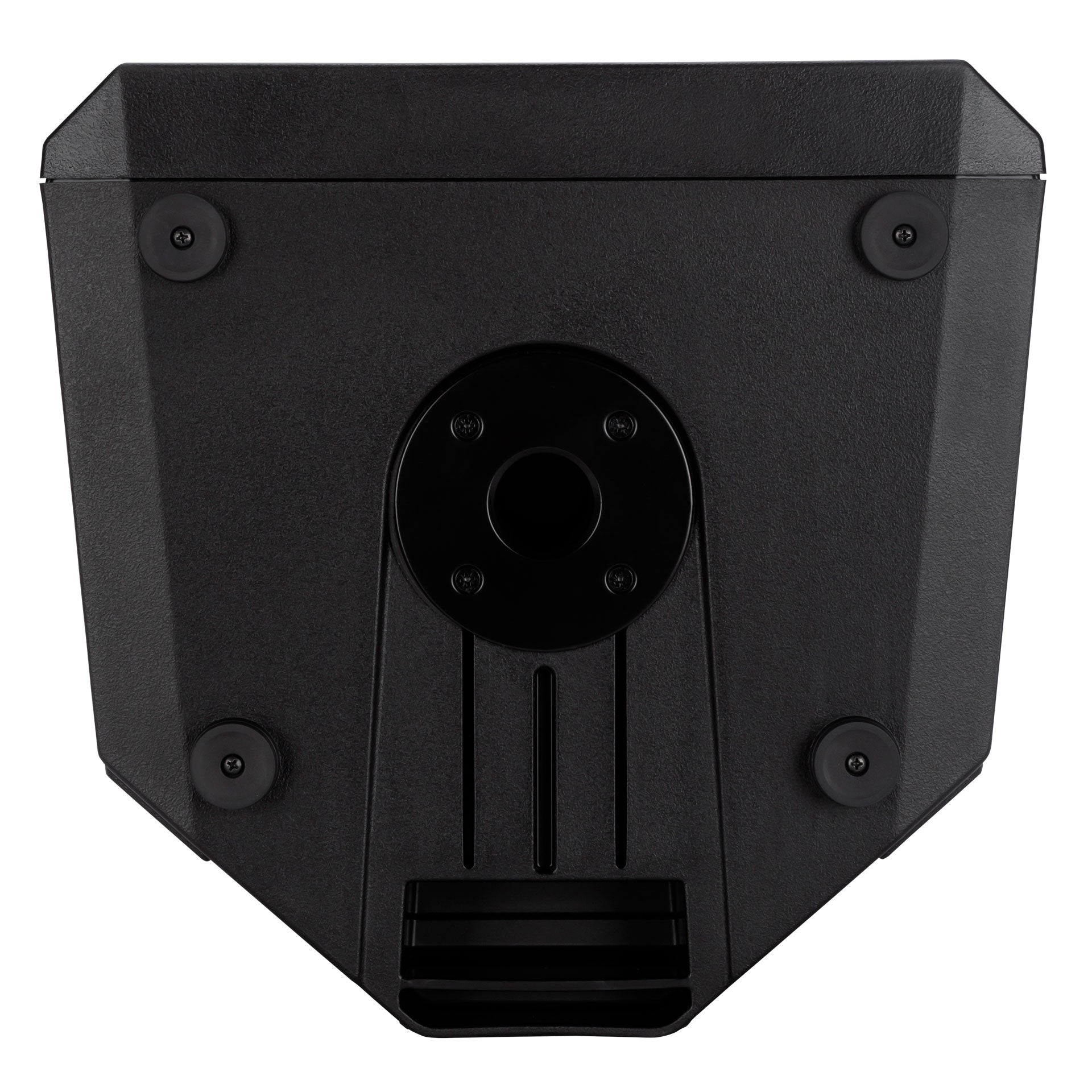

Pole mount/Cap
35 mm insert
Grille
Steel
Color
Black
Size / Weight
Height
634.9 mm / 25 inches
Width
369.9 mm / 14.56 inches
Depth
363.2 mm / 14.3 inches
Weight
19 kg / 41.89 lbs
Shipping information
Package Height
685 mm / 26.97 inches
Package Width
430 mm / 16.93 inches
Package Depth
423 mm / 16.65 inches
Package Weight
21.2 kg / 46.74 lbs
