Overview:

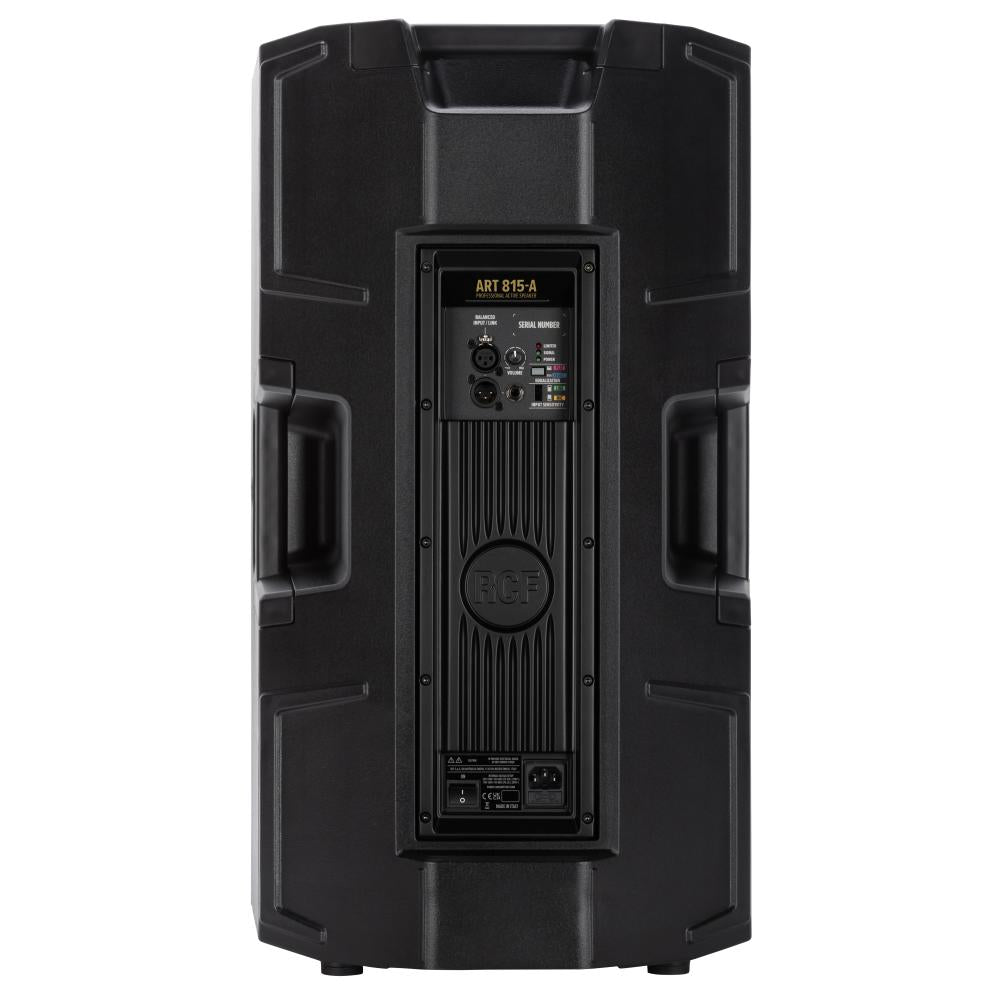

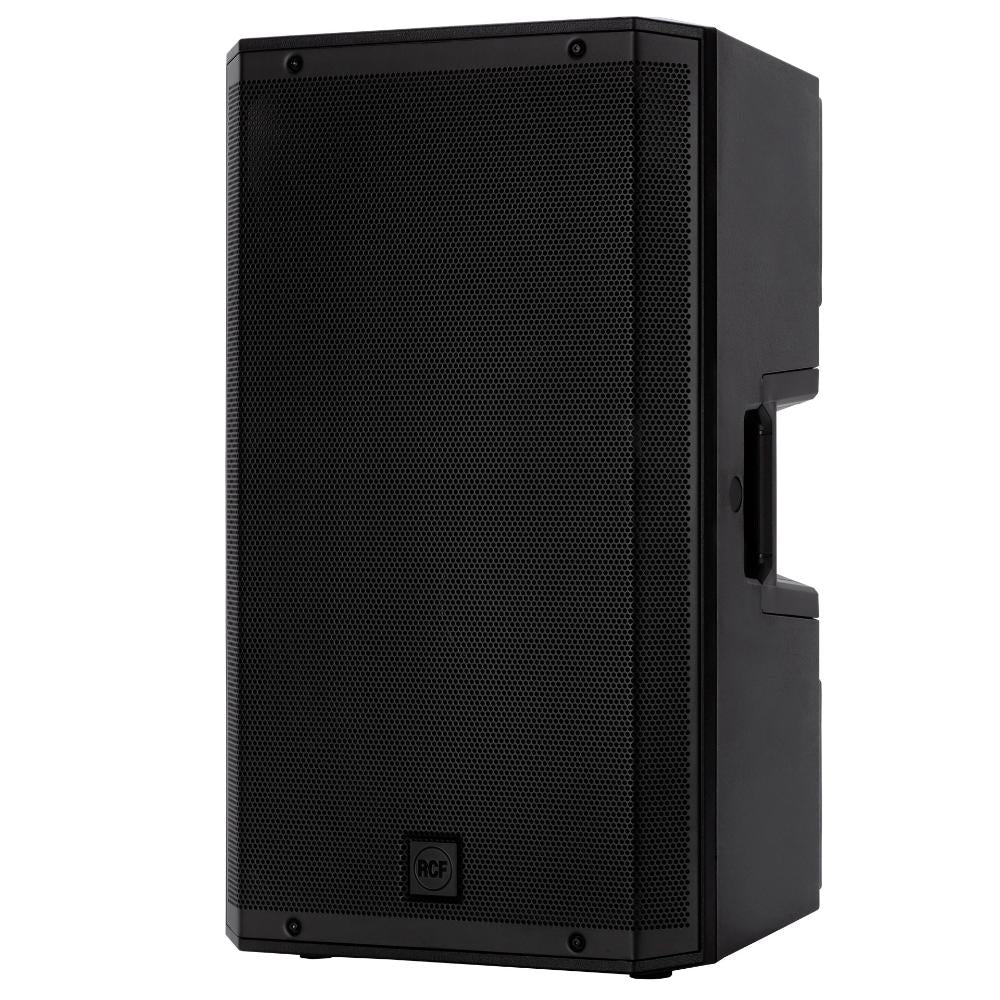

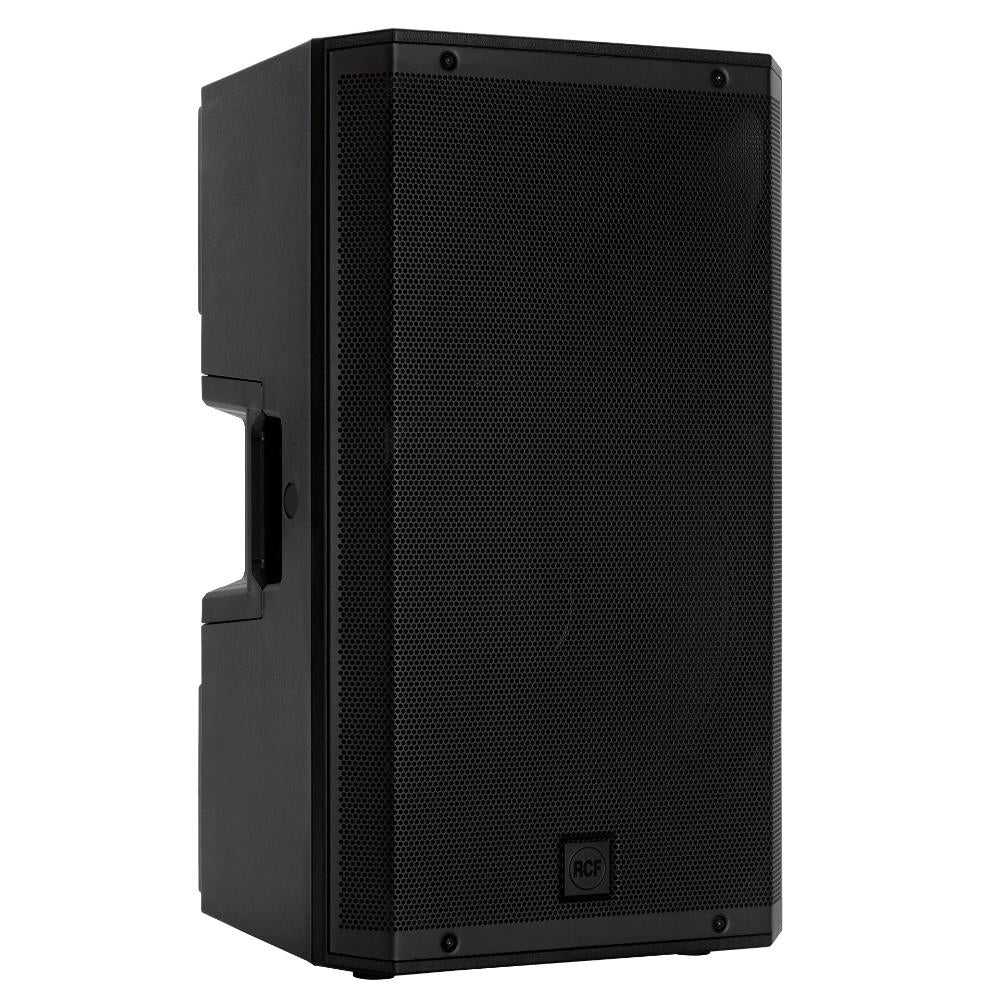

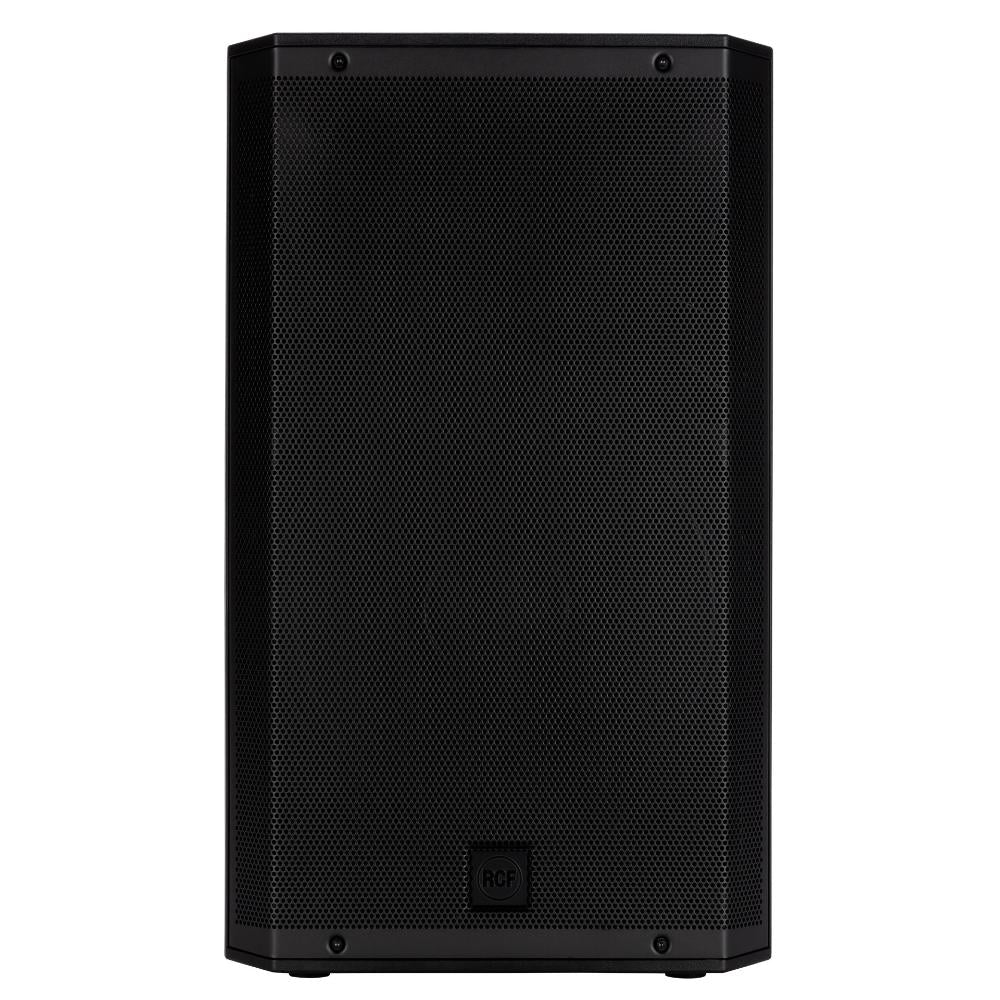

ART 815-A is a portable two-way active speaker built for DJs, musicians, and installers who want professional sound, robust performance, and everyday versatility in a sleek, modern form factor. A 1.75” compression driver, 15” woofer, and powerful 1400 W two-channel amplifier work with RCF’s constant-directivity True Resistive Waveguide to deliver consistent 100° x 60° coverage, clear reproduction, and up to 130 dB SPL with low distortion. The lightweight yet rugged cabinet uses a special polypropylene composite with internal M-brace reinforcement for improved stability and reduced resonance, making ART 815-A fast to deploy, easy to handle, and ready for portable systems or secure installation on a pole, wall, truss, or flown setup via multiple rigging points.
Features:
129 dB Max SPL
1400 W Class D Bi-Amplification
100° x 60°, Wide dispersion True Resistive Waveguide
XBOOST Low-Frequency Enhancer
1.75" Compression Driver
10" Woofer
FiRPHASE and BMC processing
Specs:
Acoustical specifications
Frequency Response
45 Hz - 20000 Hz
Max SPL @ 1m
130 dB
Horizontal coverage angle
100°
Vertical coverage angle
60°
Transducers
Compression Driver
1 x 1.0'', 1.75'' v.c
Woofer
1 x 15'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
Processor section
Crossover Frequencies
1600
Protections
Thermal, RMS
Limiter
Soft Limiter

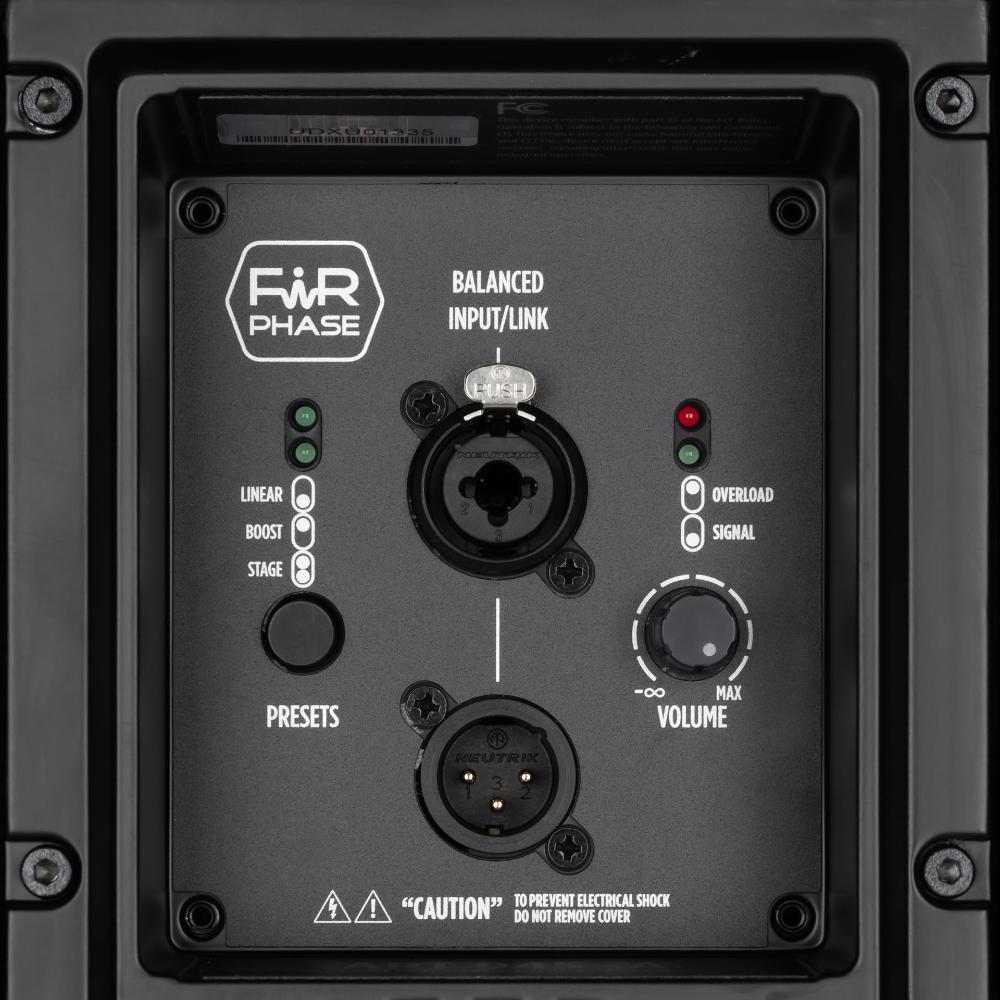

Controls
Volume, Boost, MIC/Line
Power section
Total Power
1400 W Peak
High frequencies
400 W Peak
Low frequencies
1000 W Peak
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
3 x M10, 1 on top and 1 each side

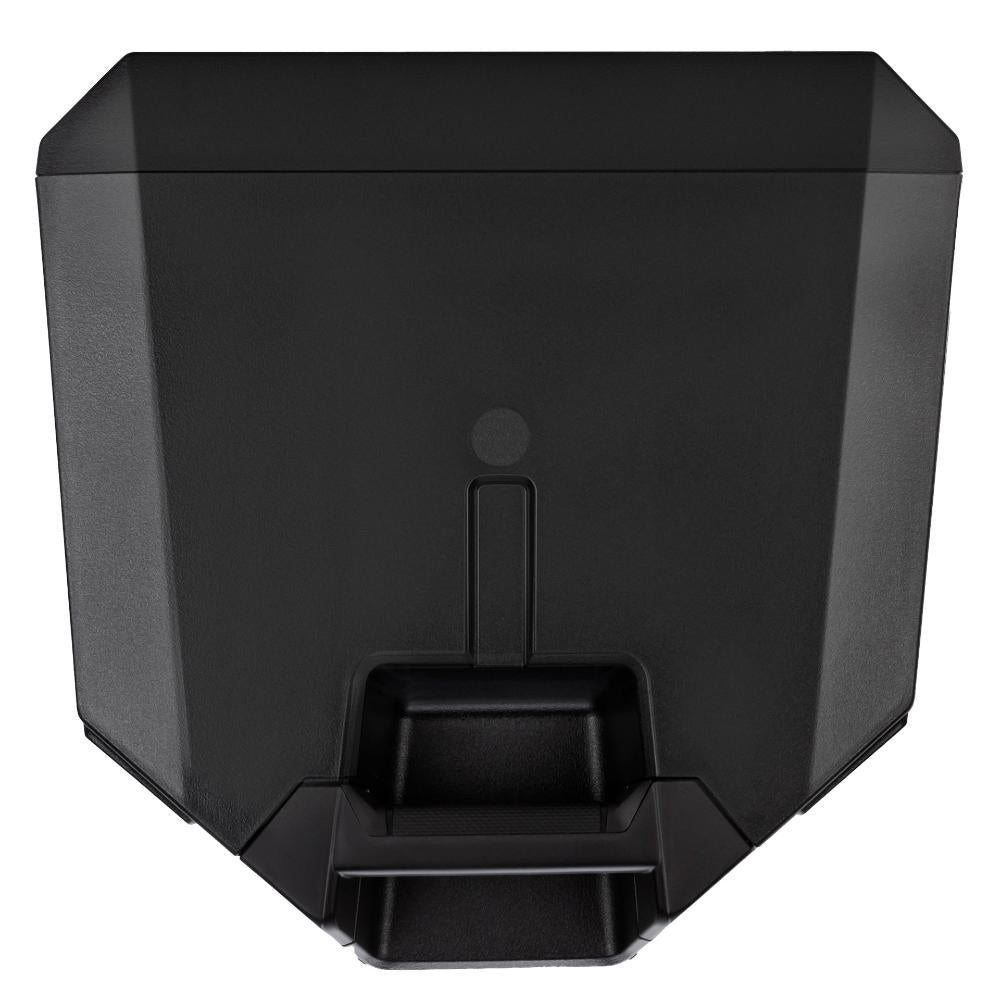

Handles
1 on top, 1 each side

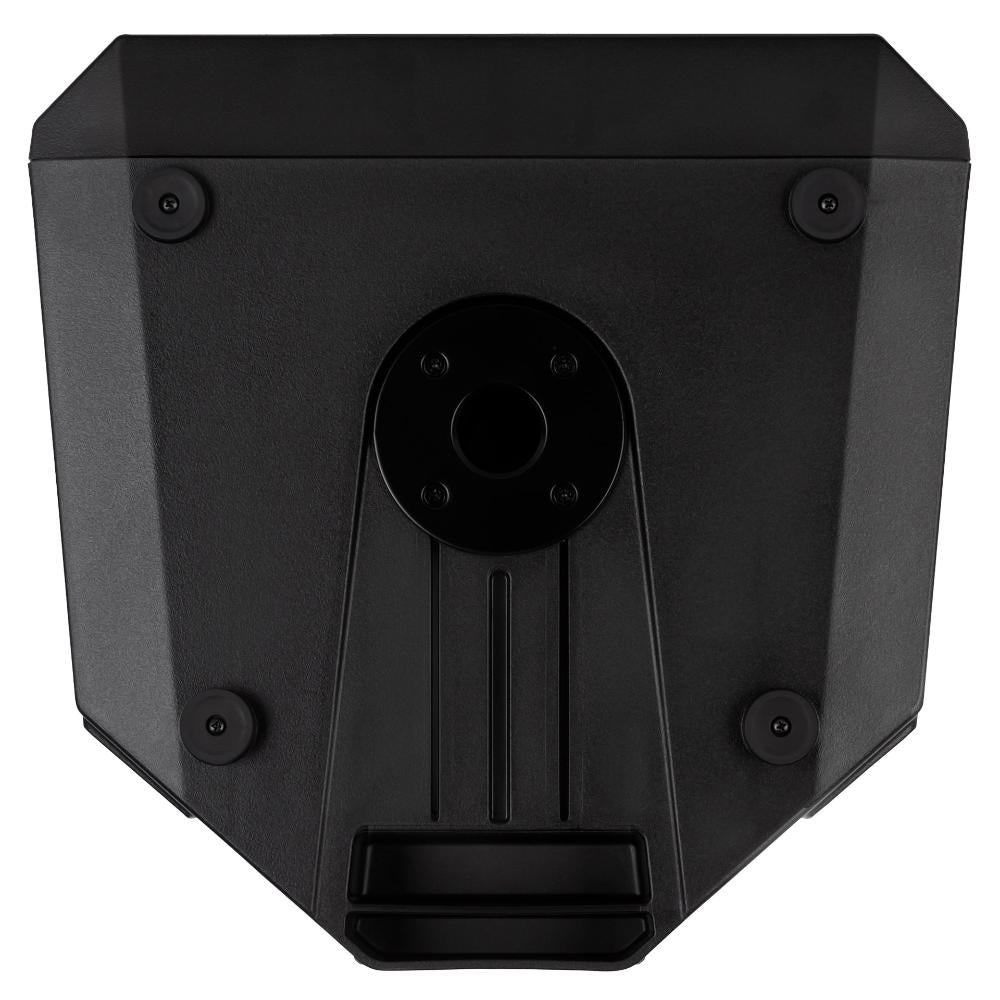

Pole mount/Cap
35 mm insert
Grille
Steel
Color
Black
Size / Weight
Height
709.9 mm / 27.95 inches
Width
414.9 mm / 16.33 inches
Depth
410.2 mm / 16.15 inches
Weight
22.4 kg / 49.38 lbs
Shipping information
Package Height
760 mm / 29.92 inches
Package Width
475 mm / 18.7 inches
Package Depth
470 mm / 18.5 inches
Package Weight
26.5 kg / 58.42 lbs
