Overview

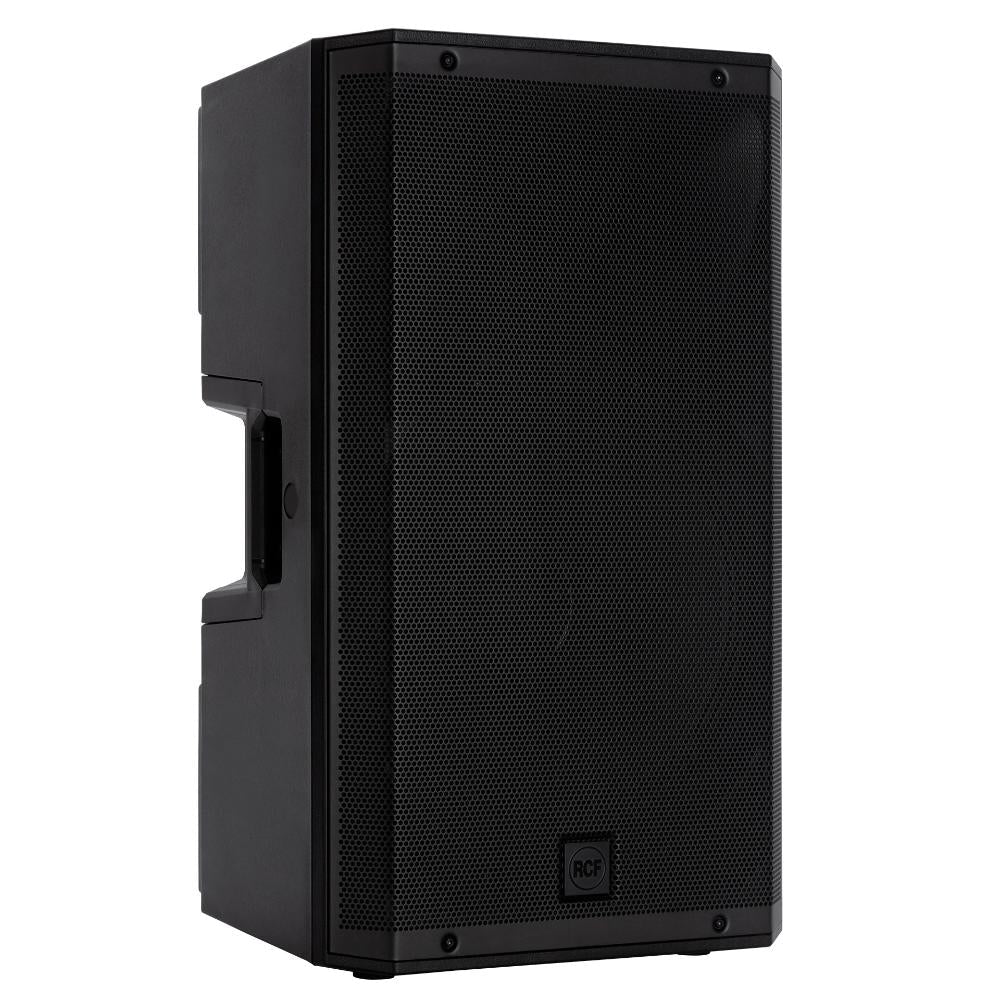

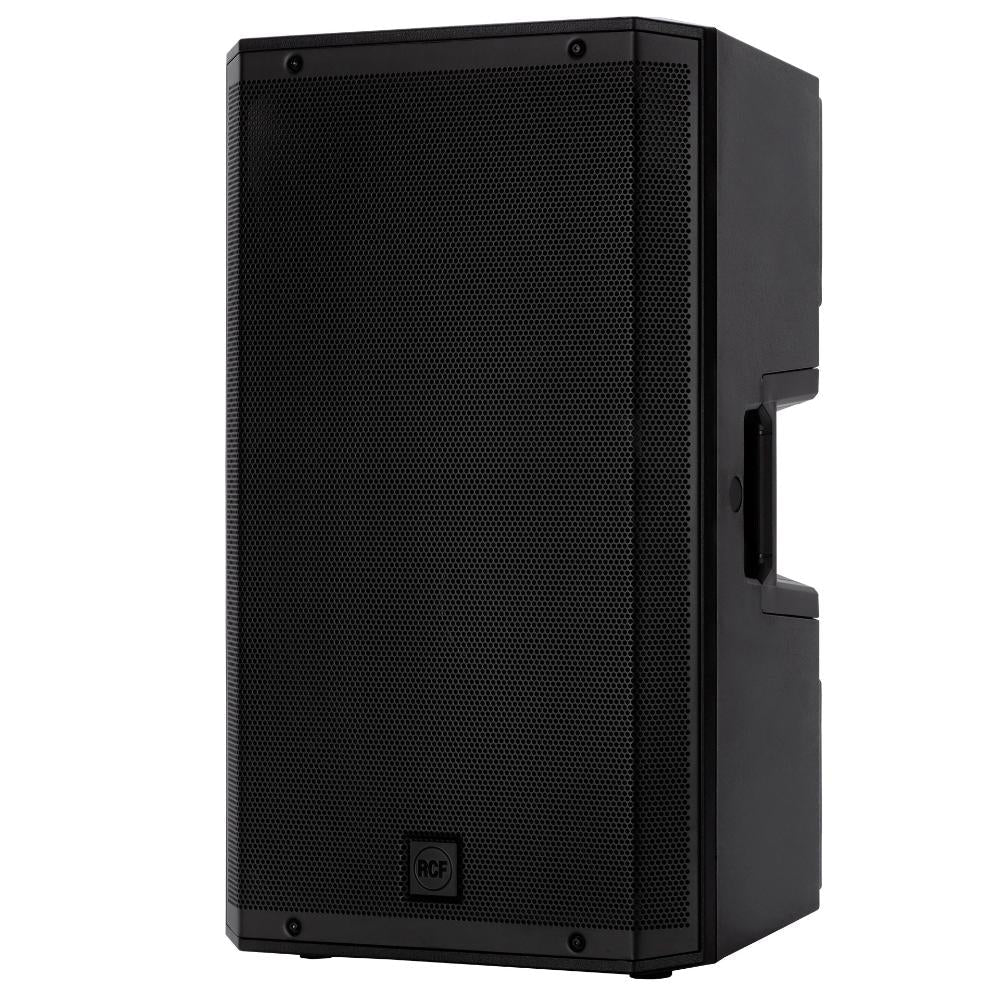

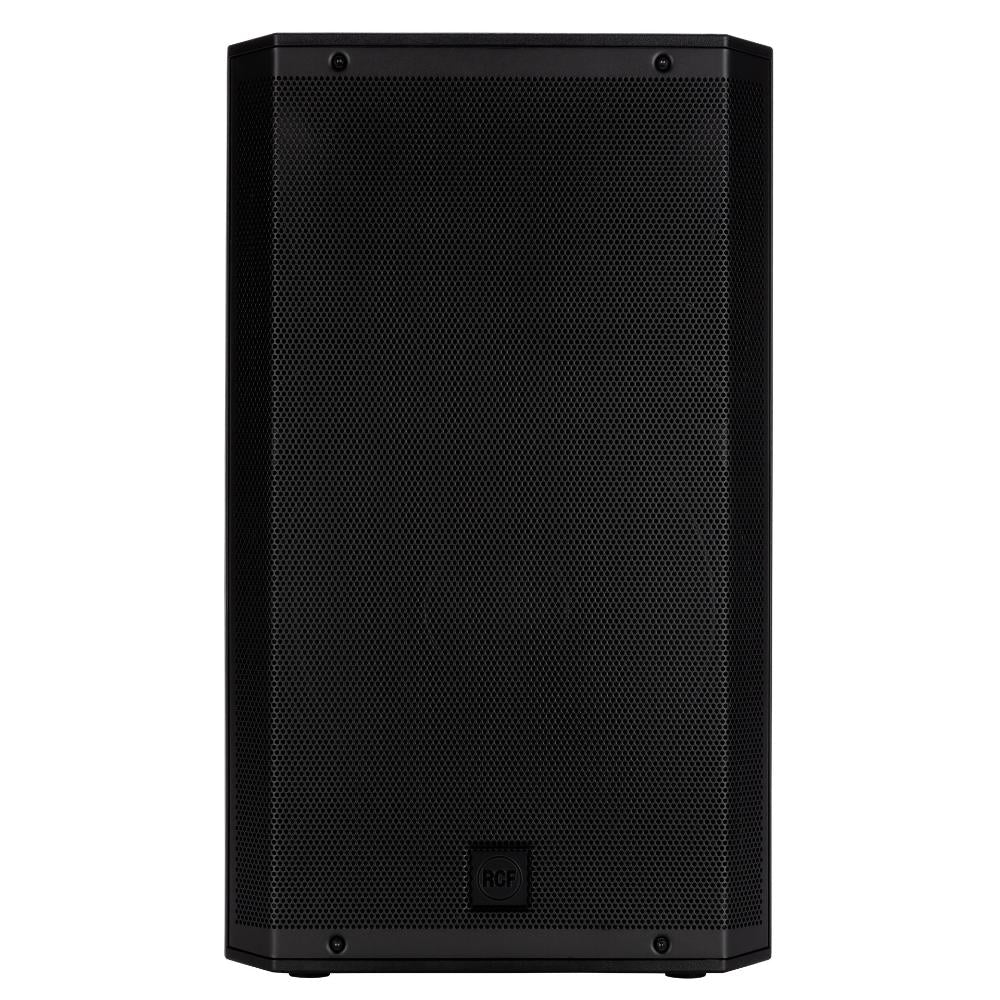

ART 815-A is a portable two-way active speaker built for DJs, musicians, and installers who want professional sound, robust performance, and everyday versatility in a sleek, modern form factor. A 1.75" compression driver, 15" woofer, and powerful 1400 W two-channel amplifier work with RCF’s constant-directivity True Resistive Waveguide to deliver consistent 100° x 60° coverage, clear reproduction, and up to 130 dB SPL with low distortion. The lightweight yet rugged cabinet uses a special polypropylene composite with internal M-brace reinforcement for improved stability and reduced resonance, making ART 815-A fast to deploy, easy to handle, and ready for portable systems or secure installation on a pole, wall, truss, or flown setup via multiple rigging points.
Features- 129 dB Max SPL
- 1400 W Class D Bi-Amplification
- 100° x 60°, Wide dispersion True Resistive Waveguide
- XBOOST Low-Frequency Enhancer
- 1.75" Compression Driver
- 10" Woofer
- FiRPHASE and BMC processing
Specifications
ACOUSTICAL- Frequency Response: 45 Hz - 20000 Hz
- Max SPL @ 1m: 130 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°
- Compression Driver: 1 x 1.0'', 1.75'' v.c

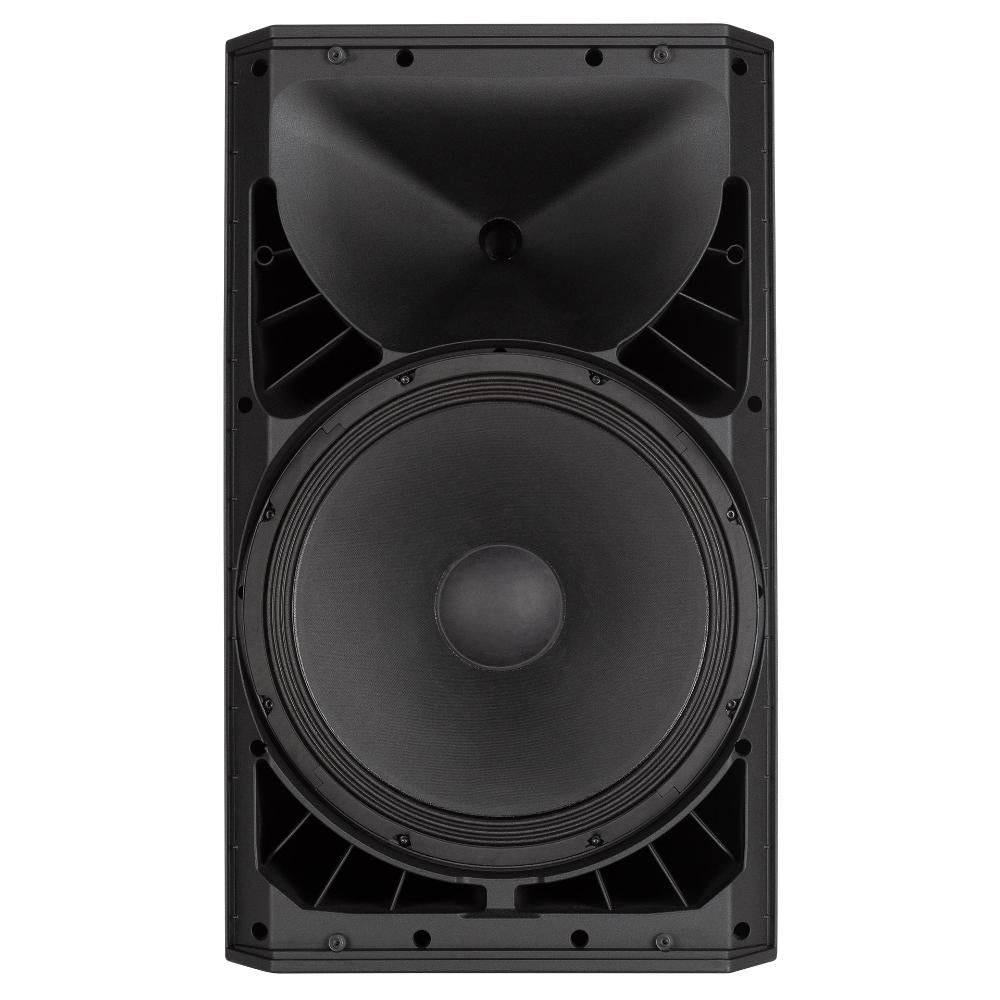

- Woofer: 1 x 15'', 2.5'' v.c
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Mic. Input Sensitivity: -32 dBu
- Crossover Frequencies: 1600
- Protections: Thermal, RMS
- Limiter: Soft Limiter

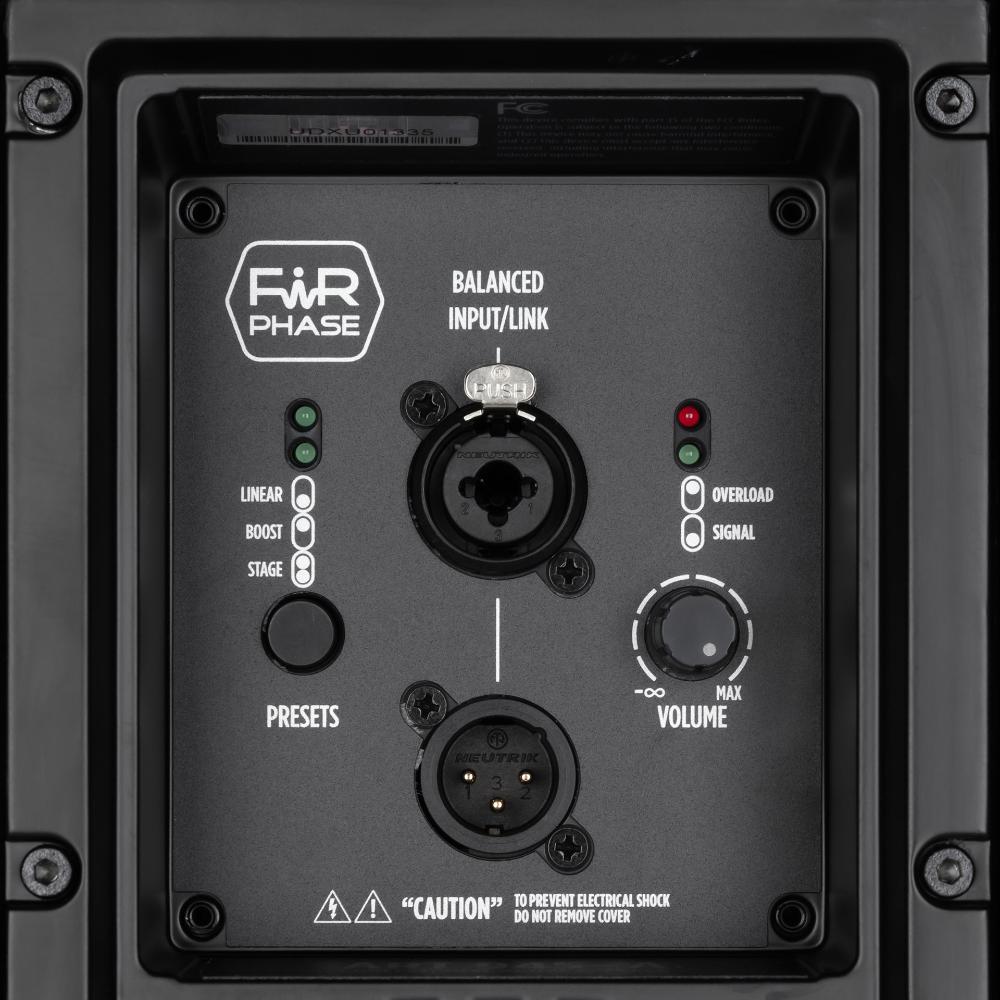

- Controls: Volume, Boost, MIC/Line
- Total Power: 1400 W Peak
- High frequencies: 400 W Peak
- Low frequencies: 1000 W Peak
- Cooling: Convection
- Connections: VDE
- Safety agency: CE compliant
- Cabinet/Case Material: PP Composite
- Hardware: 3 x M10, 1 on top and 1 each side

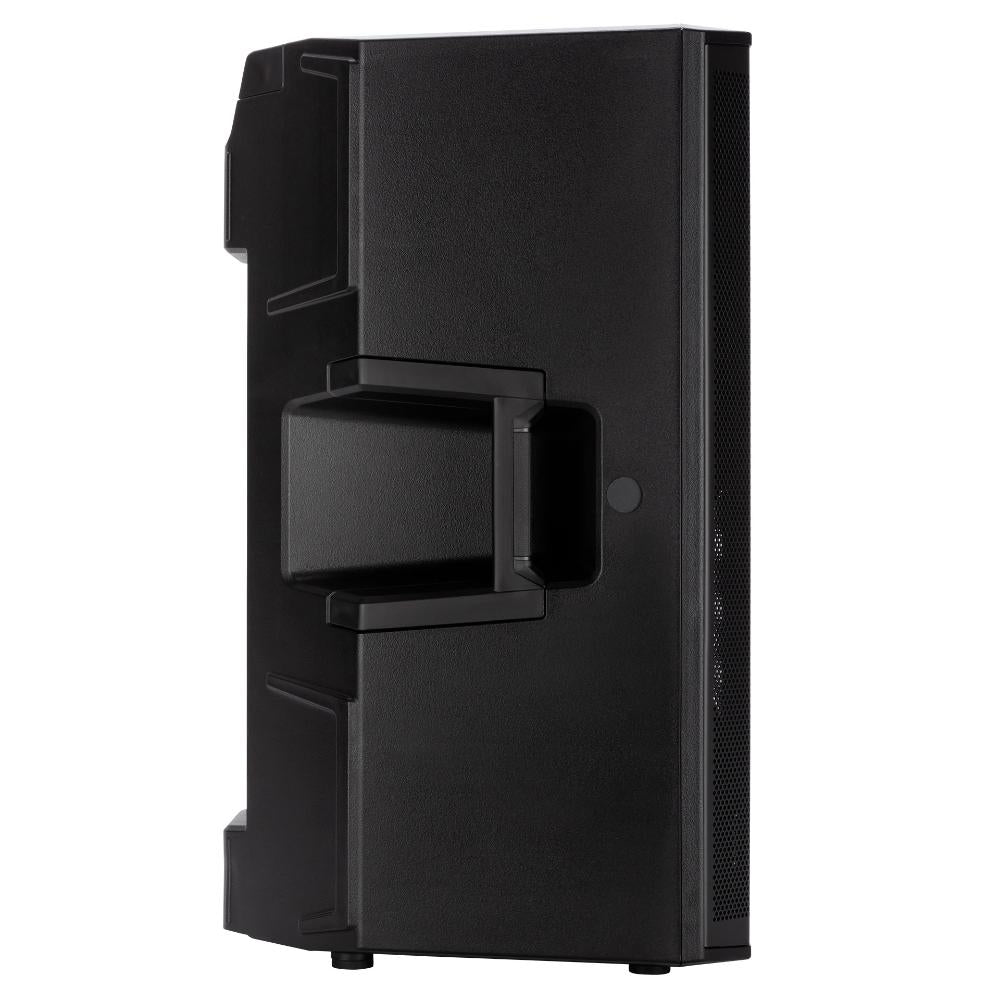

- Handles: 1 on top, 1 each side

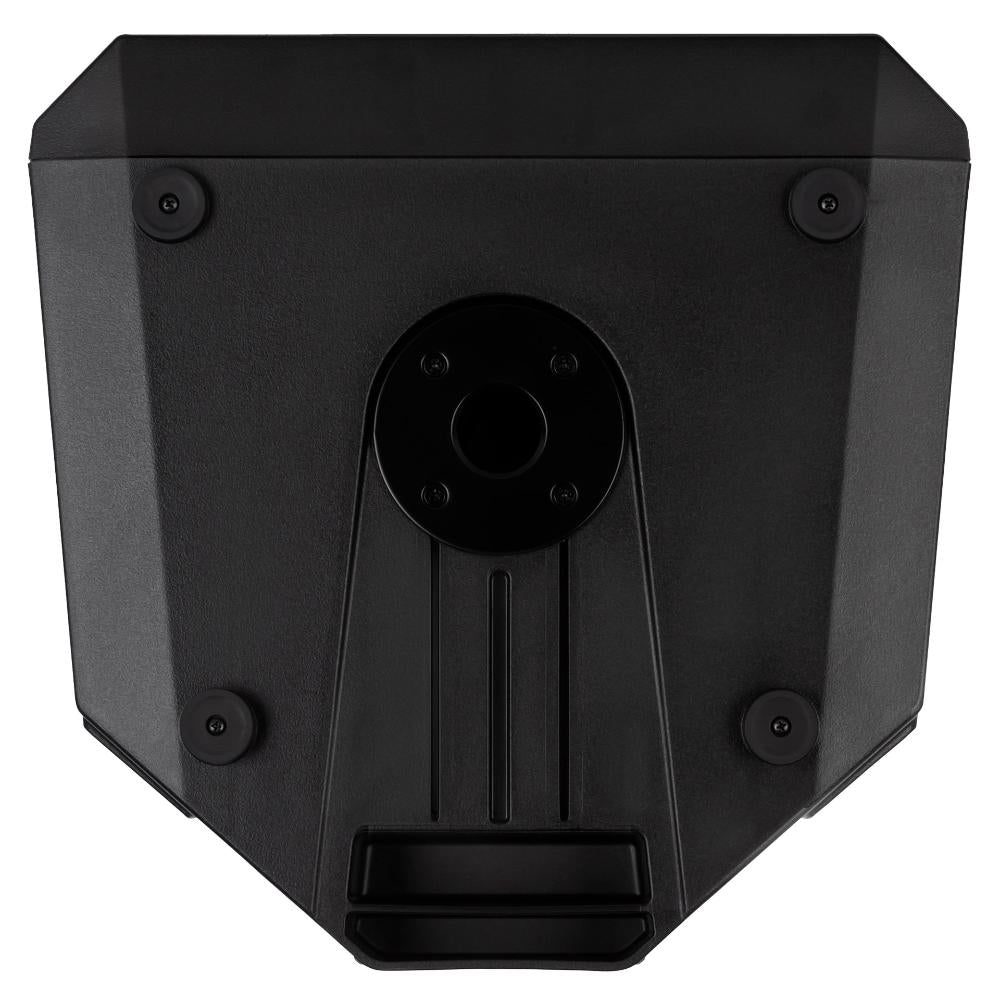

- Pole mount/Cap: 35 mm insert
- Grille: Steel
- Color: Black
- Height: 709.9 mm / 27.95 inches
- Width: 414.9 mm / 16.33 inches
- Depth: 410.2 mm / 16.15 inches
- Weight: 22.4 kg / 49.38 lbs
- Package Height: 760 mm / 29.92 inches
- Package Width: 475 mm / 18.7 inches
- Package Depth: 470 mm / 18.5 inches
- Package Weight: 26.5 kg / 58.42 lbs
