Overview

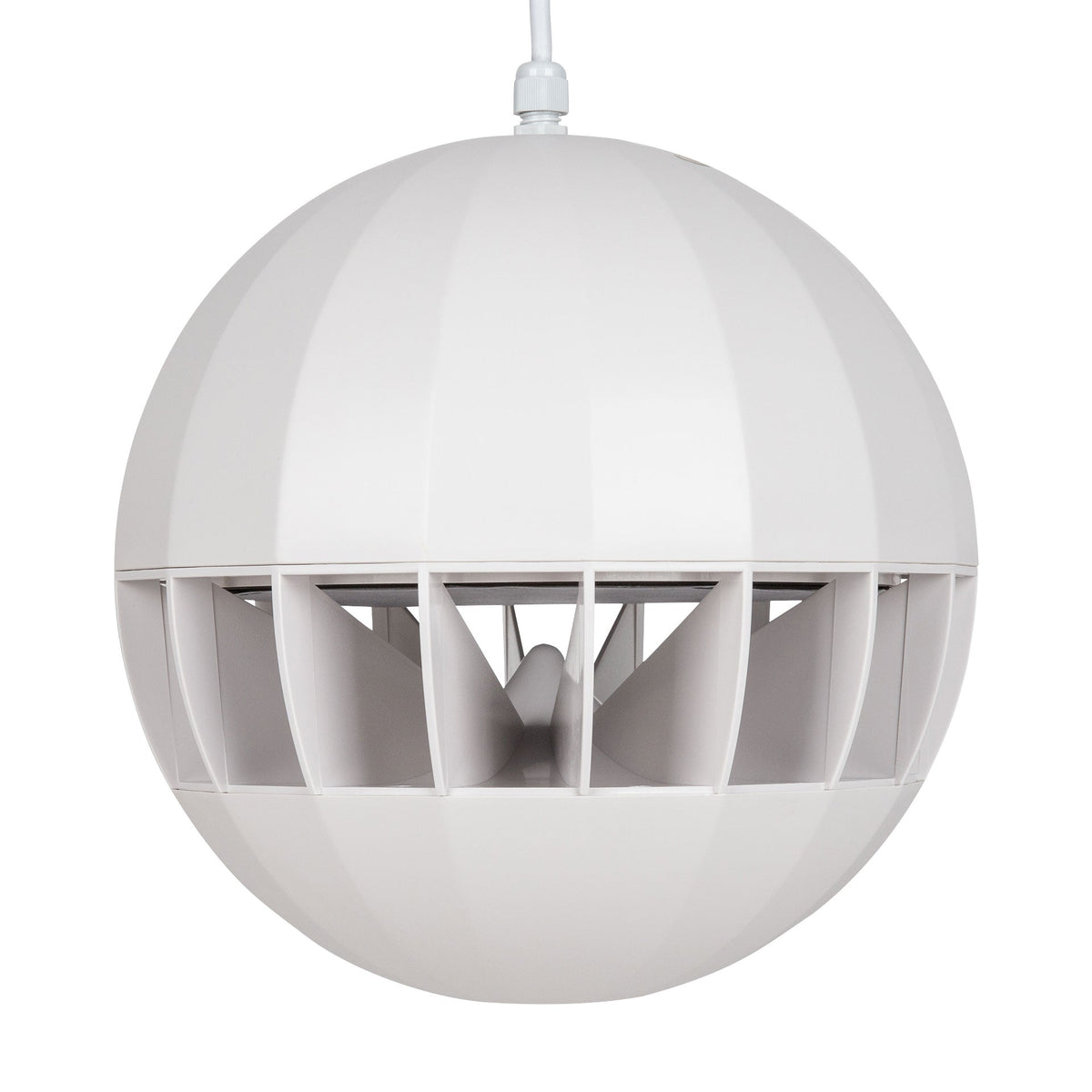

The BS 8 is a spherical speaker designed for suspended installation. Ideal for covering large areas, it incorporates a 200 mm (8") loudspeaker which provides high quality sound reproduction with excellent voice intelligibility.
FEATURES
- 8" dual cone wide band woofer
- Power selectable (100 V): 20 W €“ 10 W €“ 5 W
- 93 dB sensitivity
- Colour white RAL 9010

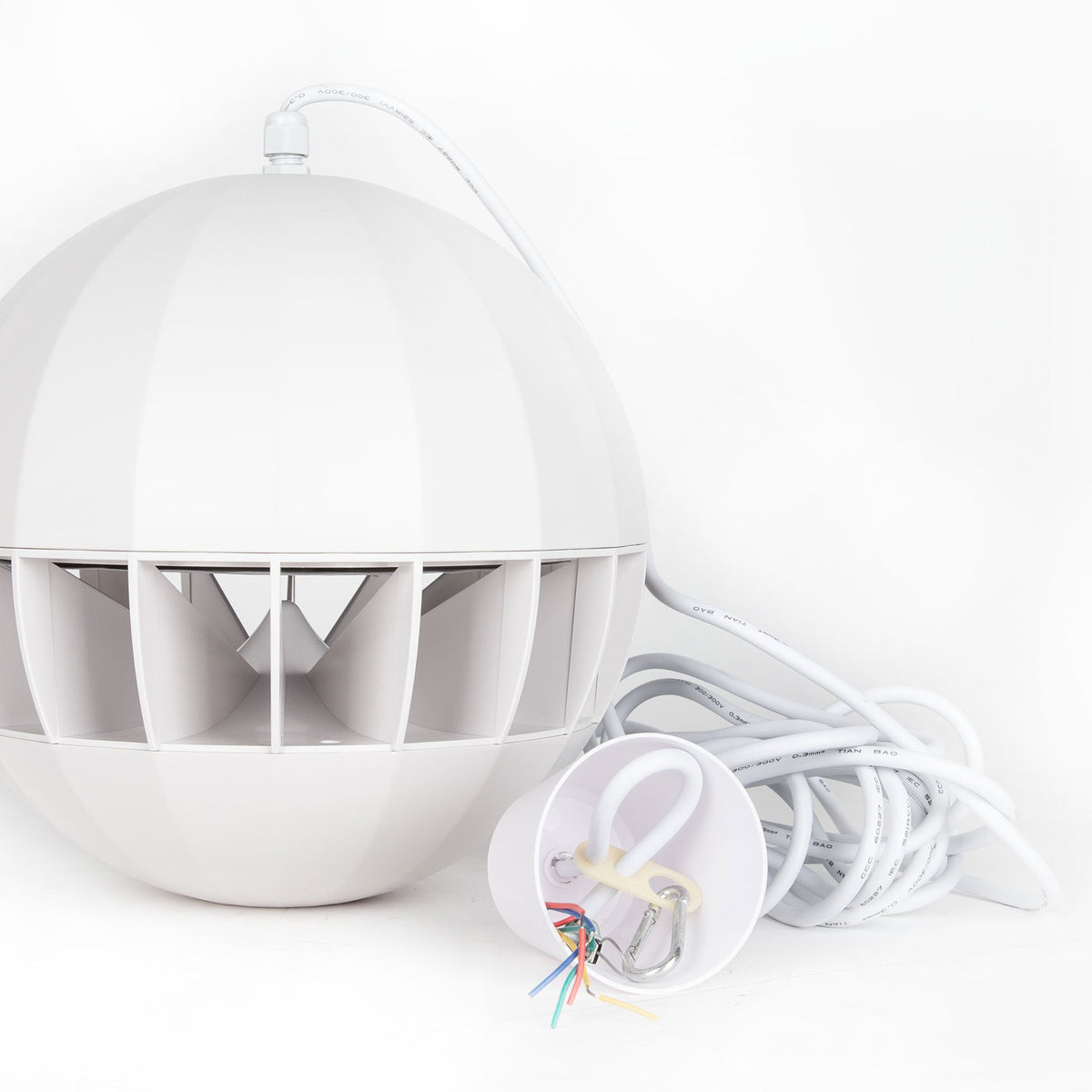

- 5 m suspension and connection cable included
Specifications
ACOUSTICAL SPECIFICATIONS
- Frequency Response (-10dB): 160 Hz - 12500 Hz
- Max SPL @ 1m: 106 dB
- Horizontal coverage angle: 360°
- System Sensitivity: 93 dB
POWER SECTION
- Power Handling: 20 W
- Peak Power Handling: 80 W PEAK
TRANSDUCERS
- Woofer: 1 x 8''
INPUT/OUTPUT SECTION
- Input connectors: Cable
- Output connectors: Cable
- Constant Voltage Transformer: 100 V
- Power selection 1: 20 W - 500 ohm
- Power selection 2: 10 W - 1000 ohm
- Power selection 3: 5 W - 2000 ohm
STANDARD COMPLIANCE
- Safety agency: CE compliant
PHYSICAL
- Cabinet/Case Material: Plastic
- Hardware: Carabiner and safety steel wire
- Grille: Plastic
- Color: White - RAL 9010
SIZE / WEIGHT
- Height: 240 mm / 9.45 inches
- Diameter: 250 mm / 9.84 inches
- Weight: 2.3 kg / 5.07 lbs
SHIPPING INFORMATION
- Package Height: 300 mm / 11.81 inches
- Package Width: 315 mm / 12.4 inches
- Package Depth: 315 mm / 12.4 inches
- Package Weight: 3.55 kg / 7.83 lbs
