Overview

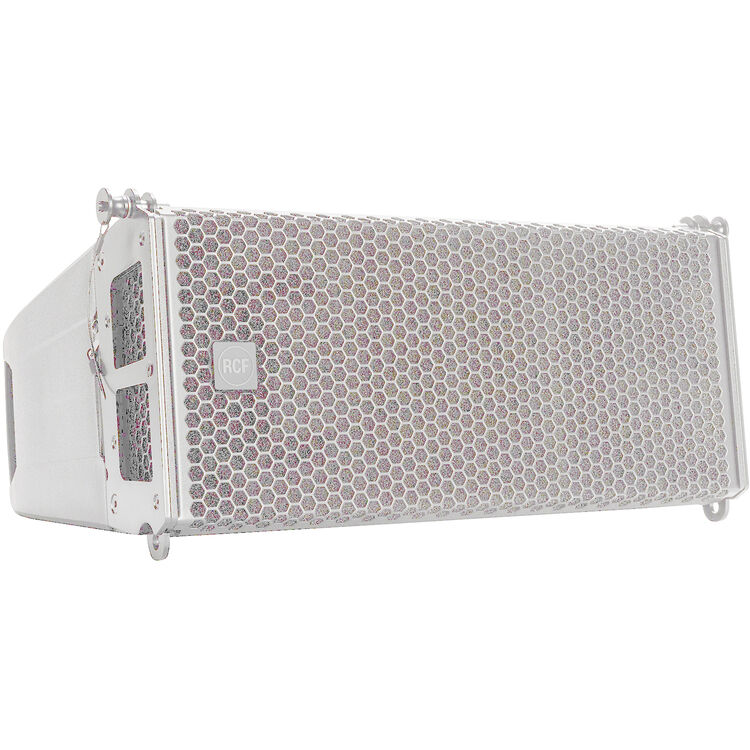

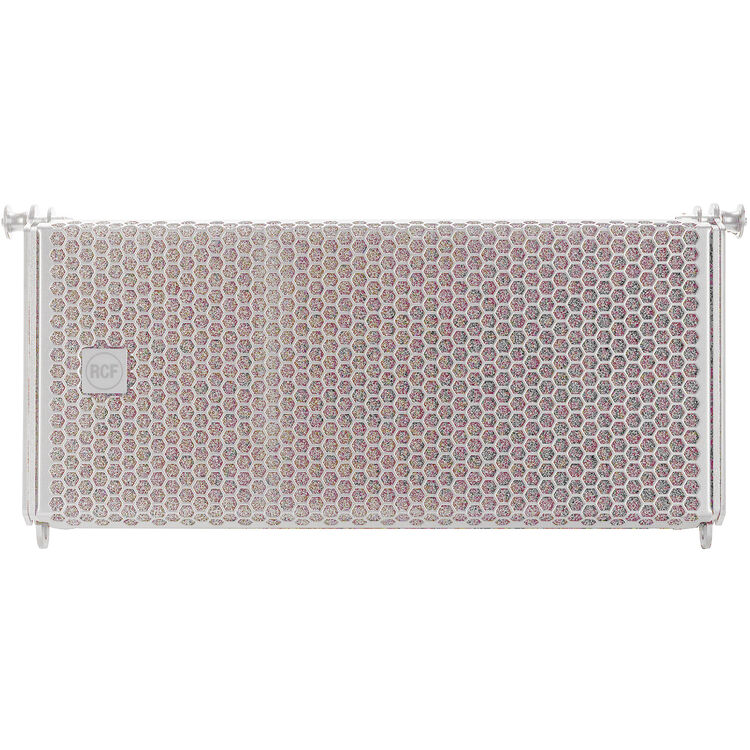

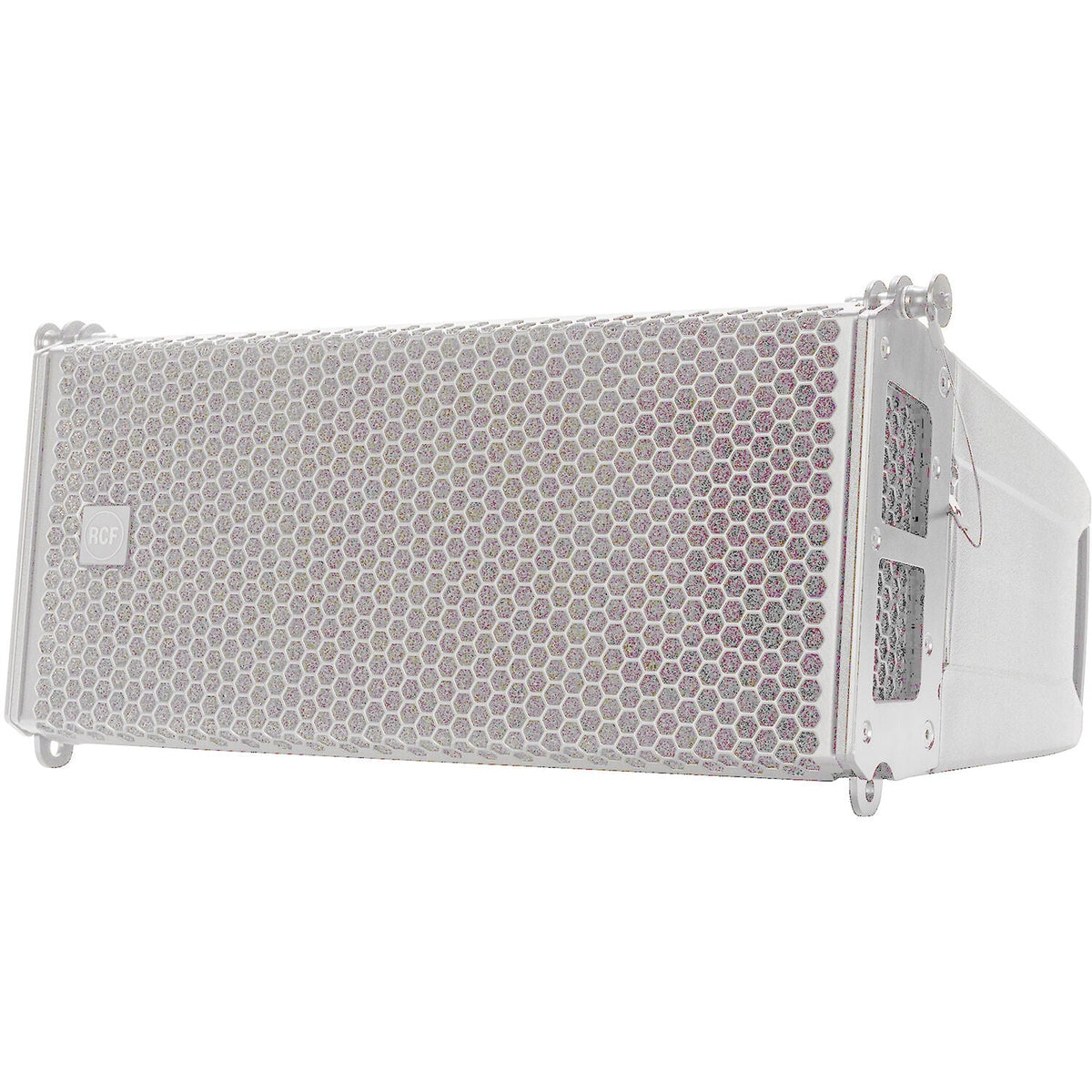

The RCF HL 6 is an ultra-compact passive two-way full-range system for small and medium-sized spaces. The 1.75" neodymium compression driver with a constant-directivity waveguide design generates a horizontal constant-directivity coverage of 100 degrees over the entire vocal range with remarkable clarity. Two high-power 6" woofers deliver extended low-end up to 131 dB SPL for a wide range of applications, both alone, or in line-array configuration.
Features- 1000W Peak Power Handling
- 131 dB Max SPL
- 65 ÷ 20000 Hz Frequency Range
- 100° x 10° Coverage Angles
- 1.75" Neodymium Compression Driver
- 2 x 6" High-Powered Neodymium Woofers
- Constant Directivity Waveguide
- Extremely Low Weight
Specifications
ACOUSTICAL- Frequency Response (-10dB): 65 Hz - 20000 Hz
- Max SPL @ 1m: 131 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 10°
- Directivity index Q: 16
- Amplification: Full Range
- Nominal Impedance: 16 ohm
- Power Handling: 250 W
- Peak Power Handling: 1000 W PEAK
- Protections: Dynamic Active Mosfet
- Crossover Frequencies: 900 Hz
- Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
- Woofer: 2 x 6.0'' neo, 2.0'' v.c

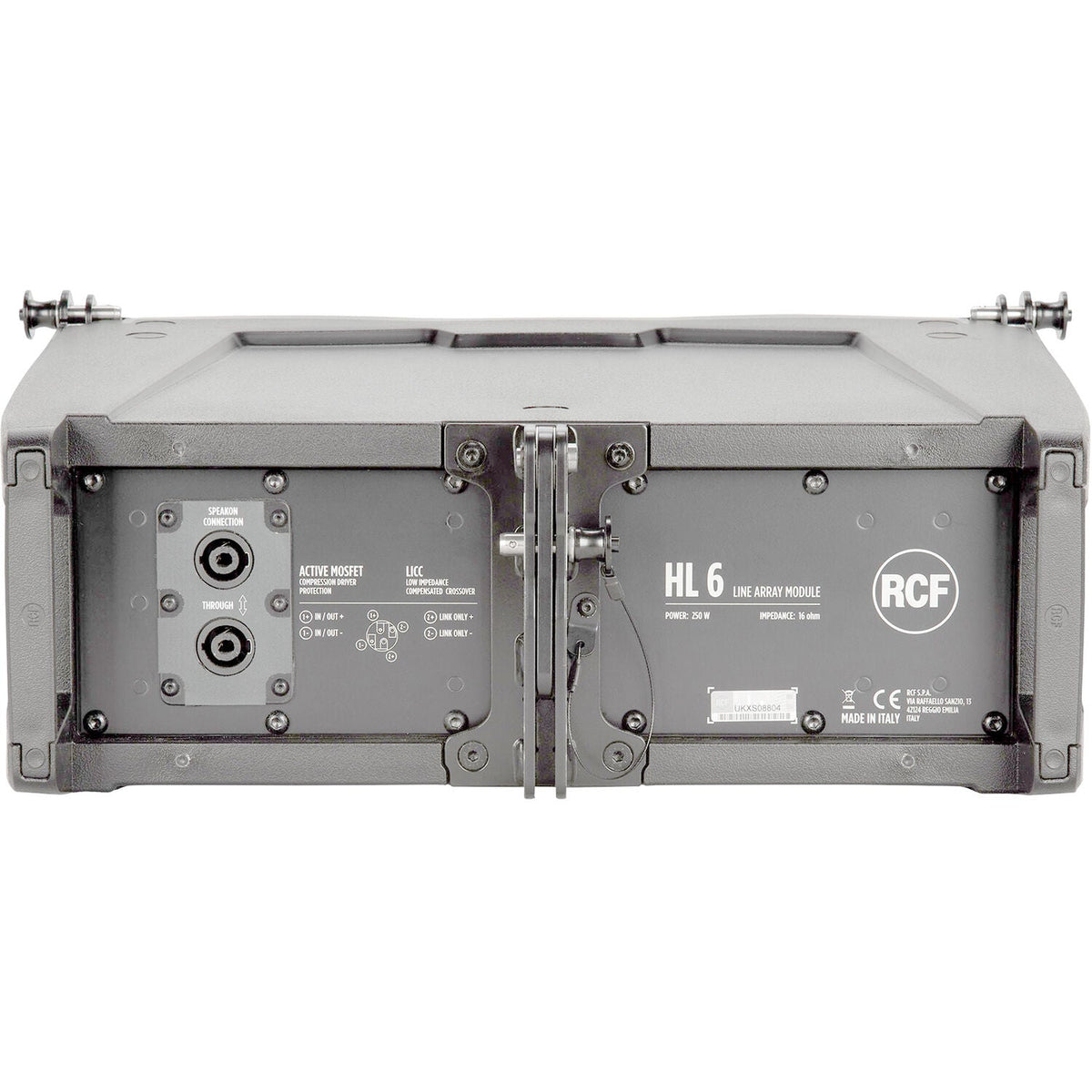

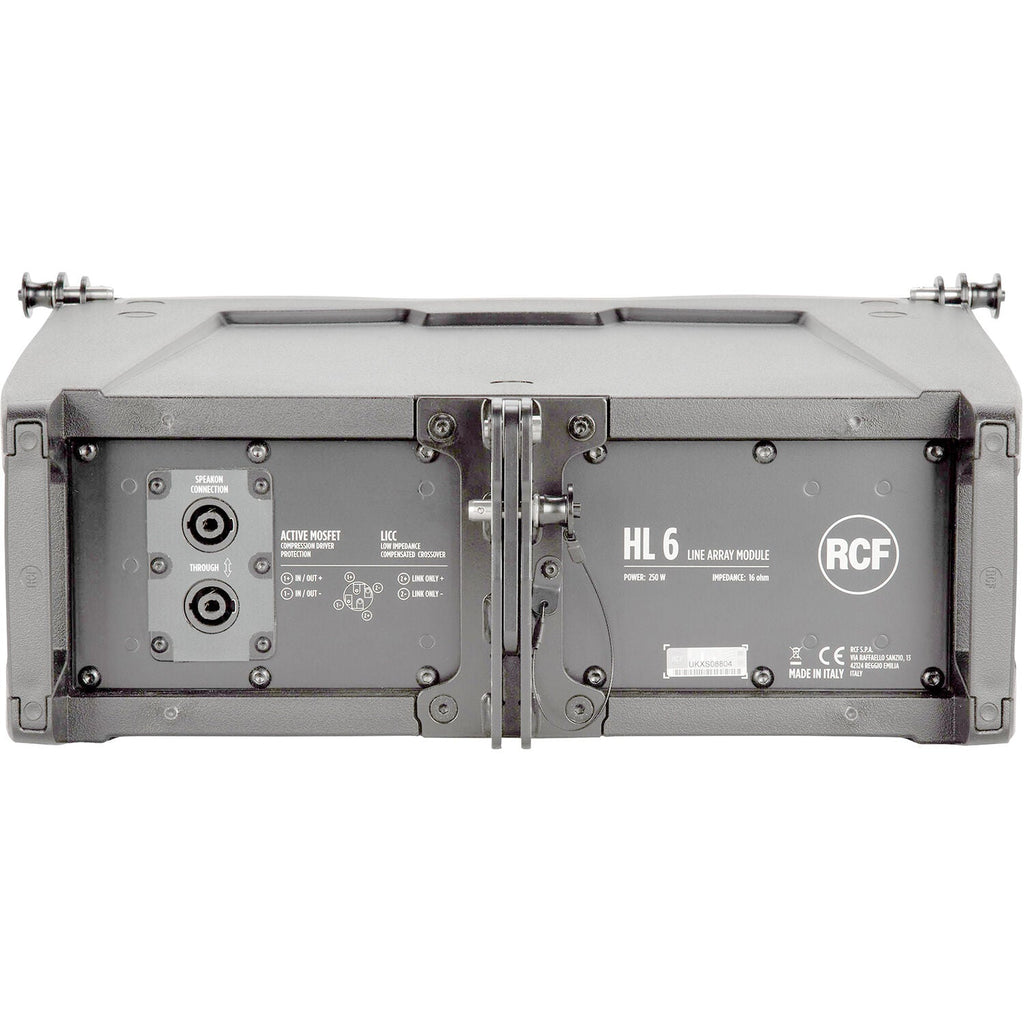

- Input connectors: Speakon
- Output connectors: Speakon
- Safety agency: CE compliant
- Cabinet/Case Material: PP Composite
- Hardware: Integrated array mechanics
- Handles: 2 on the rear panel
- Grille: Steel
- Color: Black - RAL 9005, White - RAL 9003
- Height: 237 mm / 9.33 inches
- Width: 470 mm / 18.5 inches
- Depth: 377 mm / 14.84 inches
- Weight: 11.8 kg / 26.01 lbs
- Package Height: 260 mm / 10.24 inches
- Package Width: 550 mm / 21.65 inches
- Package Depth: 425 mm / 16.73 inches
- Package Weight: 13.3 kg / 29.32 lbs
