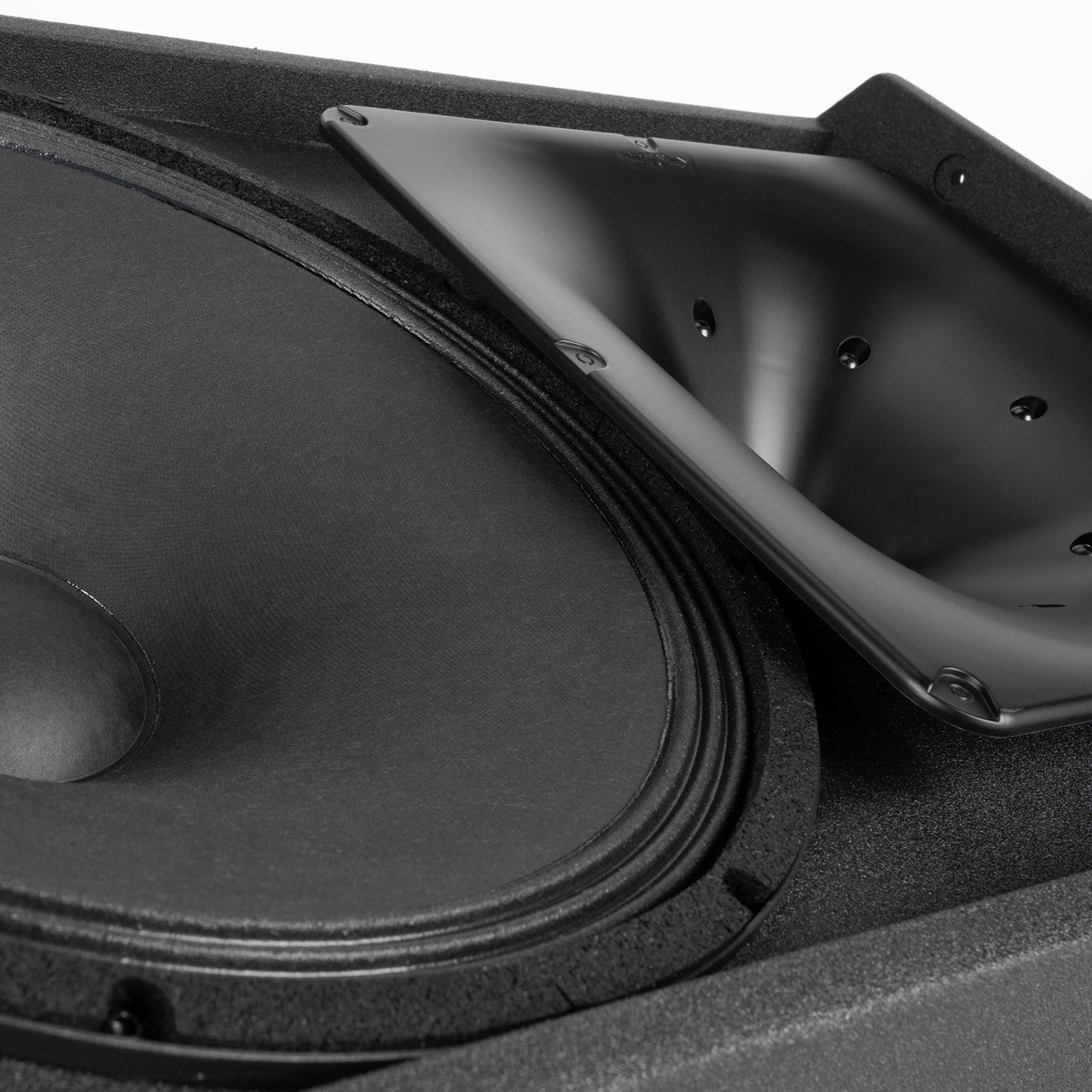

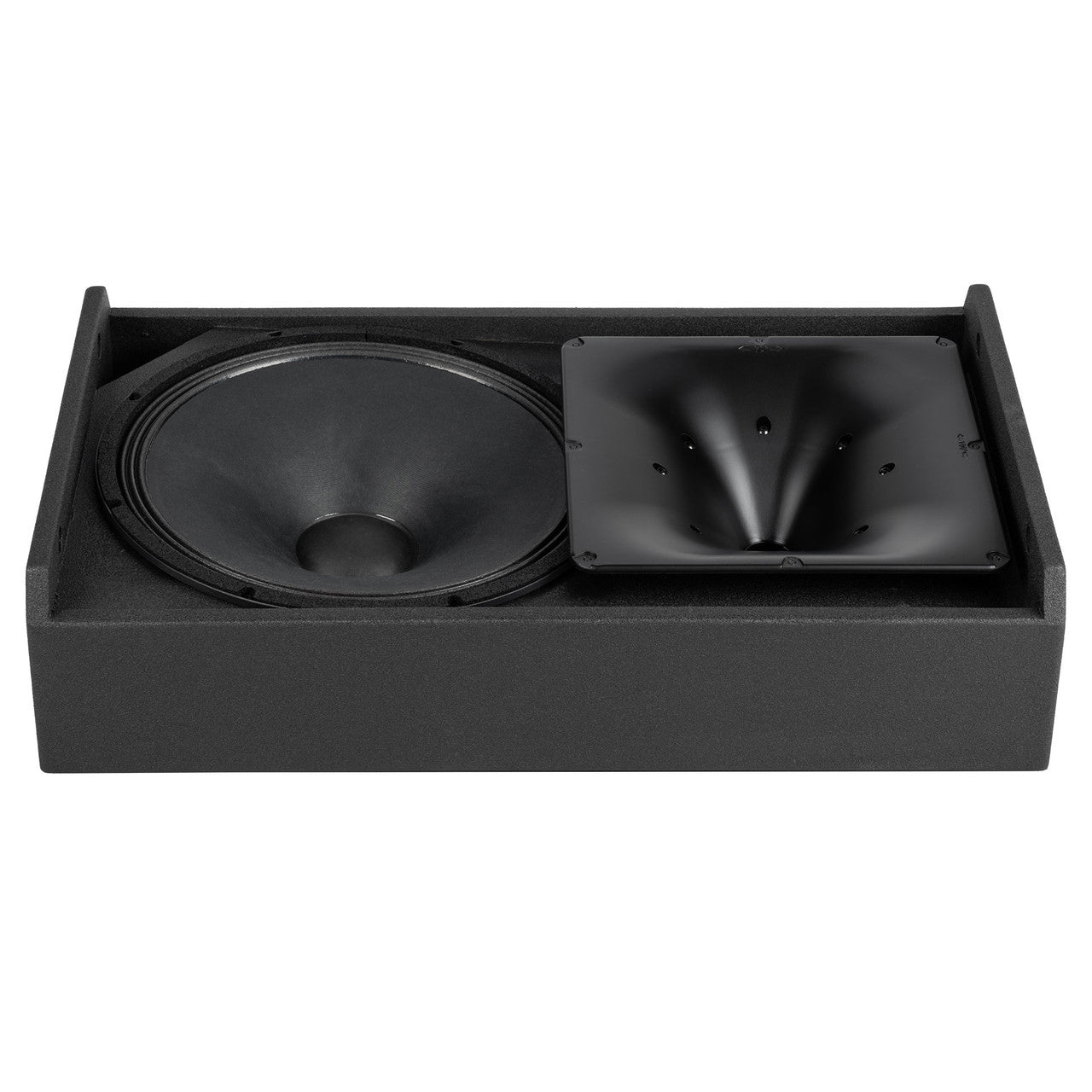

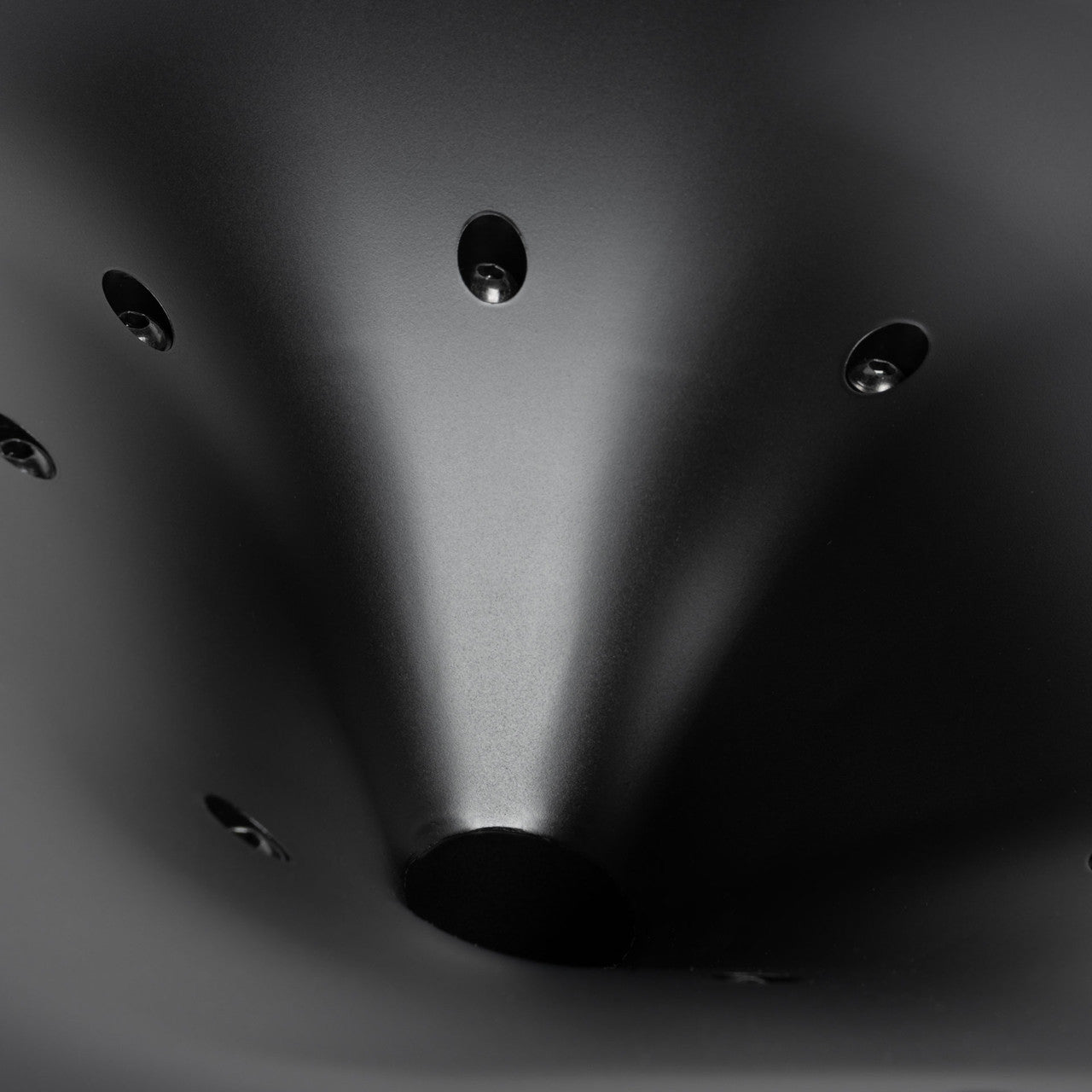

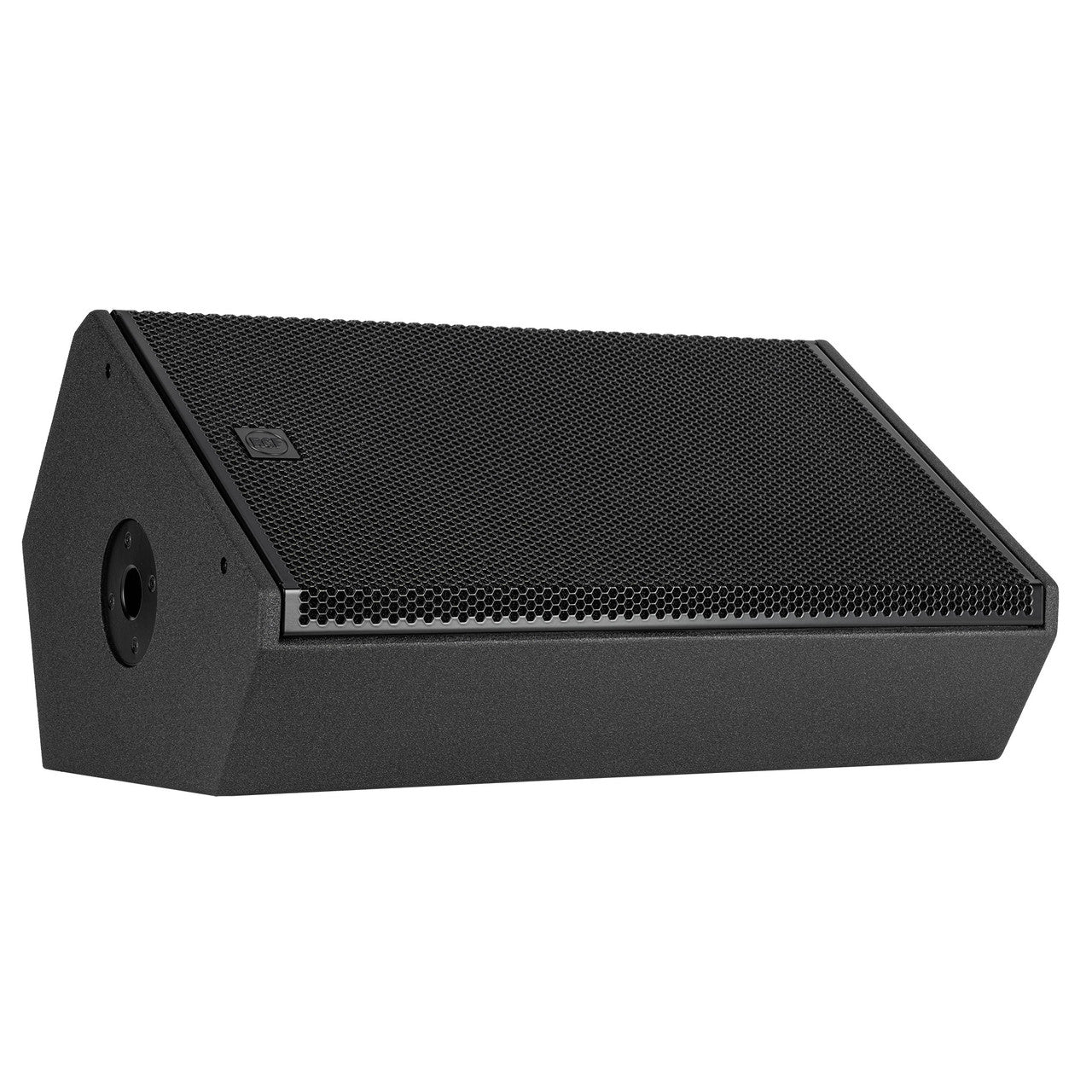

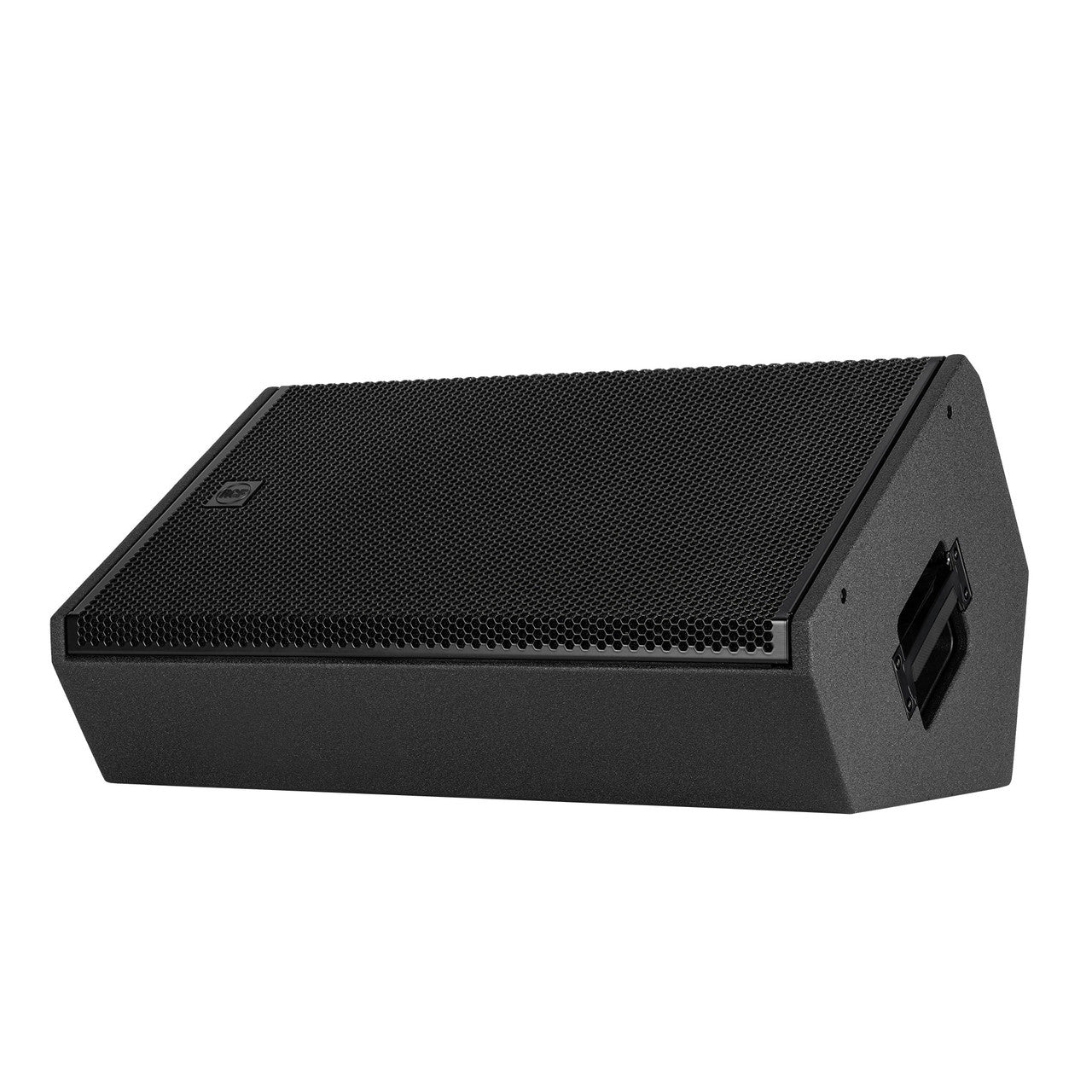

NX 915-SMA speaker is a stage monitor designed for sound providers, musicians, bands, and DJs. The combination of a 1.75” compression driver, 15” woofer, two-channel 2,100W amplifier, and the TRW waveguide produces coherent 100° x 70° coverage for the listening area with up to 131dB SPL of distortion-free sound. Used as a stage monitor, stand-alone speaker system, or satellite paired with a subwoofer, the NX 915-SMA blends high performance and reliability in a compact package. Combining RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 915-SMA Series speakers deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and set up on stage or on a pole.
Features Acoustical specifications
Frequency Response : 45 Hz ÷ 20000 Hz
Max SPL @ 1m : 131 dB
Horizontal coverage angle : 100°
Vertical coverage angle : 70°
Transducers
Compression Driver : 1 x 1.0'', 1.75'' v.c
Woofer : 1 x 15'', 2.5'' v.c

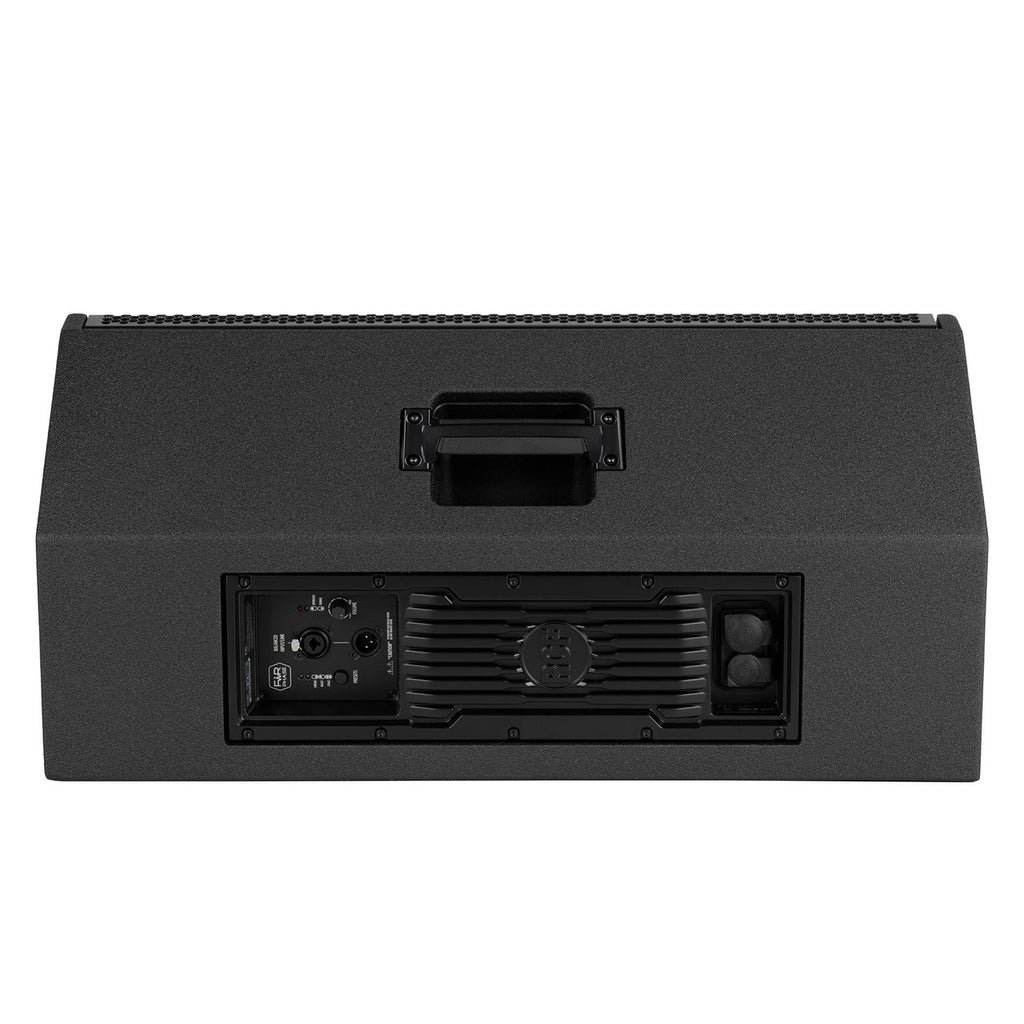

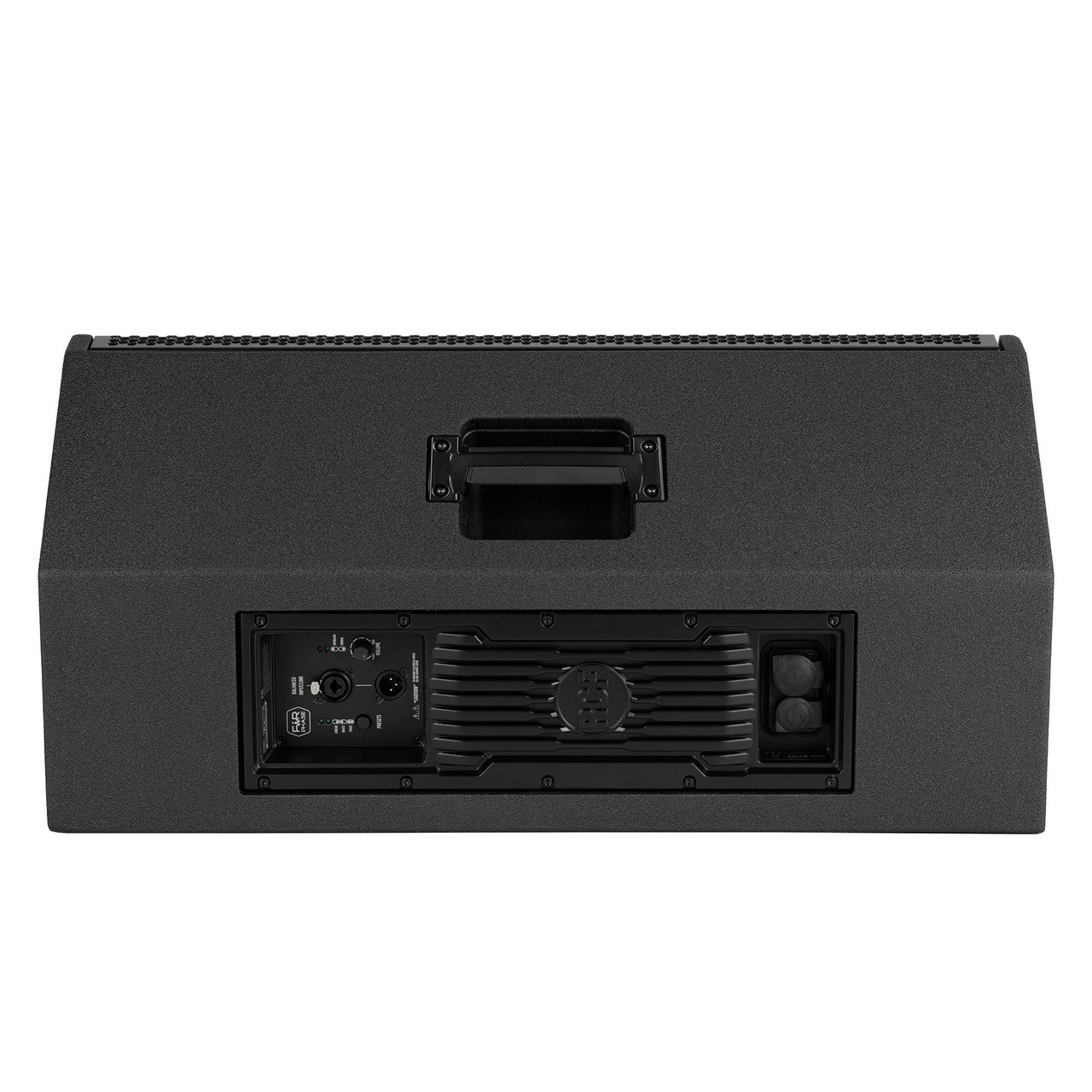

Input/Output section
Input signal : bal/unbal
Input connectors : Combo XLR/Jack
Output connectors : XLR
Input sensitivity : -2 dBu/+4 dBu
Processor section
Crossover Frequencies : 1600 Hz
Protections : Thermal, RMS
Limiter : Soft Limiter
Power section
Total Power : 2100 W Peak
High frequencies : 700 W Peak
Low frequencies : 1400 W Peak
Cooling : Convection
Connections : Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency : CE compliant
Physical specifications
Cabinet/Case Material : Plywood

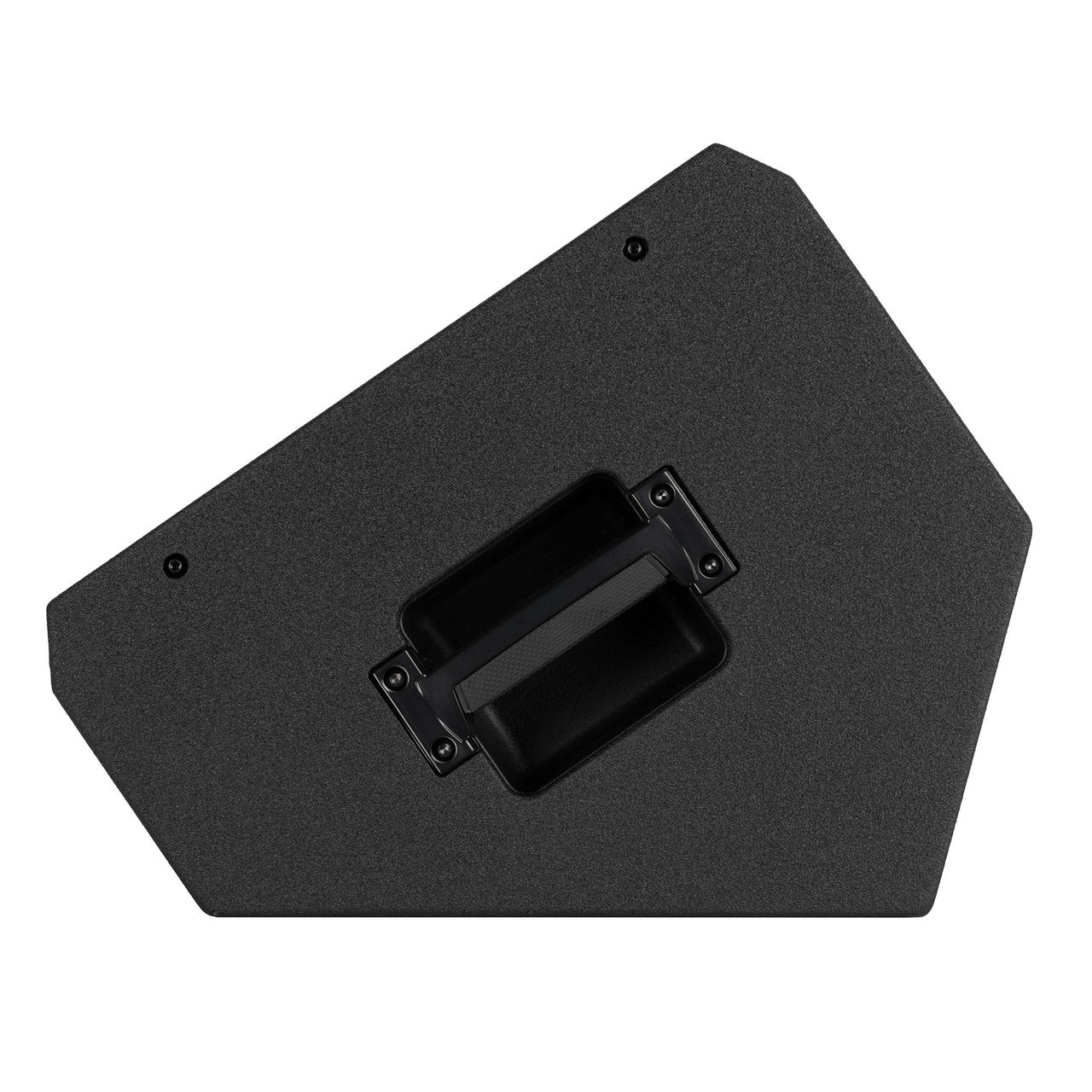

Handles : 1 on side and 1 on top

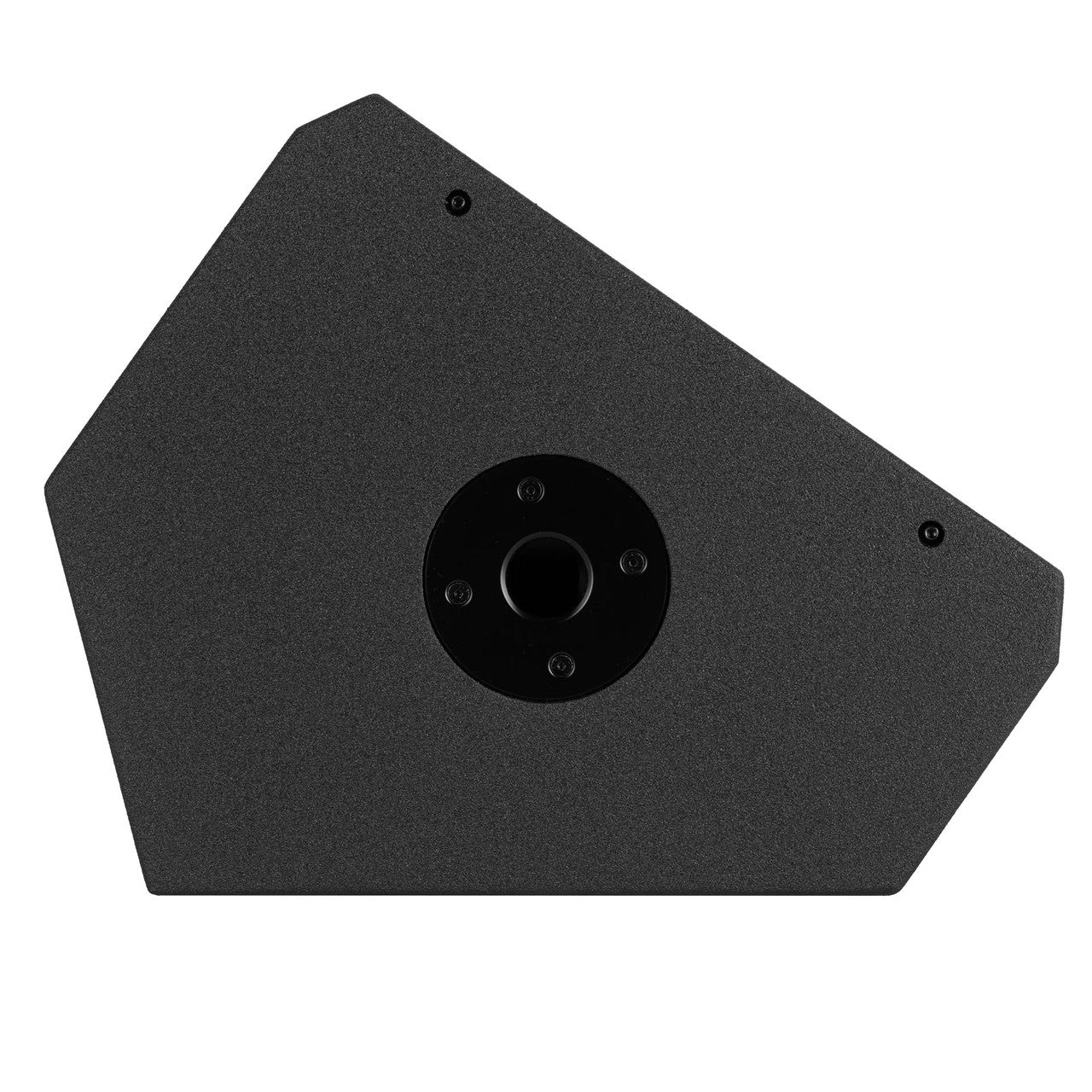

Pole mount/Cap : 35 mm insert

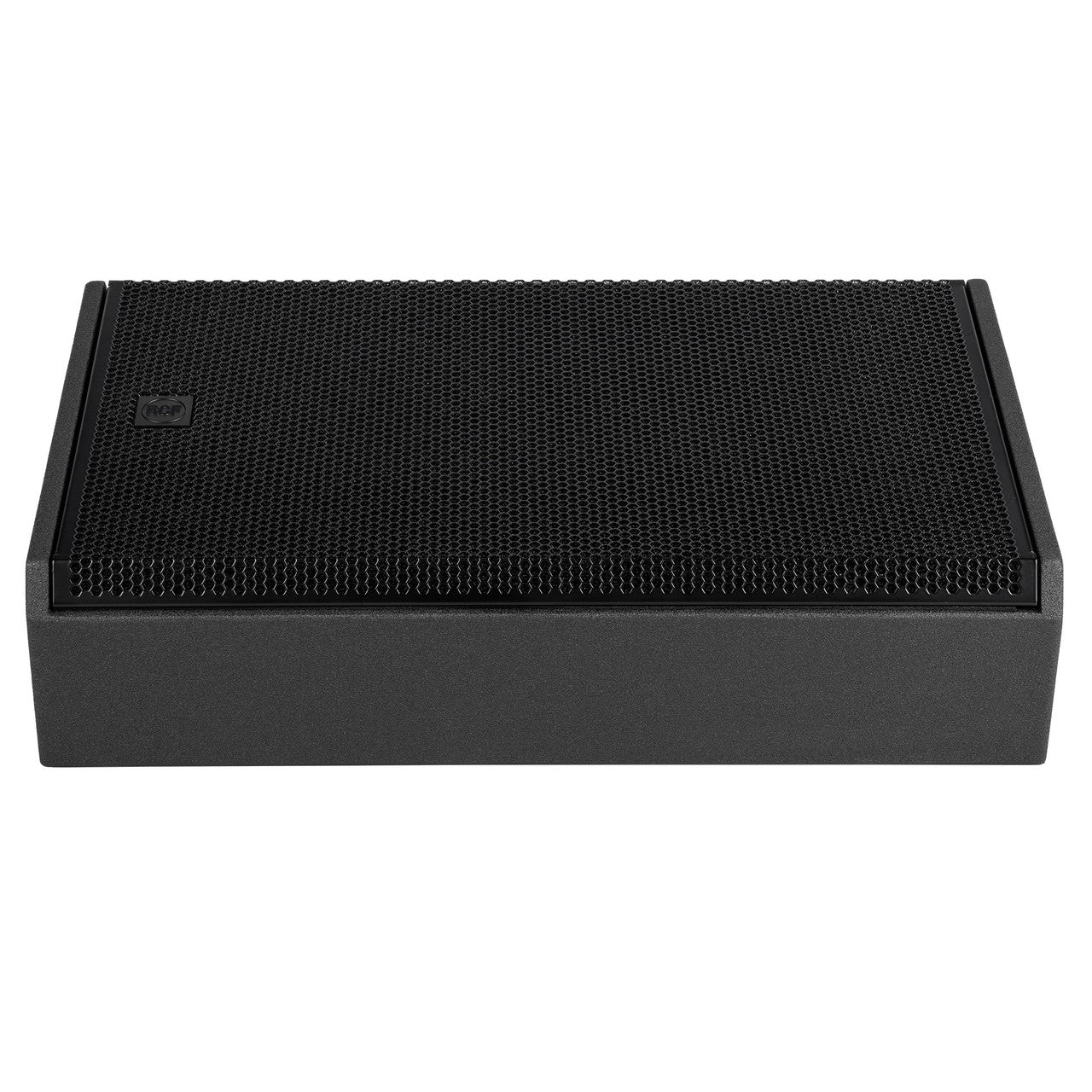

Grille : Steel
Color : Black
Size / Weight
Height : 357.3 mm / 14.07 inches
Width : 705 mm / 27.76 inches
Depth : 456.6 mm / 17.98 inches
Weight : 23.8 kg / 52.47 lbs
Shipping information
Package Height : 745 mm / 29.33 inches
Package Width : 505 mm / 19.88 inches
Package Depth : 425 mm / 16.73 inches
Package Weight : 27.5 kg / 60.63 lbs
