Overview:

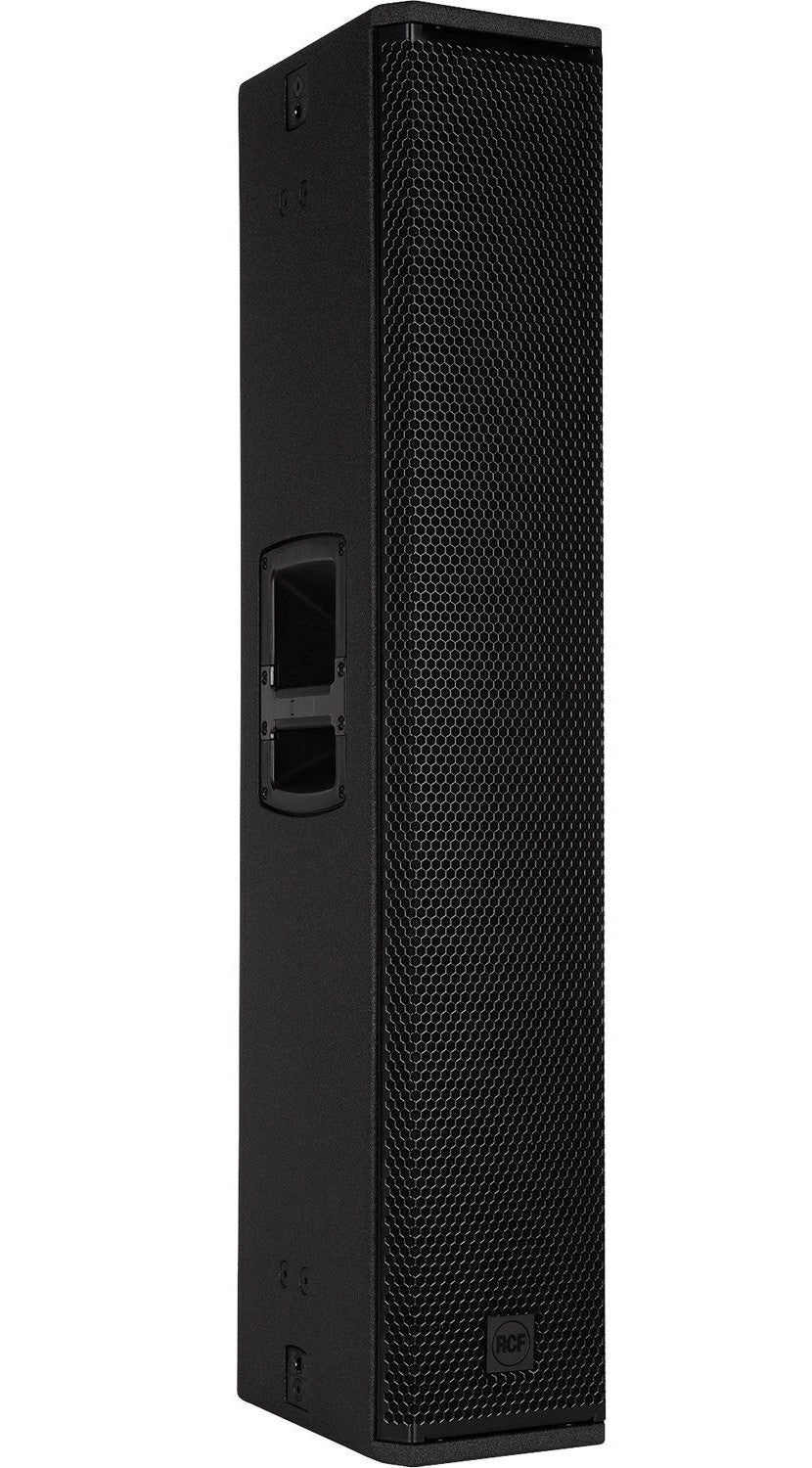

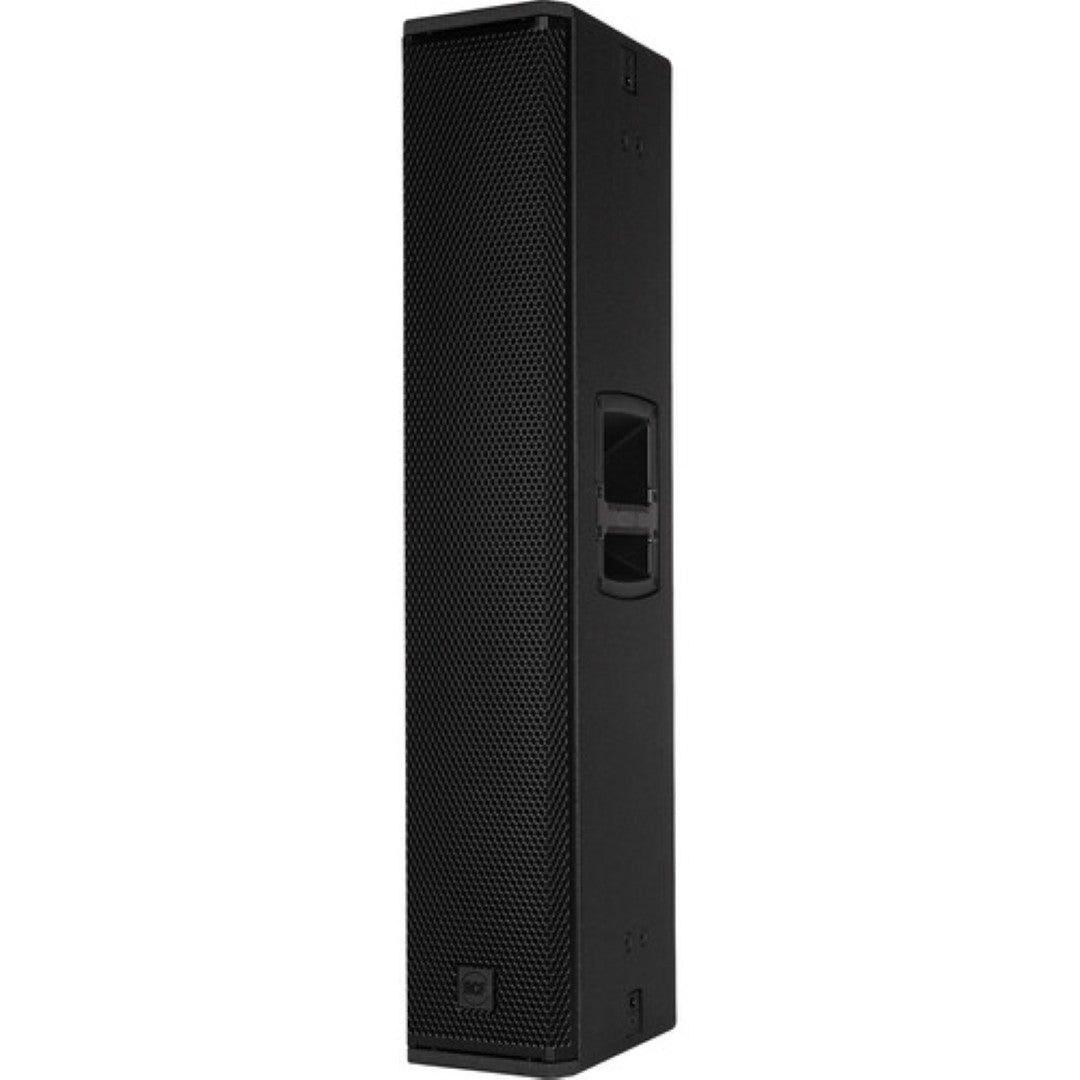

Designed from the ground up to deliver stellar audio performance, the RCF NXL 24-A MK2 is a 2100W active 2-way column array speaker that's tuned for absolute clarity and deep, powerful bass well suited for bands, DJs, clubs, and rental houses. The NXL 24-A can be used alone, on a pole, or paired with a subwoofer, vertically coupled for improved vertical coverage, and can also be flown or truss-mounted using the included rigging points and special accessories.
The integrated bi-amplifier delivers 700W to the high-frequency compression driver and 1400W to the four 6" woofers, which combine for a 60 Hz to 20 kHz linear frequency response and a peak SPL of 132 dB. The rugged, tour-ready, high-quality Baltic birch plywood cabinet is easy to carry and installed securely using the dedicated rigging points.
At a Glance
Up to 132 dB sound pressure level (SPL)
2100W Class-D amplifier
100 x 30° constant directivity coverage angle
3" titanium neodymium compression driver
4 x 6" high-power neodymium woofers
60 Hz to 20 kHz linear frequency response
Bass Motion Control and FiRPHASE processing
4 x M8 rigging points and 4 x quick lock
Preset Selector
LINEAR: This preset is recommended for all regular applications of the speaker.
2 SPEAKERS: This preset creates the correct equalization for the use of two NXL 24-A or NXL 44-A coupled on a subwoofer or in suspended configuration.
HIGH-PASS: This preset activates a 60 Hz high-pass filter for the correct coupling of the NXL 24-A with subwoofers not provided with their own internal filter.
Power that Moves

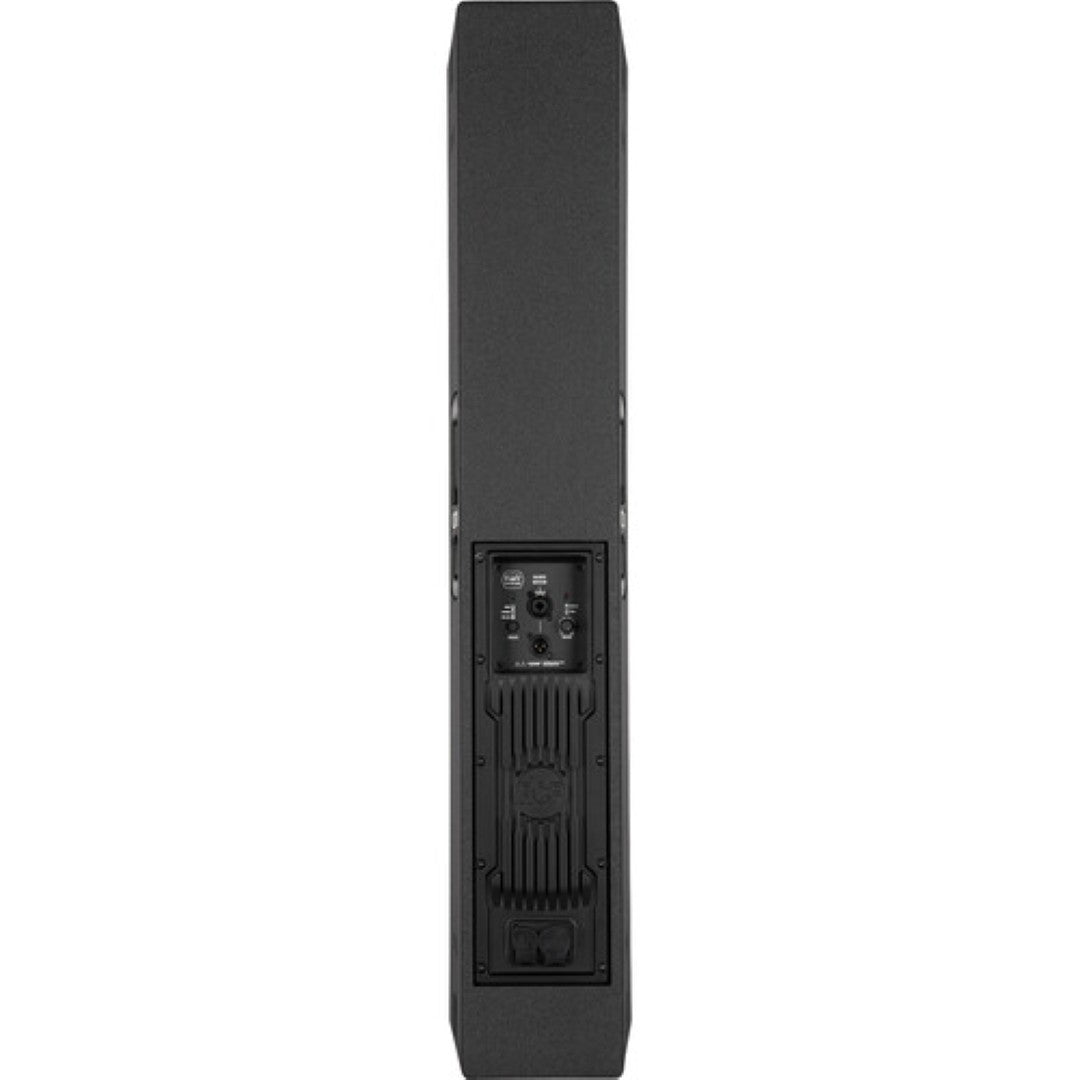

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2100W of power, the NXL MK2 2-channel Class-D amplifier is 50% more powerful than previous models. NXL manages extreme sound pressure levels with an ultrafast attack, realistic transient response, and very low power loss. NXL modules are energy-efficient so there's no need for a cooling fan—the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet—with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NXL amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight.
Line Array Performance and Coverage
The vertically asymmetrical horn design accurately projects the sound energy and avoids unwanted reflections when placed on a sub or a speaker stand, without tilting the enclosure. This design also allows configuring two cascading NXL columns for optimal coverage. Intelligibility is significantly increased in challenging acoustic environments. The speaker delivers an extended low-frequency range that is increased when paired with a subwoofer for medium-sized concerts and DJ sets.
Superior Transducers

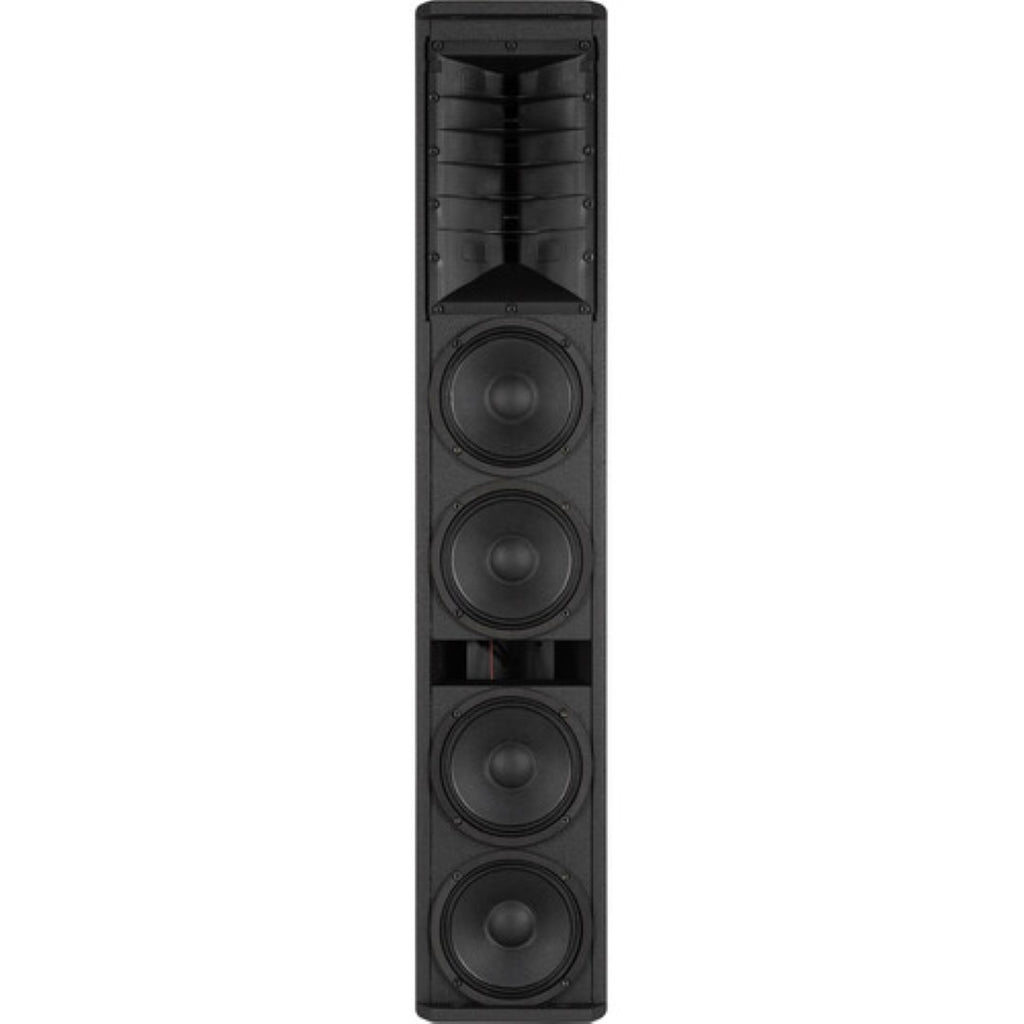

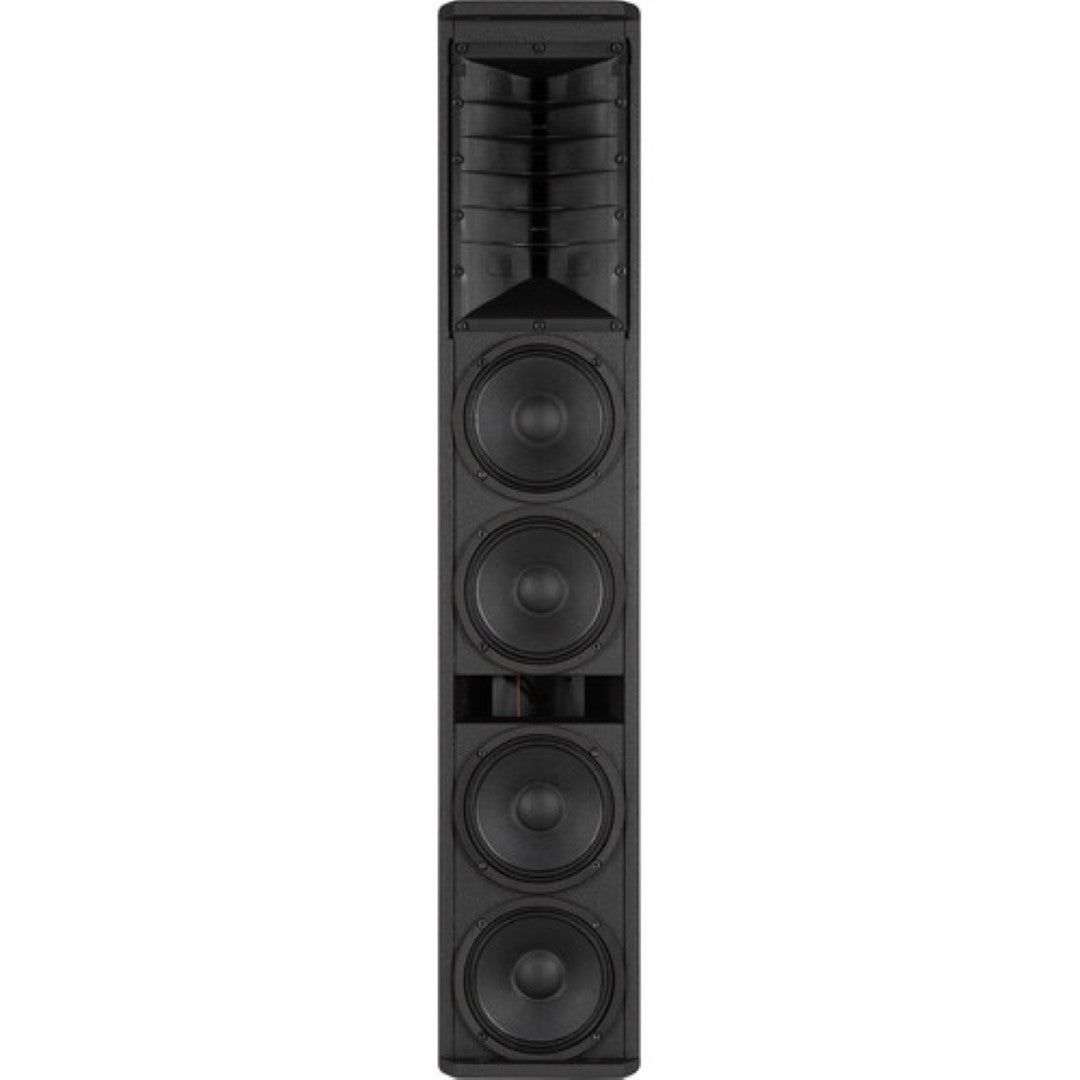

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The extended clarity of the 3" compression driver features a neodymium magnet for improved current handling and reduced weight. The best-in-class titanium dome and the Polyimide/Kapton voice coil handle extreme power levels with very low distortion. Four, high-power 6" low-frequency woofers with a new advanced transducer design gain more stability over higher currents, with less distortion, fast transient response, and better heat dissipation.
Bass Motion Control
When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
New Perspective on Linearity
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Raising the Bar of Sound

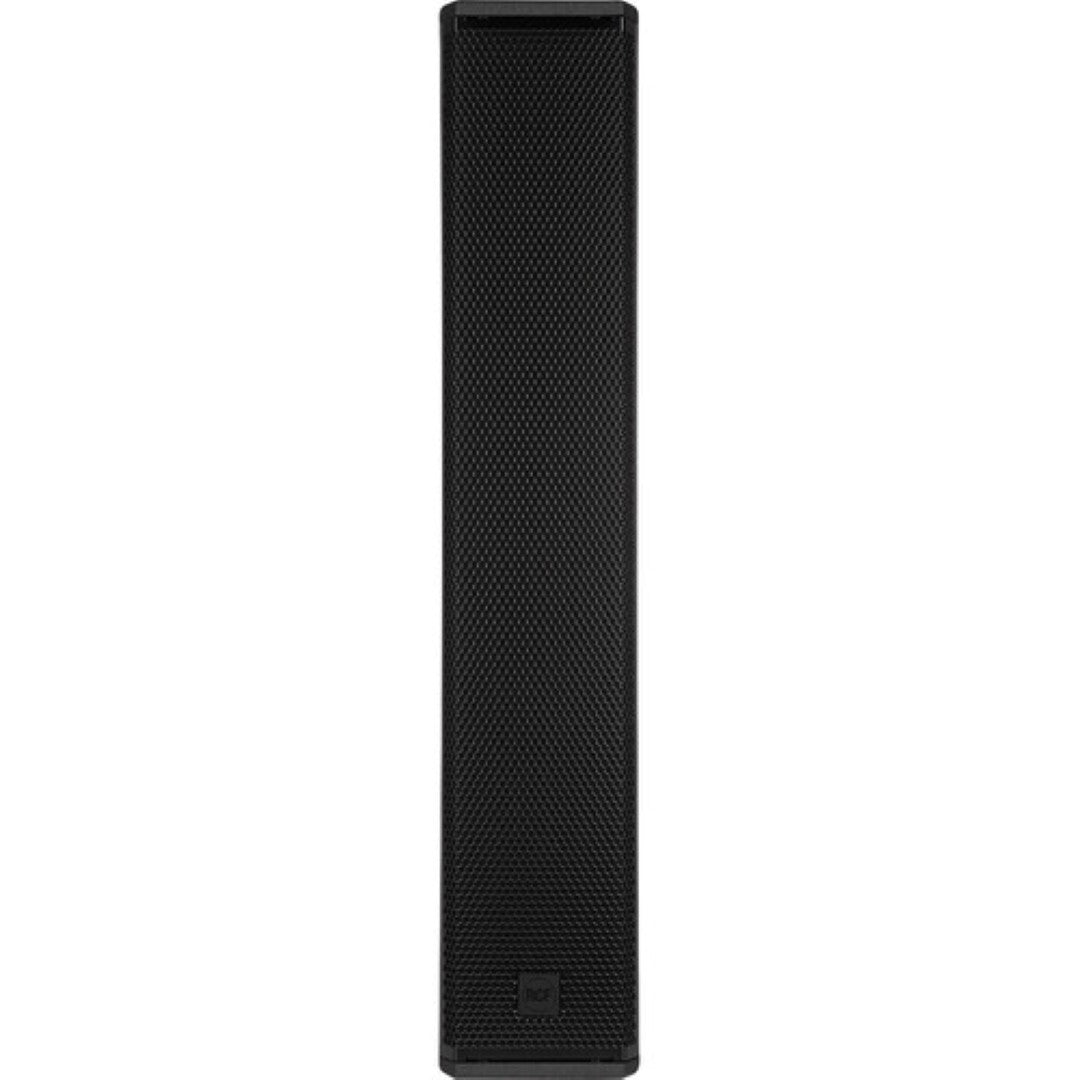

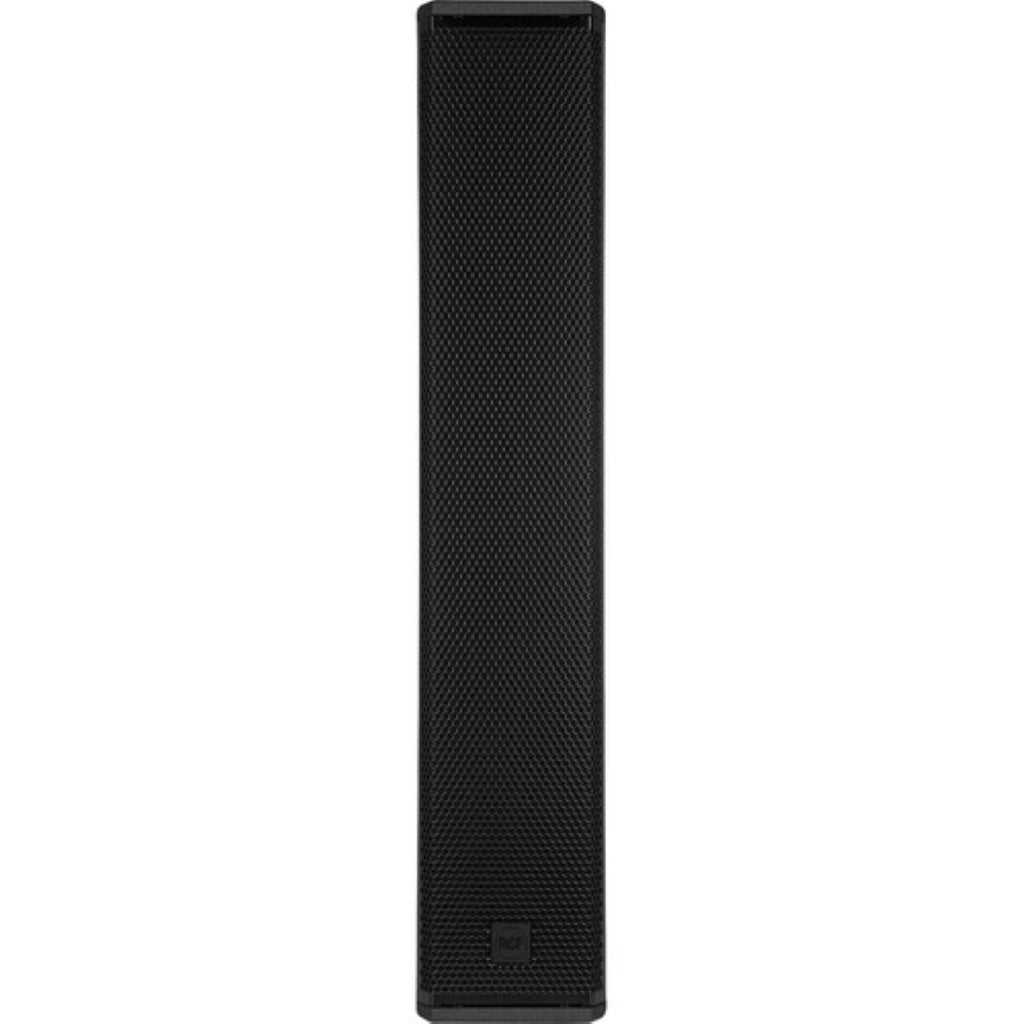

NXL series consists of full-range column line array speakers ideal for high-powered portable and installed professional applications where size is a critical factor. The sleek column design and flexible rigging options make it a smart choice for a wide range of sound applications. The rugged, high-quality Baltic birch plywood cabinet is easy to carry, with ergonomic handles on each side. It can be used alone, on a pole, or paired with a sub, vertically coupled for improved vertical coverage, and can also be flown or truss-mounted using the included rigging points and special accessories. From the cabinet to the final texture and the rugged protective grille, NXL Series offers maximum strength for intensive use on the road and can be used for fixed installation.
Specs:
Speaker Type
Active Column Array
Configuration
2-Way
Total Output Power
2100 W Peak
LF Driver
4x 6" / 15.24 cm Woofer
Voice Coil: 1.5" / 38.1 mm
Magnet: Neodymium
HF Driver
1x 1.4" / 35.6 mm Horn-Loaded Titanium Dome Compression Driver
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium
Frequency Range/Response
60 Hz to 20 kHz
Speaker Type
Active Column Array
Configuration
2-Way
Enclosure Type
Bass-Reflex
Total Output Power
2100 W Peak
Amplifier Power Rating
Low Frequency (LF)
1400 W Peak
Mid Frequency (MF)
700 W Peak
Amplifier Class
Class-D
Drivers
LF Driver
4x 6" / 15.24 cm Woofer
Voice Coil: 1.5" / 38.1 mm
Magnet: Neodymium
HF Driver
1x 1.4" / 35.6 mm Horn-Loaded Titanium Dome Compression Driver
Voice Coil: 3" / 76.2 mm
Magnet: Neodymium
Performance
Frequency Range/Response
60 Hz to 20 kHz
Maximum SPL
132 dB
Coverage Angle
100° H x 30° V
Protections
Excursion, RMS, Thermal
Signal Processing
Crossover Frequency
800 Hz
EQ & Filters
High-Pass Filter
Dynamic Processing
Soft Limiter
Alignment Delay
No
Digital Signal Processing
User Settings
Connectivity
Audio I/O
1x Combo XLR-1/4" TRS Line Input
1x XLR 3-Pin Line Output
Network I/O
No
USB I/O
No
Wireless
No
Mobile App Compatible
No
Power
AC Input Power
100 to 120 VAC, 60 Hz
AC Power I/O
1x powerCON TRUE1 Input
1x powerCON TRUE1 Output
Physical
Color
Black
Mounting
Stand Mount
1 x Pole Socket - Unspecified Size (Bottom)
Suspension Points
4 x M8 Fly Point
4 x Integrated Rigging

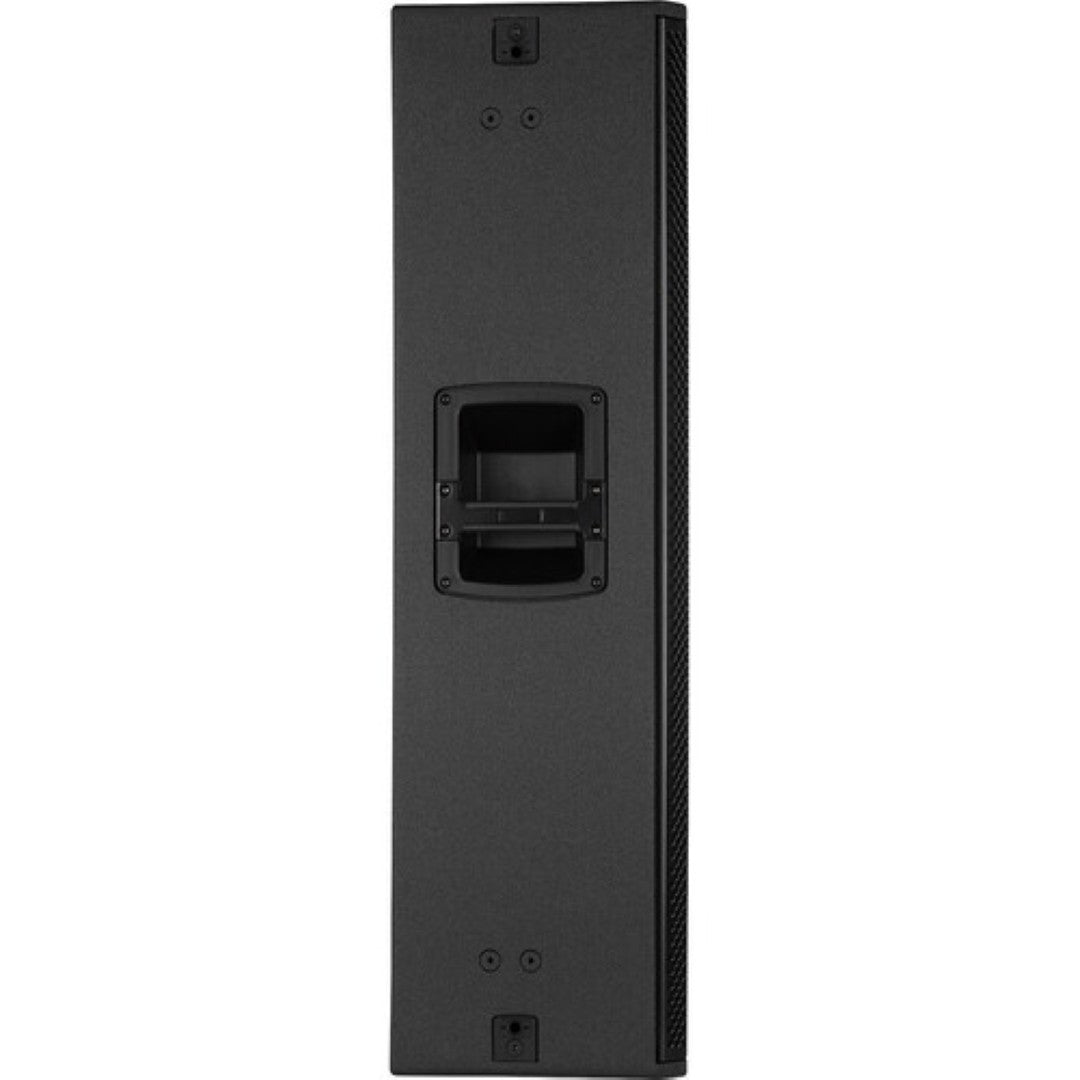

Handles
1x Each Side
Construction Material
Plywood, Stainless Steel Grille
Environmental Resistance
No
Dimensions
41.6 x 10.8 x 7.9" / 105.7 x 27.4 x 20.1 cm
Weight
53.8 lb / 24.4 kg
Packaging Info
Package Weight
55.5 lb
Box Dimensions (LxWxH)
43.5 x 13 x 9.25"
