RCF P4228-W

RCF P4228-W

MSRP: $2,599.00
MAP: $1,899.00

Passive 1600W Dual 8" 2-Way Weatherproof Speaker (IP55) (White)

SKU: RCF-P4228-W

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Description

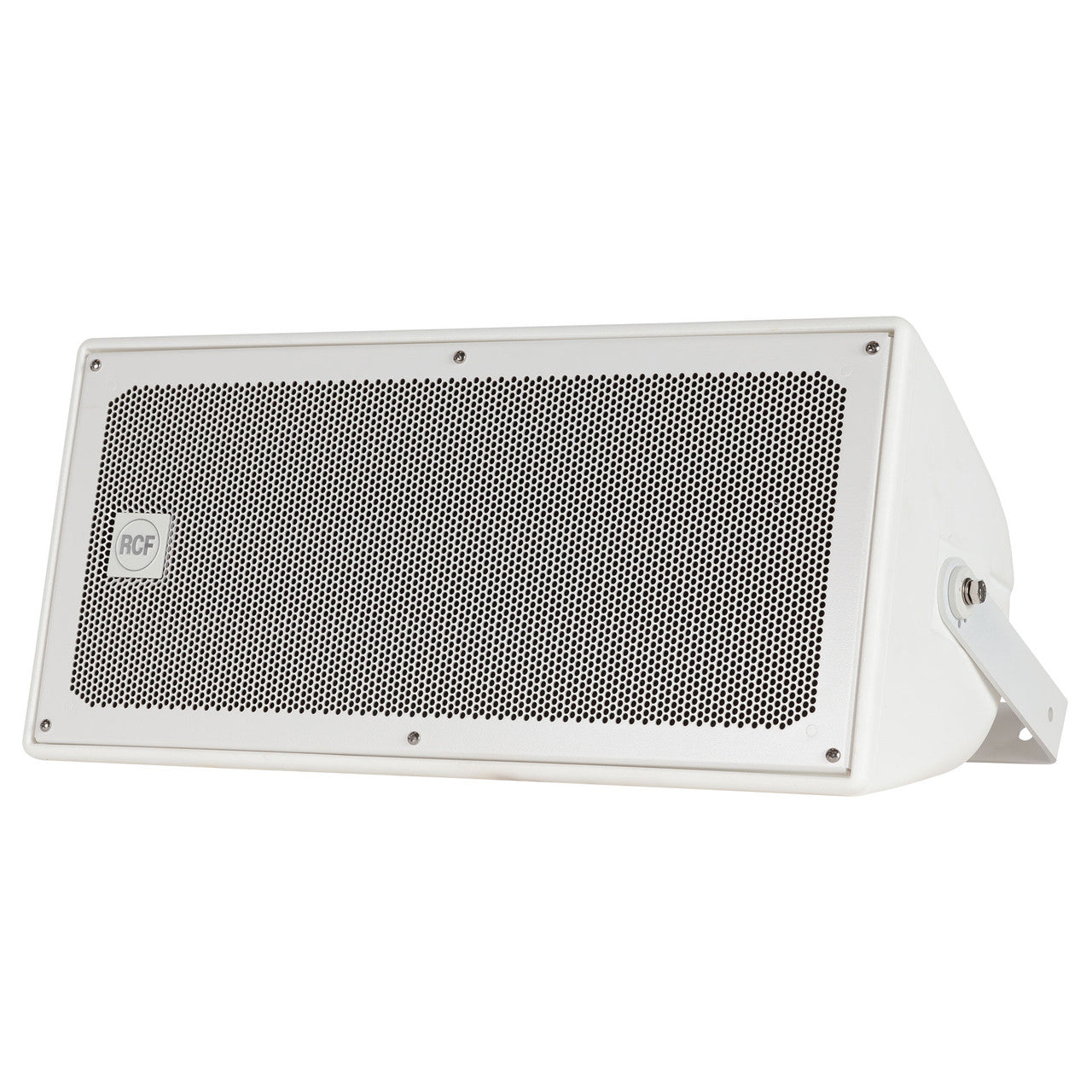

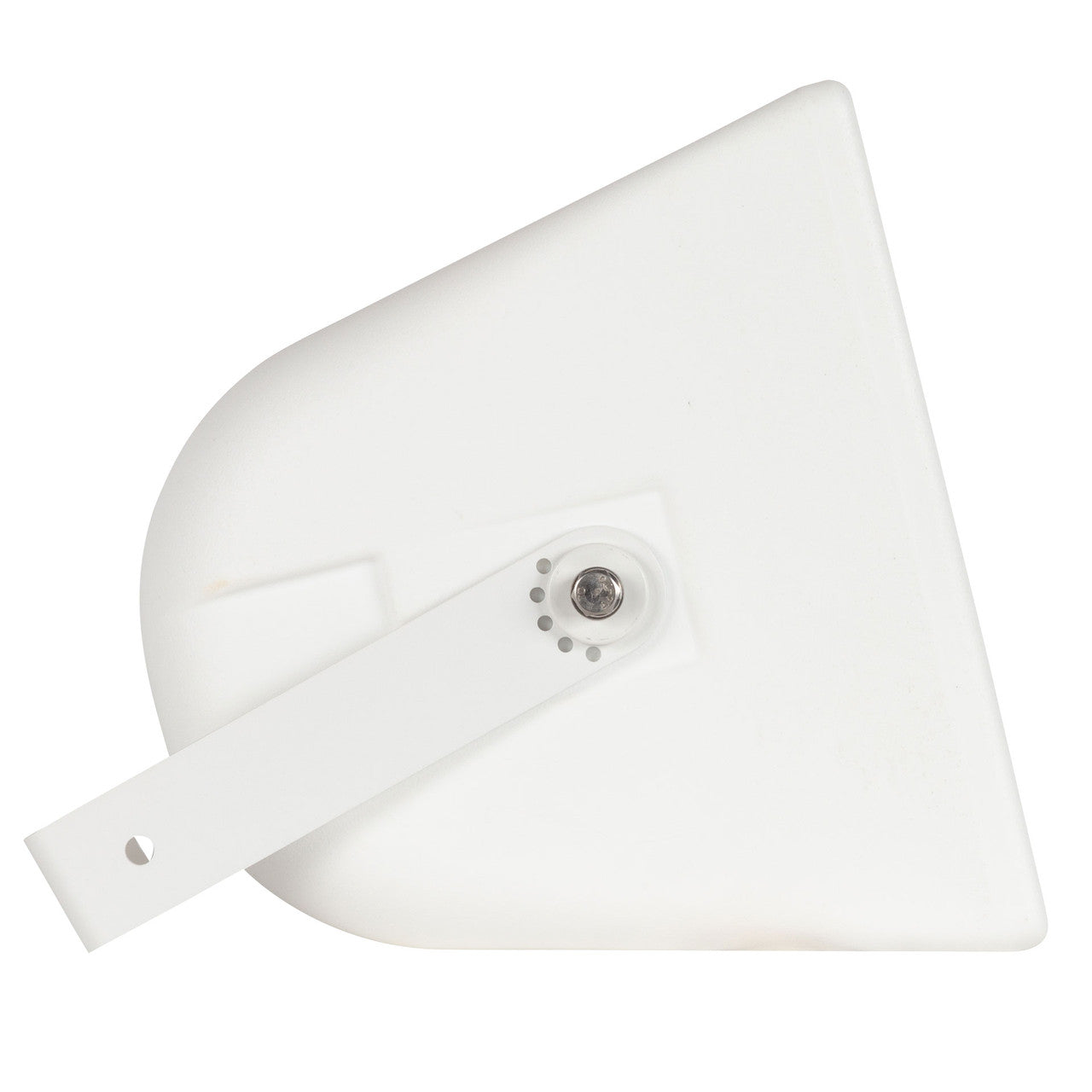

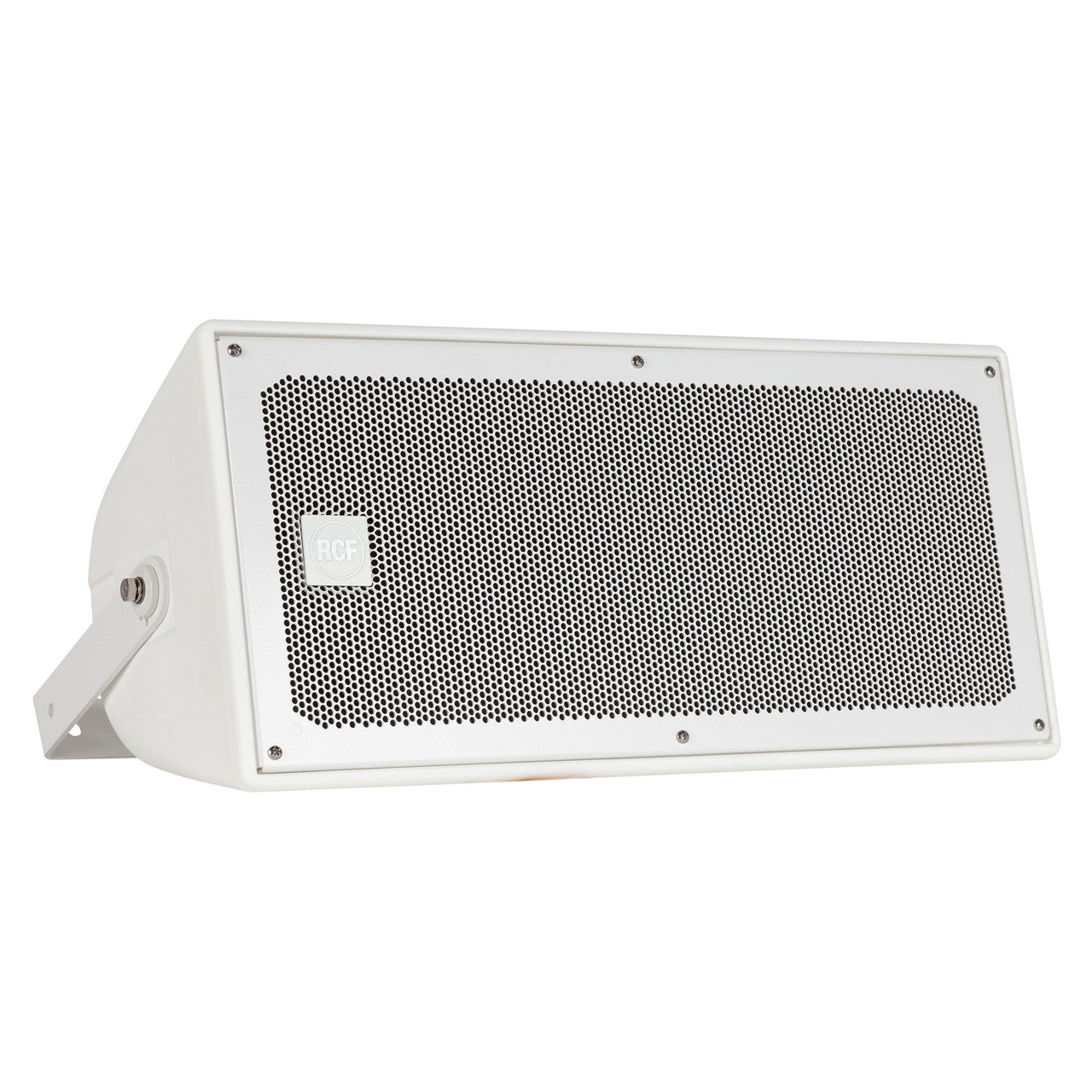

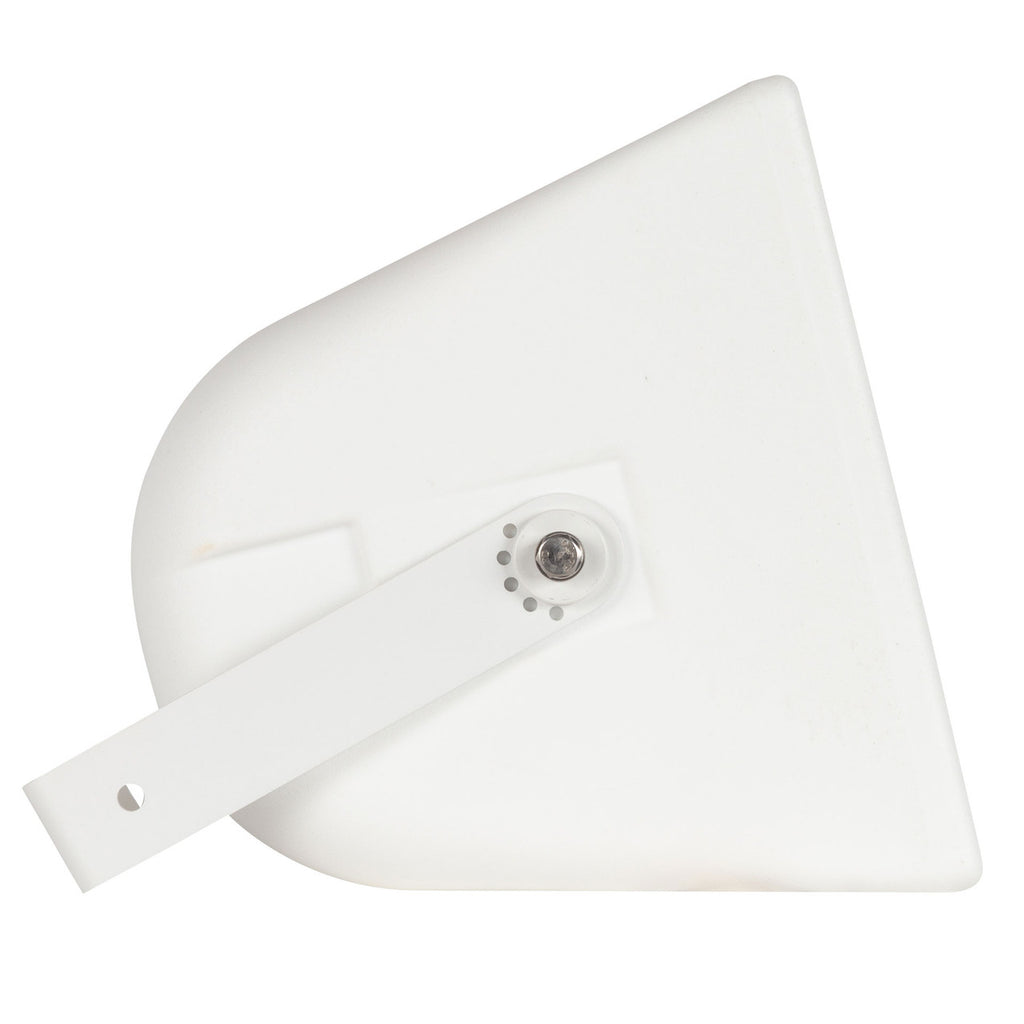

The P 4228 is a weatherproof full range, two-way speaker, suitable for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes a constant directivity CMD horn, loaded with a 1.4" RCF Precision neodymium compression driver with a 2.5" diaphragm assembly for smooth, highly controlled coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and one corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.

Features

  • 400 W RMS power handling
  • 129 dB max SPL
  • 80 Hz ÷ 20000 Hz frequency range
  • 2 x 8" neodymium woofer, 2.5" v.c.
  • 2.5" v.c. neodymium compression driver
  • 110° x 60° constant directivity
  • Weatherproof IP55 cabinet with UV protection

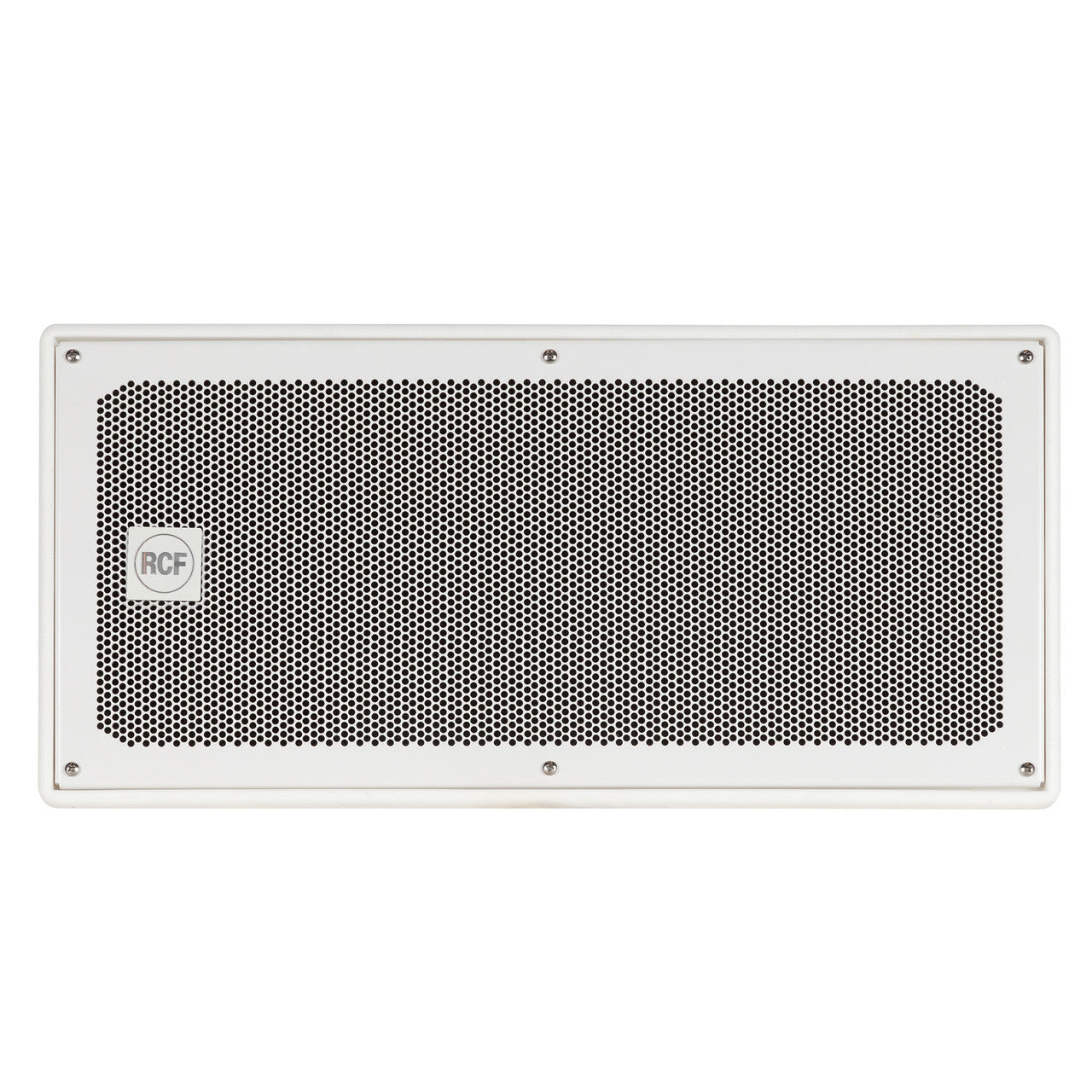

  • Aluminum grille
  • AISI 316L stainless steel bracket

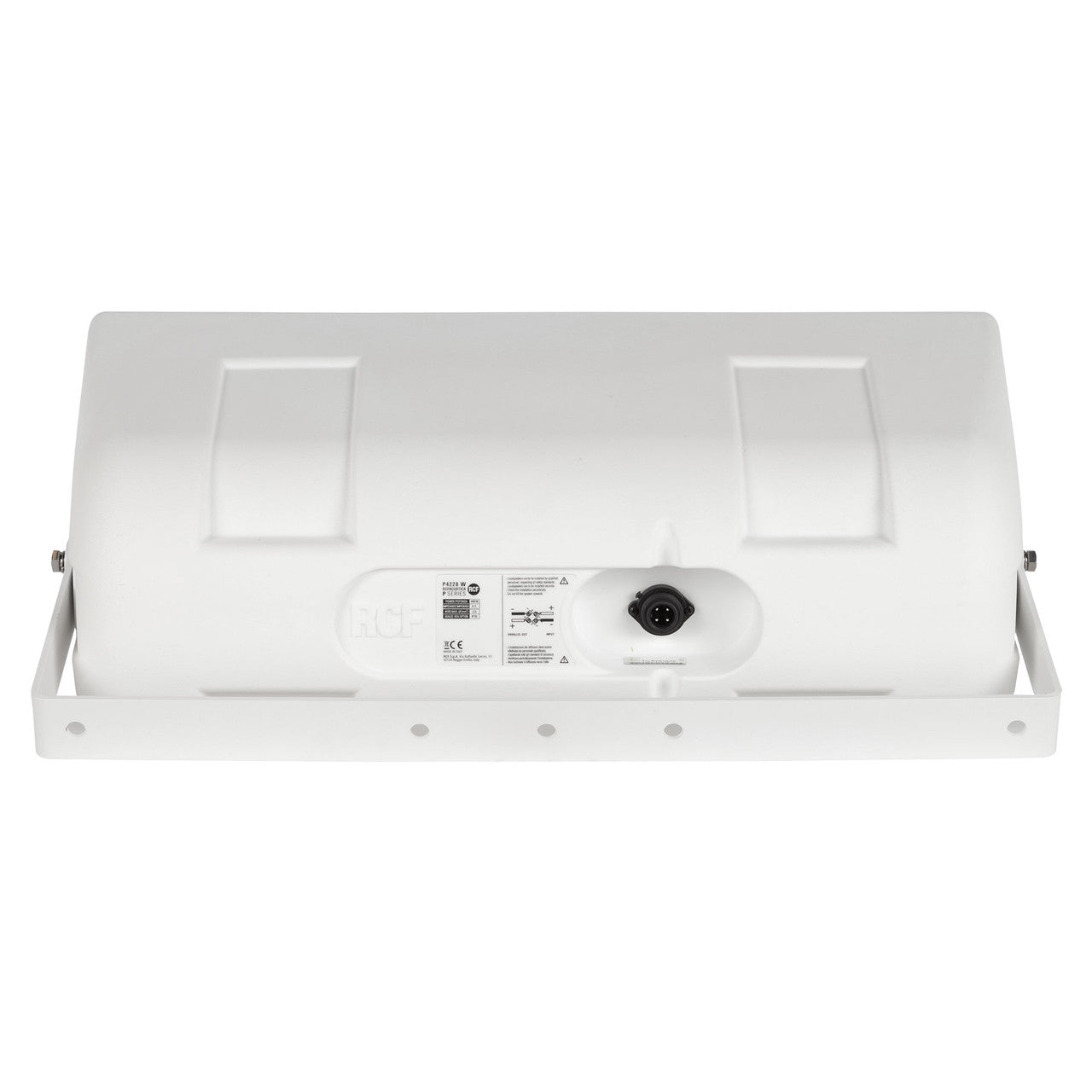

  • Amphenol IP67 4 pole input connector

    • Specifications

    Acoustical specifications

    Frequency Response (-10dB) : 80 Hz ÷ 20000 Hz

    Max SPL @ 1m : 129 dB Horizontal coverage angle : 110° Vertical coverage angle : 60° Directivity index Q : 9 System Sensitivity : 97 dB

    Power section

    Amplification : Full Range

    Nominal Impedance : 8 ohm Power Handling : 400 W Peak Power Handling : 1600 W PEAK Protections : Dynamic active mosfet Crossover Frequencies : 1100 Hz

    Transducers

    Compression Driver : 1 x 1.4'' neo, 2.5'' v.c

    Woofer : 2 x 8'', 2.5'' v.c

    Input/Output section

    Input connectors : Amphenol eco/mat IP 67

    Standard compliance

    Safety agency : CE compliant

    Physical specifications

    Cabinet/Case Material : PE Low Density

    Hardware : 4 x M8 + U-bracket and pair of spacers Grille : Aluminum with waterproof clothing Color : Grey, Black - RAL 9005, White - RAL 9003

    Size / Weight

    Height : 268 mm / 10.55 inches

    Width : 566 mm / 22.28 inches Depth : 250 mm / 9.84 inches Weight : 14 kg / 30.86 lbs

    Shipping information

    Package Height : 290 mm / 11.42 inches

    Package Width : 590 mm / 23.23 inches Package Depth : 290 mm / 11.42 inches Package Weight : 15.6 kg / 34.39 lbs
