RCF PD 30A
  • RCF PD 30A
RCF PD 30A

RCF PD 30A

MSRP: $4,199.00
MAP: $3,009.00

AC Power Distribution Box TTR16K 30A/US

SKU: RCF-PD 30A

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Overview

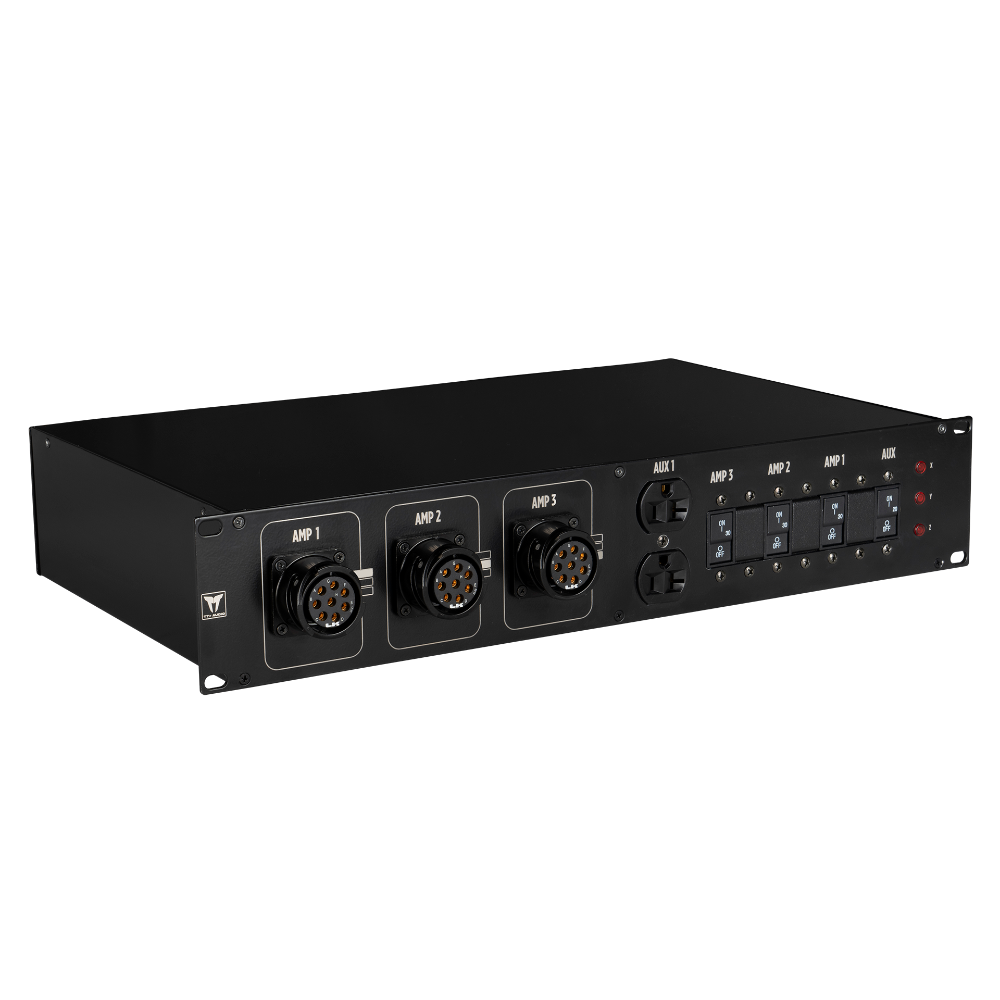

PD 30A distributes power to three XPS 16K amplifiers in a 19'' RACK and provides auxiliary power. The 2RU, 370mm deep box is made of 1.5mm sheet metal. It is powered by a 1.5m cord with a 30A five-pole NEMA L21-30P plug; power can be 120V N-L or 208V L-L. Each XPS 16K supply has a 30A breaker to interrupt the line and ends in a Neutrik NAC3FC-HC connector. The three sends have different lengths to optimize wiring. A 20A breaker is upstream of the front auxiliary. The other two auxiliaries are on phases Y and Z with fuses. Front auxiliary is a double NEMA 5-15 socket (AUX1). Back auxiliaries are 2 NEUTRIK POWERCON NAC3MPB (AUX 2 and 3). 3 neon indicators show phase presence. 6 speakon NL4 cables optimize wiring of the amplifiers inside the rack and connect to 3 P-COM 8 poles connectors on the front.

Features

  • AC Power for three XPS 16K amplifiers and auxiliary services
  • Three P-COM 8 connectors
  • Double NEMA 15-5 AUXILIARY power inlet on front panel
  • Two powerCON AUXILIARY inlets on back panel
  • 1.5m long cord equipped with a 30 A NEMA L21--30P 5 pin plug
  • L-N / L-L for 110V or 208V power selection switch
  • 2RU Rackmount chassis

Specifications

General

  • Nominal voltage: 250V
  • Nominal current: 30A
  • Frequency: 50-60Hz
  • Power supply:
    • 1 x INPUT via 1,5m cable with male connector NEMA L21-30P IP44 3P+N+E
  • General:
    • 1 x Circuit breaker 4,5kA, 1P+N 20A
    • 3 x Circuit breaker 4,5kA, 1P+N 30A
    • 6 x INPUT via flying cables with Speakon NL4 connectors
    • 3 x phase signal lamps
  • Distribution:
    • 1 x double NEMA 15-5 inlet OUTPUT 20A 110V 50-60Hz 2P+T
    • 2 x auxiliary connectors AUX - PowerCon NAC3MPB-1
    • 3 x OUTPUT via flying cables with connector PowerCon NAC3FCH
    • 3 x OUTPUT via P-COM8

Standard compliance

  • IP protection grade: IP 31
  • Safety agency: CE compliant

Physical

  • Cabinet/Case Material: Metal
  • Handles: 2 x handles for rack mount
  • Color: Black
  • Rack mounting: 19", 2U

Size / Weight

  • Height: 88 mm / 3.46 inches
  • Width: 482 mm / 18.98 inches
  • Depth: 270 mm / 10.63 inches
  • Weight: 3.5 kg / 7.72 lbs

Shipping information

  • Package Height: 100 mm / 3.94 inches
  • Package Width: 530 mm / 20.87 inches
  • Package Depth: 350 mm / 13.78 inches
  • Package Weight: 4.5 kg / 9.92 lbs
