Overview

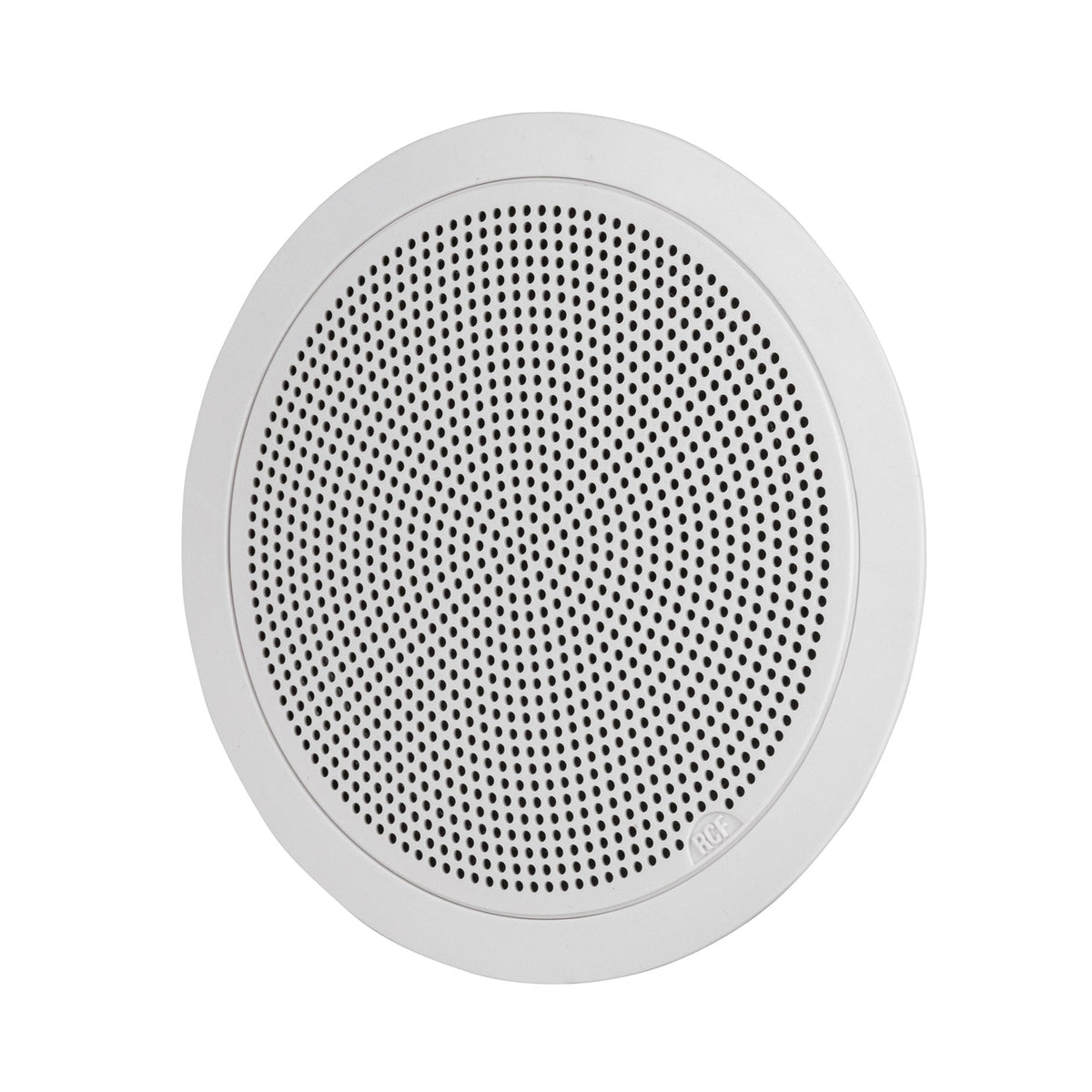

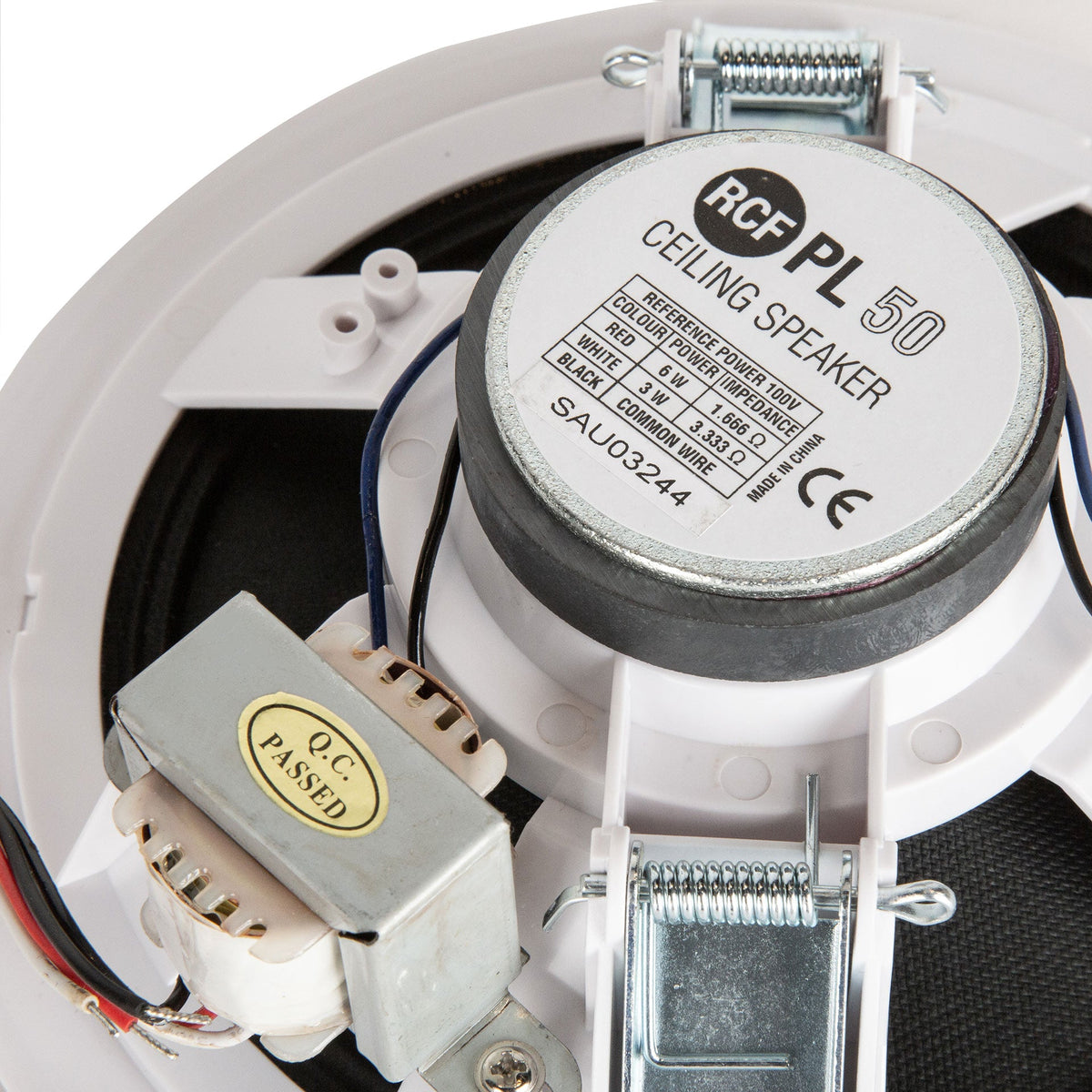

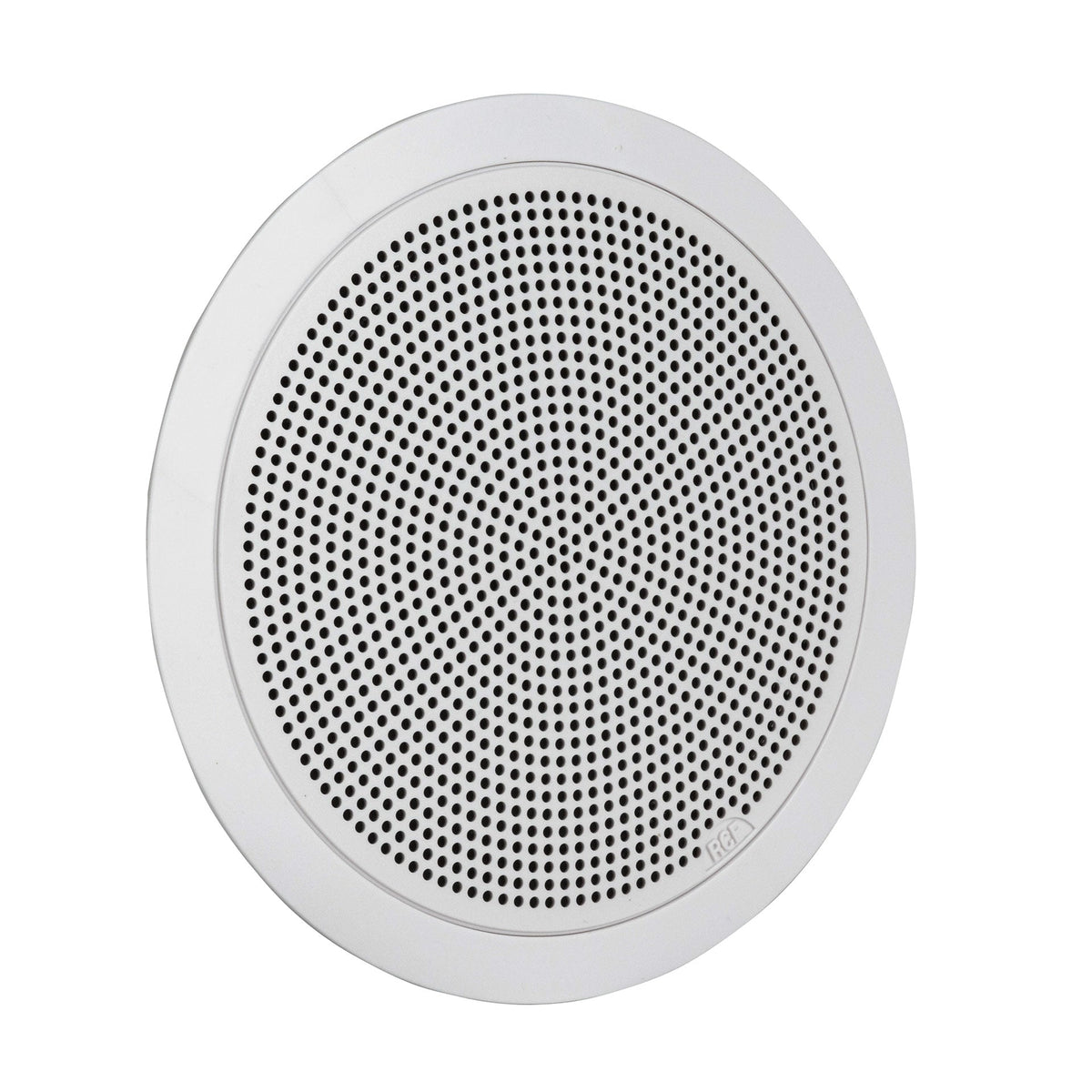

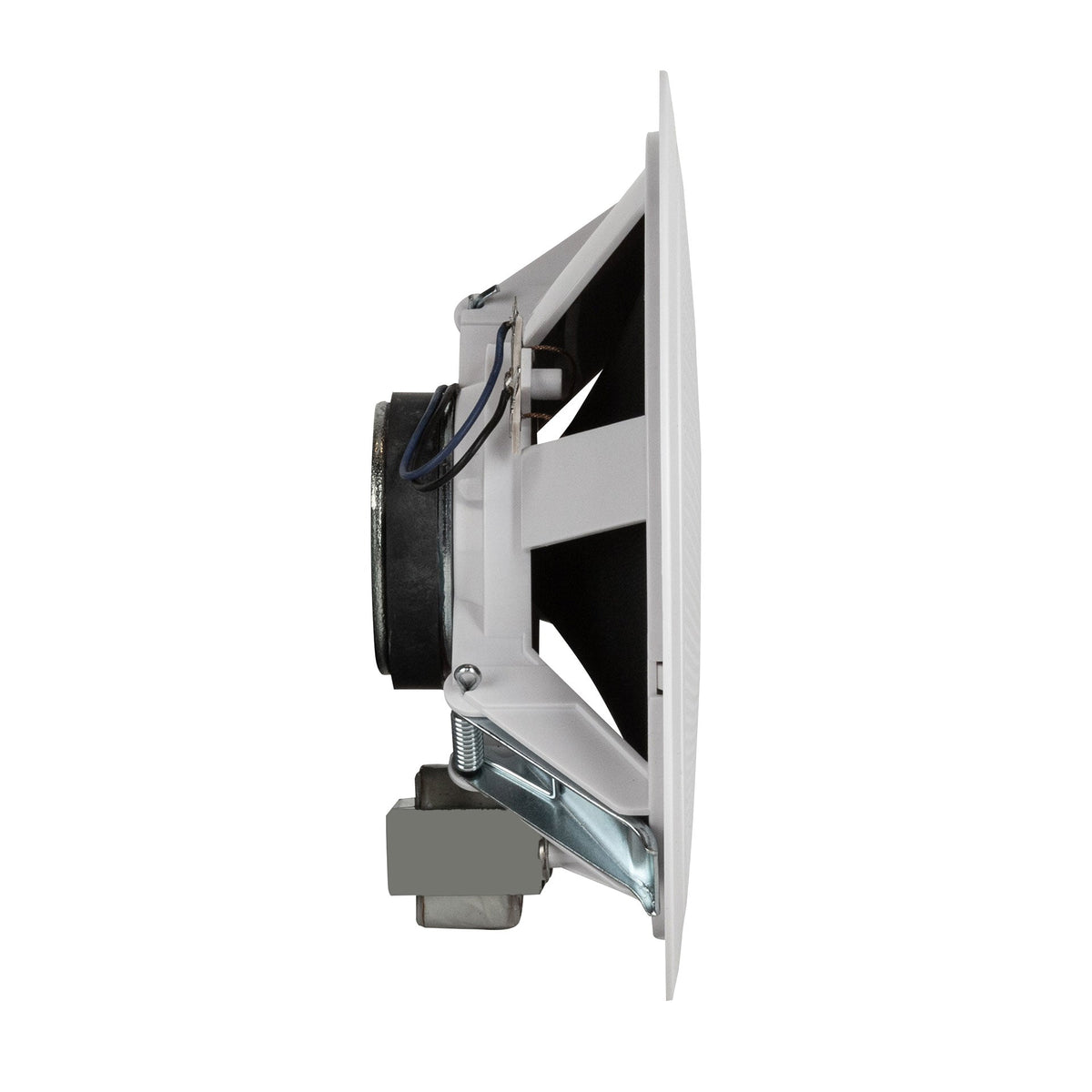

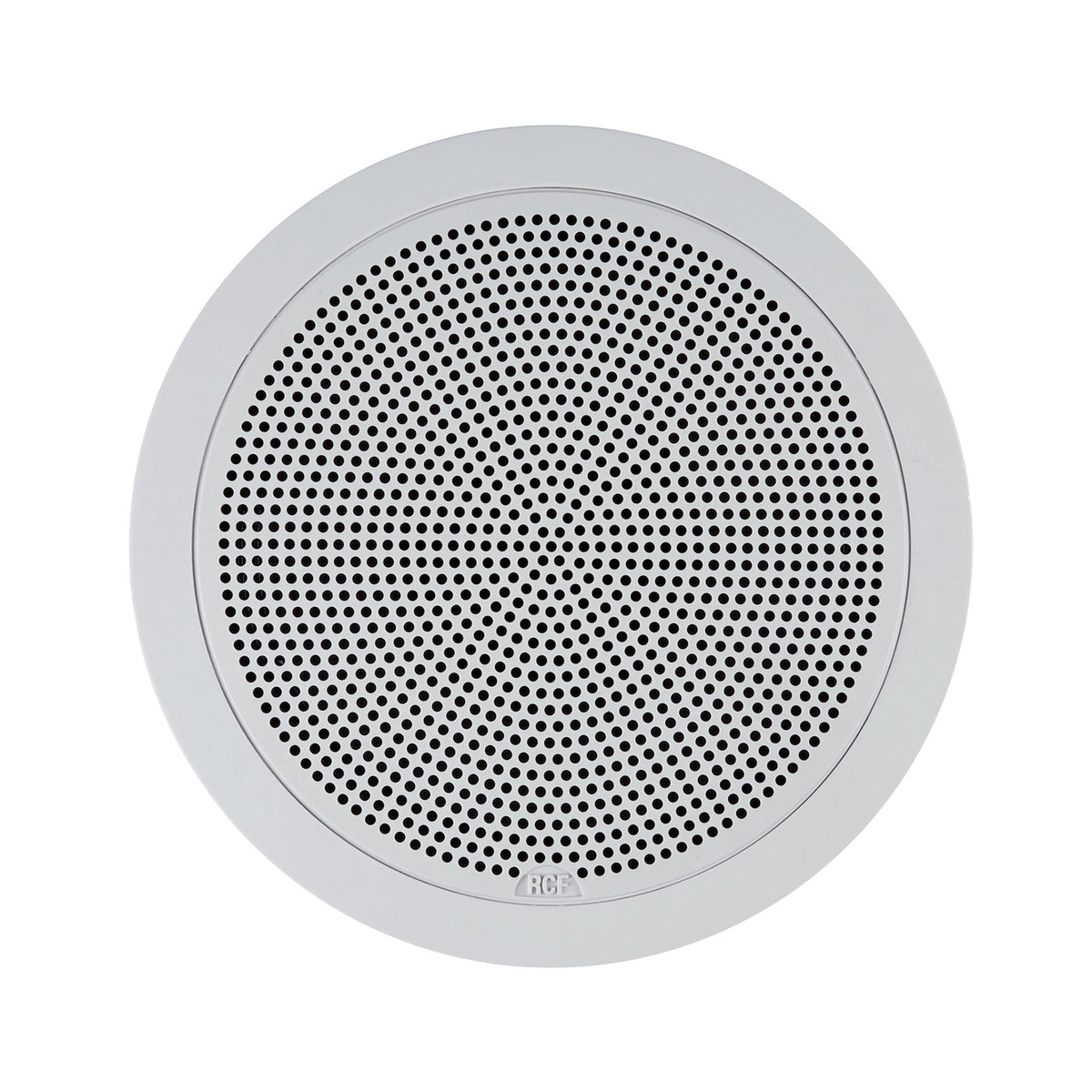

PL 50 is a flush-mount ceiling 6" (dual-cone) loudspeaker. It has an internal transformer that allows direct connection to 100 V constant voltage lines. The transformer has 2 inputs for power tapping: 6 €“ 3 W. The false-ceiling installation is made through its 2 spring clamps without using tools and other additional attachment components.
FEATURES
- 6" fullrange transducer
- Power selectable (100 V): 6 W €“ 3 W
- 90 dB sensitivity
- Colour white RAL 9003
- Plastic frame and grille
Specifications
ACOUSTICAL SPECIFICATIONS
- Frequency Response (-10dB): 100 Hz - 20000 Hz
- Max SPL @ 1m: 98 dB
- Coverage angle: 150°
- System Sensitivity: 90 dB
POWER SECTION
- Amplification: Full Range
- Power Handling: 6 W
- Peak Power Handling: 24 W PEAK
- Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
TRANSDUCERS
- Fullrange: 1 x 6.0''
INPUT/OUTPUT SECTION
- Input connectors: Screw Terminals
- Output connectors: Screw Terminals
- Constant Voltage Transformer: 100 V
- Power selection 1: 6 W - 1667 ohm
- Power selection 2: 3 W - 3333 ohm
STANDARD COMPLIANCE
- Safety agency: CE compliant
PHYSICAL
- Cabinet/Case Material: Plastic
- Hardware: Metal
- Grille: Plastic
- Color: White - RAL 9003
SIZE / WEIGHT
- Depth: 65 mm / 2.56 inches
- Recessed Depth: 59 mm / 2.32 inches
- Diameter: 186 mm / 7.32 inches
- Weight: 0.5 kg / 1.1 lbs
SHIPPING INFORMATION
- Package Height: 80 mm / 3.15 inches
- Package Width: 200 mm / 7.87 inches
- Package Depth: 200 mm / 7.87 inches
- Package Weight: 0.6 kg / 1.32 lbs
