Overview

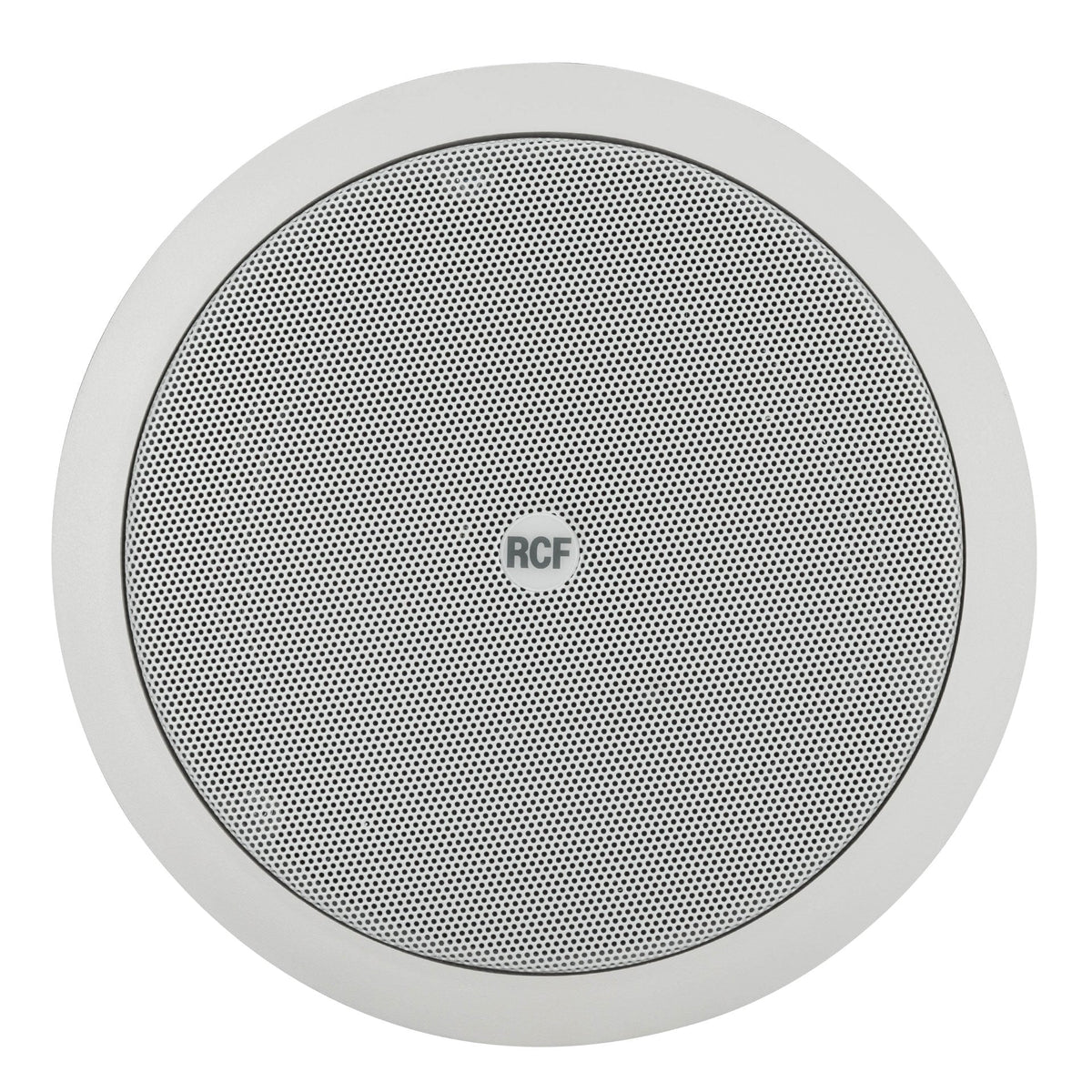

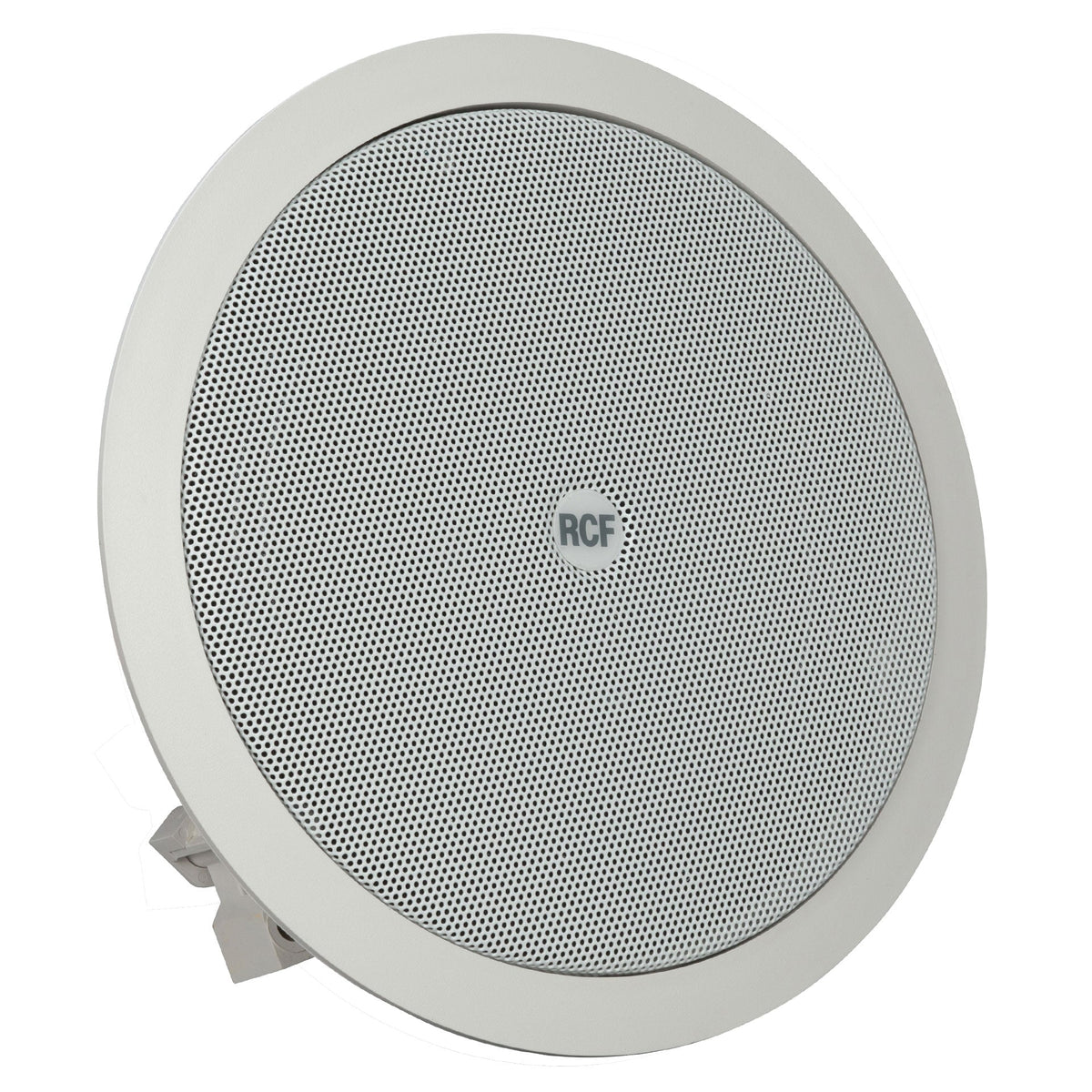

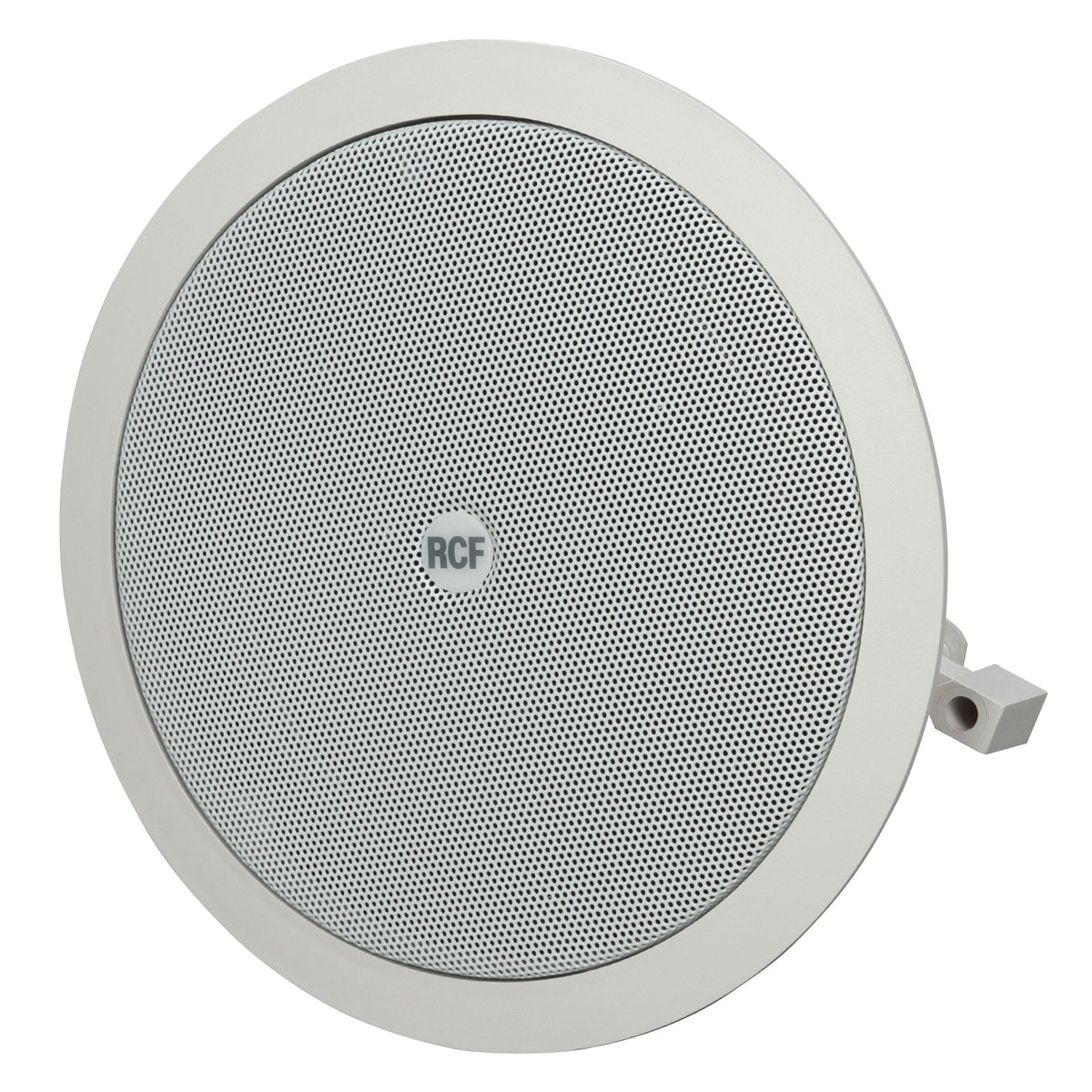

The PL60 is a ceiling speaker with an elegant design, intended for recess installation in false ceilings or panels. It is ideal for the reproduction of announcements and background music and features a multiplesocket line transformer for use with constant voltage systems.
FEATURES
- 6" fullrange transducer
- Power selectable (70 V / 100 V): 6 W €“ 3 W €“ 1.5 W
- 91 dB sensitivity
- Colour white RAL 9003
- Plastic frame, steel grille
Specifications
ACOUSTICAL SPECIFICATIONS
- Frequency Response (-10dB): 90 Hz - 20000 Hz
- Max SPL @ 1m: 107 dB
- Coverage angle: 90°
- System Sensitivity: 91 dB
POWER SECTION
- Amplification: Full Range
- Nominal Impedance: 8 ohm
- Power Handling: 6 W
- Peak Power Handling: 24 W PEAK
- Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
TRANSDUCERS

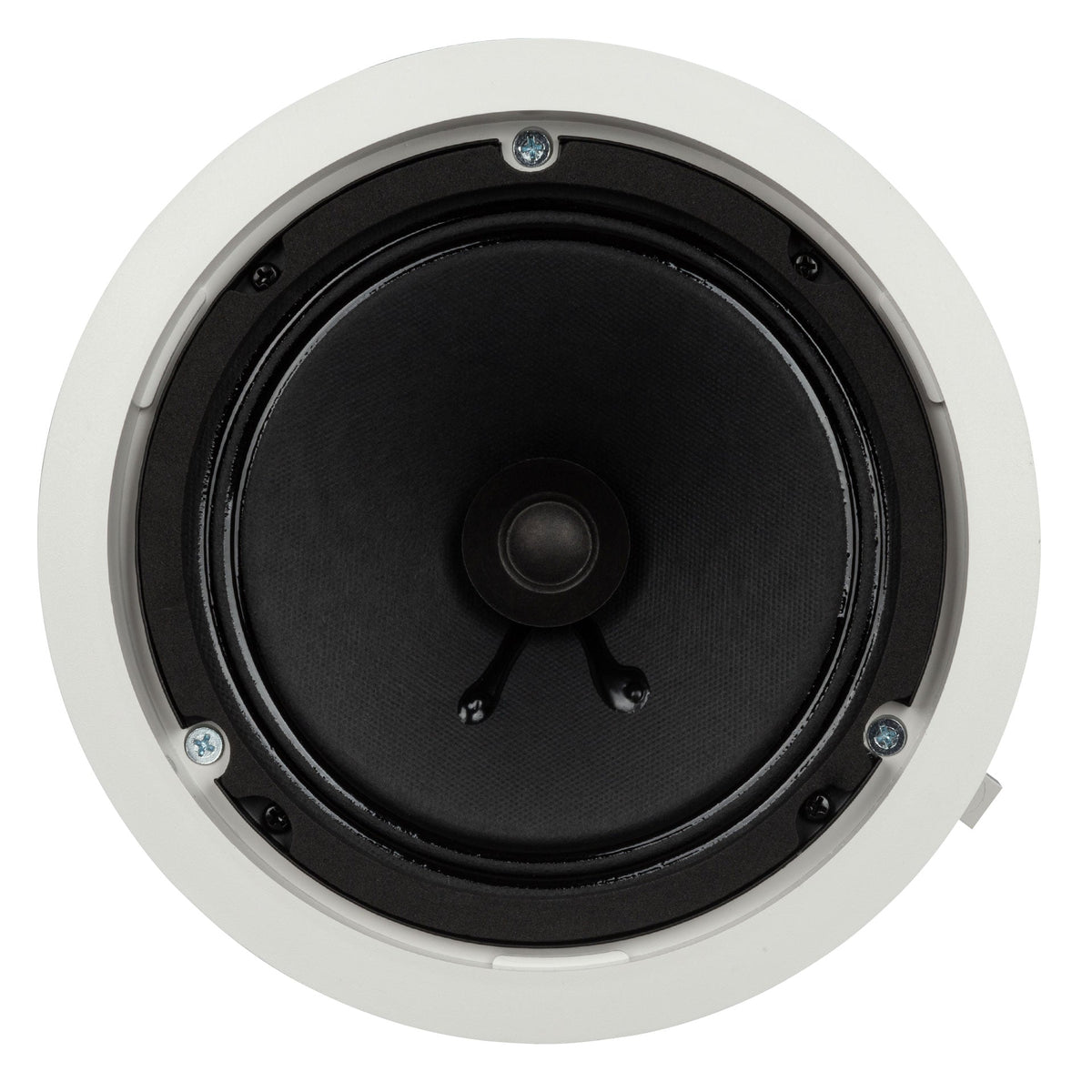

- Fullrange: 1 x 6.0''
INPUT/OUTPUT SECTION
- Input connectors: Screw Terminals
- Output connectors: Screw Terminals

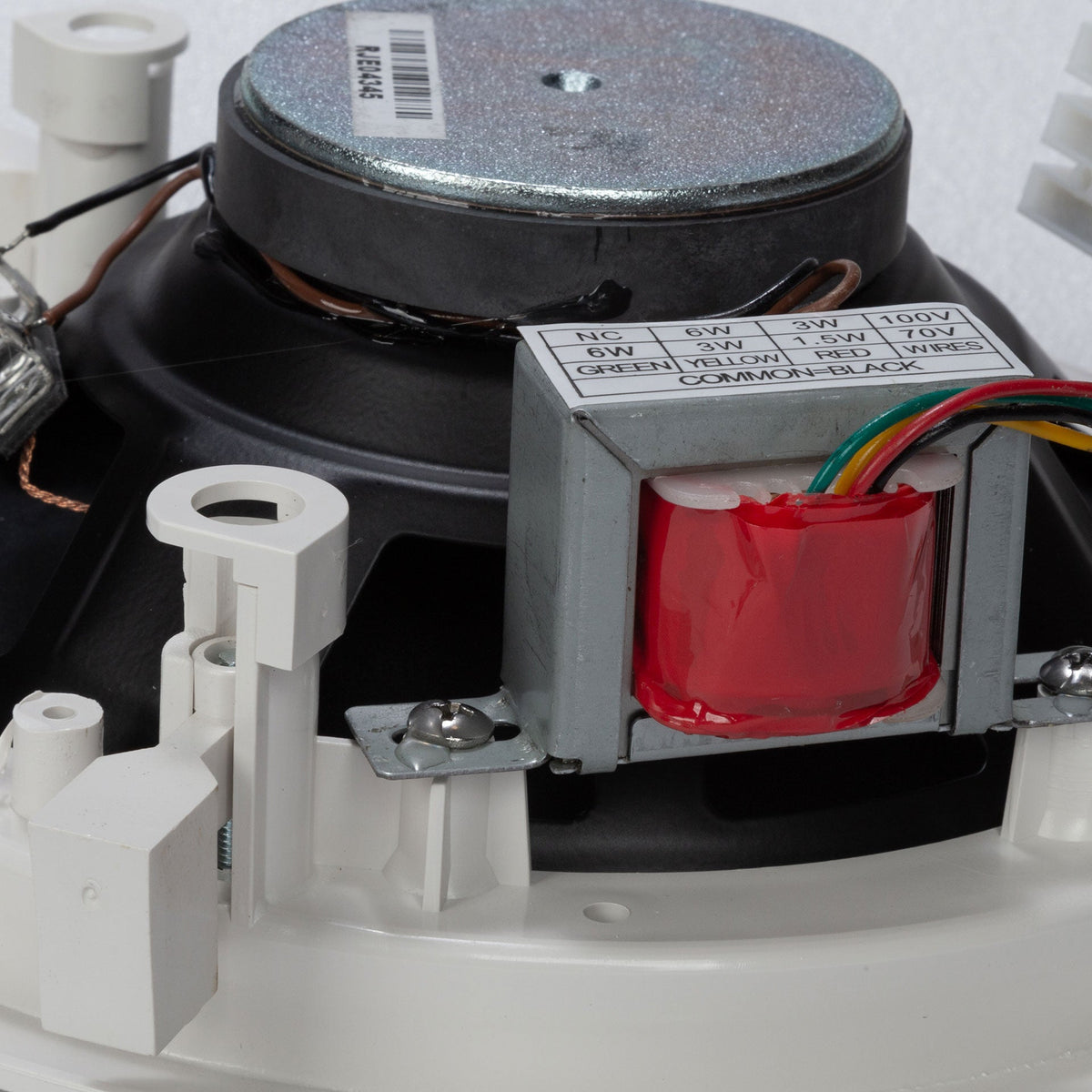

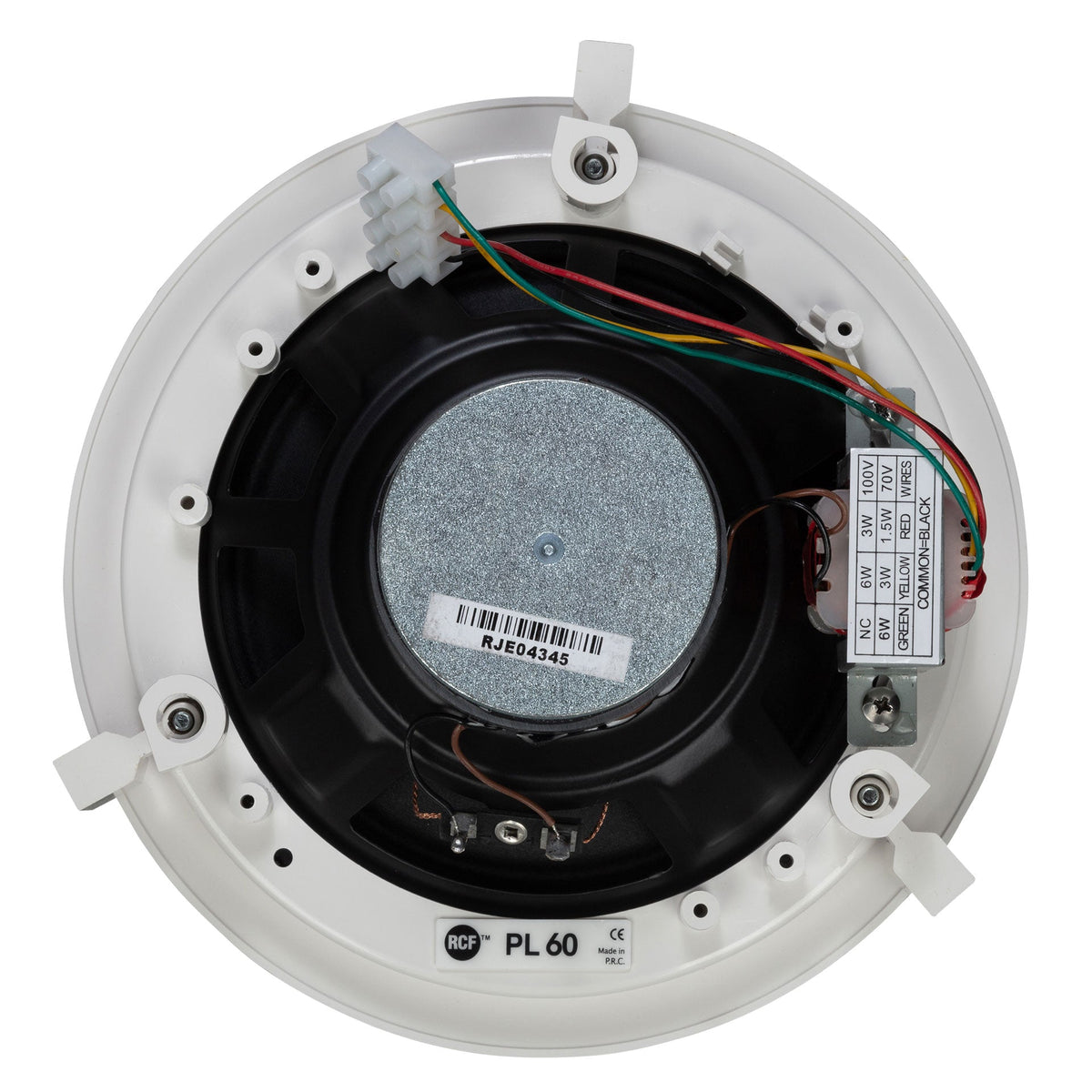

- Constant Voltage Transformer: 70/100 V
- Power selection 1: 6 W - 1667 ohm
- Power selection 2: 3 W - 3333 ohm
- Power selection 3: 1.5 W - 6667 ohm
STANDARD COMPLIANCE
- Safety agency: CE compliant
PHYSICAL
- Cabinet/Case Material: Plastic
- Hardware: Plastic Material
- Grille: Steel
- Color: White - RAL 9003
SIZE / WEIGHT

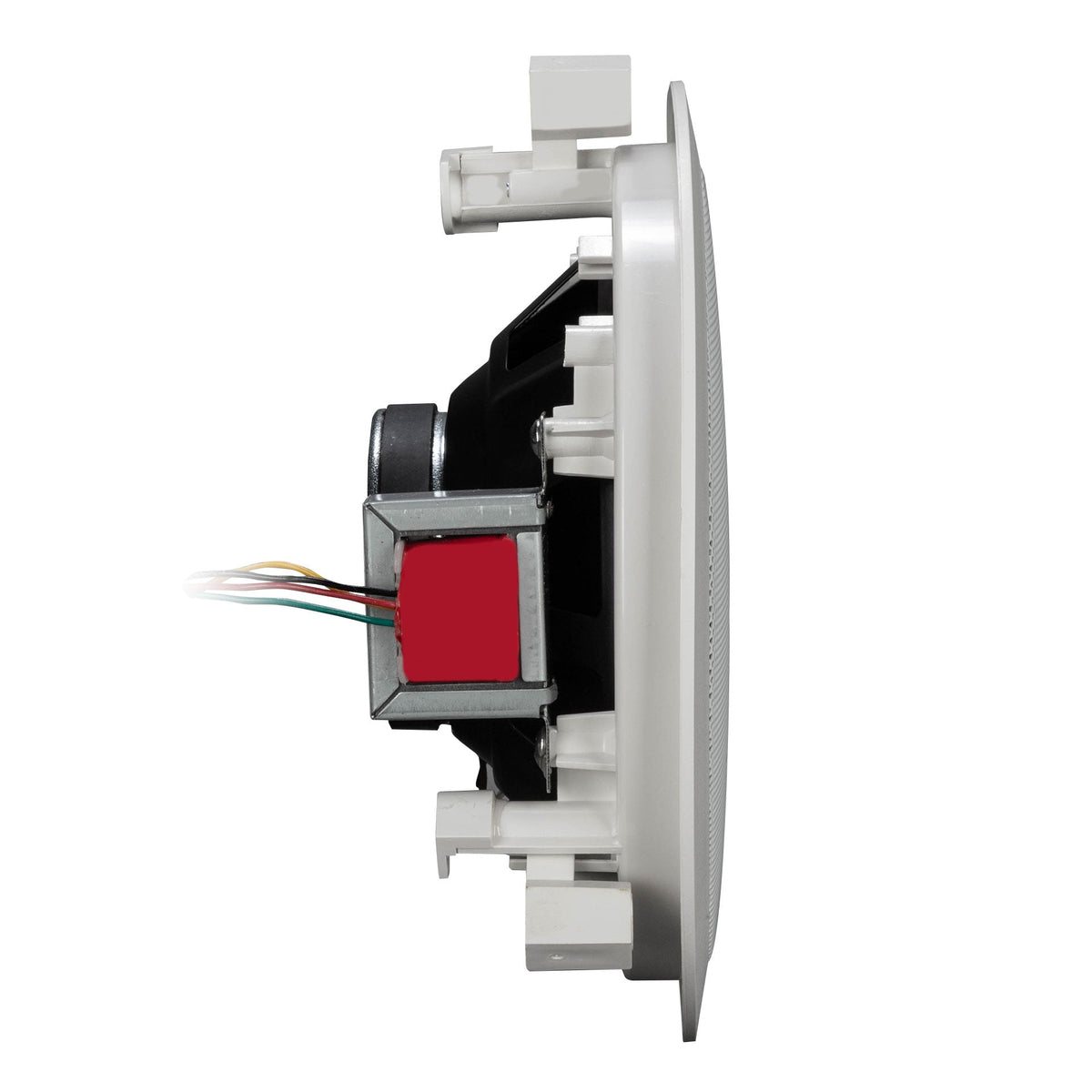

- Depth: 75 mm / 2.95 inches
- Recessed Depth: 69 mm / 2.72 inches
- Diameter: 204 mm / 8.03 inches
- Weight: 0.34 kg / 0.75 lbs
SHIPPING INFORMATION
- Package Height: 105 mm / 4.13 inches
- Package Width: 240 mm / 9.45 inches
- Package Depth: 235 mm / 9.25 inches
- Package Weight: 1.07 kg / 2.36 lbs
