Overview

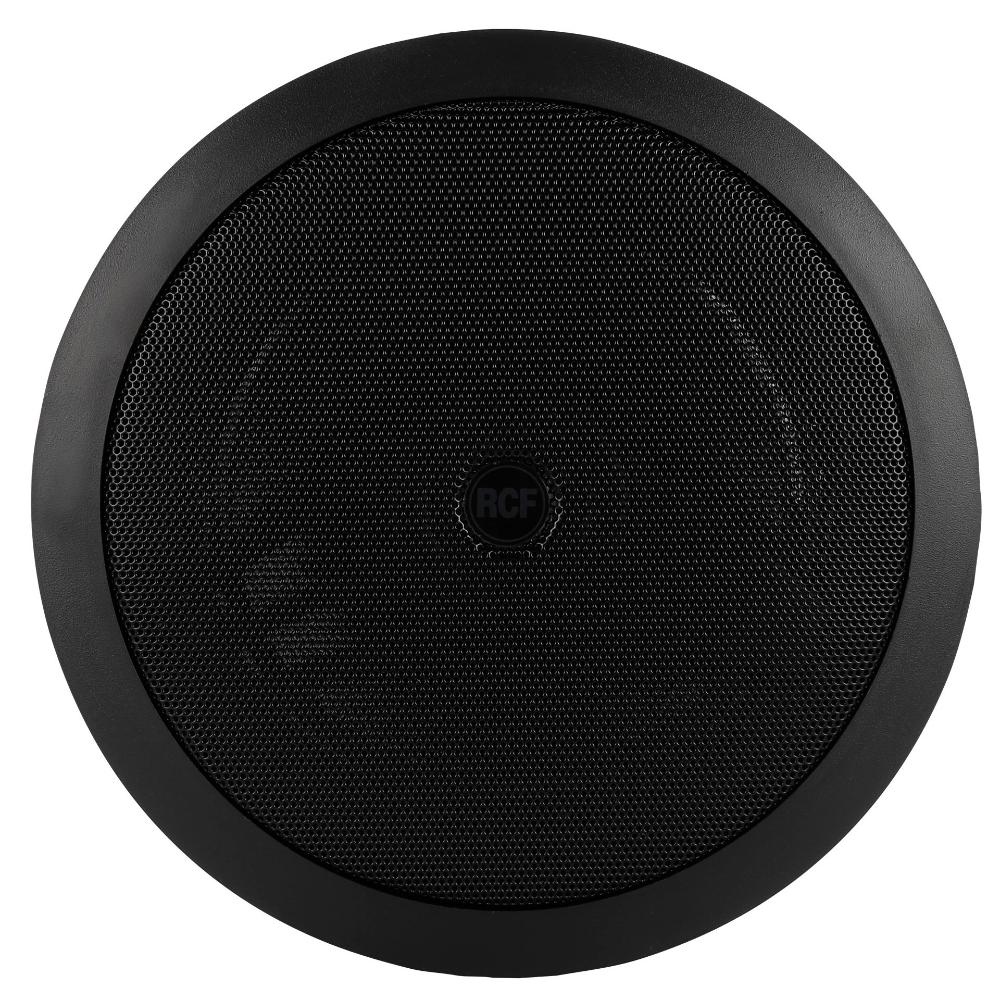

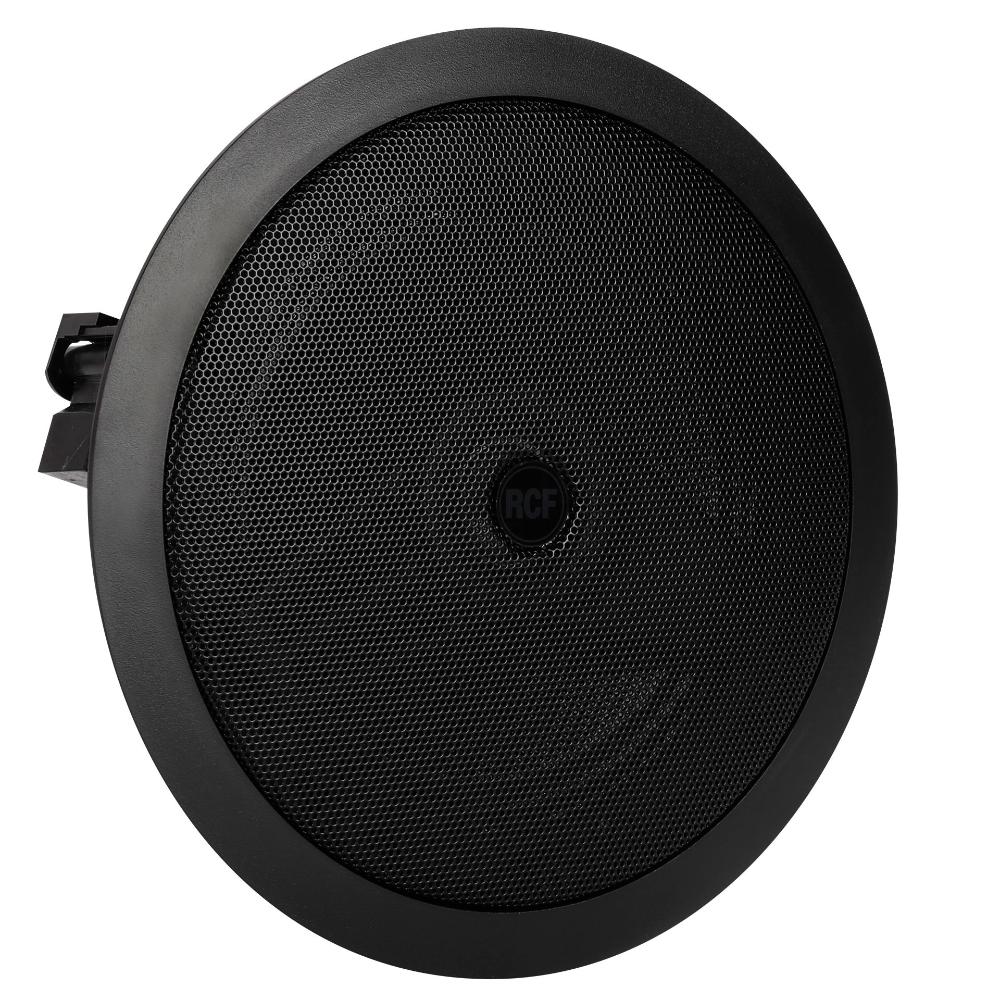

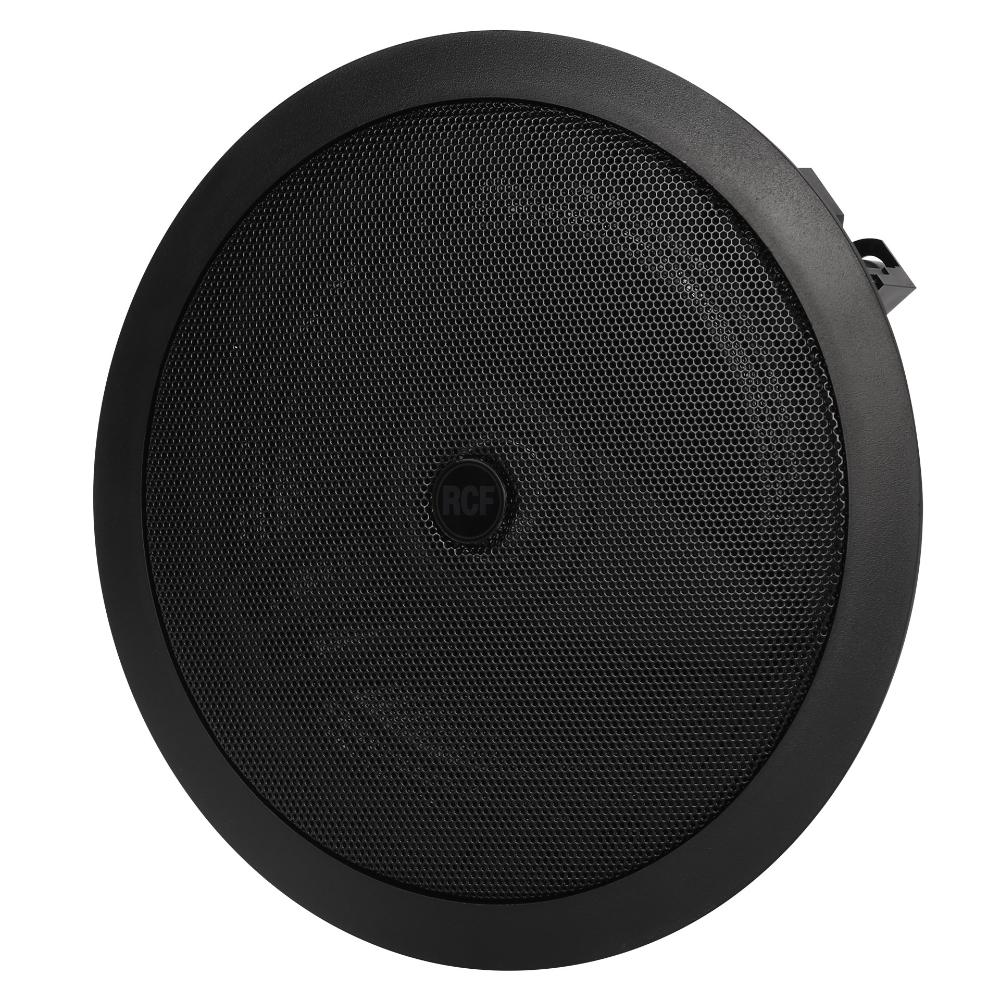

PL 6X is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 6" coaxial woofer with a 1" tweeter placed on a bridge support. PL 6X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Features- 6" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
- 92 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille
Specifications
ACOUSTICAL- Frequency Response (-10dB): 70 Hz - 20000 Hz
- Max SPL @ 1m: 106 dB
- Coverage angle: 100°
- System Sensitivity: 92 dB
- Amplification: Full Range
- Power Handling: 12 W RMS
- Peak Power Handling: 48 W PEAK
- Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
- Dome Tweeter: 1.0''
- Woofer: 6.0''
- Input connectors: Screw Terminals
- Output connectors: Screw Terminals
- Constant Voltage Transformer: 70/100 V
- Power selection 1: 12 W - 833 ohm
- Power selection 2: 6 W - 1667 ohm
- Power selection 3: 3 W - 3333 ohm
- Power selection 4: 1.5 W - 6667 ohm
- IP protection grade: IP 44
- Safety agency: CE compliant
- Cabinet/Case Material: Plastic
- Hardware: Plastic Material
- Grille: Aluminium
- Color: White - RAL 9003, Black - RAL 9005
- Depth: 73 mm / 2.87 inches
- Recessed Depth: 66 mm / 2.6 inches
- Diameter: 204 mm / 8.03 inches
- Cut out diameter: 182 mm / 7.17 inches
- Weight: 0.78 kg / 1.72 lbs
- Package Height: 240 mm / 9.45 inches
- Package Width: 240 mm / 9.45 inches
- Package Depth: 110 mm / 4.33 inches
- Package Weight: 1.56 kg / 3.44 lbs
