Overview

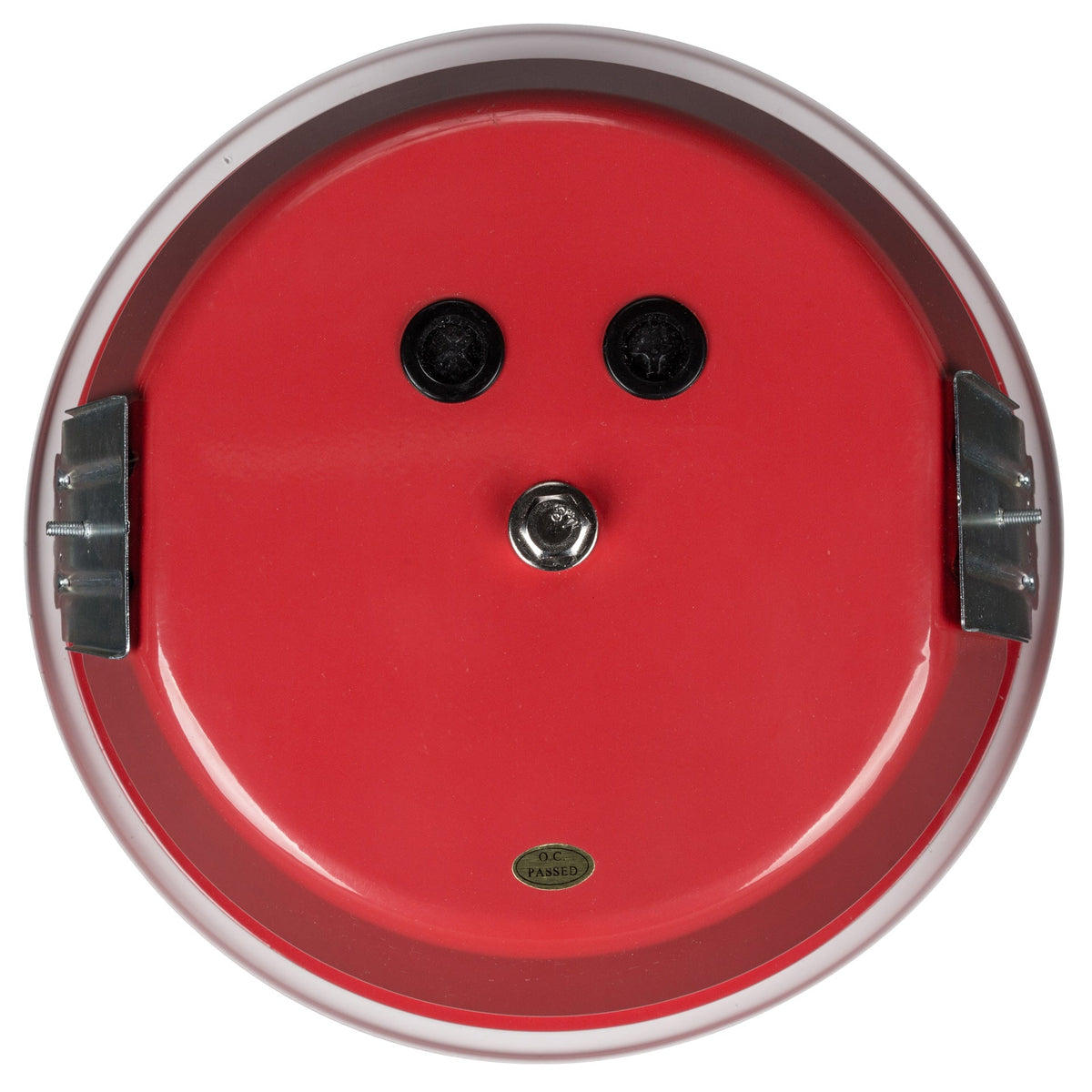

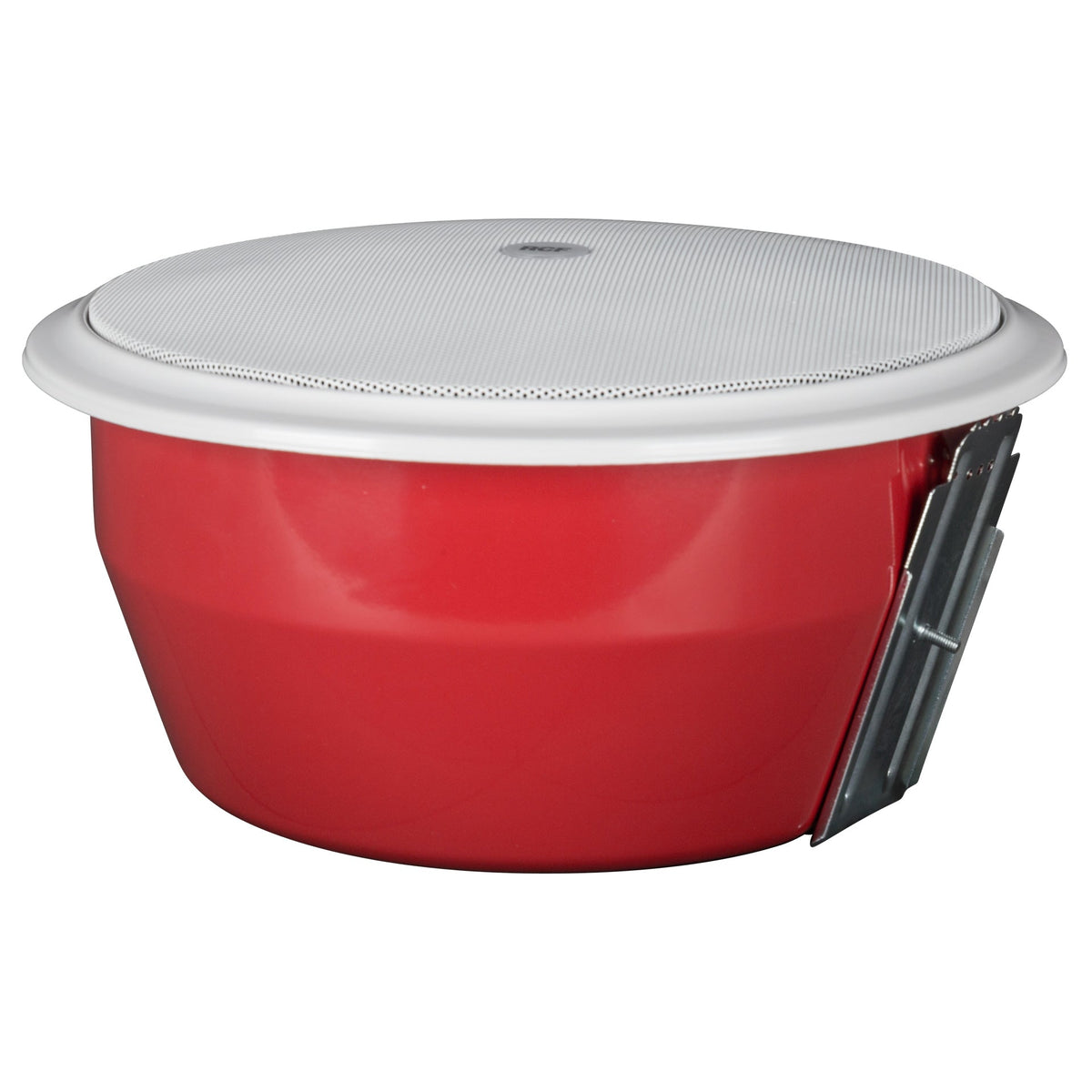

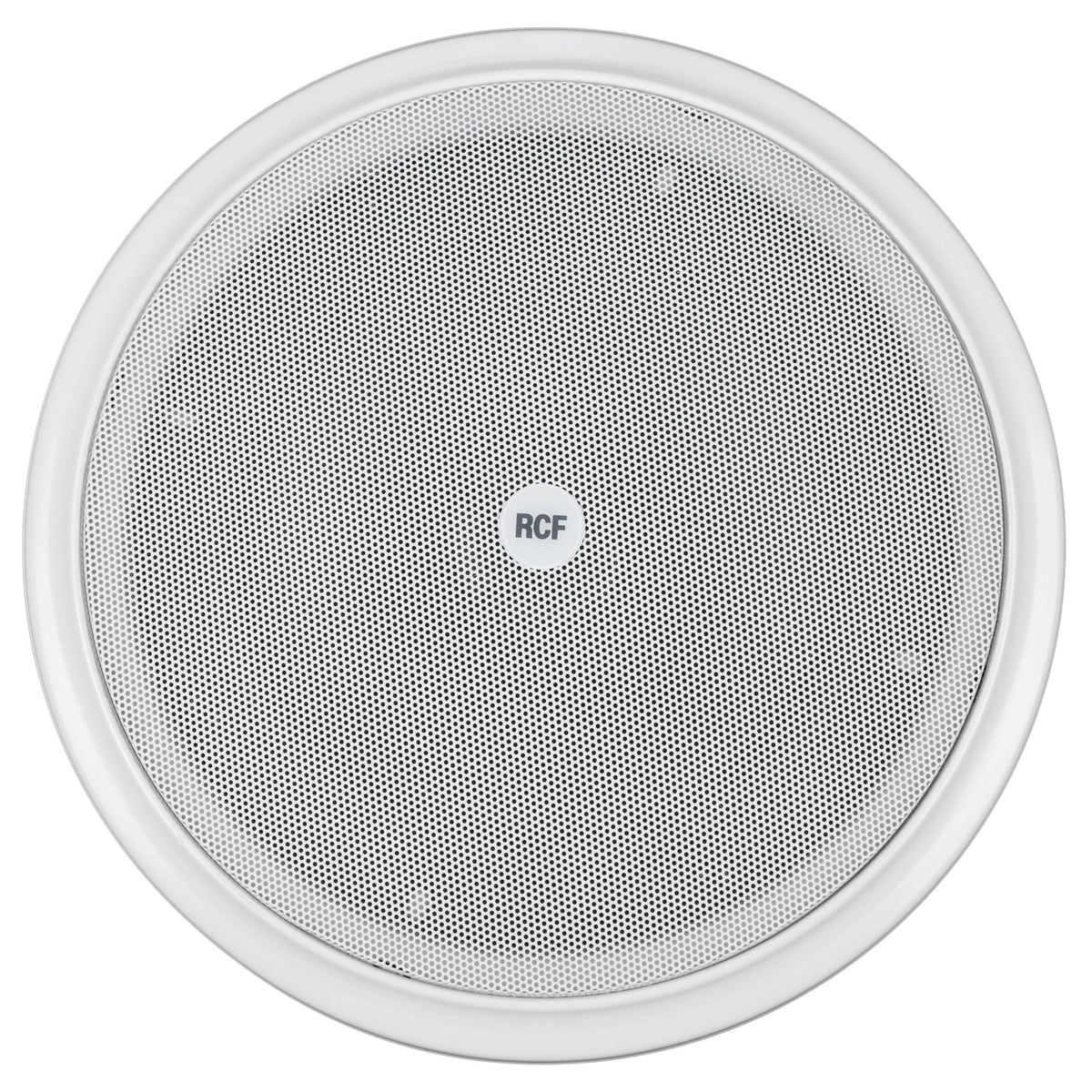

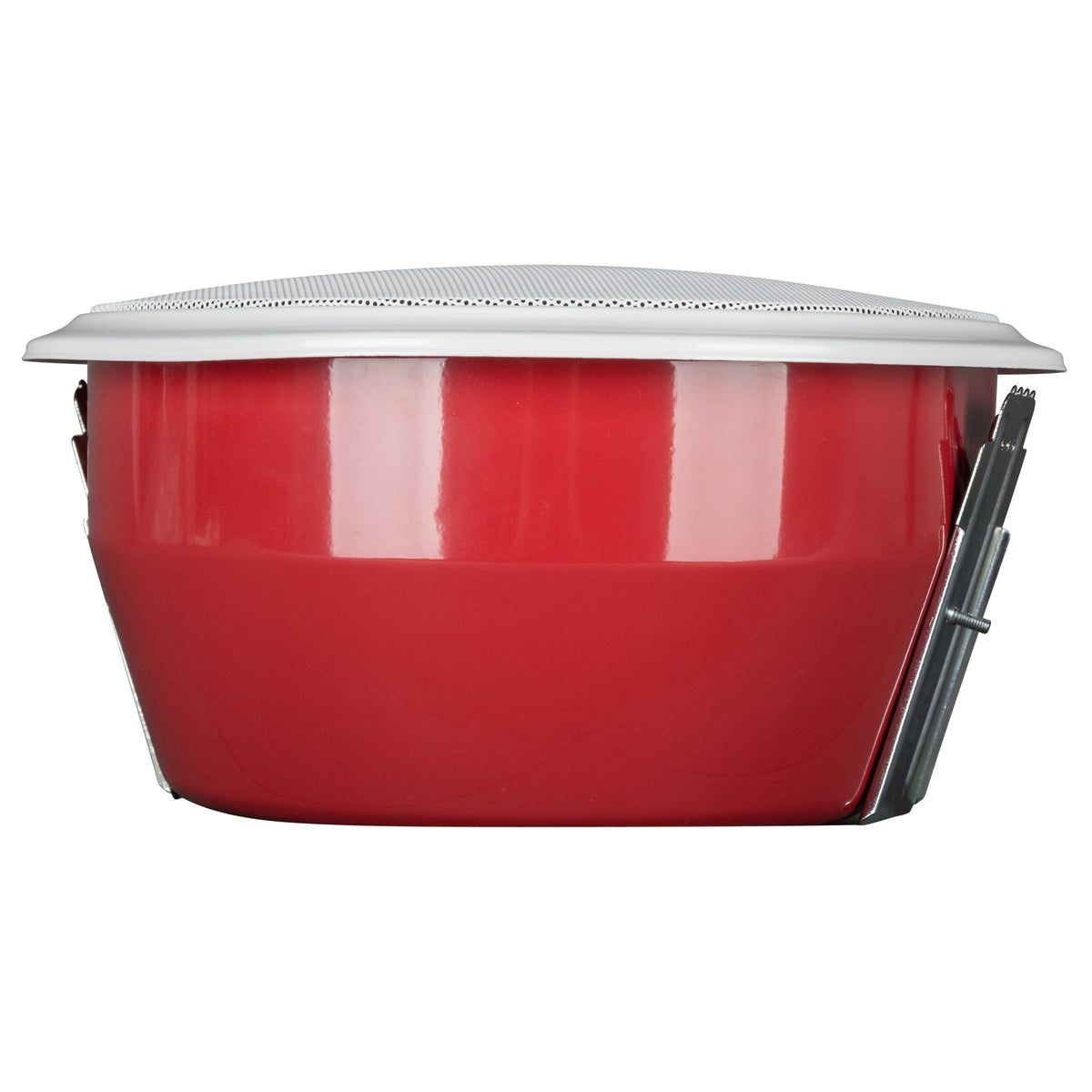

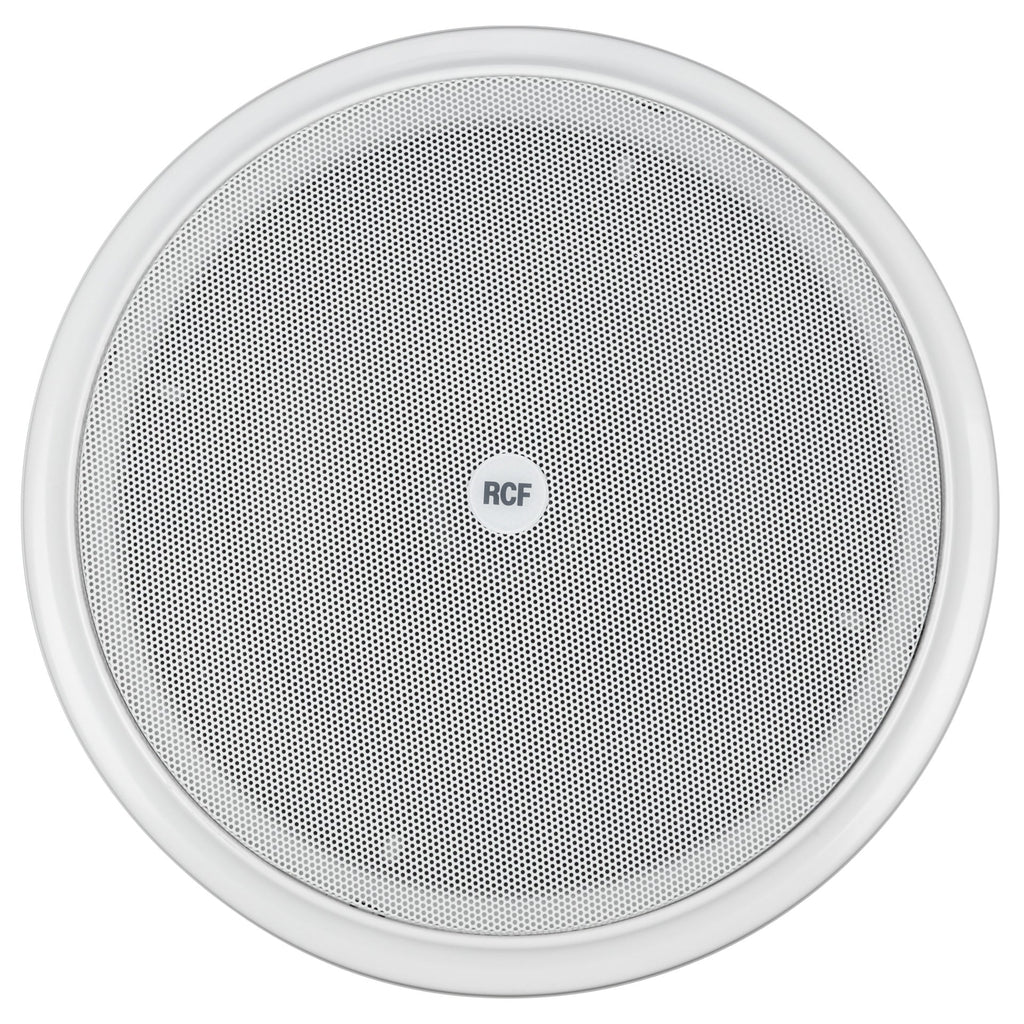

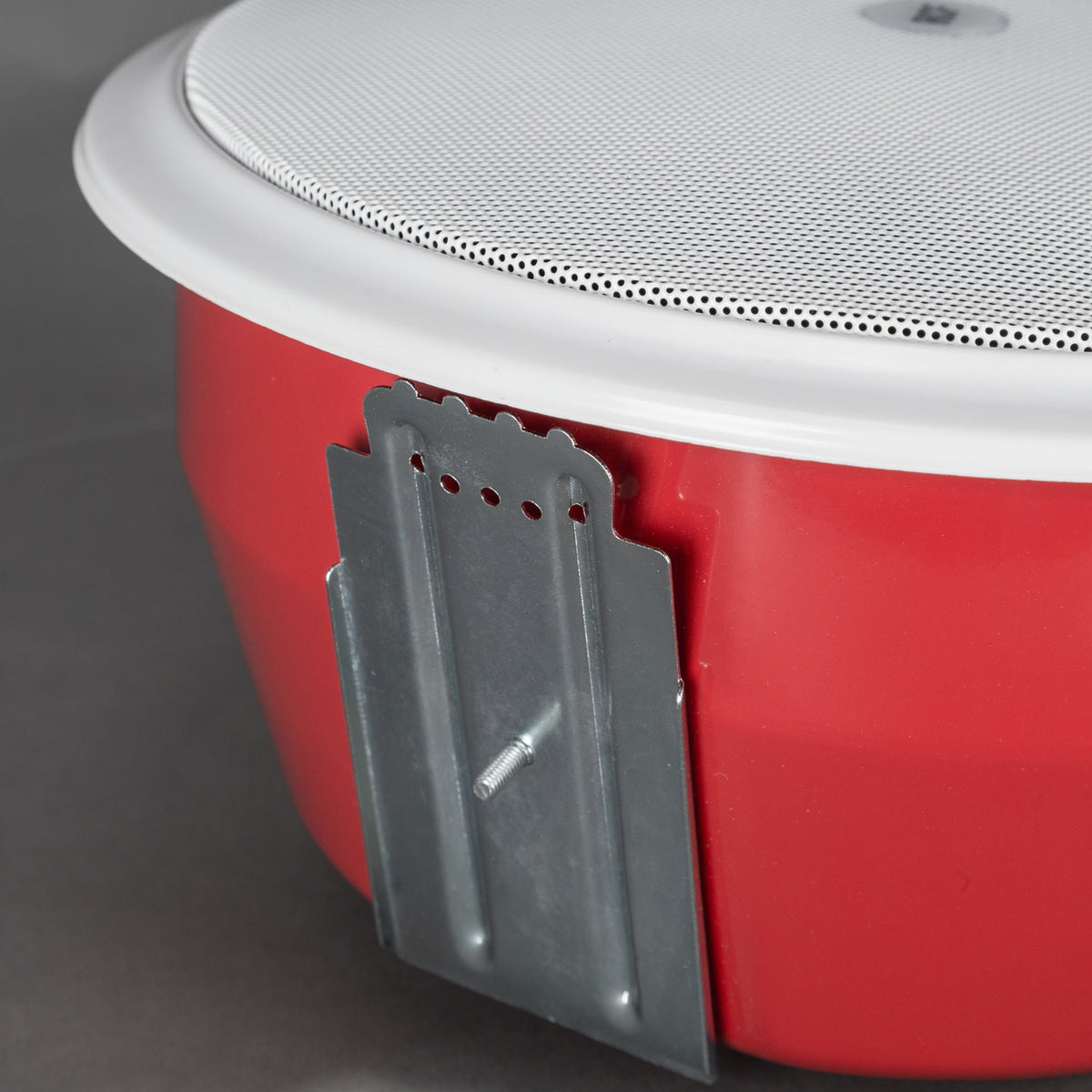

PL 82EN is a two-way ceiling speaker featuring a flameproof steel back can, designed for recess installation into ceilings or panels. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.
FEATURES
- 8" coaxial woofer with 0.75" dome tweeter.
- Power selectable (100 V): 20 W €“ 10 W €“ 5 W.
- 94 dB sensitivity.
- Colour white RAL 9016.
- Steel frame, grille and back can.
- In/out ceramic terminal block.
- Thermal fuse protection.
Specifications
ACOUSTICAL SPECIFICATIONS
- Frequency Response (-10dB): 130 Hz - 20000 Hz
- Max SPL @ 1m: 106 dB
- Max SPL @ 4m: 94 dB
- Coverage angle: 160°
- System Sensitivity: 94 dB
- System Sensitivity 1W @ 4m: 82 dB
POWER SECTION
- Amplification: Full Range
- Power Handling: 20 W
- Peak Power Handling: 80 W PEAK
- Protections: Thermal fuse
- Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
TRANSDUCERS
- Dome Tweeter: 1 x 0.75''
- Woofer: 1 x Coaxial 8''
INPUT/OUTPUT SECTION
- Input connectors: Ceramic screw terminals
- Output connectors: Ceramic screw terminals
- Constant Voltage Transformer: 100 V
- Power selection 1: 20 W - 500 ohm
- Power selection 2: 10 W - 1000 ohm
- Power selection 3: 5 W - 2000 ohm
STANDARD COMPLIANCE
- Safety agency: CE compliant
- EN54-24 certified: Yes
- CPR number: 0068-CPR-051/2017
PHYSICAL
- Cabinet/Case Material: Metal
- Hardware: Steel back cover
- Grille: Steel
- Color: White - RAL 9016
SIZE / WEIGHT
- Depth: 152 mm / 5.98 inches
- Recessed Depth: 125 mm / 4.92 inches
- Diameter: 272 mm / 10.71 inches
- Cut out diameter: 240 mm / 9.45 inches
- Weight: 3.42 kg / 7.54 lbs
SHIPPING INFORMATION
- Package Height: 180 mm / 7.09 inches
- Package Width: 300 mm / 11.81 inches
- Package Depth: 300 mm / 11.81 inches
- Package Weight: 3.42 kg / 7.54 lbs
