Overview

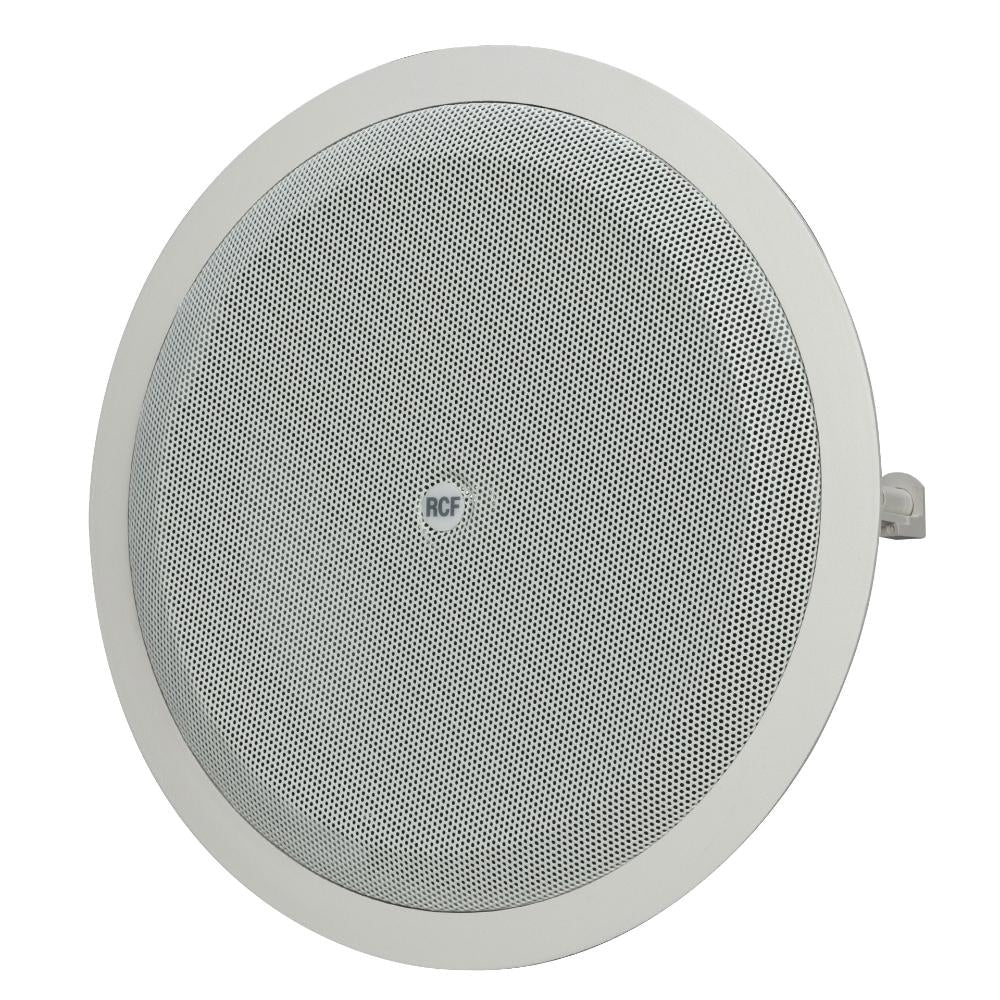

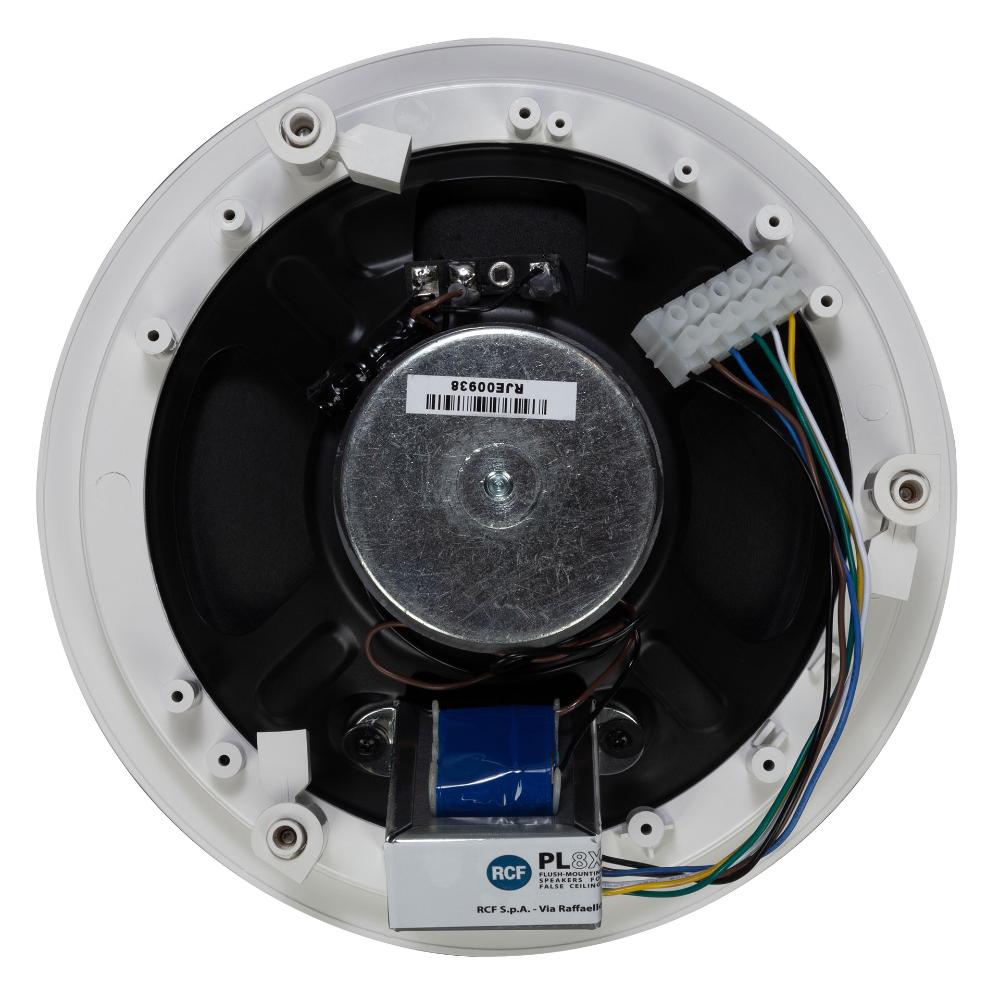

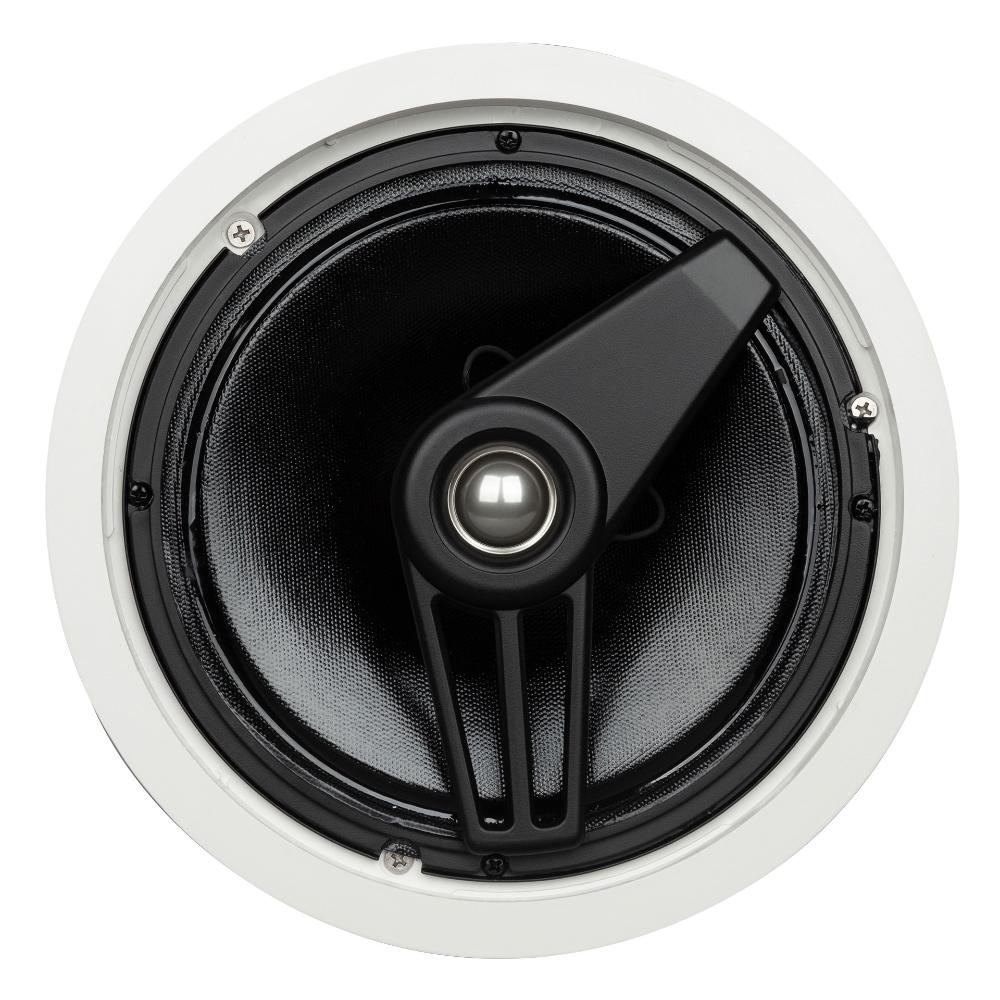

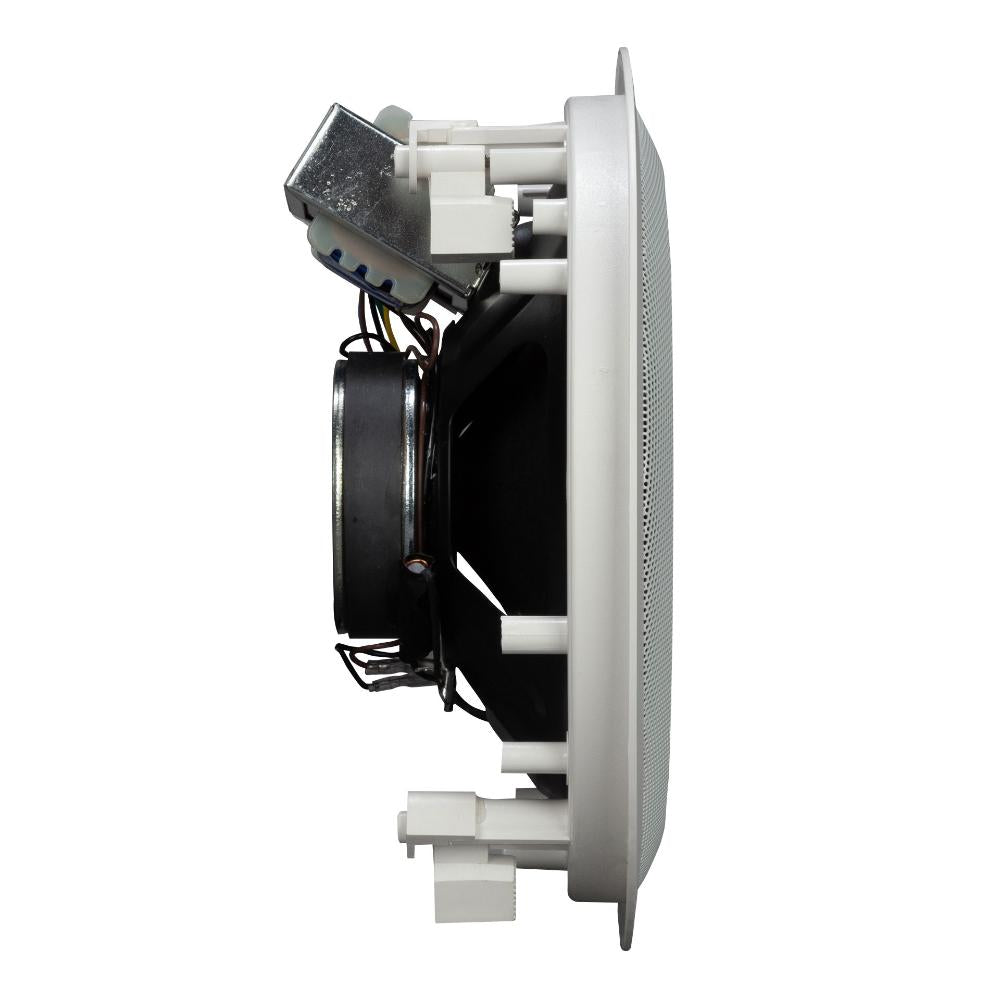

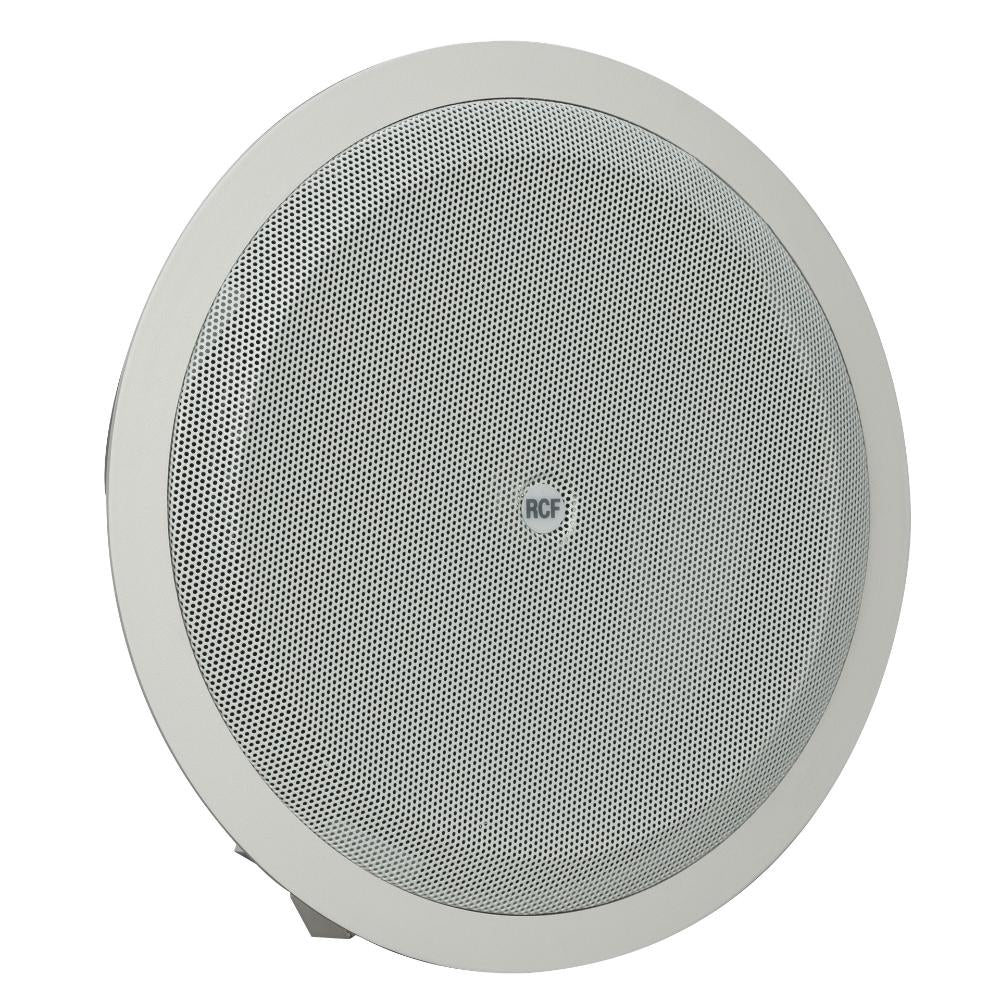

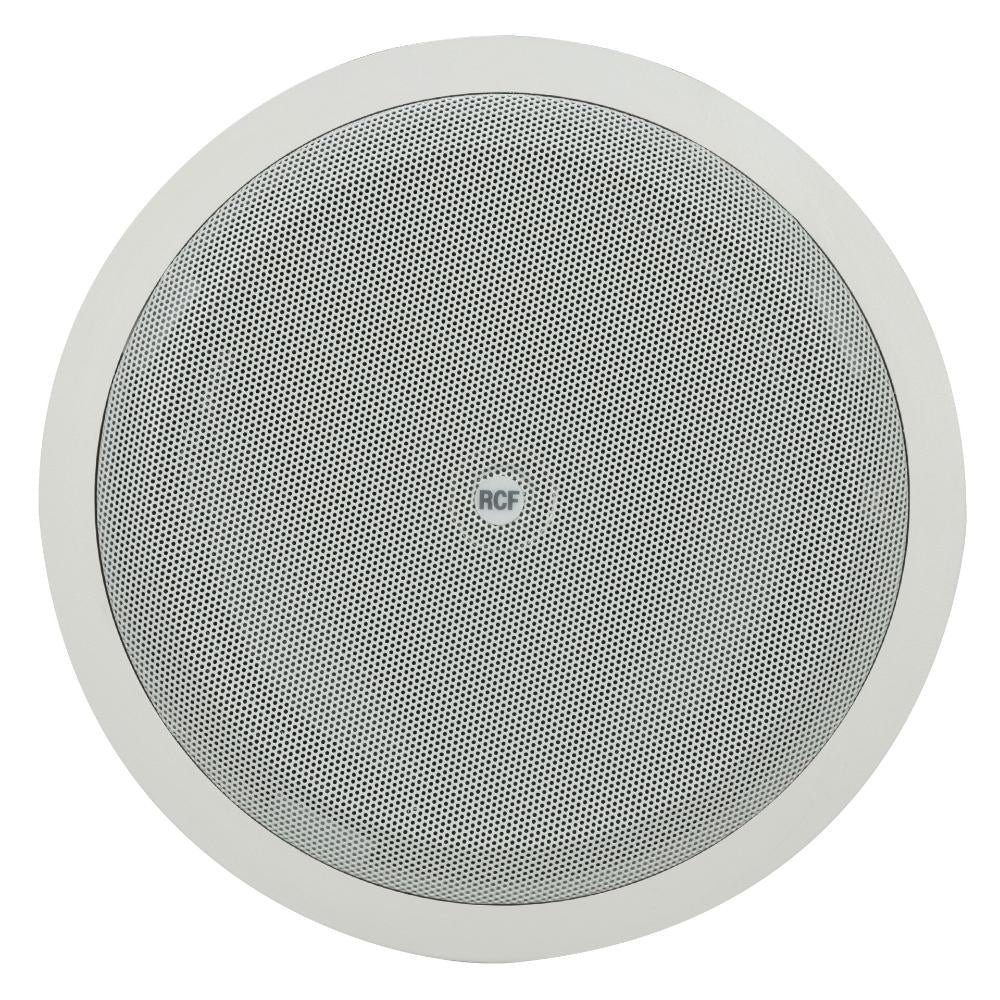

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8" coaxial woofer with a 1" tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Features- 8" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
- 93 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille
Specifications
ACOUSTICAL- Frequency Response (-10dB): 60 Hz - 20000 Hz
- Max SPL @ 1m: 109 dB
- Coverage angle: 80°
- System Sensitivity: 93 dB
- Amplification: Full Range
- Power Handling: 20 W RMS
- Peak Power Handling: 80 W PEAK
- Recommended Amplifiers: DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162
- Dome Tweeter: 1.0''
- Woofer: 8''
- Input connectors: Screw Terminals
- Output connectors: Screw Terminals

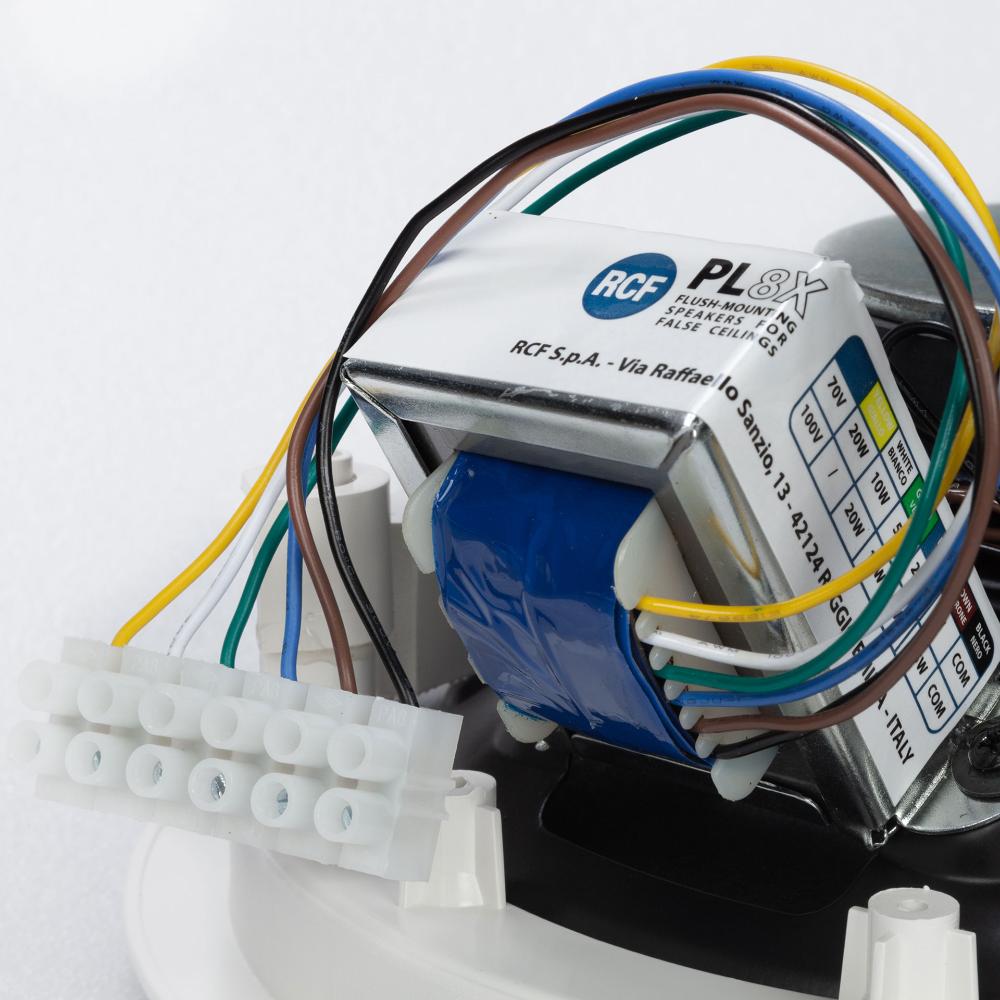

- Constant Voltage Transformer: 70/100 V
- Power selection 1: 20 W - 500 ohm
- Power selection 2: 10 W - 1000 ohm
- Power selection 3: 5 W - 2000 ohm
- Power selection 4: 2.5 W - 4000 ohm
- IP protection grade: IP 44
- Safety agency: CE compliant
- Cabinet/Case Material: Plastic
- Hardware: Plastic Material
- Grille: Aluminium
- Color: White - RAL 9003, Black - RAL 9005
- Depth: 88 mm / 3.46 inches
- Recessed Depth: 80 mm / 3.15 inches
- Diameter: 247 mm / 9.72 inches
- Cut out diameter: 224 mm / 8.82 inches
- Weight: 1.23 kg / 2.71 lbs
- Package Height: 280 mm / 11.02 inches
- Package Width: 280 mm / 11.02 inches
- Package Depth: 130 mm / 5.12 inches
- Package Weight: 2.09 kg / 4.61 lbs
