Overview
The SUB 15-AS is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer and a powerful 2200 Watts Class-D amplifier that delivers sound pressure levels up to 133 dB with exceptional headroom. Designed as the ideal complement for 8", 10" and 12" loudspeakers, it includes Bass Motion Control algorithm for extended bass response at any volume. The connection panel features mono/stereo Combo inputs, an XLR stereo link, and XLR crossover outputs. Rear panel controls include volume, polarity, and low-pass frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 15-AS is perfect for small to mid-sized venues and portable applications.
Features- 2200Watt
- 133 dB max SPL
- 35Hz - 400Hz frequency response
- 15" Woofer, 3.0" voice coil
- Birch tour grade cabinet with polyurea coating
- Mono/Stereo XLR/TRS combo In + Link, Stereo XLR Xover Out
- Volume, polarity, and lowpass frequency selection

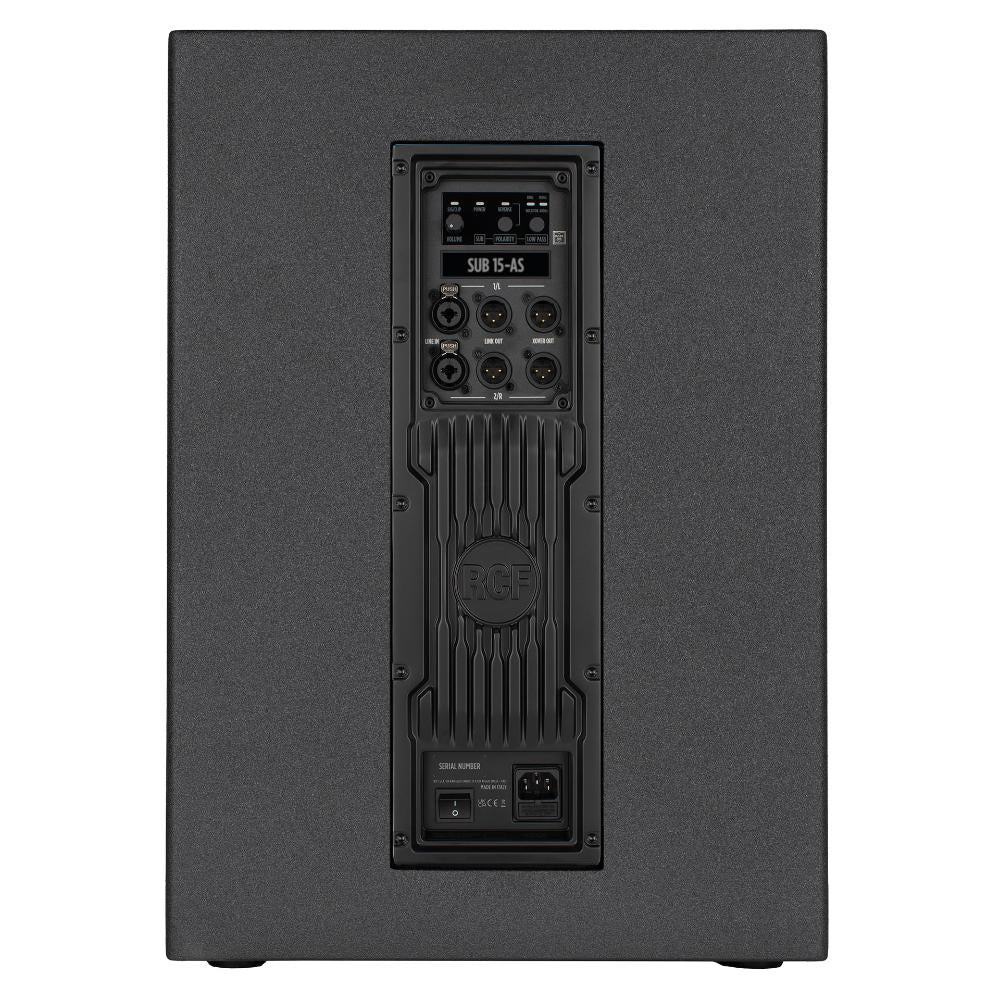

Specifications
ACOUSTICAL- Frequency Response: 35 Hz - 400 Hz
- Max SPL @ 1m: 133 dB
- Woofer: 1 x 15'', 3.0'' v.c
- Input signal: bal/unbal
- Input connectors: Combo XLR/Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Protections: Thermal
- Limiter: Soft Limiter
- Controls: Volume, Polarity, Low pass filter frequency
- Total Power: 2200 W Peak
- Cooling: Convection
- Connections: VDE
- Safety agency: CE compliant
- Cabinet/Case Material: Baltic birch plywood
- Handles: 1 each side
- Pole mount/Cap: M20 thread
- Grille: Steel with clothing
- Color: Black
- Height: 590 mm / 23.23 inches
- Width: 420 mm / 16.54 inches
- Depth: 590 mm / 23.23 inches
- Weight: 30 kg / 66.14 lbs
- Package Height: 648 mm / 25.51 inches
- Package Width: 638 mm / 25.12 inches
- Package Depth: 478 mm / 18.82 inches
- Package Weight: 34.9 kg / 76.94 lbs
