Overview

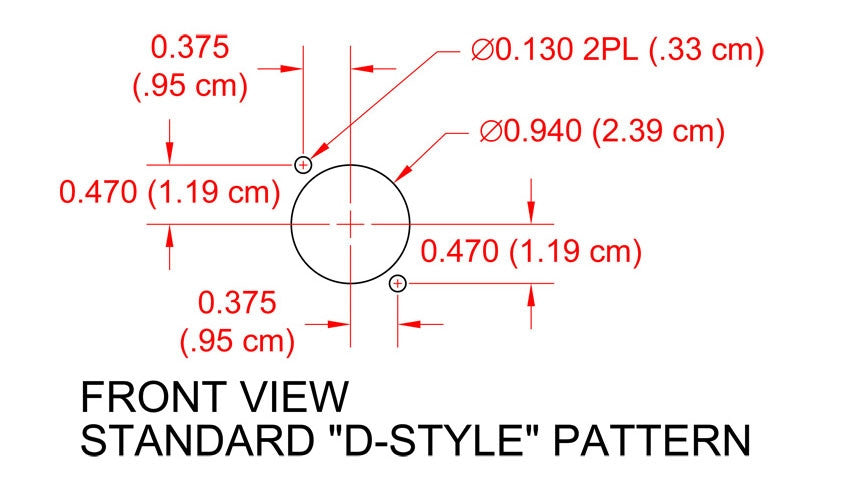

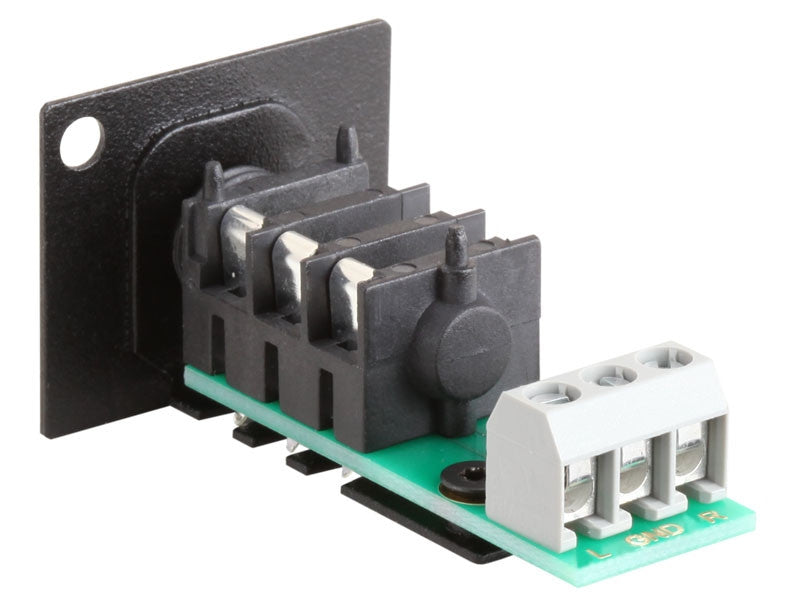

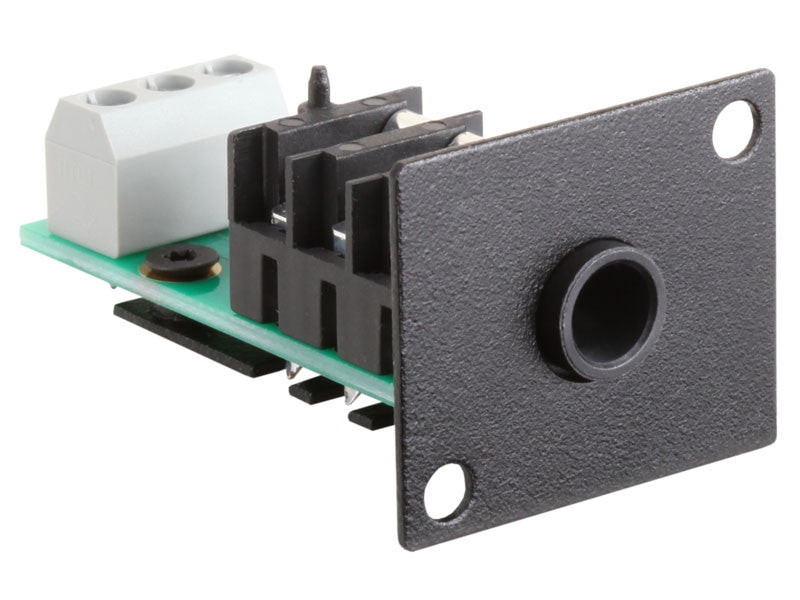

The AMS-1/4F is an accessory that mounts in AMS mounting frames and in standard D-style cutouts. It features a high quality 1/4" TRS jack that may be used as a line output, line input or headphone jack. A high quality terminal block is provided for external connections. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.
Features
- Mounts in D-Style Standard Cutouts
- Mounts in all RDL AMS Mounting Frames

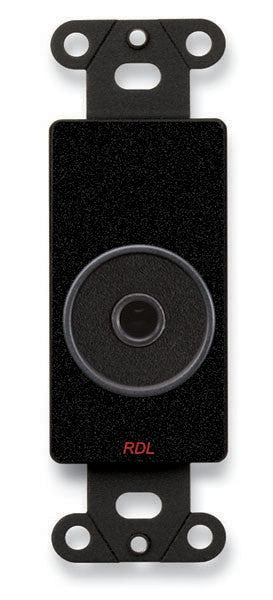

- Mounts in RDL Decora-Style Wall Plates
- Availability of a Wide Variety of Associated AMS Accessories
- Bezel Provides Professional Aesthetic Appearance
- Provides Flexibility for Connections and Controls
Specifications
| Mounting | AMS mounts; D-Style cutouts |

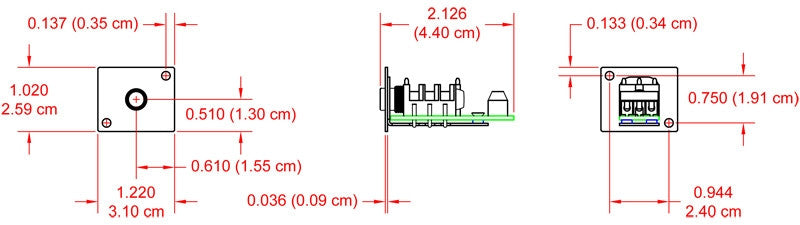

| Depth (behind the panel) | 2.06 in. |
| Ambient Operating Environment | -10° C to 70° C |
| Package Type | Bag |
| WEEE Weight | 0.044 lbs |
| Shipping Weight | 0.072 lbs |
| Tariff code | 8536.69.4030 |
