Overview

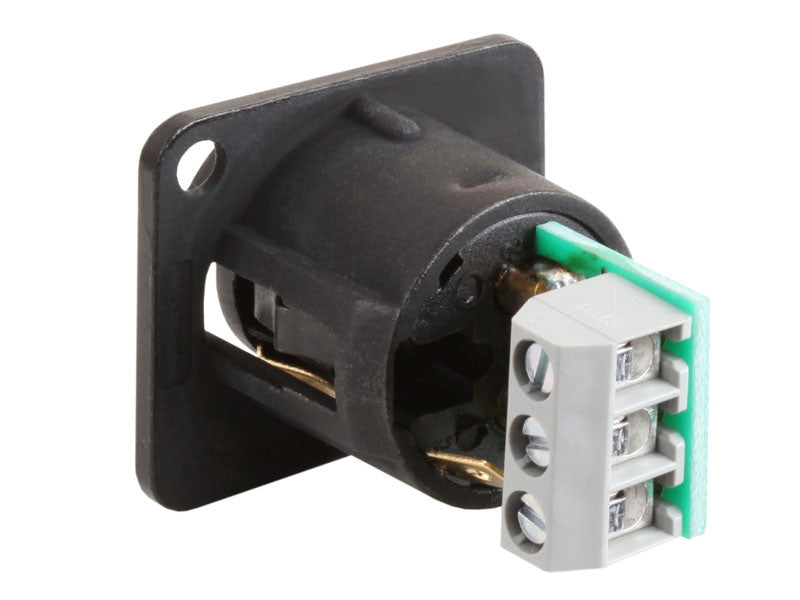

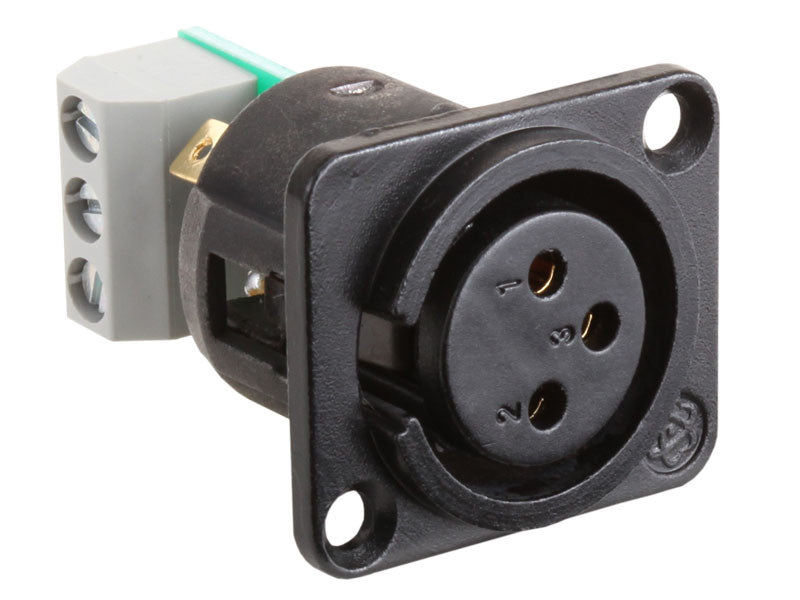

The AMS-XLF is a metal female XLR connector equipped with a high quality terminal block for audio connections. The connector mounts in AMS mounting frames and in standard D-style cutouts.
Features

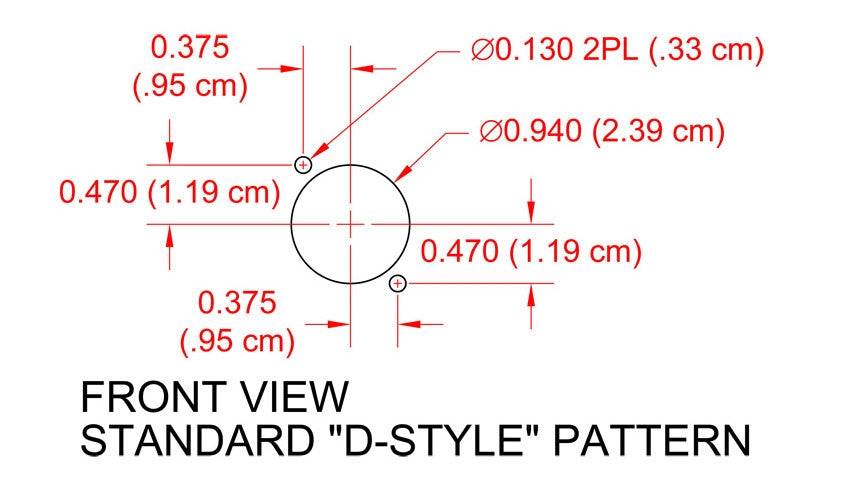

- Mounts in D-Style Standard Cutouts
- Mounts in all RDL AMS Mounting Frames

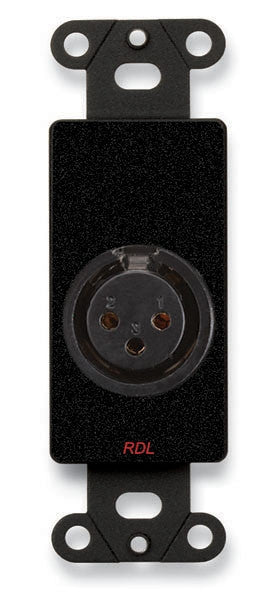

- Mounts in RDL Decora-Style Wall Plates
- Availability of a Wide Variety of Associated AMS Accessories
- Provides Flexibility for Connections and Controls
Specifications
| Mounting | AMS mounts; D-Style cutouts |

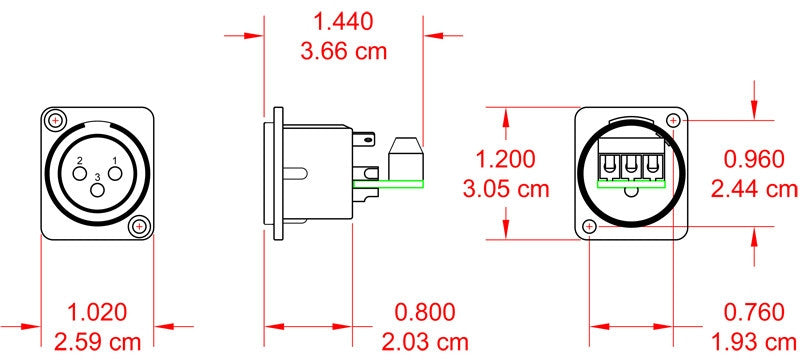

| Depth (behind the panel) | 1.35 in |
| Ambient Operating Environment | -20° C to 70° C |
| Package Type | Bag |
| WEEE Weight | 0.055 lbs |
| Shipping Weight | 0.07 lbs |
| Tariff code | 8536.69.4030 |
