Features
- Ground Isolation in Unbalanced Line

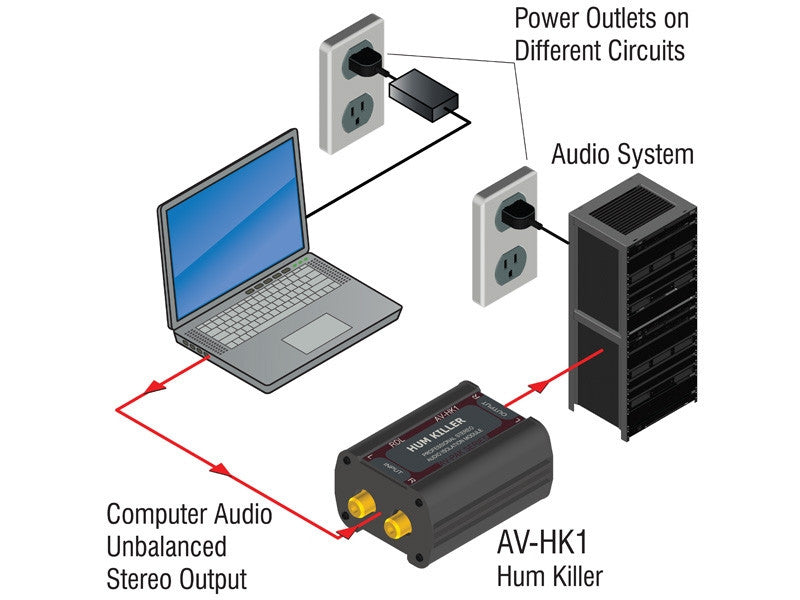

- Ground-Loop Elimination
- Unbalanced Stereo Galvanic Isolation
- Isolation in Rugged Field Case
- Portable or Permanent Isolation Module
Specifications
| Inputs (2) | -10 dBV nominal, 10 k? |
| Outputs (2) | -10 dBV nominal, 10 k? |
| Frequency Response | 20 Hz to 20 kHz (± 3 dB) |
| THD+N | < 0.5% (30 Hz to 20 kHz); 0.05% @ 1 kHz |
| Crosstalk | < 60 dB (20 Hz to 20 kHz, 100 ? source, 10 k? load); < 70 dB @ 1 kHz |
| Finish | RDL Dark ULTRASTYLE™ dark gray with beige lettering) |
| Ambient Operating Environment | 0° C to 55° C |

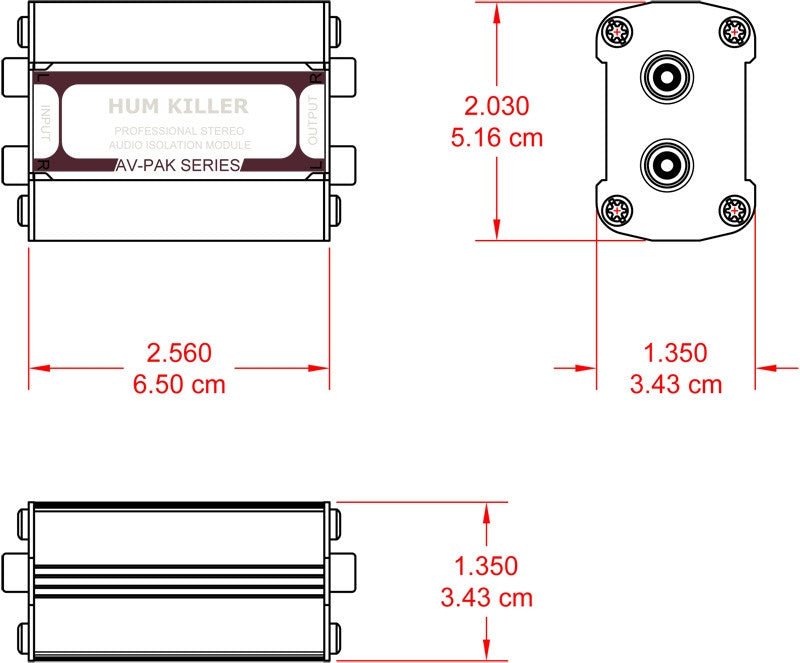

| Dimensions | Height: 1.38 in. 3.5 cm (unmounted); Height: 1.44 in. 3.66 cm (mounted); Width: 2.05 in. 5.2 cm; Length: 2.90 in. 7.37 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.705 lbs. |
| WEEE weight | 0.44 lbs. |
| Tariff code | 8504.31.2000 |
