Features
- 24 Vdc Switching Power Supply
- North American AC Plug
- Energy Star Level VI
- DC Plug for Quick Connection to Numerous RDL Modules
- dc Plug May be Cut Off for Hard Wiring to RDL Modules
- Compatible with Associated RDL PS Mounting Accessories
Specifications
| Input | 100 to 240 VAC |
| Output
24 Vdc, 500 mA (UL, CSA)
| |

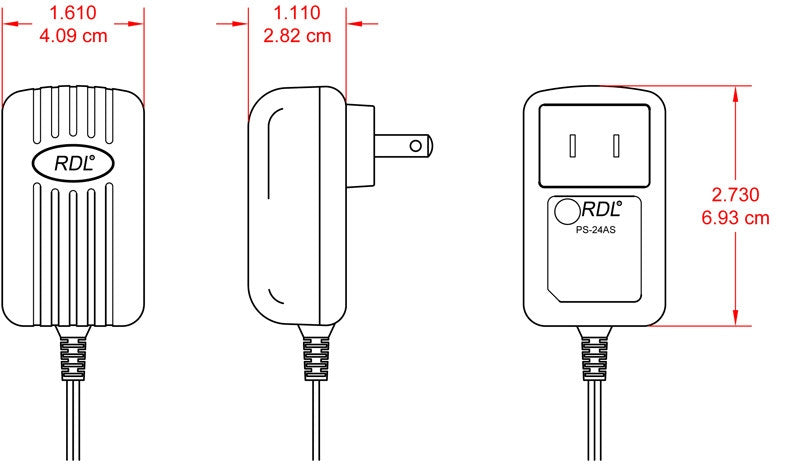

| Dimensions | 1.65 in. (4.2 cm) x 2.75 in. (7 cm) x 1.45 in. (3.7 cm), nominal |
| Efficiency | ENERGY STAR Level VI |
| Ambient Operating Environment | 0° C to 40° C Maximum |
| Package Type | Cardboard Box |
| Package Dimensions | 3.5 x 2.625 x 2.125 in. |
| Shipping Weight | 0.25 lbs. |
| WEEE Weight | 0.2 |
