Overview

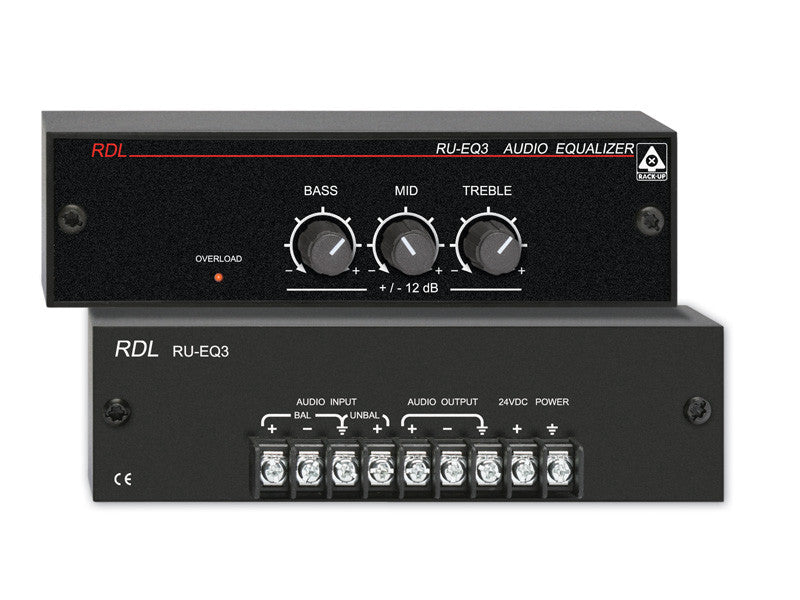

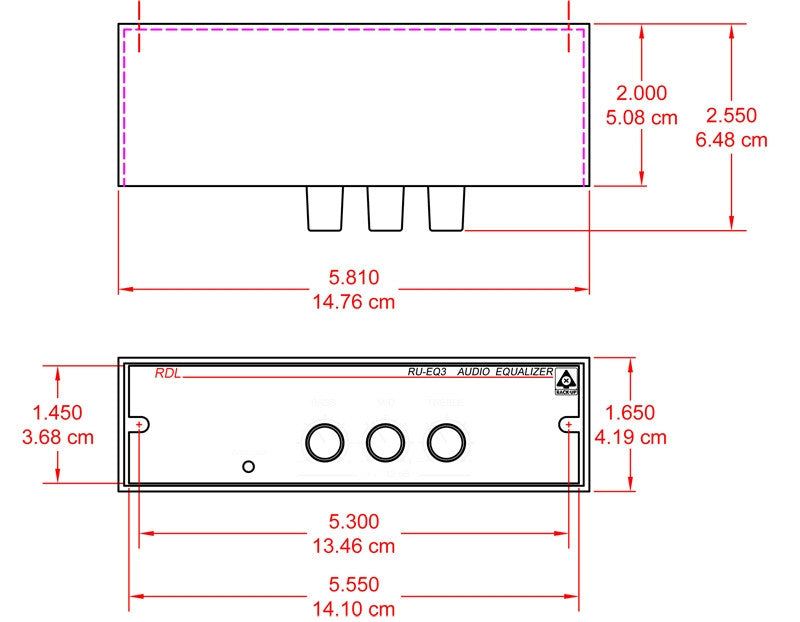

The RU-EQ3 features a balanced bridging input, which may be connected unbalanced if desired. The output driver is 150 ? balanced, and is intended to drive unbalanced or balanced lines of 150 ? or higher impedance. Front-panel knobs provide active equalization, each controlling a separate audio band. These bands were carefully selected to yield a module that works effectively in a wide variety of systems. Each band's center frequency can be either boosted or attenuated by at least 12 dB. The Q of the low and high band equalizers was selected so that those controls can be functionally considered as a total bass band or treble band control. The RU-EQ3 adds a third control. This midrange control is optimized to voice band adjustment, with the overlap tailored to provide smooth operation for wideband music applications. The RU-EQ3's OVERLOAD indicator flashes if either the input or output stage clips.
Features
- 3-Band Audio Equalizer
- Custom Tailored Audio Bandwidth
- User-Accessible Adjustments
- High-Density Rack-Mount Convenience
- Low-Noise, Low-Distortion Equalizer
Specifications
| Input | 100 k? balanced or unbalanced bridging; line-level |
| THD+N | < 0.030%; 0.010% typ. (1 kHz, +4 dBu reference; flat response) |
| CMRR | > 60 dB (100 Hz) |
| Frequency Response | 20 Hz to 22 kHz (EQ set flat; ± 0.5 dB into 600 ?) 10 Hz to 22 kHz (EQ set flat; ± 0.5 dB into 10 k?) |
| Noise | < -80 dB (below +4 dBu) |
| Center Frequencies | Low Band: 80 Hz Mid Band: 1 kHz High Band: 30 kHz |
| Bandwidth | Low Band: 20 Hz to 300 Hz Mid Band: 200 Hz to 7 kHz High Band: 3 kHz to 30 kHz |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 25 mA |
| Package Type | Cardboard Box |
| Package Dimensions | 4.375 x 7 x 2.25 in. |
| Shipping Weight | 0.8 lbs. |
| WEEE weight | 0.565 lbs. |
| Tariff code | 8518.40.2000 |
