Overview

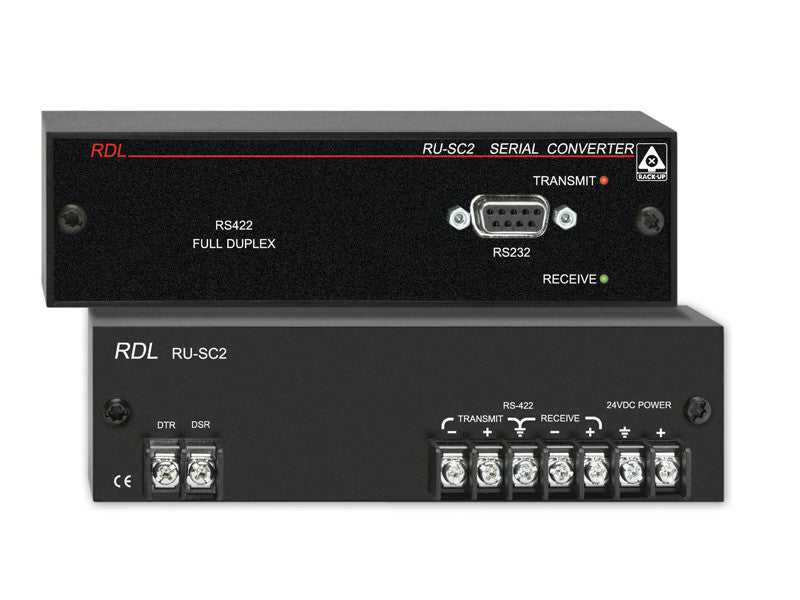

The RU-SC2 is the ideal choice in installations when two RS-232 devices requiring full-duplex communication are to be connected at a long distance. Connection to the RS-232 device is made on the front panel. The RS-422 input and output connections and power connections are made on the rear panel through full-size, clearly identified, barrier block terminals. Two RU-SC2s may be connected (using the RS-422 connections) at each end of 2-pair of long, balanced, twisted-pair line to permit feeding data between two RS-232 ports, thereby permitting serial communications over much greater distances than with conventional serial cables.
Features
- Conversion RS-232 ⇔ RS-422
- Serial Data Over Long Lines
- Rack-Mountable Convenience
Specifications
| Input/Output | 1 each RS-232 (front panel-DB9 female) and RS-422 (rear-panel barrier block) |
| Baud Rate | Determined by RS-232 device, up to 115.2 kbps |
| Indicators | 2 LED indicators (Transmit and receive) |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 125 mA |
| Package Type | Cardboard Box |

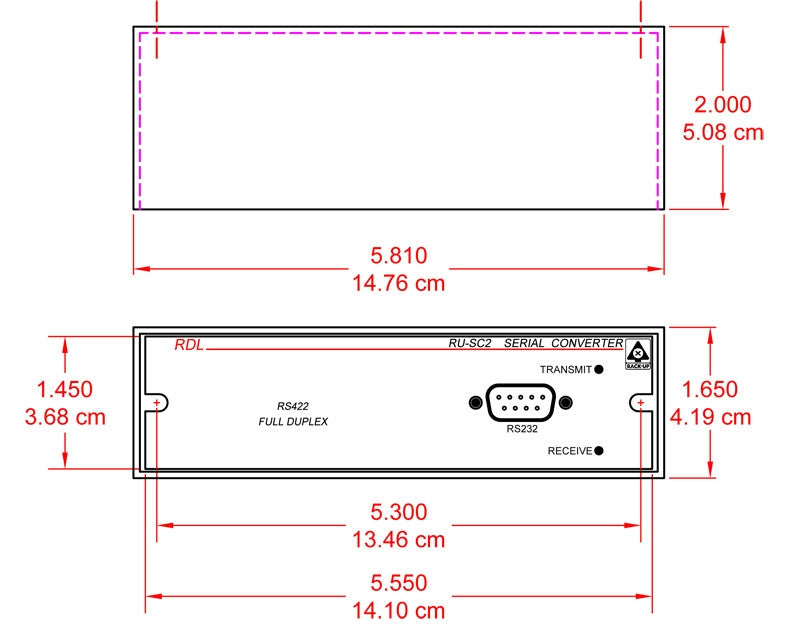

| Package Dimensions | 4.375 x 7 x 2.25 in. |
| Shipping Weight | 0.795 lbs. |
| WEEE weight | 0.55 lbs. |
| Tariff code | 8517.18.0000 |
